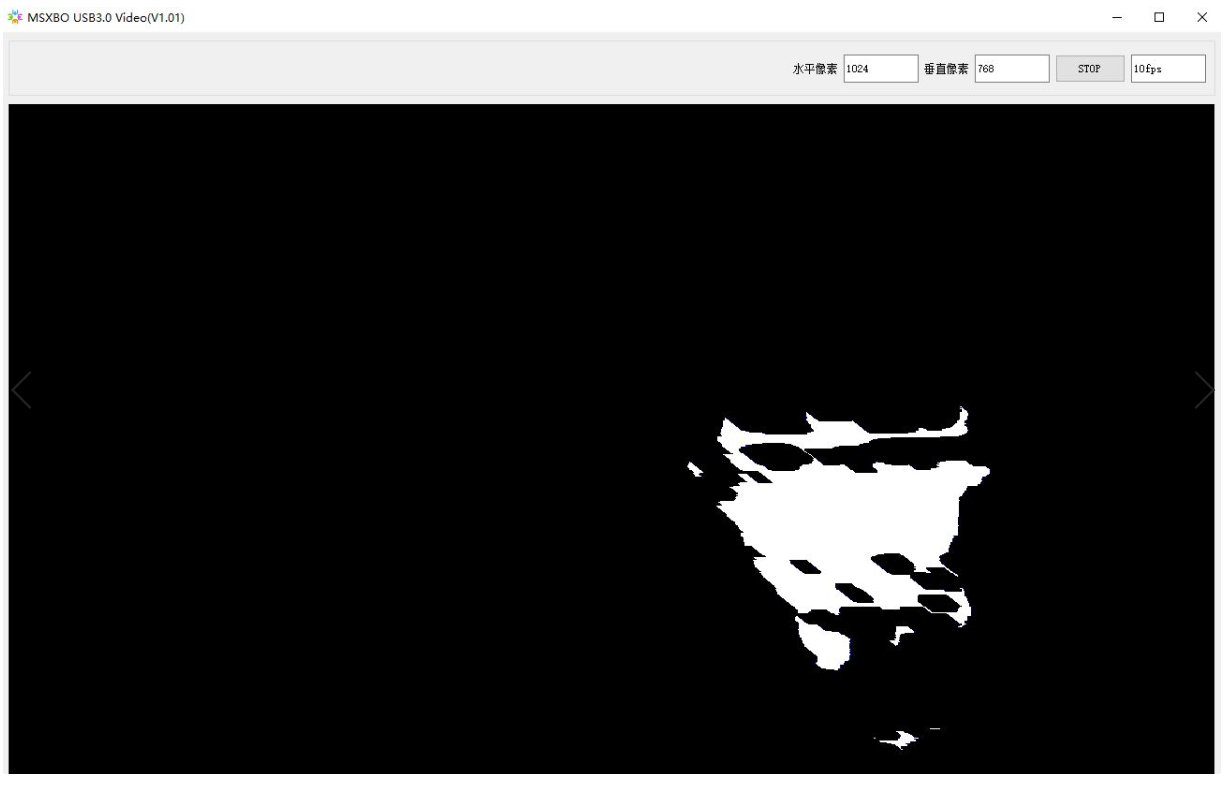

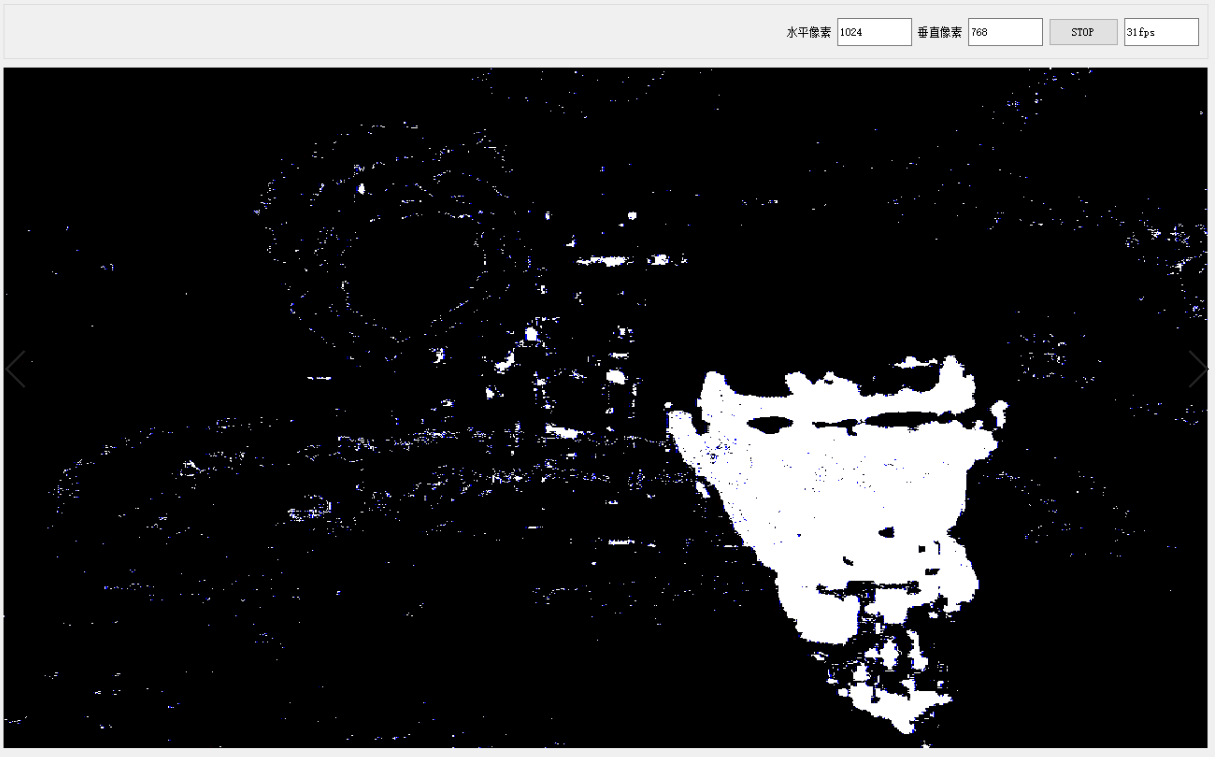

我们上一篇文章讲解了MATLABl利用肤色检测模型进行人脸检测，也给出了完整的MATLAB代码。同学们学习本篇博客的时候一定要先学习上篇文章，因为上篇文章介绍了整个算法的流程，比看FPGA的实现要简单的多。 本篇博客，我们将利用FPGA实现一副图片中的人脸检测：PC机通过千兆网发送一幅图片经过肤色检测、腐蚀、定位之后将定位信息传递给USB3.0驱动端，再将原始图像转存到DDR3中，然后经过USB3.0将定位后的原始图像发送到上位机显示。 本次实验所用到的软硬件环境如下： 肤色检测的原理我们上一篇博客已经进行了介绍，首先将RGB分量信息转换成YYCrCb信息，其中Y是亮度信息、Cr表示红色信息、Cb表示绿色信息。然后利用红色分量、绿色分量信息进行肤色定位。 这里原理相信大家经过上篇博客的学习已经学会，这里我们直接给出相应的代码供大家学习： 我们会在最后给出最终工程的代码，这里为了简洁性不再给出部分代码。整体的实验结果图如下： 从上面的肤色检测图中，我们可以看出肤色检测之后有许多噪点，那么我们便使用腐蚀操作将上面的噪点腐蚀掉。其实最好的操作是先腐蚀再膨胀，这样可以将图像定位的更准确，但是我们因为简洁行的原因没有使用膨胀操作。其次这里我们使用的矩阵式1313的矩阵，并没有使用33的矩阵，因为矩阵太小没办法腐蚀掉全部的噪点。 这里我们直接给出相应的代码： 腐蚀模块代码： 上面的代码写的很简洁有技巧，很值得大家借鉴，因为13*13的矩阵涉及了太多的元素。 腐蚀之后的图像： 图像定位与画框的逻辑流程和MATLAB代码中的完全相同，我们这里不在多加赘述。 图像定位的代码如下，face_seek模块： 画框的代码在输出图像的部分进行操作，usb3_drive模块代码如下： 我们最终实验的结果如下： 这里因为ImapBox博客字数的限制，工程源码我们将在第二篇博客中给出。需要的同学可以自取。 创作不易，认为文章有帮助的同学们可以关注、、转发支持。原工程在群中，需要的同学可以进群自取。或者对文章有什么看法或者需要更近一步交流的同学，可以加入下面的群：
项目简述
1、VIVADO2019.1软件环境
2、Modelsim10.7c仿真环境
3.米联客MA7035FA（100T）开发板
4、米联客USB3.0上位机软件
5、V3学院千兆网上位机

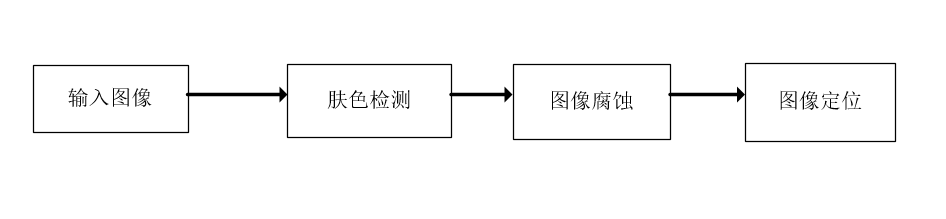

整个项目的流程图如上图，我们利用上面的程序框图进行书写便可以完成图像定位。肤色检测
肤色检测代码
`timescale 1ns / 1ps // ********************************************************************************* // Project Name : OSXXXX // Author : zhangningning // Email : nnzhang1996@foxmail.com // Website : // Module Name : face_test.v // Create Time : 2020-04-11 10:57:34 // Editor : sublime text3, tab size (4) // CopyRight(c) : All Rights Reserved // // ********************************************************************************* // Modification History: // Date By Version Change Description // ----------------------------------------------------------------------- // XXXX zhangningning 1.0 Original // // ********************************************************************************* module face_test( //System Interfaces input sclk , input rst_n , //Communication Interfaces input [23:0] ycbcr_data , input ycbcr_flag , output reg [ 7:0] face_data , output reg face_flag ); //======================================================================================== //**************Define Parameter and Internal Signals********************************** //========================================================================================/ parameter CB_LOWER = 77; parameter CB_UPPER = 127; parameter CR_LOWER = 133; parameter CR_UPPER = 173; //======================================================================================== //************** Main Code ********************************** //========================================================================================/ always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) face_data <= 8'd0; else if(ycbcr_data[15:8] > CB_LOWER && ycbcr_data[15:8] < CB_UPPER && ycbcr_data[7:0] > CR_LOWER && ycbcr_data[7:0] < CR_UPPER) face_data <= 8'd255; else face_data <= 8'd0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) face_flag <= 1'b0; else face_flag <= ycbcr_flag; endmodule 肤色检测结果
腐蚀图像
腐蚀图像代码
13*13矩阵模块代码，mat_13x13模块：`timescale 1ns / 1ps // ********************************************************************************* // Project Name : OSXXXX // Author : zhangningning // Email : nnzhang1996@foxmail.com // Website : // Module Name : mat_13x13.v // Create Time : 2020-04-11 22:13:48 // Editor : sublime text3, tab size (2) // CopyRight(c) : All Rights Reserved // // ********************************************************************************* // Modification History: // Date By Version Change Description // ----------------------------------------------------------------------- // XXXX zhangningning 1.0 Original // // ********************************************************************************* module mat_13x13( //System Interfaces input sclk , input rst_n , //Communication Interfaces input [ 7:0] rx_data , input pi_flag , output wire [ 7:0] mat_row1 , output wire [ 7:0] mat_row2 , output wire [ 7:0] mat_row3 , output wire [ 7:0] mat_row4 , output wire [ 7:0] mat_row5 , output wire [ 7:0] mat_row6 , output wire [ 7:0] mat_row7 , output wire [ 7:0] mat_row8 , output wire [ 7:0] mat_row9 , output wire [ 7:0] mat_row10 , output wire [ 7:0] mat_row11 , output wire [ 7:0] mat_row12 , output wire [ 7:0] mat_row13 , output wire mat_flag ); //======================================================================================== //**************Define Parameter and Internal Signals********************************** //========================================================================================/ parameter COL_NUM = 1024 ; parameter ROW_NUM = 768 ; reg [10:0] col_cnt ; reg [10:0] row_cnt ; wire wr_en1 ; wire wr_en2 ; wire wr_en3 ; wire wr_en4 ; wire wr_en5 ; wire wr_en6 ; wire wr_en7 ; wire wr_en8 ; wire wr_en9 ; wire wr_en10 ; wire wr_en11 ; wire wr_en12 ; wire wr_en13 ; wire rd_en1 ; wire rd_en2 ; wire rd_en3 ; wire rd_en4 ; wire rd_en5 ; wire rd_en6 ; wire rd_en7 ; wire rd_en8 ; wire rd_en9 ; wire rd_en10 ; wire rd_en11 ; wire rd_en12 ; wire rd_en13 ; wire [ 7:0] fifo1_rd_data ; wire [ 7:0] fifo2_rd_data ; wire [ 7:0] fifo3_rd_data ; wire [ 7:0] fifo4_rd_data ; wire [ 7:0] fifo5_rd_data ; wire [ 7:0] fifo6_rd_data ; wire [ 7:0] fifo7_rd_data ; wire [ 7:0] fifo8_rd_data ; wire [ 7:0] fifo9_rd_data ; wire [ 7:0] fifo10_rd_data ; wire [ 7:0] fifo11_rd_data ; wire [ 7:0] fifo12_rd_data ; wire [ 7:0] fifo13_rd_data ; //======================================================================================== //************** Main Code ********************************** //========================================================================================/ assign wr_en1 = pi_flag; assign wr_en2 = row_cnt >= 11'd1 ? pi_flag : 1'b0; assign wr_en3 = row_cnt >= 11'd2 ? pi_flag : 1'b0; assign wr_en4 = row_cnt >= 11'd3 ? pi_flag : 1'b0; assign wr_en5 = row_cnt >= 11'd4 ? pi_flag : 1'b0; assign wr_en6 = row_cnt >= 11'd5 ? pi_flag : 1'b0; assign wr_en7 = row_cnt >= 11'd6 ? pi_flag : 1'b0; assign wr_en8 = row_cnt >= 11'd7 ? pi_flag : 1'b0; assign wr_en9 = row_cnt >= 11'd8 ? pi_flag : 1'b0; assign wr_en10 = row_cnt >= 11'd9 ? pi_flag : 1'b0; assign wr_en11 = row_cnt >= 11'd10 ? pi_flag : 1'b0; assign wr_en12 = row_cnt >= 11'd11 ? pi_flag : 1'b0; assign wr_en13 = row_cnt >= 11'd12 ? pi_flag : 1'b0; assign rd_en1 = wr_en2; assign rd_en2 = wr_en3; assign rd_en3 = wr_en4; assign rd_en4 = wr_en5; assign rd_en5 = wr_en6; assign rd_en6 = wr_en7; assign rd_en7 = wr_en8; assign rd_en8 = wr_en9; assign rd_en9 = wr_en10; assign rd_en10 = wr_en11; assign rd_en11 = wr_en12; assign rd_en12 = wr_en13; assign rd_en13 = mat_flag; assign mat_flag = row_cnt >= 11'd13 ? pi_flag : 1'b0; assign mat_row1 = fifo1_rd_data; assign mat_row2 = fifo2_rd_data; assign mat_row3 = fifo3_rd_data; assign mat_row4 = fifo4_rd_data; assign mat_row5 = fifo5_rd_data; assign mat_row6 = fifo6_rd_data; assign mat_row7 = fifo7_rd_data; assign mat_row8 = fifo8_rd_data; assign mat_row9 = fifo9_rd_data; assign mat_row10 = fifo10_rd_data; assign mat_row11 = fifo11_rd_data; assign mat_row12 = fifo12_rd_data; assign mat_row13 = fifo13_rd_data; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) col_cnt <= 11'd0; else if(col_cnt == COL_NUM-1 && pi_flag == 1'b1) col_cnt <= 11'd0; else if(pi_flag == 1'b1) col_cnt <= col_cnt + 1'b1; else col_cnt <= col_cnt; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) row_cnt <= 11'd0; else if(row_cnt == ROW_NUM-1 && col_cnt == COL_NUM-1 && pi_flag == 1'b1) row_cnt <= 11'd0; else if(col_cnt == COL_NUM-1 && pi_flag == 1'b1) row_cnt <= row_cnt + 1'b1; fifo_generator_4 mat_fifo1 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (rx_data ), // input wire [7 : 0] din .wr_en (wr_en1 ), // input wire wr_en .rd_en (rd_en1 ), // input wire rd_en .dout (fifo1_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo2 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo1_rd_data ), // input wire [7 : 0] din .wr_en (wr_en2 ), // input wire wr_en .rd_en (rd_en2 ), // input wire rd_en .dout (fifo2_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo3 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo2_rd_data ), // input wire [7 : 0] din .wr_en (wr_en3 ), // input wire wr_en .rd_en (rd_en3 ), // input wire rd_en .dout (fifo3_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo4 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo3_rd_data ), // input wire [7 : 0] din .wr_en (wr_en4 ), // input wire wr_en .rd_en (rd_en4 ), // input wire rd_en .dout (fifo4_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo5 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo4_rd_data ), // input wire [7 : 0] din .wr_en (wr_en5 ), // input wire wr_en .rd_en (rd_en5 ), // input wire rd_en .dout (fifo5_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo6 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo5_rd_data ), // input wire [7 : 0] din .wr_en (wr_en6 ), // input wire wr_en .rd_en (rd_en6 ), // input wire rd_en .dout (fifo6_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo7 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo6_rd_data ), // input wire [7 : 0] din .wr_en (wr_en7 ), // input wire wr_en .rd_en (rd_en7 ), // input wire rd_en .dout (fifo7_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo8 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo7_rd_data ), // input wire [7 : 0] din .wr_en (wr_en8 ), // input wire wr_en .rd_en (rd_en8 ), // input wire rd_en .dout (fifo8_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo9 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo8_rd_data ), // input wire [7 : 0] din .wr_en (wr_en9 ), // input wire wr_en .rd_en (rd_en9 ), // input wire rd_en .dout (fifo9_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo10 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo9_rd_data ), // input wire [7 : 0] din .wr_en (wr_en10 ), // input wire wr_en .rd_en (rd_en10 ), // input wire rd_en .dout (fifo10_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo11 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo10_rd_data ), // input wire [7 : 0] din .wr_en (wr_en11 ), // input wire wr_en .rd_en (rd_en11 ), // input wire rd_en .dout (fifo11_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo12 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo11_rd_data ), // input wire [7 : 0] din .wr_en (wr_en12 ), // input wire wr_en .rd_en (rd_en12 ), // input wire rd_en .dout (fifo12_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); fifo_generator_4 mat_fifo13 ( .clk (sclk ), // input wire clk .srst (~rst_n ), // input wire srst .din (fifo12_rd_data ), // input wire [7 : 0] din .wr_en (wr_en13 ), // input wire wr_en .rd_en (rd_en13 ), // input wire rd_en .dout (fifo13_rd_data ), // output wire [7 : 0] dout .full ( ), // output wire full .empty ( ) // output wire empty ); endmodule `timescale 1ns / 1ps // ********************************************************************************* // Project Name : OSXXXX // Author : zhangningning // Email : nnzhang1996@foxmail.com // Website : // Module Name : erode.v // Create Time : 2020-04-11 22:40:12 // Editor : sublime text3, tab size (4) // CopyRight(c) : All Rights Reserved // // ********************************************************************************* // Modification History: // Date By Version Change Description // ----------------------------------------------------------------------- // XXXX zhangningning 1.0 Original // // ********************************************************************************* module erode( //System Interfaces input sclk , input rst_n , //Communication Interfaces input [ 7:0] rx_data , input pi_flag , output reg [ 7:0] tx_data , output wire po_flag ); //======================================================================================== //**************Define Parameter and Internal Signals********************************** //========================================================================================/ wire [ 7:0] mat_row1 ; wire [ 7:0] mat_row2 ; wire [ 7:0] mat_row3 ; wire [ 7:0] mat_row4 ; wire [ 7:0] mat_row5 ; wire [ 7:0] mat_row6 ; wire [ 7:0] mat_row7 ; wire [ 7:0] mat_row8 ; wire [ 7:0] mat_row9 ; wire [ 7:0] mat_row10 ; wire [ 7:0] mat_row11 ; wire [ 7:0] mat_row12 ; wire [ 7:0] mat_row13 ; reg [ 7:0] mat_row1_r[12:0] ; reg [ 7:0] mat_row2_r[12:0] ; reg [ 7:0] mat_row3_r[12:0] ; reg [ 7:0] mat_row4_r[12:0] ; reg [ 7:0] mat_row5_r[12:0] ; reg [ 7:0] mat_row6_r[12:0] ; reg [ 7:0] mat_row7_r[12:0] ; reg [ 7:0] mat_row8_r[12:0] ; reg [ 7:0] mat_row9_r[12:0] ; reg [ 7:0] mat_row10_r[12:0] ; reg [ 7:0] mat_row11_r[12:0] ; reg [ 7:0] mat_row12_r[12:0] ; reg [ 7:0] mat_row13_r[12:0] ; wire mat_flag ; reg mat_flag_r1 ; reg mat_flag_r2 ; reg mat_flag_r3 ; reg mat_flag_r4 ; reg mat_flag_r5 ; reg mat_flag_r6 ; reg mat_flag_r7 ; reg mat_flag_r8 ; reg mat_flag_r9 ; reg mat_flag_r10 ; reg mat_flag_r11 ; reg mat_flag_r12 ; reg mat_flag_r13 ; reg mat_flag_r14 ; reg mat_flag_r15 ; reg mat_flag_r16 ; reg erode_flag1 ; reg erode_flag2 ; reg erode_flag3 ; reg erode_flag4 ; reg erode_flag5 ; reg erode_flag6 ; reg erode_flag7 ; reg erode_flag8 ; reg erode_flag9 ; reg erode_flag10 ; reg erode_flag11 ; reg erode_flag12 ; reg erode_flag13 ; //======================================================================================== //************** Main Code ********************************** //========================================================================================/ assign po_flag = mat_flag_r16 && mat_flag_r3; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0)begin mat_row1_r[0] <= 8'd0; mat_row2_r[0] <= 8'd0; mat_row3_r[0] <= 8'd0; mat_row4_r[0] <= 8'd0; mat_row5_r[0] <= 8'd0; mat_row6_r[0] <= 8'd0; mat_row7_r[0] <= 8'd0; mat_row8_r[0] <= 8'd0; mat_row9_r[0] <= 8'd0; mat_row10_r[0] <= 8'd0; mat_row11_r[0] <= 8'd0; mat_row12_r[0] <= 8'd0; mat_row13_r[0] <= 8'd0; end else begin mat_row1_r[0] <= mat_row1; mat_row2_r[0] <= mat_row2; mat_row3_r[0] <= mat_row3; mat_row4_r[0] <= mat_row4; mat_row5_r[0] <= mat_row5; mat_row6_r[0] <= mat_row6; mat_row7_r[0] <= mat_row7; mat_row8_r[0] <= mat_row8; mat_row9_r[0] <= mat_row9; mat_row10_r[0] <= mat_row10; mat_row11_r[0] <= mat_row11; mat_row12_r[0] <= mat_row12; mat_row13_r[0] <= mat_row13; end genvar i; generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row1_r[i] <= 8'd0; else mat_row1_r[i] <= mat_row1_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row2_r[i] <= 8'd0; else mat_row2_r[i] <= mat_row2_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row3_r[i] <= 8'd0; else mat_row3_r[i] <= mat_row3_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row4_r[i] <= 8'd0; else mat_row4_r[i] <= mat_row4_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row5_r[i] <= 8'd0; else mat_row5_r[i] <= mat_row5_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row6_r[i] <= 8'd0; else mat_row6_r[i] <= mat_row6_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row7_r[i] <= 8'd0; else mat_row7_r[i] <= mat_row7_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row8_r[i] <= 8'd0; else mat_row8_r[i] <= mat_row8_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row9_r[i] <= 8'd0; else mat_row9_r[i] <= mat_row9_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row10_r[i] <= 8'd0; else mat_row10_r[i] <= mat_row10_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row11_r[i] <= 8'd0; else mat_row11_r[i] <= mat_row11_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row12_r[i] <= 8'd0; else mat_row12_r[i] <= mat_row12_r[i-1]; endgenerate generate for (i=1; i < 13; i=i+1) always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) mat_row13_r[i] <= 8'd0; else mat_row13_r[i] <= mat_row13_r[i-1]; endgenerate always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag1 <= 1'b0; else if(mat_row1_r[12] == 255 && mat_row1_r[11] == 255 && mat_row1_r[10] == 255 && mat_row1_r[9] == 255 && mat_row1_r[8] == 255 && mat_row1_r[7] == 255 && mat_row1_r[6] == 255 && mat_row1_r[5] == 255 && mat_row1_r[4] == 255 && mat_row1_r[3] == 255 && mat_row1_r[2] == 255 && mat_row1_r[1] == 255 && mat_row1_r[0] == 255) erode_flag1 <= 1'b1; else erode_flag1 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag2 <= 1'b0; else if(mat_row2_r[12] == 255 && mat_row2_r[11] == 255 && mat_row2_r[10] == 255 && mat_row2_r[9] == 255 && mat_row2_r[8] == 255 && mat_row2_r[7] == 255 && mat_row2_r[6] == 255 && mat_row2_r[5] == 255 && mat_row2_r[4] == 255 && mat_row2_r[3] == 255 && mat_row2_r[2] == 255 && mat_row2_r[1] == 255 && mat_row2_r[0] == 255) erode_flag2 <= 1'b1; else erode_flag2 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag3 <= 1'b0; else if(mat_row3_r[12] == 255 && mat_row3_r[11] == 255 && mat_row3_r[10] == 255 && mat_row3_r[9] == 255 && mat_row3_r[8] == 255 && mat_row3_r[7] == 255 && mat_row3_r[6] == 255 && mat_row3_r[5] == 255 && mat_row3_r[4] == 255 && mat_row3_r[3] == 255 && mat_row3_r[2] == 255 && mat_row3_r[1] == 255 && mat_row3_r[0] == 255) erode_flag3 <= 1'b1; else erode_flag3 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag4 <= 1'b0; else if(mat_row4_r[12] == 255 && mat_row4_r[11] == 255 && mat_row4_r[10] == 255 && mat_row4_r[9] == 255 && mat_row4_r[8] == 255 && mat_row4_r[7] == 255 && mat_row4_r[6] == 255 && mat_row4_r[5] == 255 && mat_row4_r[4] == 255 && mat_row4_r[3] == 255 && mat_row4_r[2] == 255 && mat_row4_r[1] == 255 && mat_row4_r[0] == 255) erode_flag4 <= 1'b1; else erode_flag4 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag5 <= 1'b0; else if(mat_row5_r[12] == 255 && mat_row5_r[11] == 255 && mat_row5_r[10] == 255 && mat_row5_r[9] == 255 && mat_row5_r[8] == 255 && mat_row5_r[7] == 255 && mat_row5_r[6] == 255 && mat_row5_r[5] == 255 && mat_row5_r[4] == 255 && mat_row5_r[3] == 255 && mat_row5_r[2] == 255 && mat_row5_r[1] == 255 && mat_row5_r[0] == 255) erode_flag5 <= 1'b1; else erode_flag5 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag6 <= 1'b0; else if(mat_row6_r[12] == 255 && mat_row6_r[11] == 255 && mat_row6_r[10] == 255 && mat_row6_r[9] == 255 && mat_row6_r[8] == 255 && mat_row6_r[7] == 255 && mat_row6_r[6] == 255 && mat_row6_r[5] == 255 && mat_row6_r[4] == 255 && mat_row6_r[3] == 255 && mat_row6_r[2] == 255 && mat_row6_r[1] == 255 && mat_row6_r[0] == 255) erode_flag6 <= 1'b1; else erode_flag6 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag7 <= 1'b0; else if(mat_row7_r[12] == 255 && mat_row7_r[11] == 255 && mat_row7_r[10] == 255 && mat_row7_r[9] == 255 && mat_row7_r[8] == 255 && mat_row7_r[7] == 255 && mat_row7_r[6] == 255 && mat_row7_r[5] == 255 && mat_row7_r[4] == 255 && mat_row7_r[3] == 255 && mat_row7_r[2] == 255 && mat_row7_r[1] == 255 && mat_row7_r[0] == 255) erode_flag7 <= 1'b1; else erode_flag7 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag8 <= 1'b0; else if(mat_row8_r[12] == 255 && mat_row8_r[11] == 255 && mat_row8_r[10] == 255 && mat_row8_r[9] == 255 && mat_row8_r[8] == 255 && mat_row8_r[7] == 255 && mat_row8_r[6] == 255 && mat_row8_r[5] == 255 && mat_row8_r[4] == 255 && mat_row8_r[3] == 255 && mat_row8_r[2] == 255 && mat_row8_r[1] == 255 && mat_row8_r[0] == 255) erode_flag8 <= 1'b1; else erode_flag8 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag9 <= 1'b0; else if(mat_row9_r[12] == 255 && mat_row9_r[11] == 255 && mat_row9_r[10] == 255 && mat_row9_r[9] == 255 && mat_row9_r[8] == 255 && mat_row9_r[7] == 255 && mat_row9_r[6] == 255 && mat_row9_r[5] == 255 && mat_row9_r[4] == 255 && mat_row9_r[3] == 255 && mat_row9_r[2] == 255 && mat_row9_r[1] == 255 && mat_row9_r[0] == 255) erode_flag9 <= 1'b1; else erode_flag9 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag10 <= 1'b0; else if(mat_row10_r[12] == 255 && mat_row10_r[11] == 255 && mat_row10_r[10] == 255 && mat_row10_r[9] == 255 && mat_row10_r[8] == 255 && mat_row10_r[7] == 255 && mat_row10_r[6] == 255 && mat_row10_r[5] == 255 && mat_row10_r[4] == 255 && mat_row10_r[3] == 255 && mat_row10_r[2] == 255 && mat_row10_r[1] == 255 && mat_row10_r[0] == 255) erode_flag10 <= 1'b1; else erode_flag10 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag11 <= 1'b0; else if(mat_row11_r[12] == 255 && mat_row11_r[11] == 255 && mat_row11_r[10] == 255 && mat_row11_r[9] == 255 && mat_row11_r[8] == 255 && mat_row11_r[7] == 255 && mat_row11_r[6] == 255 && mat_row11_r[5] == 255 && mat_row11_r[4] == 255 && mat_row11_r[3] == 255 && mat_row11_r[2] == 255 && mat_row11_r[1] == 255 && mat_row11_r[0] == 255) erode_flag11 <= 1'b1; else erode_flag11 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag12 <= 1'b0; else if(mat_row12_r[12] == 255 && mat_row12_r[11] == 255 && mat_row12_r[10] == 255 && mat_row12_r[9] == 255 && mat_row12_r[8] == 255 && mat_row12_r[7] == 255 && mat_row12_r[6] == 255 && mat_row12_r[5] == 255 && mat_row12_r[4] == 255 && mat_row12_r[3] == 255 && mat_row12_r[2] == 255 && mat_row12_r[1] == 255 && mat_row12_r[0] == 255) erode_flag12 <= 1'b1; else erode_flag12 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) erode_flag13 <= 1'b0; else if(mat_row13_r[12] == 255 && mat_row13_r[11] == 255 && mat_row13_r[10] == 255 && mat_row13_r[9] == 255 && mat_row13_r[8] == 255 && mat_row13_r[7] == 255 && mat_row13_r[6] == 255 && mat_row13_r[5] == 255 && mat_row13_r[4] == 255 && mat_row13_r[3] == 255 && mat_row13_r[2] == 255 && mat_row13_r[1] == 255 && mat_row13_r[0] == 255) erode_flag13 <= 1'b1; else erode_flag13 <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) tx_data <= 8'd0; else if(erode_flag12 == 1'b1 && erode_flag11 == 1'b1 && erode_flag10 == 1'b1 && erode_flag9 == 1'b1 && erode_flag8 == 1'b1 && erode_flag7 == 1'b1 && erode_flag6 == 1'b1 && erode_flag5 == 1'b1 && erode_flag4 == 1'b1 && erode_flag3 == 1'b1 && erode_flag2 == 1'b1 && erode_flag1 == 1'b1 && erode_flag13 == 1'b1) tx_data <= 8'd255; else tx_data <= 8'd0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0)begin mat_flag_r1 <= 1'b0; mat_flag_r2 <= 1'b0; mat_flag_r3 <= 1'b0; mat_flag_r4 <= 1'b0; mat_flag_r5 <= 1'b0; mat_flag_r6 <= 1'b0; mat_flag_r7 <= 1'b0; mat_flag_r8 <= 1'b0; mat_flag_r9 <= 1'b0; mat_flag_r10 <= 1'b0; mat_flag_r11 <= 1'b0; mat_flag_r12 <= 1'b0; mat_flag_r13 <= 1'b0; mat_flag_r14 <= 1'b0; mat_flag_r15 <= 1'b0; mat_flag_r16 <= 1'b0; end else begin mat_flag_r1 <= mat_flag; mat_flag_r2 <= mat_flag_r1; mat_flag_r3 <= mat_flag_r2; mat_flag_r4 <= mat_flag_r3; mat_flag_r5 <= mat_flag_r4; mat_flag_r6 <= mat_flag_r5; mat_flag_r7 <= mat_flag_r6; mat_flag_r8 <= mat_flag_r7; mat_flag_r9 <= mat_flag_r8; mat_flag_r10 <= mat_flag_r9; mat_flag_r11 <= mat_flag_r10; mat_flag_r12 <= mat_flag_r11; mat_flag_r13 <= mat_flag_r12; mat_flag_r14 <= mat_flag_r13; mat_flag_r15 <= mat_flag_r14; mat_flag_r16 <= mat_flag_r15; end mat_13x13 mat_13x13_inst( //System Interfaces .sclk (sclk ), .rst_n (rst_n ), //Communication Interfaces .rx_data (rx_data ), .pi_flag (pi_flag ), .mat_row1 (mat_row1 ), .mat_row2 (mat_row2 ), .mat_row3 (mat_row3 ), .mat_row4 (mat_row4 ), .mat_row5 (mat_row5 ), .mat_row6 (mat_row6 ), .mat_row7 (mat_row7 ), .mat_row8 (mat_row8 ), .mat_row9 (mat_row9 ), .mat_row10 (mat_row10 ), .mat_row11 (mat_row11 ), .mat_row12 (mat_row12 ), .mat_row13 (mat_row13 ), .mat_flag (mat_flag ) ); endmodule 腐蚀之后的图像
图像定位
图像定位代码
`timescale 1ns / 1ps // ********************************************************************************* // Project Name : OSXXXX // Author : zhangningning // Email : nnzhang1996@foxmail.com // Website : // Module Name : face_seek.v // Create Time : 2020-04-13 22:47:21 // Editor : sublime text3, tab size (4) // CopyRight(c) : All Rights Reserved // // ********************************************************************************* // Modification History: // Date By Version Change Description // ----------------------------------------------------------------------- // XXXX zhangningning 1.0 Original // // ********************************************************************************* module face_seek( //System Interfaces input sclk , input rst_n , //Communication Interfaces input [ 7:0] rx_data , input pi_flag , output reg [10:0] x_min , output reg [10:0] x_max , output reg [10:0] y_min , output reg [10:0] y_max , output reg po_flag ); //======================================================================================== //**************Define Parameter and Internal Signals********************************** //========================================================================================/ parameter ROW_NUM = 768-13 ; parameter COL_NUM = 1024 ; reg [10:0] row_cnt ; reg [10:0] col_cnt ; //======================================================================================== //************** Main Code ********************************** //========================================================================================/ always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) col_cnt <= 11'd0; else if(col_cnt == COL_NUM-1 && pi_flag == 1'b1) col_cnt <= 11'd0; else if(pi_flag == 1'b1) col_cnt <= col_cnt + 1'b1; else col_cnt <= col_cnt; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) row_cnt <= 11'd0; else if(row_cnt == ROW_NUM-1 && col_cnt == COL_NUM-1 && pi_flag == 1'b1) row_cnt <= 11'd0; else if(col_cnt == COL_NUM-1 && pi_flag == 1'b1) row_cnt <= row_cnt + 1'b1; else row_cnt <= row_cnt; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) po_flag <= 1'b0; else if(row_cnt == ROW_NUM-1 && col_cnt == COL_NUM-1 && pi_flag == 1'b1) po_flag <= 1'b1; else po_flag <= 1'b0; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) x_min <= 11'd1023; else if(po_flag == 1'b1) x_min <= 11'd1023; else if(rx_data > 0 && pi_flag == 1'b1 && x_min > col_cnt) x_min <= col_cnt; else x_min <= x_min; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) x_max <= 11'd0; else if(po_flag == 1'b1) x_max <= 11'd0; else if(rx_data > 0 && pi_flag == 1'b1 && x_max < col_cnt) x_max <= col_cnt; else x_max <= x_max; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) y_min <= 11'd755; else if(po_flag == 1'b1) y_min <= 11'd755; else if(rx_data > 0 && pi_flag == 1'b1 && y_min > row_cnt) y_min <= row_cnt; else y_min <= y_min; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) y_max <= 11'd0; else if(po_flag == 1'b1) y_max <= 11'd0; else if(rx_data > 0 && pi_flag == 1'b1 && y_max < row_cnt) y_max <= row_cnt; else y_max <= y_max; endmodule `timescale 1ns / 1ps // ********************************************************************************* // Project Name : OSXXXX // Author : zhangningning // Email : nnzhang1996@foxmail.com // Website : // Module Name : usb3_drive.v // Create Time : 2020-03-03 10:36:21 // Editor : sublime text3, tab size (4) // CopyRight(c) : All Rights Reserved // // ********************************************************************************* // Modification History: // Date By Version Change Description // ----------------------------------------------------------------------- // XXXX zhangningning 1.0 Original // // ********************************************************************************* module usb3_drive( input rst_n , output wire USBSS_EN , input sclk , inout [15:0] data , inout [ 1:0] be , input rxf_n , input txf_n , output reg oe_n , output reg wr_n , output wire siwu_n , output reg rd_n , output wire wakeup , output wire [ 1:0] gpio , //Communication Interfaces input [15:0] data_in , output wire data_req , input [10:0] x_min , input [10:0] x_max , input [10:0] y_min , input [10:0] y_max , input po_flag ); //======================================================================================== //**************Define Parameter and Internal Signals********************************** //========================================================================================/ parameter COL_NUM = 1024*2 ; parameter ROW_NUM = 768 ; parameter IDLE = 4'b0001 ; parameter JUDGE = 4'b0010 ; parameter READ = 4'b0100 ; parameter WRITE = 4'b1000 ; reg [ 3:0] state ; wire fifo_wr ; wire [15:0] data_wr ; reg [12:0] col_cnt ; reg [12:0] row_cnt ; reg [10:0] x_min_r ; reg [10:0] x_max_r ; reg [10:0] y_min_r ; reg [10:0] y_max_r ; reg [15:0] data_o ; //======================================================================================== //************** Main Code ********************************** //========================================================================================/ assign USBSS_EN = 1'b1; assign wakeup = 1'b1; assign siwu_n = 1'b0; assign gpio = 2'b00; assign fifo_wr = (rd_n == 1'b0) && (rxf_n == 1'b0); assign data_wr = (state == READ) ? data : 16'hzzzz; assign data_req = ~((wr_n == 1'b0) && (txf_n == 1'b0)); assign data = (data_req == 1'b0) ? data_o : 16'hzzzz; assign be = (state == WRITE) ? 2'b11 : 2'bzz; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) state <= IDLE; else case(state) IDLE : state <= JUDGE; JUDGE : if(rxf_n == 1'b0) state <= READ; else if(txf_n == 1'b0) state <= WRITE; else state <= JUDGE; WRITE : if(txf_n == 1'b1) state <= JUDGE; else state <= WRITE; READ : if(rxf_n == 1'b1) state <= JUDGE; else state <= READ; default : state <= IDLE; endcase always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) oe_n <= 1'b1; else if(state == READ && rxf_n == 1'b1) oe_n <= 1'b1; else if(state == READ) oe_n <= 1'b0; else oe_n <= oe_n; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) rd_n <= 1'b1; else if(state == READ && rxf_n == 1'b1) rd_n <= 1'b1; else if(state == READ && oe_n == 1'b0) rd_n <= 1'b0; else rd_n <= rd_n; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) wr_n <= 1'b1; else if(state == WRITE && txf_n == 1'b1) wr_n <= 1'b1; else if(state == WRITE) wr_n <= 1'b0; else wr_n <= wr_n; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) col_cnt <= 13'd0; else if(data_req == 1'b0 && col_cnt == COL_NUM-1) col_cnt <= 13'd0; else if(data_req == 1'b0) col_cnt <= col_cnt + 1'b1; else col_cnt <= col_cnt; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) row_cnt <= 13'd0; else if(row_cnt == ROW_NUM-1 && data_req == 1'b0 && col_cnt == COL_NUM-1) row_cnt <= 13'd0; else if(data_req == 1'b0 && col_cnt == COL_NUM-1) row_cnt <= row_cnt + 1'b1; else row_cnt <= row_cnt; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) x_min_r <= COL_NUM - 1'b1; else if(po_flag == 1'b1) x_min_r <= x_min; else x_min_r <= x_min_r; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) x_max_r <= 0; else if(po_flag == 1'b1) x_max_r <= x_max; else x_max_r <= x_max_r; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) y_min_r <= ROW_NUM - 1'b1; else if(po_flag == 1'b1) y_min_r <= y_min; else y_min_r <= y_min_r; always @(posedge sclk or negedge rst_n) if(rst_n == 1'b0) y_max_r <= 0; else if(po_flag == 1'b1) y_max_r <= y_max; else y_max_r <= y_max_r; always @(*) if(row_cnt == y_min_r && col_cnt >= x_min_r*2 && col_cnt < x_max_r*2) data_o <= 16'hffff; else if(row_cnt == y_max_r && col_cnt >= x_min_r*2 && col_cnt < x_max_r*2) data_o <= 16'hffff; else if((col_cnt >= x_min_r*2 && col_cnt < (x_min_r+1)*2) && row_cnt >= y_min_r && row_cnt < y_max_r) data_o <= 16'hffff; else if((col_cnt >= x_max_r*2 && col_cnt < (x_max_r+1)*2) && row_cnt >= y_min_r && row_cnt < y_max_r) data_o <= 16'hffff; else if(row_cnt == y_min_r && col_cnt >= x_min_r*2 && col_cnt < x_max_r*2) data_o <= 16'hffff; else if(row_cnt == y_max_r && col_cnt >= x_min_r*2 && col_cnt < x_max_r*2) data_o <= 16'hffff; else data_o <= data_in; //======================================================================================== //******************************* Debug ********************************** //========================================================================================/ ila_0 ila_0_inst ( .clk (sclk ), // input wire clk .probe0 (x_min_r ), // input wire [10:0] probe0 .probe1 (x_max_r ), // input wire [10:0] probe1 .probe2 (y_min_r ), // input wire [10:0] probe2 .probe3 (y_max_r ), // input wire [10:0] probe3 .probe4 (po_flag ), // input wire [0:0] probe4 .probe5 (row_cnt ), // input wire [12:0] probe5 .probe6 (col_cnt ), // input wire [12:0] probe6 .probe7 (data_o ) // input wire [15:0] probe7 ); endmodule 最终图像结果

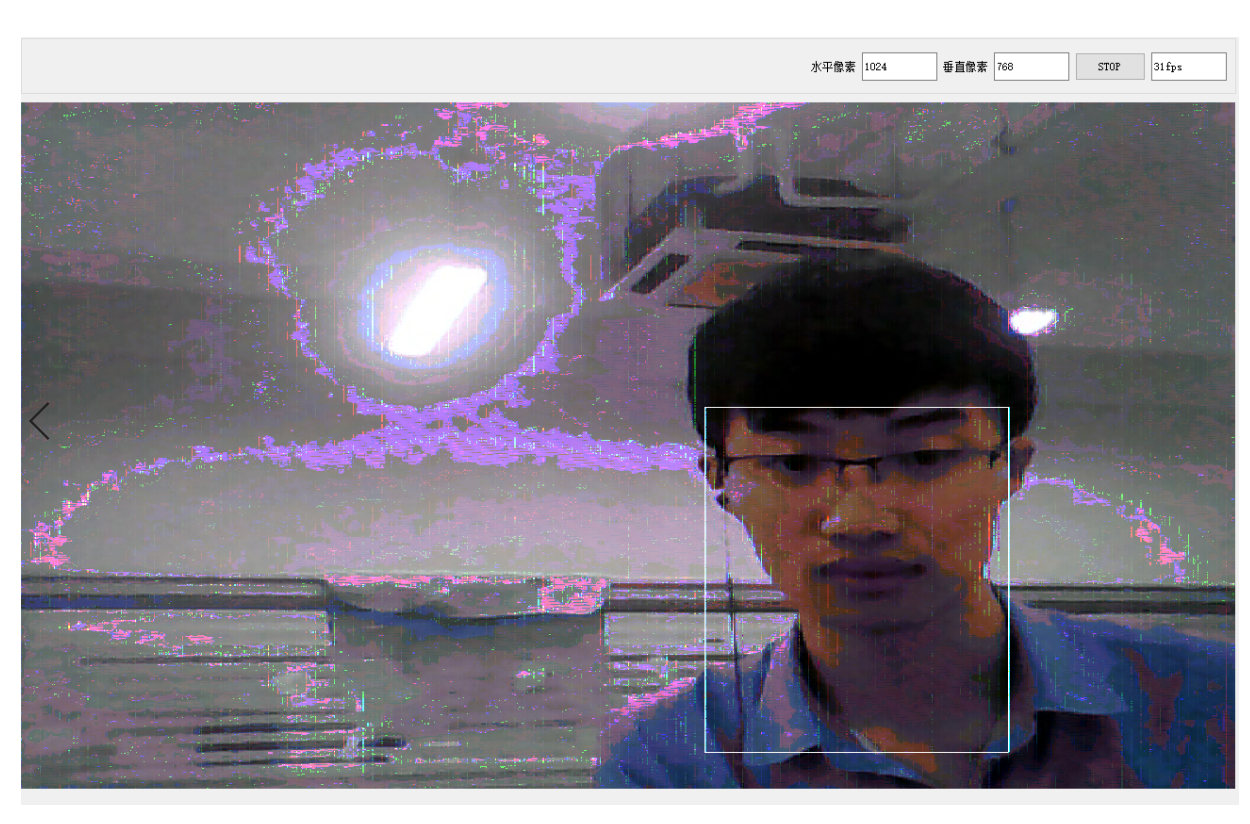

从上面的图像可以看出我们成功的实现了图像定位。总结
