HashMap采用Key/Value存储结构,每个Key对应唯一的一个Value。 如果key为null,则hash值为0,否则调用key的hashCode()方法让高16位与整个hash异或。为的是让计算出的hash值更加分散一些。
总所周知,HashMap和ConcurrentHashMap是面试中经常会被问到的考点。UP最近在找实习的时候也会经常被问到相关的问题。那么OK今天我们就来做一个总结。由于篇幅有限,今天先来说一下HashMap。

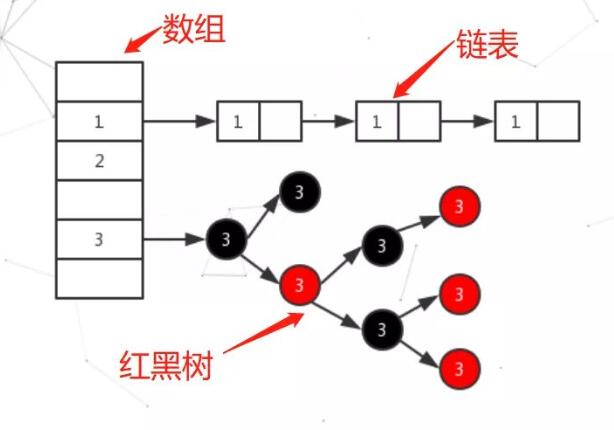

HashMap简介
HashMap内部属性:
threshold等于桶容量乘以装载因子。 static class Node<K,V>implements Map.Entry<K,V> { final int hash;//key所对应的的hash值,final修饰不可变 final K key;//key值,final修饰不可变 V value;//value值 Node<K,V>next;//next } Node是一个单链表节点,hash用来存储key计算得来的hash值。
static final class TreeNode<K,V> extends LinkedHashMap.Entry<K,V> { TreeNode<K,V> parent; // red-black tree links TreeNode<K,V> left; TreeNode<K,V> right; TreeNode<K,V> prev; // needed to unlink next upon deletion boolean red; }
TreeNode是一个树型节点,在链表树化的时候使用。
HashMap的构造方法
HashMap()
public HashMap() { this.loadFactor = DEFAULT_LOAD_FACTOR; //将装载因子设置为默认值 }
HashMap(int initialCapacity)
public HashMap(int initialCapacity) { this(initialCapacity, DEFAULT_LOAD_FACTOR);//调用HashMap(int initialCapacity, float loadFactor)方法
HashMap(int initialCapacity, float loadFactor)
public HashMap(int initialCapacity, float loadFactor) { if (initialCapacity < 0)///如果传入容量小于0,抛出异常 throw new IllegalArgumentException("Illegal initial capacity: " + initialCapacity); if (initialCapacity > MAXIMUM_CAPACITY)//如果大于最大容量,则使用最大的容量 initialCapacity = MAXIMUM_CAPACITY; if (loadFactor <= 0 || Float.isNaN(loadFactor))//检查装载因子是否合法 throw new IllegalArgumentException("Illegal load factor: " + loadFactor); this.loadFactor = loadFactor; this.threshold = tableSizeFor(initialCapacity);//计算扩容门槛 } static final int tableSizeFor(int cap) { ///往上取最近的2的n次方 int n = cap - 1; n |= n >>> 1; n |= n >>> 2; n |= n >>> 4; n |= n >>> 8; n |= n >>> 16; return (n < 0) ? 1 : (n >= MAXIMUM_CAPACITY) ? MAXIMUM_CAPACITY : n + 1; }
HashMap的各种操作
put(K key ,V value)
public V put(K key, V value) { return putVal(hash(key), key, value, false, true); } final V putVal(int hash, K key, V value, boolean onlyIfAbsent, boolean evict) { Node<K,V>[] tab; Node<K,V> p; int n, i; if ((tab = table) == null || (n = tab.length) == 0) n = (tab = resize()).length; if ((p = tab[i = (n - 1) & hash]) == null) tab[i] = newNode(hash, key, value, null); else { Node<K,V> e; K k; if (p.hash == hash && ((k = p.key) == key || (key != null && key.equals(k)))) e = p; else if (p instanceof TreeNode) e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value); else { for (int binCount = 0; ; ++binCount) { if ((e = p.next) == null) { p.next = newNode(hash, key, value, null); if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st treeifyBin(tab, hash); break; } if (e.hash == hash && ((k = e.key) == key || (key != null && key.equals(k)))) break; p = e; } } if (e != null) { // existing mapping for key V oldValue = e.value; if (!onlyIfAbsent || oldValue == null) e.value = value; afterNodeAccess(e); return oldValue; } } ++modCount; if (++size > threshold) resize(); afterNodeInsertion(evict); return null; }
return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
2. 如果桶(数组)数量为0,则调用resize()方法初始化桶;
resize()方法比较复杂,我们来解释一下。 final Node<K,V>[] resize() { //旧数组 Node<K,V>[] oldTab = table; //旧容量 int oldCap = (oldTab == null) ? 0 : oldTab.length; //旧的扩容门槛 int oldThr = threshold; int newCap, newThr = 0; if (oldCap > 0) { //如果旧的容量大于最大的容量是,不在进行扩容,直接返回 if (oldCap >= MAXIMUM_CAPACITY) { threshold = Integer.MAX_VALUE; return oldTab; } //如果旧的容量的2倍小于最大的容量,oldCap<<1为扩大两倍。 //且旧的容量大于默认容量也就是16。新容量扩大为两倍,扩容门槛扩大两倍。 else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY && oldCap >= DEFAULT_INITIAL_CAPACITY) newThr = oldThr << 1; // double threshold } //这里当你调用HashMap(int initialCapacity)进行创建时,第一次插入数据会走到这里。 //也就是oldcap=0,oldThr>0;那么将新容量设置为旧的扩容门槛。 else if (oldThr > 0) // initial capacity was placed in threshold newCap = oldThr; else { //调用new HashMap()创建时,第一次插入数据走到这。 //新容量为默认值16,新的扩容门槛为16*0.75。 newCap = DEFAULT_INITIAL_CAPACITY; newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY); } //如果新的扩容门槛等于0,会进行计算。 if (newThr == 0) { float ft = (float)newCap * loadFactor; newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ? (int)ft : Integer.MAX_VALUE); } threshold = newThr; @SuppressWarnings({"rawtypes","unchecked"}) //以新的容量创建一个数组 Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap]; //将新数组赋值给桶 table = newTab; //如果旧的桶不为null,说明之前存在元素,那么需要搬移元素。 if (oldTab != null) { //遍历旧的数组进行元素的搬移。 for (int j = 0; j < oldCap; ++j) { Node<K,V> e; //如果旧桶中第一个元素不为空 if ((e = oldTab[j]) != null) { //将旧桶中第一个元素设置为null,方便进行GC回收 oldTab[j] = null; //如果next==null,意味着桶中只有一个元素,直接进行赋值 if (e.next == null) newTab[e.hash & (newCap - 1)] = e; //如果第一个是树节点,那么将这棵树分散成两课存入新的桶中 else if (e instanceof TreeNode) ((TreeNode<K,V>)e).split(this, newTab, j, oldCap); else { // preserve order //否则按照链表的方式进行遍历 //建立两个链表,一个是低位链表,另一个是高危链表 Node<K,V> loHead = null, loTail = null; Node<K,V> hiHead = null, hiTail = null; Node<K,V> next; do { next = e.next; //如果当前key的hash值与桶的旧容量与操作等于0 //将当前节点放入地位链表中 if ((e.hash & oldCap) == 0) { if (loTail == null) loHead = e; else loTail.next = e; loTail = e; } //否则放入高位链表中 else { if (hiTail == null) hiHead = e; else hiTail.next = e; hiTail = e; } } while ((e = next) != null); //将低位链表放入新桶中的位置和旧桶位置一样 if (loTail != null) { loTail.next = null; newTab[j] = loHead; } //将高位链表放入新桶的位置等于原来旧桶位置加上原来旧桶的长度 if (hiTail != null) { hiTail.next = null; newTab[j + oldCap] = hiHead; } } } } } return newTab; }
get(Object key)
public V get(Object key) { Node<K,V> e; return (e = getNode(hash(key), key)) == null ? null : e.value; } final Node<K,V> getNode(int hash, Object key) { Node<K,V>[] tab; Node<K,V> first, e; int n; K k; //如果table不为空,且table的长度大于0且桶中第一个元素不为空 if ((tab = table) != null && (n = tab.length) > 0 && (first = tab[(n - 1) & hash]) != null) { //如果桶中第一个节点是我们要找的节点,直接返回 if (first.hash == hash && // always check first node ((k = first.key) == key || (key != null && key.equals(k)))) return first; //如果头结点的下一个节点不为空 if ((e = first.next) != null) { //如果头结点是树节点,按照红黑树的查找方式进行查找 if (first instanceof TreeNode) return ((TreeNode<K,V>)first).getTreeNode(hash, key); do { if (e.hash == hash && ((k = e.key) == key || (key != null && key.equals(k)))) return e; } while ((e = e.next) != null);//循环遍历链表进行查询。 } } //表示查找失败,查找节点不存在返回null return null; }
remove(Object key)
public V remove(Object key) { Node<K,V> e; return (e = removeNode(hash(key), key, null, false, true)) == null ? null : e.value; } final Node<K,V> removeNode(int hash, Object key, Object value, boolean matchValue, boolean movable) { Node<K,V>[] tab; Node<K,V> p; int n, index; //如果桶不为空,且桶的长度大于0,且桶的第一个元素不为空 if ((tab = table) != null && (n = tab.length) > 0 && (p = tab[index = (n - 1) & hash]) != null) { Node<K,V> node = null, e; K k; V v; //如果桶中第一个元素就是所要删除的元素,将p赋值给node if (p.hash == hash && ((k = p.key) == key || (key != null && key.equals(k)))) node = p; //如果p.next!=null,继续进行查找 else if ((e = p.next) != null) { //如果第一个是树节点,按照树的查护方式进行查找 if (p instanceof TreeNode) node = ((TreeNode<K,V>)p).getTreeNode(hash, key); else { //否则按照链表的方式进行查找 do { if (e.hash == hash && ((k = e.key) == key || (key != null && key.equals(k)))) { node = e; break; } p = e; } while ((e = e.next) != null); } } //如果找到元素进行删除 if (node != null && (!matchValue || (v = node.value) == value || (value != null && value.equals(v)))) { //按照红黑树进行删除 if (node instanceof TreeNode) ((TreeNode<K,V>)node).removeTreeNode(this, tab, movable); //如果头结点是所需要删除的元素,将头结点的下一个节点移动到一一个位置 else if (node == p) tab[index] = node.next; //按照链表的方式进行删除 else p.next = node.next; ++modCount; --size; afterNodeRemoval(node); return node; } } return null; }
HashMap总结
