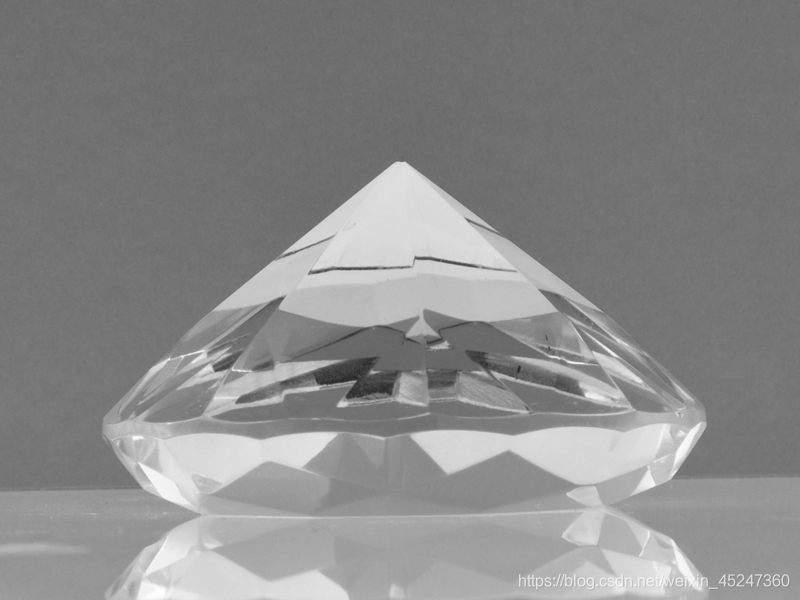

dev_update_off () dev_close_window () read_image (Image, 'diamond/diamond_01') get_image_size (Image, Width, Height) dev_open_window (0, 0, Width, Height, 'black', WindowHandle) set_display_font (WindowHandle, 16, 'mono', 'true', 'false') dev_set_line_width (2) *  NumImages := 5 for Index := 1 to NumImages by 1

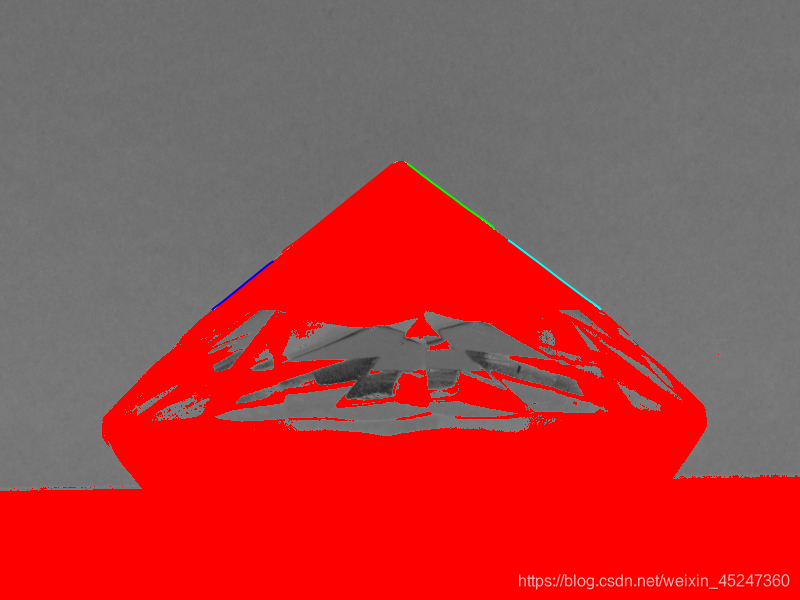

read_image (Image, 'diamond/diamond_' + Index$'.2') *  * Segment diamond region threshold (Image, Region, 128, 255) clip_region_rel (Region, RegionClipped, 0, 290, 0, 0) shape_trans (RegionClipped, RegionTrans, 'convex') dilation_rectangle1 (RegionTrans, RegionDilation, 5, 1) erosion_rectangle1 (RegionTrans, RegionErosion, 5, 1) difference (RegionDilation, RegionErosion, RegionDifference) reduce_domain (Image, RegionDifference, ImageReduced) *  * Subpixel accurate fitting of the edges edges_sub_pix (ImageReduced, Edges, 'canny', 3, 5, 5) union_collinear_contours_xld (Edges, UnionContours, 100, 10, 4, rad(10), 'attr_keep') select_contours_xld (UnionContours, SelectedContours, 'contour_length', 50, 2000, 0, 0) fit_line_contour_xld (SelectedContours, 'tukey', -1, 0, 5, 2, RowBegin, ColBegin, RowEnd, ColEnd, Nr, Nc, Dist) *  * Sort the edge contours and determine their intersection tuple_sort_index (RowBegin, Indices) RowBegin := subset(RowBegin,Indices) RowEnd := subset(RowEnd,Indices) ColBegin := subset(ColBegin,Indices) ColEnd := subset(ColEnd,Indices) Nr := subset(Nr,Indices) Nc := subset(Nc,Indices) Dist := subset(Dist,Indices) gen_contour_polygon_xld (LineEdge1, [Dist[0] / Nr[0],0], [0,Dist[0] / Nc[0]]) gen_contour_polygon_xld (LineEdge2, [Dist[1] / Nr[1],Width - 1], [0,(Dist[1] - (Width - 1) * Nr[1]) / Nc[1]])

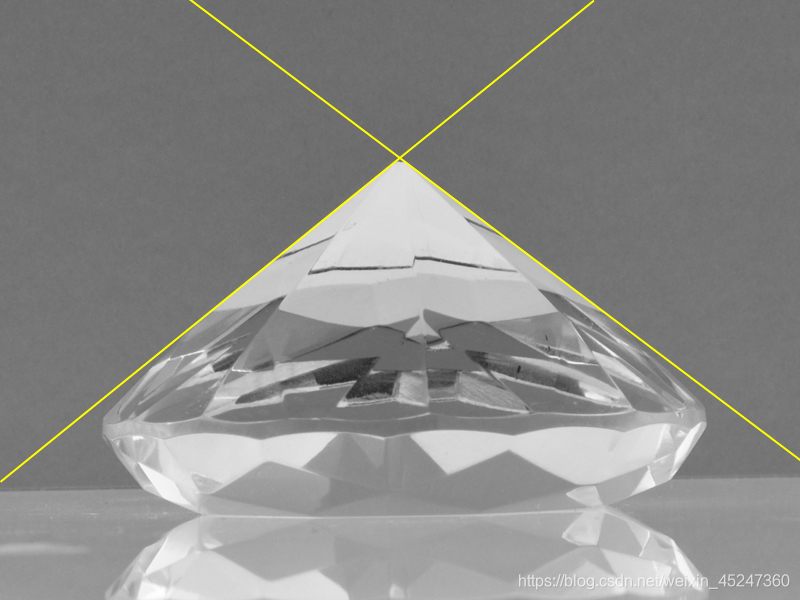

intersection_lines (RowBegin[0], ColBegin[0], RowEnd[0], ColEnd[0], RowBegin[1], ColBegin[1], RowEnd[1], ColEnd[1], RowTip, ColTip, IsOverlapping) gen_cross_contour_xld (Cross, RowTip, ColTip, 20, rad(45)) *  * Display the results dev_display (Image) dev_set_color ('yellow') dev_display (LineEdge1) dev_display (LineEdge2) dev_set_color ('blue') dev_display (Cross) if (Index != NumImages)

    disp_continue_message (WindowHandle, 'black', 'true')     stop () endif

endfor
