前言：

前面是Avl树的介绍写的比较详细，这一篇主要写怎么实现

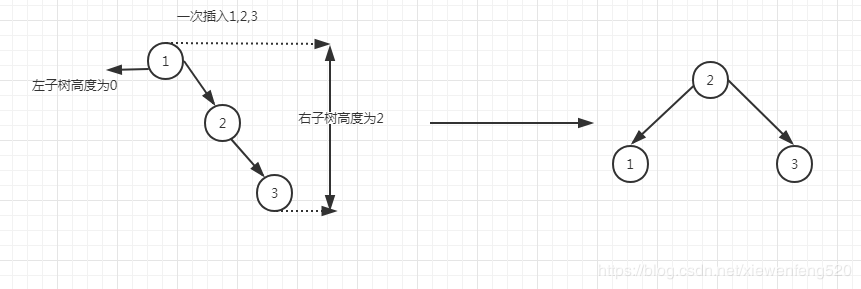

最简单的旋转

依次插入1 2 3节点，1的左子树为空高度为0，而右子树高度为2，旋转后，左右高度都为1

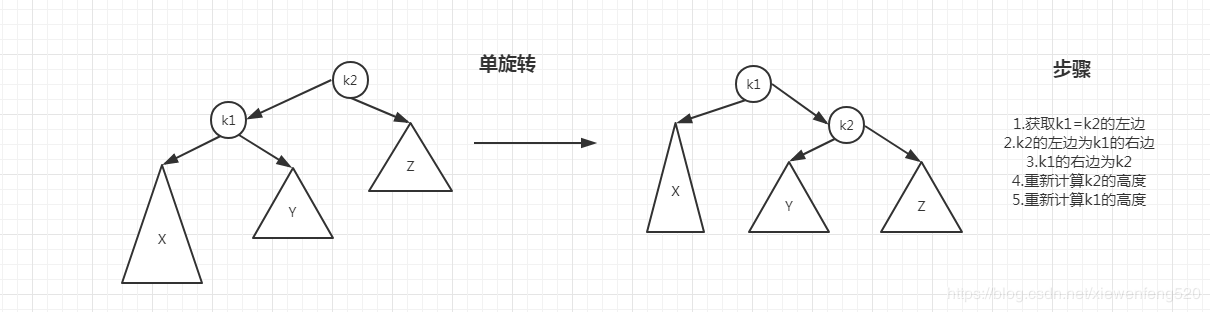

单旋转

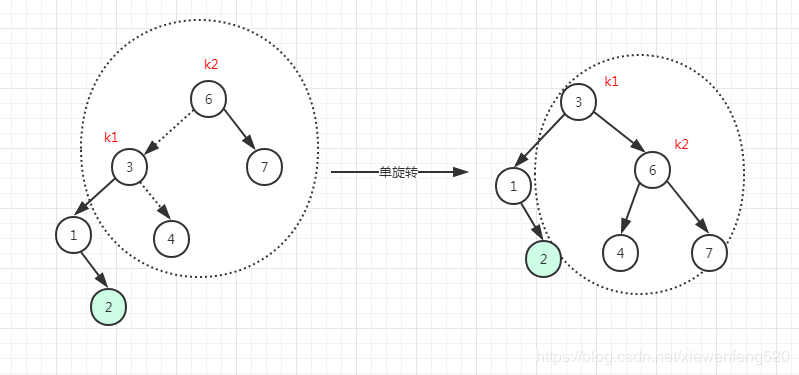

依次插入6 3 7 1 4，插入2时，树的平衡被破坏

步骤：

获取k1节点=k2的左边节点
设置k2的左边节点为k1的右边节点Y
设置k1的右边节点为k2
重新计算k2和k1的高度

 private AvlNode<T> rotateWithLeftChild(AvlNode<T> k2) {         AvlNode k1 = k2.left;         k2.left = k1.right;         k1.right = k2;         k2.height = Math.max(height(k2.left), height(k2.right)) + 1;         k1.height = Math.max(height(k1.left), k2.height) + 1; return k1; }

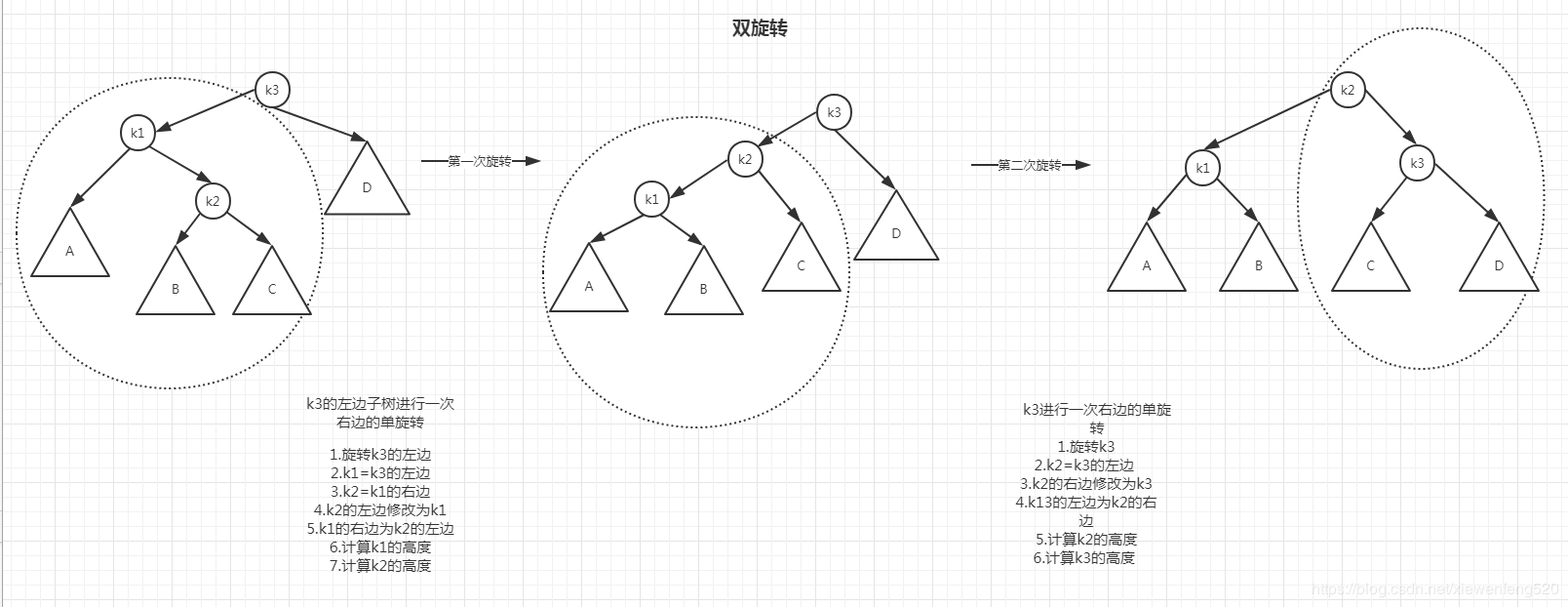

双旋转

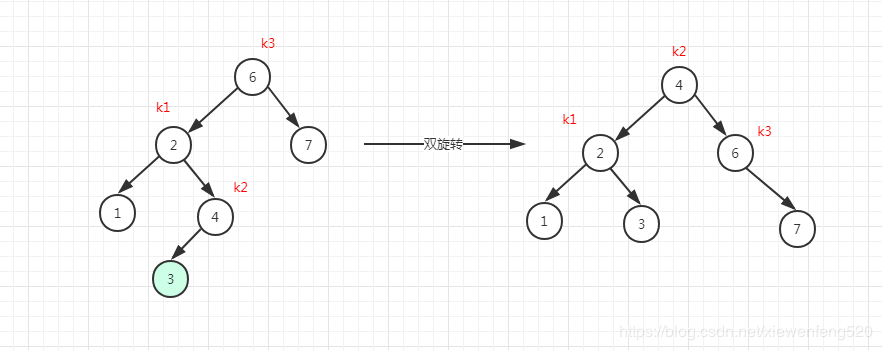

依次插入6 2 7 1 4，插入3时，树的平衡被破坏

下面的图解C节点实际上应该没有，因为插入B的时候已经影响平衡

步骤：

k3的左边子树进行一次右边的单旋转
k3进行一次左边的单旋转

 private AvlNode<T> doubleWithLeftChild(AvlNode<T> k3) {         k3.left = rotateWithRightChild(k3.left); return rotateWithLeftChild(k3); }

实现

平衡二叉树实现的大部分过程和二叉查找树是一样的，区别就在于插入和删除之后要判断树左右子树高度之差是否大于1，如果大于1需要进行旋转维持平衡
其它的两种插入影响平衡的情况和以上两种刚好相反

代码

树节点

package 二叉树; public class AvlNode<T> {     T element; int height;     AvlNode<T> left;     AvlNode<T> right; public AvlNode(T element) { this(element, null, null); } public AvlNode(T element, AvlNode<T> left, AvlNode<T> right) { this.element = element; this.left = left; this.right = right; this.height = 0; } }

平衡代码

private AvlNode<T> balance(AvlNode<T> t) { if (t == null) { return t; } if (height(t.left) - height(t.right) > ALLOWED_IMBALANCE) { if (height(t.left.left) >= height(t.left.right)) {                 t = rotateWithLeftChild(t); } else {                 t = doubleWithLeftChild(t); } } else if (height(t.right) - height(t.left) > ALLOWED_IMBALANCE) { if (height(t.right.right) >= height(t.right.left)) {                 t = rotateWithRightChild(t); } else {                 t = doubleWithRightChild(t); } }         t.height = Math.max(height(t.left), height(t.right)) + 1; return t; }

完整代码

package 二叉树; /**  *  * @author 皖  *  * @param <T>  */ public class AvlTree<T extends Comparable<? super T>> { private AvlNode<T> root; public void insert(T x) {         root = insert(x, root); } public void remove(T x) {         root = remove(x, root); } public T findMin() { return findMin(root).element; } public void makeEmpty() {         root = null; } public boolean isEmpty() { return root == null; } /**      * 添加节点      *      * @param x 插入节点      * @param t 父节点      */ private AvlNode<T> insert(T x, AvlNode<T> t) { //如果根节点为空，则当前x节点为根及诶单 if (null == t) { return new AvlNode(x); } int compareResult = x.compareTo(t.element); //小于当前根节点 将x插入根节点的左边 if (compareResult < 0) {             t.left = insert(x, t.left); } else if (compareResult > 0) { //大于当前根节点 将x插入根节点的右边             t.right = insert(x, t.right); } else { } return balance(t); } private static final int ALLOWED_IMBALANCE = 1; private AvlNode<T> balance(AvlNode<T> t) { if (t == null) { return t; } if (height(t.left) - height(t.right) > ALLOWED_IMBALANCE) { if (height(t.left.left) >= height(t.left.right)) {                 t = rotateWithLeftChild(t); } else {                 t = doubleWithLeftChild(t); } } else if (height(t.right) - height(t.left) > ALLOWED_IMBALANCE) { if (height(t.right.right) >= height(t.right.left)) {                 t = rotateWithRightChild(t); } else {                 t = doubleWithRightChild(t); } }         t.height = Math.max(height(t.left), height(t.right)) + 1; return t; } private AvlNode<T> doubleWithRightChild(AvlNode<T> k3) {         k3.right = rotateWithLeftChild(k3.right); return rotateWithRightChild(k3); } private AvlNode<T> rotateWithRightChild(AvlNode<T> k2) {         AvlNode k1 = k2.right;         k2.right = k1.left;         k1.left = k2;         k2.height = Math.max(height(k2.right), height(k2.left)) + 1;         k1.height = Math.max(height(k1.right), k2.height) + 1; return k1; } private AvlNode<T> doubleWithLeftChild(AvlNode<T> k3) {         k3.left = rotateWithRightChild(k3.left); return rotateWithLeftChild(k3); } private AvlNode<T> rotateWithLeftChild(AvlNode<T> k2) {         AvlNode k1 = k2.left;         k2.left = k1.right;         k1.right = k2;         k2.height = Math.max(height(k2.left), height(k2.right)) + 1;         k1.height = Math.max(height(k1.left), k2.height) + 1; return k1; } private int height(AvlNode<T> t) { return t == null ? -1 : t.height; } /**      * 删除节点      *      * @param x    节点      * @param t    父节点      */ private AvlNode<T> remove(T x, AvlNode<T> t) { if (null == t) { return t; } int compareResult = x.compareTo(t.element); //小于当前根节点 if (compareResult < 0) {             t.left = remove(x, t.left); } else if (compareResult > 0) { //大于当前根节点             t.right = remove(x, t.right); } else if (t.left != null && t.right != null) { //找到右边最小的节点             t.element = findMin(t.right).element; //当前节点的右边等于原节点右边删除已经被选为的替代节点             t.right = remove(t.element, t.right); } else {             t = (t.left != null) ? t.left : t.right; } return balance(t); } /**      * 找最小节点      *      * @param root 根节点      */ private AvlNode<T> findMin(AvlNode<T> root) { if (root == null) { return null; } else if (root.left == null) { return root; } return findMin(root.left); } /**      * 找最大节点      *      * @param root 根节点      */ private AvlNode<T> findMax(AvlNode<T> root) { if (root == null) { return null; } else if (root.right == null) { return root; } else { return findMax(root.right); } } public void printTree() { if (isEmpty()) {             System.out.println("节点为空"); } else { printTree(root); } } public void printTree(AvlNode<T> root) { if (root != null) {             System.out.print(root.element); if (null != root.left) {                 System.out.print("左边节点" + root.left.element); } if (null != root.right) {                 System.out.print("右边节点" + root.right.element); }             System.out.println(); printTree(root.left); printTree(root.right); } } }

测试

package 二叉树; public class Test{ public static void main (String[] args) {             AvlTree testTree = new AvlTree();             testTree.insert(36);             testTree.insert(22);             testTree.insert(16);             testTree.insert(45);             testTree.insert(28);             testTree.insert(60);              testTree.printTree(); } }
