拉链表练习题数据库汉子一枚-

需求：在mysql数据库中有一个人员信息表（userinfo）

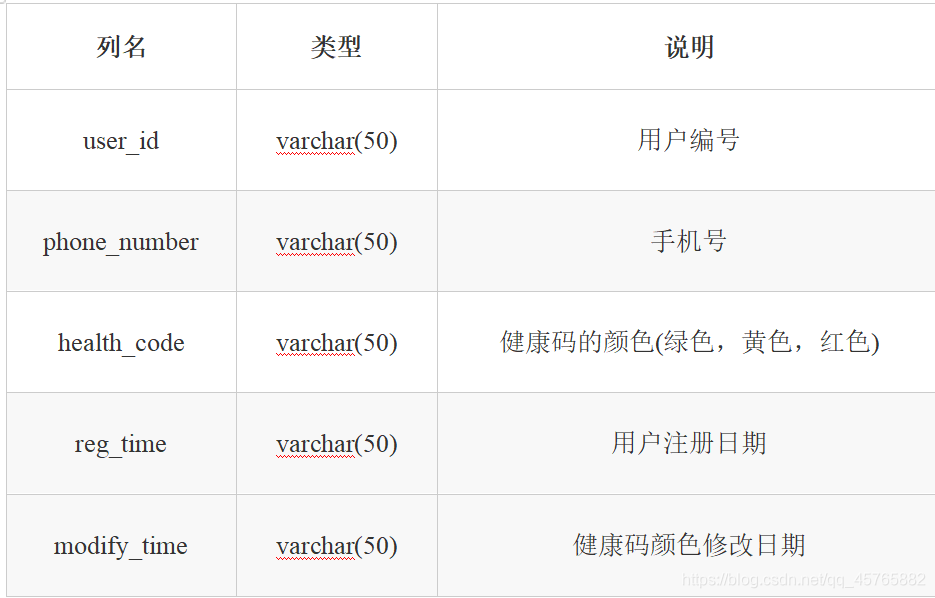

数据字段如下：

在Mysql中的建表语句为：

– 创建数据库
create database if not exists exam;
– 创建人员表
create table if not exists exam.userinfo(
user_id varchar(50), – 人员编号
phone_number varchar(50), – 人员手机号
health_code varchar(50), – 健康码的颜色
reg_time varchar(50), – 用户注册日期
modify_time varchar(50) – 健康码颜色修改日期
);

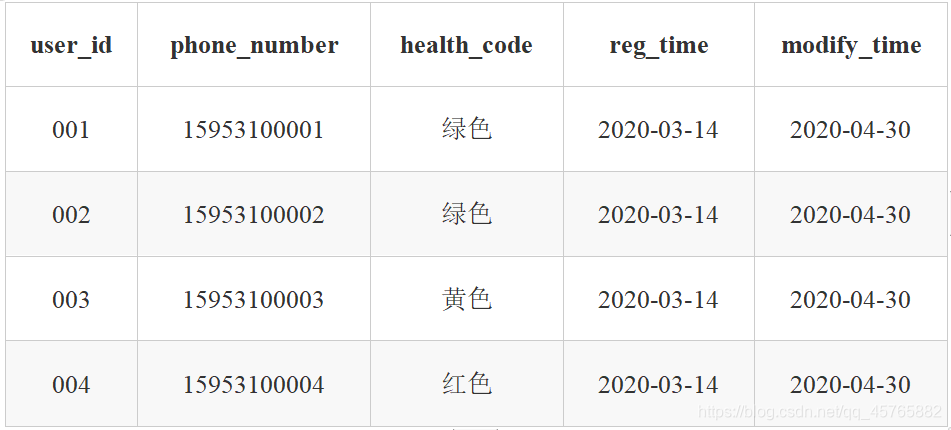

2020年04月30日的数据如下：

插入语句:

insert into exam.userinfo(user_id, phone_number, health_code, reg_time,modify_time) values
(‘001’, ‘15953100001’, ‘绿色’, ‘2020-03-14’, ‘2020-04-30’),
(‘002’, ‘15953100002’, ‘绿色’, ‘2020-03-14’, ‘2020-04-30’),
(‘003’, ‘15953100003’, ‘黄色’, ‘2020-03-14’, ‘2020-04-30’),
(‘004’, ‘15953100004’, ‘红色’, ‘2020-03-14’, ‘2020-04-30’);

结果：

2020年05月01日的数据如下：

修改和添加的语句：

UPDATE exam.userinfo SET health_code = ‘绿色’, modify_time = ‘2020-05-01’ WHERE user_id = ‘003’;
UPDATE exam.userinfo SET health_code = ‘黄色’, modify_time = ‘2020-05-01’ WHERE user_id = ‘004’;
INSERT INTO exam.userinfo(user_id, phone_number, health_code, reg_time,modify_time) VALUES
(‘005’, ‘15953100005’, ‘绿色’, ‘2020-05-01’, ‘2020-05-01’);

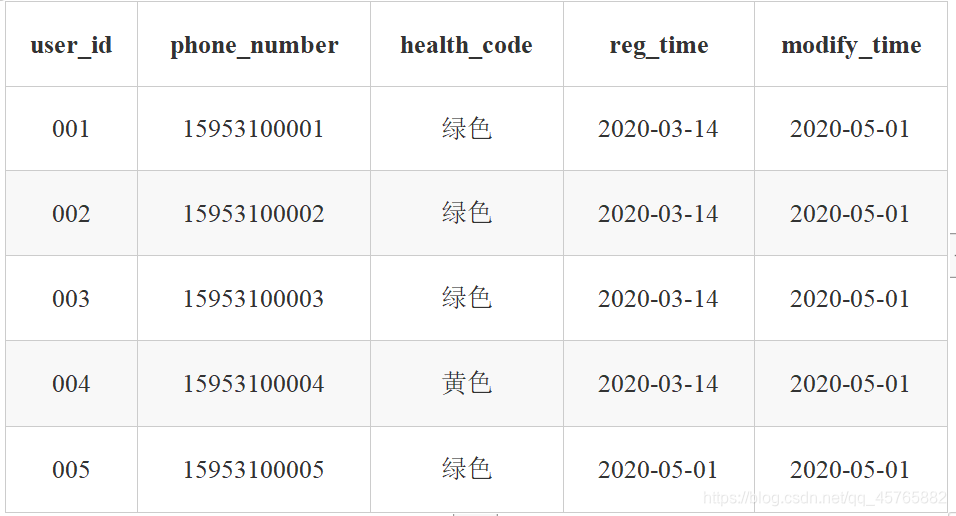

第一次最后结果视图：

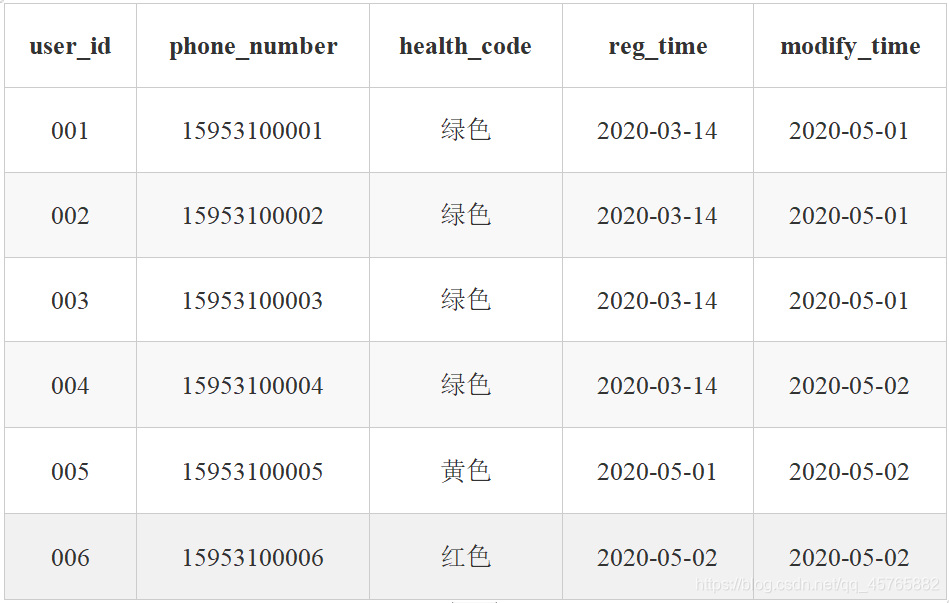

2020年05月02日的数据如下：

修改和添加语句：

UPDATE exam.userinfo SET health_code = ‘绿色’, modify_time = ‘2020-05-02’ WHERE user_id = ‘004’;
UPDATE exam.userinfo SET health_code = ‘黄色’, modify_time = ‘2020-05-02’ WHERE user_id = ‘005’;
INSERT INTO exam.userinfo(user_id, phone_number, health_code, reg_time,modify_time) VALUES
(‘006’, ‘15953100006’, ‘绿色’, ‘2020-05-02’, ‘2020-05-02’);

从以上数据可以看出，随着时间推移而变化，我们需要将人员的所有变化的历史信息都保存下来，请在Hive中使用拉链表进行实现。
说明：分区字段为dt,判断字段为modify_time，在拉链表中添加的字段为dw_start_date（生效时间），dw_end_date（结束时间）。

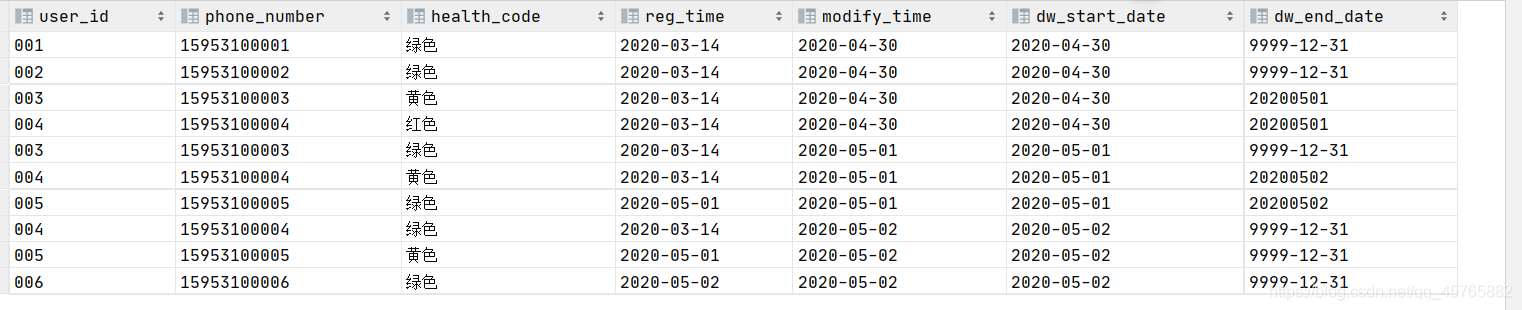

第二次最后结果视图：

解题思路：
1、创建mysql库和表

-- 创建数据库 CREATE DATABASE IF NOT EXISTS exam; -- 创建人员表 CREATE TABLE IF NOT EXISTS `exam`.`userinfo`( user_id VARCHAR(50), -- 人员编号 phone_number VARCHAR(50), -- 人员手机号 health_code VARCHAR(50), -- 健康码的颜色 reg_time VARCHAR(50), -- 用户注册日期 modify_time VARCHAR(50) -- 健康码颜色修改日期 ); INSERT INTO `exam`.`userinfo`(user_id, phone_number, health_code, reg_time,modify_time) VALUES ('001', '15953100001', '绿色', '2020-03-14', '2020-04-30'), ('002', '15953100002', '绿色', '2020-03-14', '2020-04-30'), ('003', '15953100003', '黄色', '2020-03-14', '2020-04-30'), ('004', '15953100004', '红色', '2020-03-14', '2020-04-30'); UPDATE `exam`.`userinfo` SET health_code = '绿色', modify_time = '2020-05-01' WHERE user_id = '003'; UPDATE `exam`.`userinfo` SET health_code = '黄色', modify_time = '2020-05-01' WHERE user_id = '004'; INSERT INTO `exam`.`userinfo`(user_id, phone_number, health_code, reg_time,modify_time) VALUES ('005', '15953100005', '绿色', '2020-05-01', '2020-05-01'); UPDATE `exam`.`userinfo` SET health_code = '绿色', modify_time = '2020-05-02' WHERE user_id = '004'; UPDATE `exam`.`userinfo` SET health_code = '黄色', modify_time = '2020-05-02' WHERE user_id = '005'; INSERT INTO `exam`.`userinfo`(user_id, phone_number, health_code, reg_time,modify_time) VALUES ('006', '15953100006', '绿色', '2020-05-02', '2020-05-02');

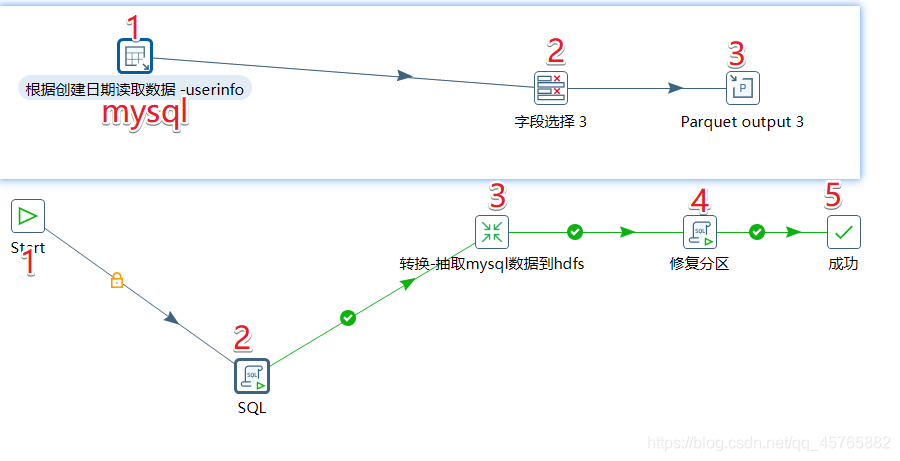

2、使用kettle把mysql表数据输出到hive表

3、在hive里面创建数据库和表

CREATE TABLE IF NOT EXISTS `itcast_ods`.`userinfo`( user_id string,-- 人员编号 phone_number string,-- 人员手机号 health_code string,-- 健康码的颜色 reg_time string,-- 用户注册日期 modify_time string-- 健康码颜色修改日期 ) partitioned by (dt string) STORED AS PARQUET;  CREATE TABLE IF NOT EXISTS `itcast_dw`.`userinfo`( user_id string,-- 人员编号 phone_number string,-- 人员手机号 health_code string,-- 健康码的颜色 reg_time string,-- 用户注册日期 modify_time string,-- 健康码颜色修改日期 dw_start_date string,-- 生效日期 dw_end_date string-- 失效日期 ) STORED AS PARQUET;  -- 将全量数据导入到dw层维度表 insert overwrite table `itcast_dw`.`userinfo` select     user_id string,     phone_number string,     health_code string,     reg_time string,     modify_time string,     modify_time as  dw_start_date,     '9999-12-31' as dw_end_date from     `itcast_ods`.`userinfo` where         dt = '20200430';  -- 将增量数据导入到dw层维度表（第一题20200501） insert overwrite table `itcast_dw`.`userinfo` select     t1.user_id,     t1.phone_number,     t1.health_code,     t1.reg_time,     t1.modify_time,     t1.dw_start_date,     case when (t2.user_id is not null and t1.dw_end_date > '20200501')              then '20200501'          else t1.dw_end_date         end as dw_end_date from     `itcast_dw`.`userinfo` t1         left join     (select * from `itcast_ods`.`userinfo` where dt='20200501') t2     on t1.user_id = t2.user_id union all select     user_id,     phone_number,     health_code,     reg_time,     modify_time,     modify_time as  dw_start_date,     '9999-12-31' as dw_end_date from     `itcast_ods`.`userinfo` where dt='20200501' order by dw_start_date, user_id;  -- 将增量数据导入到dw层维度表（第一题20200502） insert overwrite table `itcast_dw`.`userinfo` select     t1.user_id,     t1.phone_number,     t1.health_code,     t1.reg_time,     t1.modify_time,     t1.dw_start_date,     case when (t2.user_id is not null and t1.dw_end_date > '20200502')              then '20200502'          else t1.dw_end_date         end as dw_end_date from     `itcast_dw`.`userinfo` t1         left join     (select * from `itcast_ods`.`userinfo` where dt='20200502') t2     on t1.user_id = t2.user_id union all select     user_id,     phone_number,     health_code,     reg_time,     modify_time,     modify_time as  dw_start_date,     '9999-12-31' as dw_end_date from     `itcast_ods`.`userinfo` where dt='20200502' order by dw_start_date, user_id;
