如何将微服务注册到Eureka注册中心（笔记）数据库Ergou233的博客-

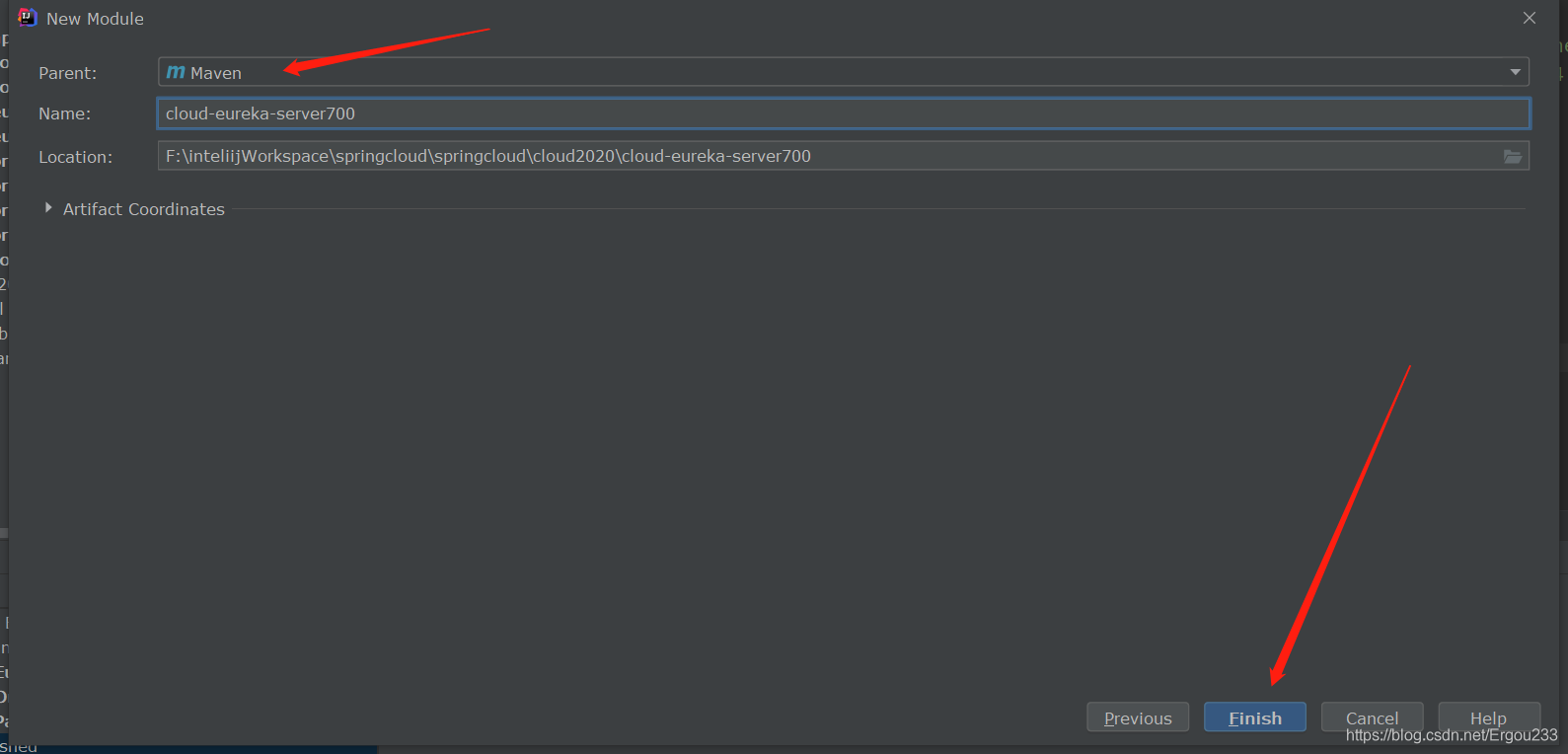

一、创建此spring cloud 项目一共有四个模块，包括公用资源模块，eureka注册中心模块，提供者模块和消费者模块
本人也是刚开始学习spring cloud，写了此笔记，大家耐心看一下，我们共同学习，有不足的地方欢迎各位大佬指正

启动效果如下

这里是RunDashboard，如果启动过程没有启动，请看这个链接，教大家如何启动
Run Dashboard 设置参考链接

 <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <maven.compiler.source>1.8</maven.compiler.source> <maven.compiler.target>1.8</maven.compiler.target> <junit.version>4.12</junit.version> <lombok.version>1.16.18</lombok.version> <log4j.version>1.2.17</log4j.version> <mysql.version>5.1.47</mysql.version> <druid.version>1.1.16</druid.version> <mybatis.spring.boot.version>1.3.0</mybatis.spring.boot.version> </properties> <!-- 提供作用：锁定版本+子modlue不用写groupId和version--> <dependencyManagement> <dependencies> <!--spring boot 2.2.2--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-dependencies</artifactId> <version>2.2.2.RELEASE</version> <type>pom</type> <scope>import</scope> </dependency> <!--spring cloud Hoxton.SR1--> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>Hoxton.SR1</version> <type>pom</type> <scope>import</scope> </dependency> <dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-alibaba-dependencies</artifactId> <version>2.1.0.RELEASE</version> <type>pom</type> <scope>import</scope> </dependency> <!--mysql--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>${mysql.version}</version> <scope>runtime</scope> </dependency> <!-- druid--> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>${druid.version}</version> </dependency> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>${mybatis.spring.boot.version}</version> </dependency> <!--junit--> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>${junit.version}</version> </dependency> <!--log4j--> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>${log4j.version}</version> </dependency> </dependencies> </dependencyManagement>

pom文件如下

<dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <scope>runtime</scope> <optional>true</optional> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>cn.hutool</groupId> <artifactId>hutool-all</artifactId> <version>5.1.0</version> </dependency> </dependencies>

创建实体类

CommonResult类,给前端返回的json

@Data @AllArgsConstructor @NoArgsConstructor public class CommonResult<T> { private Integer code; private String  message; private T       data; public CommonResult(Integer code ,String  message){ this(code,message,null); } }

支付实体类

@Data @AllArgsConstructor @NoArgsConstructor public class Payment { private Long id; private String serial; }

pom文件如下

<dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <scope>runtime</scope> <optional>true</optional> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <dependency> <groupId>com.test.springcloud</groupId> <artifactId>cloud-api-commons</artifactId> <version>${project.version}</version> </dependency> </dependencies>

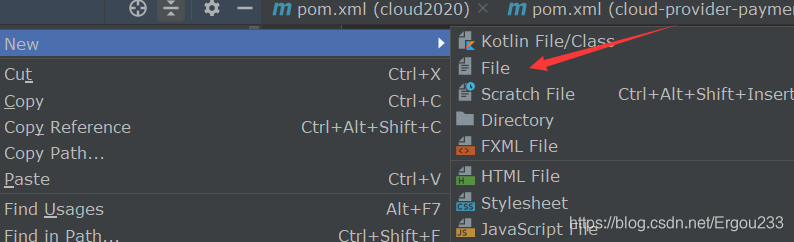

然后创建在resources目录下创建application.yml 配置代码如下

server: port: 7001 eureka: instance: hostname: eureka7001.com  #eureka服务端的实例名称 client: #false表示不向注册中心注册自己 register-with-eureka: false #false表示自己就是注册中心，我的之策就是维护服务实例，并不需要去检索服务 fetch-registry: false service-url: #设置于eureka server 交互的地址查询服务和注册服务都需要依赖这个地方 #集群就指向其他的eureka，单机模式就指向自己的 #集群 #defaultZone: https://127.0.0.1:7002/eureka/ #单机 defaultZone: http://127.0.0.1:7001/eureka/  #关闭自我保护机制 #server: # enable-self-preservation: false # eviction-interval-timer-in-ms: 2000

创建启动类

@SpringBootApplication //说明是服务端 @EnableEurekaServer public class EurekaMain7001 { public static void main(String[] args) {         SpringApplication.run(EurekaMain7001.class, args); } }

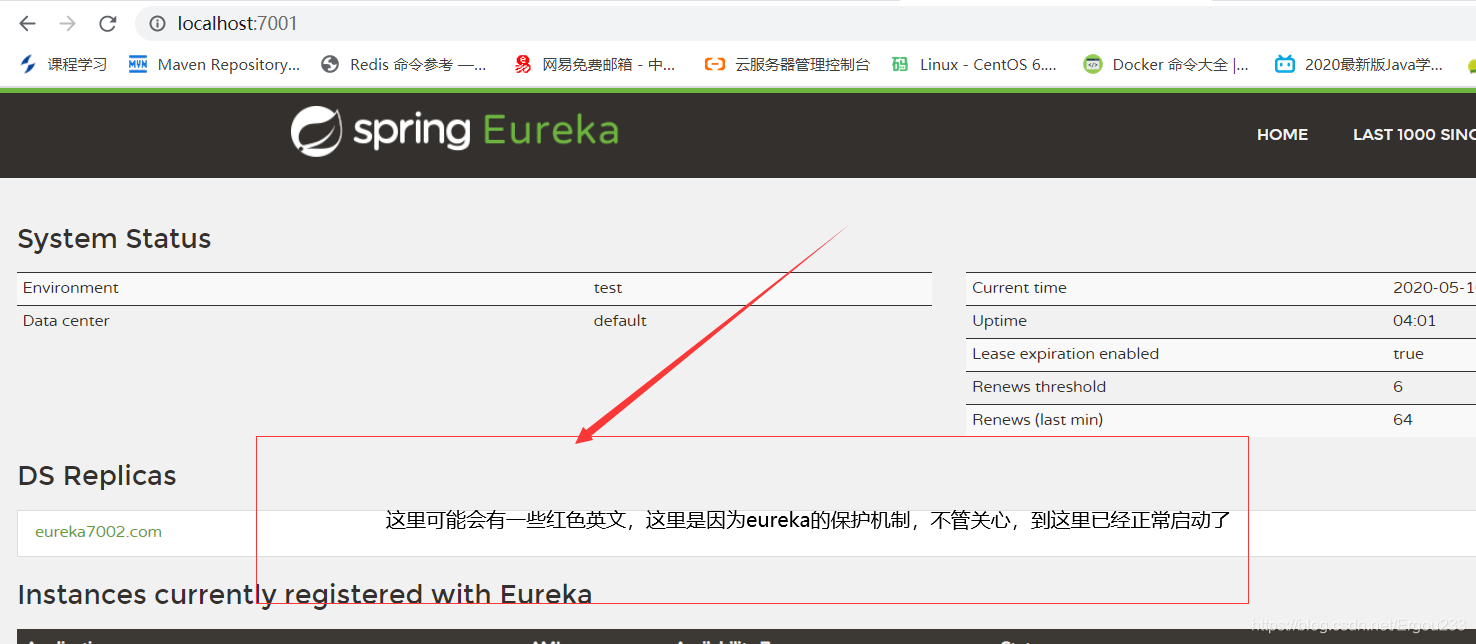

创建完之后就启动，在浏览器输入localhost:7001 如果能正常看到这个界面说明注册中心配置成功

到此注册中心就已经配置成功，接下来要写提供者和消费者模块来注册到注册中心

 <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-jdbc</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <scope>runtime</scope> <optional>true</optional> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <dependency> <groupId>com.test.springcloud</groupId> <artifactId>cloud-api-commons</artifactId> <version>${project.version}</version> </dependency> </dependencies>

** 大家注意一定把自己的cloud-api-commons 替换成自己的坐标**

然后就是写yml文件，在resources下创建application.yml文件

yml配置如下

 server: port: 8001 spring: application: name: cloud-payment-service datasource: type: com.alibaba.druid.pool.DruidDataSource   driver-class-name: org.gjt.mm.mysql.Driver   url: jdbc:mysql://localhost:3306/db2019?useUnicode=true&charcaterEncoding=utf-8&useSSL=false   username: #改成自己的数据库用户名 password: #改成自己的数据库密码 mybatis: mapper-locations: classpath:mapper/*.xml type-aliases-package: com.test.springcloud.entities  eureka: client: register-with-eureka: true fetch-registry: true service-url: #defaultZone: https://localhost:7001/eureka defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7002.com:7002/eureka/ instance: #显示主机名 instance-id: payment8001   #显示ip prefer-ip-address: true #心跳包发送时间间隔（默认是30s） lease-renewal-interval-in-seconds: 1 #eureka在收到最后一次心跳等待时间上限，单位为s（默认是90s），超时则剔除服务 lease-expiration-duration-in-seconds: 2

创建数据库备用，首先在mysql创建名称为db2020的数据库然后一个简单的表数据如下

  SET FOREIGN_KEY_CHECKS=0; -- ---------------------------- -- Table structure for payment -- ---------------------------- DROP TABLE IF EXISTS `payment`; CREATE TABLE `payment` (  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',  `serial` varchar(200) DEFAULT '',  PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;    INSERT INTO `payment` VALUES ('1', '12');

接下来写建立主配置类

@EnableEurekaClient @EnableDiscoveryClient @SpringBootApplication public class PaymentMain8001 { public static void main(String[] args) {         SpringApplication.run(PaymentMain8001.class,args); } }

创建dao层接口

@Mapper public interface PaymentDao { public int create(Payment payment); public Payment getPaymentById(@Param("id") Long id); }

在resources目录下创建mapper文件，并创建PaymentMapper.xml文件，dao层实现

<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE mapper PUBLIC         "-//mybatis.org//DTD Mapper 3.0//EN"         "https://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.test.springcloud.dao.PaymentDao"> <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">         insert into payment(serial) values (#{serial});     </insert> <resultMap id="BaseResultMap" type="com.test.springcloud.entities.Payment"> <id column="id" property="id" jdbcType="BIGINT"/> <id column="serial" property="serial" jdbcType="VARCHAR"/> </resultMap> <select id="getPaymentById" parameterType="Long" resultMap="BaseResultMap">         select * from payment where id=#{id};     </select> </mapper>

创建service层 接口

public interface PaymentService { public int create(Payment payment); public Payment getPaymentById(@Param("id") Long id); }

创建接口实现类

@Service public class PaymentServiceImpl implements PaymentService { @Resource private PaymentDao paymentDao; public int create(Payment payment){ return paymentDao.create(payment); } public Payment getPaymentById(Long id){ return paymentDao.getPaymentById(id); } }

然后创建Controller层PaymentController类

@RestController @Slf4j public class PaymentController { @Autowired private PaymentService paymentService; @Value("${server.port}") private String serverPort; @Autowired private DiscoveryClient discoveryClient; @PostMapping(value = "/payment/create") public CommonResult create( @RequestBody Payment payment){ int result = paymentService.create(payment);         log.info("****结果"+result); if(result > 0){ return new CommonResult(200,"插入数据成功,serverPort"+serverPort,result); } else { return new CommonResult(444,"插入数据失败",null); } } @GetMapping (value = "/payment/get/{id}") public CommonResult getPaymentById(@PathVariable("id") Long id){         Payment result = paymentService.getPaymentById(id);         log.info("****结果"+result); if(result != null){ return new CommonResult(200,"查询数据成功,serverPort"+serverPort,result); } else { return new CommonResult(444,"没有对应记录，查询ID："+id,null); } } @GetMapping(value = "/payment/discovery") public Object discovery(){         List<String> services = discoveryClient.getServices(); for(String s :services){             log.info("**********element"+s); }         List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE"); //        System.out.println(instances.get(0)+"/t"+instances.get(1)); for (ServiceInstance instance : instances) {             log.info(instance.getServiceId()+"/t"+instance.getHost()+"/t"+instance.getPort()+"/t"+instance.getUri()); } return this.discoveryClient; } }

到此为止就创建好了提供者，然后我们要先运行注册中心启动类，然后再运行提供者启动类

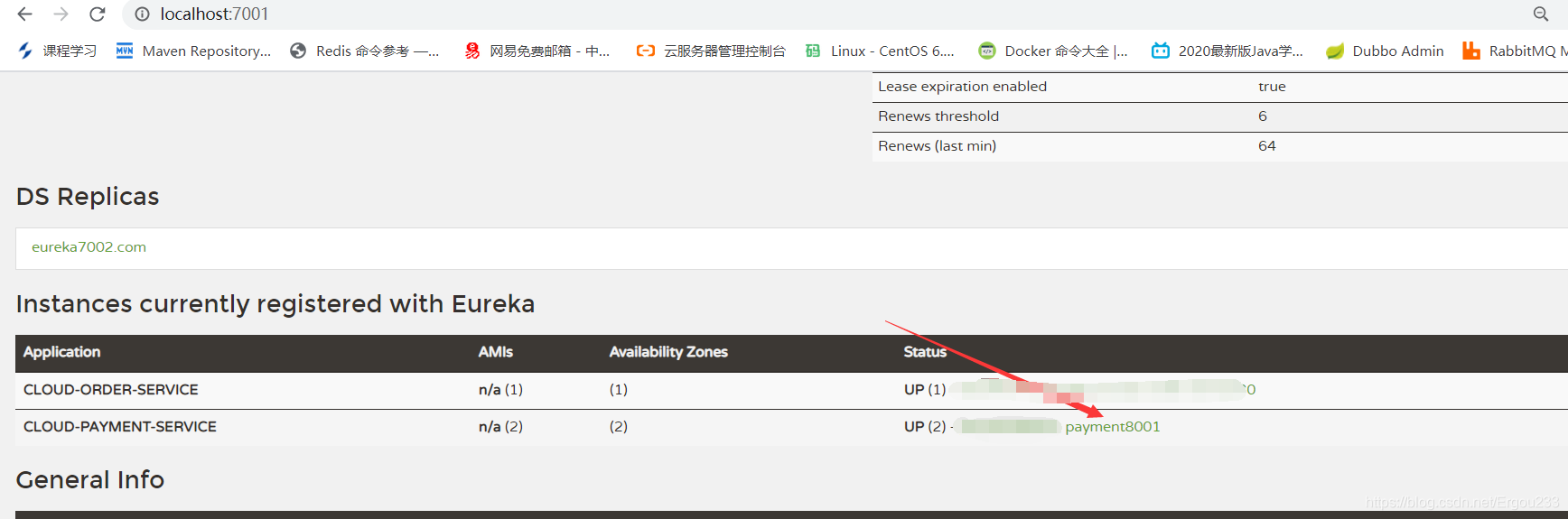

启动之后打开浏览器输入：localhost:7001 可以看到有这个服务显示就说明已经注册到注册中心了

然后再浏览器输入https://localhost:8001/payment/get/1显示如下页面即说明配置成功

pom文件如下

<dependencies> <!--eureka自带ribbon--> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <scope>runtime</scope> <optional>true</optional> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <dependency> <groupId>com.test.springcloud</groupId> <artifactId>cloud-api-commons</artifactId> <version>${project.version}</version> </dependency> </dependencies>

** 大家注意一定把自己的cloud-api-commons 替换成自己的坐标**

然后就是写yml文件，在resources下创建application.yml文件

yml配置代码如下

erver: port: 80 spring: application: name: cloud-order-service  eureka: client: service-url: defaultZone: http://localhost:7001/eureka    #defaultZone: https://eureka7001.com:7001/eureka/,https://eureka7002.com:7002/eureka/ register-with-eureka: true fetch-registry: true

创建启动类

@SpringBootApplication @EnableEurekaClient @RibbonClient(name = "CLOUD-PAYMENT-SERVICE",configuration = CloudRole.class) public class OrderMain80 { public static void main(String[] args) {          SpringApplication.run(OrderMain80.class,args); }

创建配置文件config. ApplicationContextConfig类

@Configuration public class ApplicationContestConfig { @Bean //开启负载均衡 @LoadBalanced public RestTemplate getRestTemplate(){ return new RestTemplate(); } }

最后创建controller.OrderController类

@Controller @Slf4j public class OrderController { //public static  final  String PAYMENT_URL="https://localhost:8001"; public static final  String PAYMENT_URL="https://CLOUD-PAYMENT-SERVICE"; @Autowired private RestTemplate restTemplate; @ResponseBody @GetMapping("/consumer/payment/create") public CommonResult<Payment> create (Payment payment){ return  restTemplate.postForObject(PAYMENT_URL+"/payment/create",payment,CommonResult.class); } @GetMapping(value = "/consumer/payment/get/{id}") @ResponseBody public CommonResult<Payment> getPayment(@PathVariable("id") Long id){          CommonResult forObject = restTemplate.getForObject(PAYMENT_URL + "/payment/get/" + id, CommonResult.class); //        System.out.println(forObject); return forObject; } @GetMapping("consumer/payment/getForEntity/{id}") @ResponseBody public CommonResult<Payment> getPayment2(@PathVariable("id") Long id) {          ResponseEntity<CommonResult> entity = restTemplate.getForEntity(PAYMENT_URL + "/payment/get/" + id, CommonResult.class); if (entity.getStatusCode().is2xxSuccessful()) { return  entity.getBody(); } else { return new CommonResult<>(444, "操作失败"); } } }

到此所有的代码都已经完成，接下来首先运行注册中心启动类，然后运行提供者启动类，最后运行消费者提供类，将注册者，消费者注册到Eureka注册中心

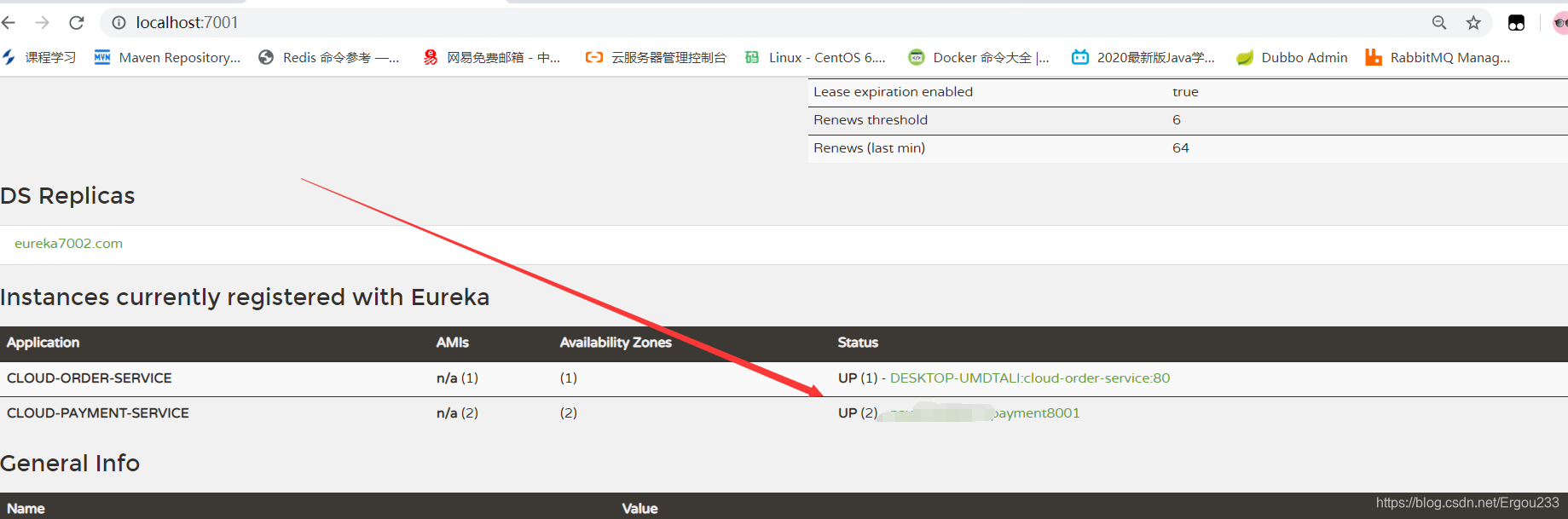

然后我们打开浏览器输入localhost:7001查看是否已经注册到Eureka注册中心

当我们看到这个页面就说明已经将提供者和消费者注册到注册中心了

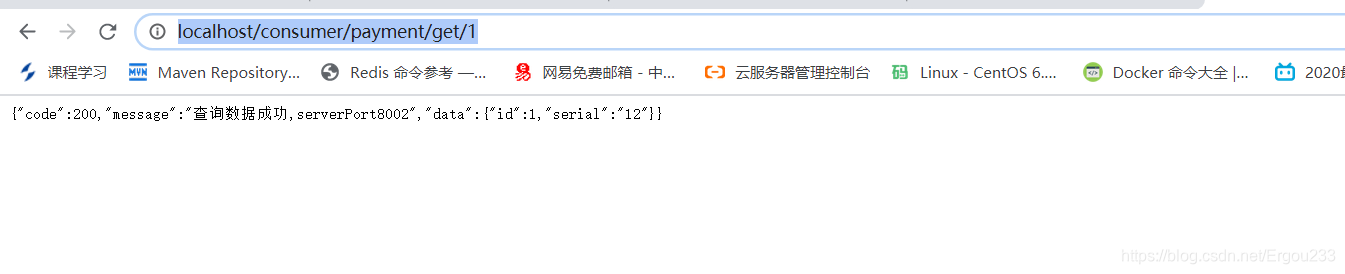

接下来利用消费者进行测试是否可以访问，在浏览器输入：https://localhost/consumer/payment/get/1

如果出现这个页面就说明配置成功

到此已经全部结束，这里只是一个简单的将服务注册到eureka注册中心的测试，有不足的地方欢迎各位大佬补充，谢谢大家！
