以前自学，都是用帧动画来实现跑马灯，这几天常失眠，晚上学东西也学不进，所以用Canvas写个小Demo，这么无聊的应该只有我一个了吧，废话不多说，下面上内容。

老规矩，最后有源码
效果图如下：

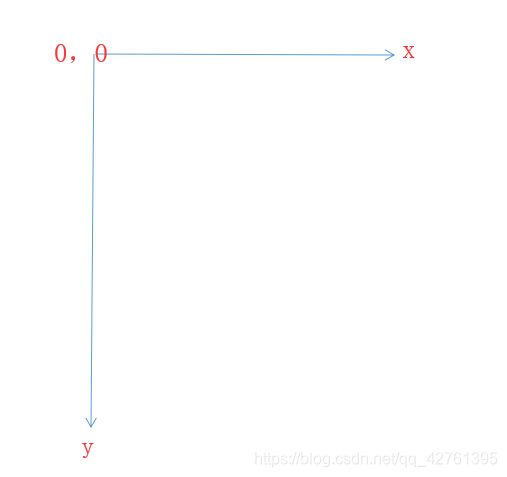

上代码前先介绍下手机坐标系，如下图

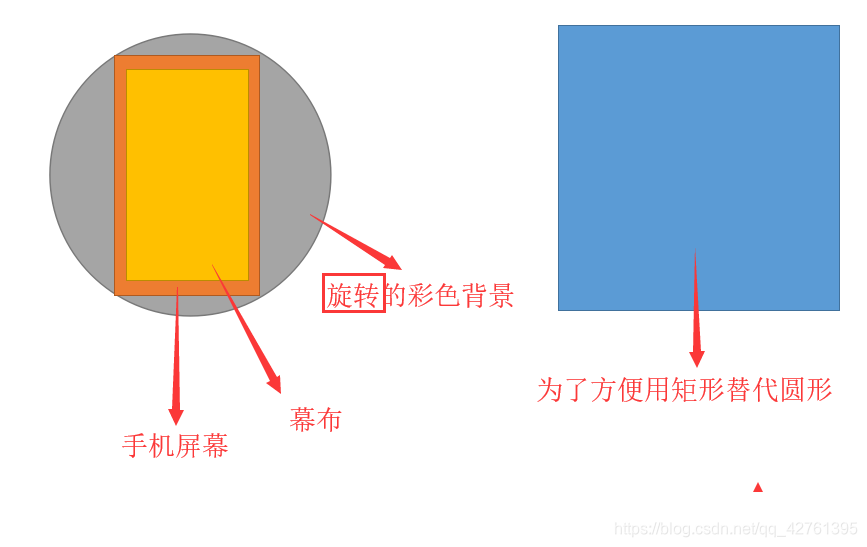

然后是绘制草图，如下：

大概思路为，开一个耗时线程使彩色背景旋转，来达到跑马灯的效果。

核心：
1.计算出View宽高，矩形宽高，从而算出矩形的坐标点。

 int canvasWidth = canvas.getWidth(); //画布宽度 int canvasHeight = canvas.getHeight(); //画布高度 int canvansMax= (int) Math.sqrt(Math.pow(canvasWidth/2,2)+Math.pow(canvasHeight/2,2))+1; //正方形宽高的一半

2.绘制背景，跑马灯，幕布

 //开始绘制底层背景         p.setColor(Color.WHITE);         RectF oval2 = new RectF(0, 0, canvasWidth, canvasHeight);// 设置个新的长方形，扫描测量         canvas.drawRect(oval2,p); //开始绘制跑马灯         Paint p1=new Paint(p);         Shader mShader = new LinearGradient(canvasWidth/2-canvansMax,canvasHeight/2-canvansMax , 2*canvansMax, 2*canvansMax,                 new int[] { Color.RED, Color.GREEN,Color.CYAN,Color.MAGENTA,Color.GRAY,Color.BLUE,Color.YELLOW,Color.RED, Color.GREEN,Color.CYAN,Color.MAGENTA,Color.GRAY,Color.BLUE,Color.YELLOW}, null, Shader.TileMode.REPEAT);          p1.setShader(mShader);         RectF oval = new RectF(canvasWidth/2-canvansMax,canvasHeight/2-canvansMax , 2*canvansMax, 2*canvansMax);// 设置个新的长方形         canvas.drawRect(oval,p1); //绘制幕布         Paint p2=new Paint();         p2.setColor(Color.BLACK);         RectF oval3 = new RectF(30, 30, canvasWidth-30, canvasHeight-30);// 设置个新的长方形，扫描测量         canvas.drawRect(oval3,p2);

3.找到旋转的依靠，并开启一个耗时任务。

   private Calendar mCalendar; // 时间对象     public static final int START_CLOCK = 1000;// 开启时钟的标识     Handler mHandler = new Handler() {         public void handleMessage(android.os.Message msg) { switch (msg.what) { case DrawView.START_CLOCK:                     mCalendar = mCalendar.getInstance(); invalidate(); sendEmptyMessageDelayed(DrawView.START_CLOCK, 10); break; case DrawView.STOP_CLOCK: break; default: break; } } };

4.设置彩色正方形旋转

 canvas.rotate(sec*100,canvasWidth/2,canvasHeight/2);

5.将幕布按照彩色正方形反向旋转（不设置则跟着正方形一起旋转）；

  canvas.rotate(-sec*100,canvasWidth/2,canvasHeight/2);

源码如下：
1.完整java文件

public class MarqueeView extends View {     private Calendar mCalendar; // 时间对象     public static final int START_CLOCK = 1000;// 开启时钟的标识     Handler mHandler = new Handler() {         public void handleMessage(android.os.Message msg) { switch (msg.what) { case DrawView.START_CLOCK:                     mCalendar = mCalendar.getInstance(); invalidate(); sendEmptyMessageDelayed(DrawView.START_CLOCK, 10); break; case DrawView.STOP_CLOCK: break; default: break; } } };      public MarqueeView(Context context) { super(context); }      public MarqueeView(Context context, @Nullable AttributeSet attrs) { super(context, attrs);         mCalendar = mCalendar.getInstance(); if (mCalendar == null) {             mCalendar = mCalendar.getInstance(); }         mHandler.sendEmptyMessage(START_CLOCK); }      @Override     protected void onDraw(Canvas canvas) {         super.onDraw(canvas); drawAxis(canvas); } //绘制     private void drawAxis(Canvas canvas){         Paint p=new Paint(); int canvasWidth = canvas.getWidth(); //画布宽度 int canvasHeight = canvas.getHeight(); //画布高度 int canvansMax= (int) Math.sqrt(Math.pow(canvasWidth/2,2)+Math.pow(canvasHeight/2,2))+1; //正方形宽高的一半 int sec = mCalendar.get(Calendar.SECOND);//得到当前秒数 //开始绘制底层背景         p.setColor(Color.WHITE);         RectF oval2 = new RectF(0, 0, canvasWidth, canvasHeight);// 设置个新的长方形，扫描测量         canvas.drawRect(oval2,p);         canvas.rotate(sec*100,canvasWidth/2,canvasHeight/2); //开始绘制跑马灯         Paint p1=new Paint(p);         Shader mShader = new LinearGradient(canvasWidth/2-canvansMax,canvasHeight/2-canvansMax , 2*canvansMax, 2*canvansMax,                 new int[] { Color.RED, Color.GREEN,Color.CYAN,Color.MAGENTA,Color.GRAY,Color.BLUE,Color.YELLOW,Color.RED, Color.GREEN,Color.CYAN,Color.MAGENTA,Color.GRAY,Color.BLUE,Color.YELLOW}, null, Shader.TileMode.REPEAT);         p1.setShader(mShader);         RectF oval = new RectF(canvasWidth/2-canvansMax,canvasHeight/2-canvansMax , 2*canvansMax, 2*canvansMax);// 设置个新的长方形，扫描测量         canvas.drawRect(oval,p1); //绘制幕布         Paint p2=new Paint();         canvas.rotate(-sec*100,canvasWidth/2,canvasHeight/2);         p2.setColor(Color.BLACK);         RectF oval3 = new RectF(30, 30, canvasWidth-30, canvasHeight-30);// 设置个新的长方形，扫描测量         canvas.drawRect(oval3,p2); } }

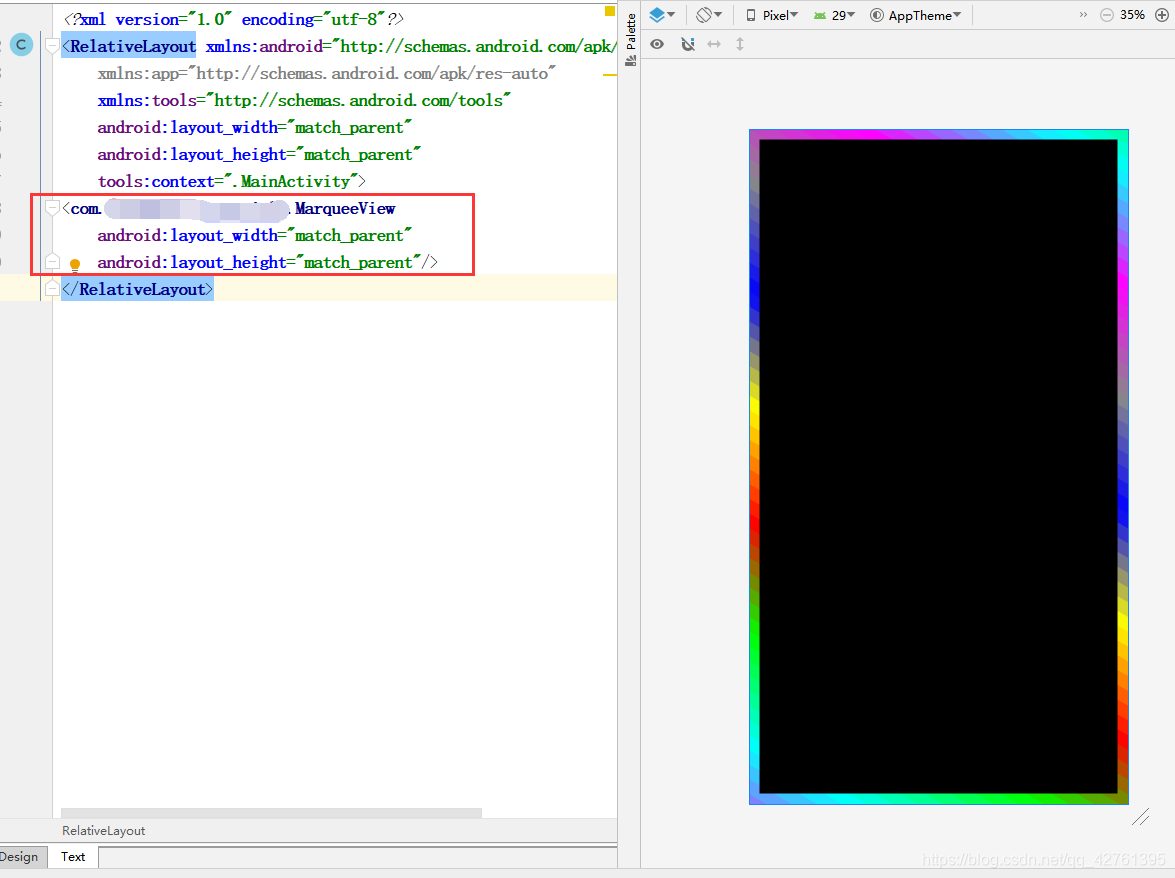

2.xml中调用

<com................MarqueeView     android:layout_width="match_parent"     android:layout_height="match_parent"/>
