前言

本来我只是个纯写一般app的码农，奈何进了这家以音视频为主的公司。刚进公司时，还有好些牛人都没有离职（在 音视频方面浸淫以久的同事)。那关于音视频方面的什么传输库，h264,aac编解码等方面的事，有专门的人员来写和维 护，我作为移动端的开发人员，只需要用他们提供的传输库，使用他们在pc端的功能模块就可以了。我也可以快乐的 下班。可公司发展不景气（没有挣到钱），接下来你们懂的。（人员各种流失。。。）最后，移动原生开发的就剩下 两人（我也算在里面）。ios方面的开发，全走了。交接工作全给了我了，OMY,我对苹果开发可是啥也不会呀。只希 望公司能接下来招几个搞ios的人吧。。。可是过了很长的时间，都没有招人，慢慢的，我也了解到领导就没有再招人 的意思。。很明显，交接给你了（我），那么ios的工作就你来干了。。。。我真是。。。。好吧，说远了！回到主 题，因为有些android手机对回声消除不太好，老板就要求我能不能解决下这个问题。我去，我是谁，，我在哪。。我 不会呀。但总不能直接说不会吧。只能硬着头皮上了。。

上网

不会没有关系，网上有很多相关的文章，经过查找知道手机端可用方案大概有如下几种：

• AcousticEchoCanceler（API4.1提供，部分手机不支持）
• AudioSource.VOICE_COMMUNICATION（使用voip通道录音，不靠谱）
• webrtc（业界有名的回声消除库，支持跨平台，难点是计算delay时间）
• SpeexDsp

参考文章：

• https://blog.csdn.net/badongdyc/article/details/73555007
• https://www.pianshen.com/article/43212237/
• https://blog.csdn.net/jiaoyangwuze/article/details/50618508

先谈speex

 说干就干，反正我自己现在（以后）也是没有能力写出回声消除算法的（那都是天才巨人干的事）。我能做的就是站在巨人的肩上。

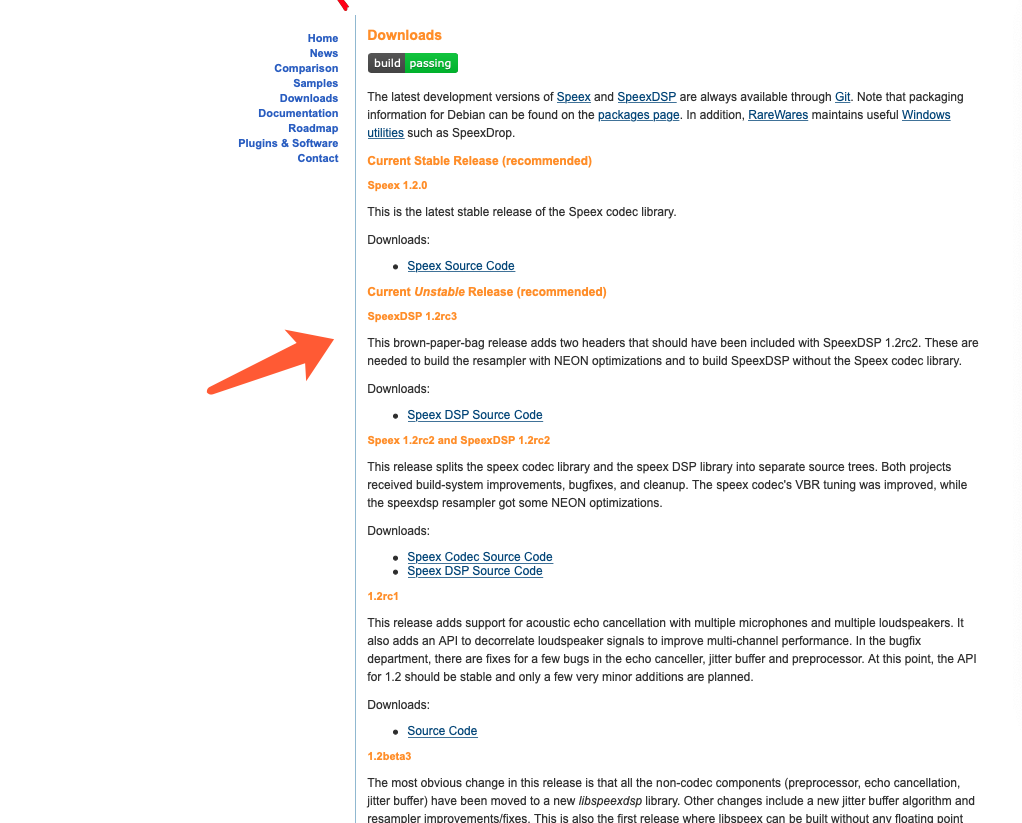

下载speexdsp

speex现在分成两部分了，主要的speex包含编码解码 ，另外一部分声学处理就是speexdsp专门用来处理回声消除
下传送门:

解压源代码

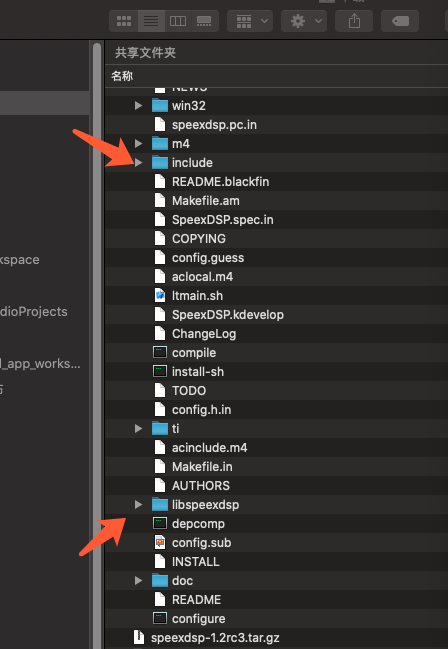

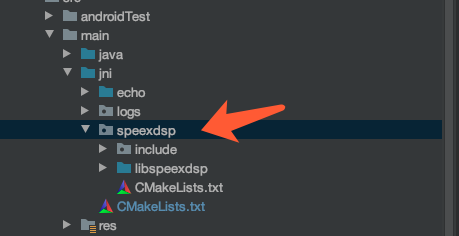

将用红色箭头标识的两文件夹复制到android工程的cpp（jni）目录下的speexdsp目录中:

这里注意了

复制都完成了，就把libseexdsp中的几个test文件删除，不然会有些麻烦，不删除也没有问题哈。主要是这几个test文件都有main函数。

另外，还得在使用我另外编译iconv中使用的方式先configurate下，生成config.h文件。把这个config.h文件也复制到speexdsp目录的include目录中

export NDK=/Users/xxx/Library/Android/android-ndk-r20  export ANDROID_NDK=/Users/xxx/Library/Android/android-ndk-r20  export NDK=/Users/xxx/Library/Android/android-ndk-r20   export PATH=${PATH}:${ANDROID_NDK} export PATH=${PATH}:${NDK} export ANDROID_TOOLS=/Users/xxx/Library/Android/sdk/platform-tools  export ANDROID_HOME=/Users/xxx/Library/Android/sdk   export PATH=${PATH}:${ANDROID_HOME} export ANDROID_TOOLS  export PATH=${PATH}:${ANDROID_TOOLS} #PATH=/bin:/usr/bin:/usr/local/bin:${PATH}  # darwin-x86_64 是Mac的路径，实际按目录结构修改 export PATH="$NDK:$NDK/shader-tools/darwin-x86_64:$NDK/build/tools:$PATH" # 预设值，待会才生成的目录 export SYSROOT=~/my-android-toolchain/sysroot export PATH=~/my-android-toolchain/bin:$PATH export CC=arm-linux-androideabi-gcc   # or export CC=clang export CXX=arm-linux-androideabi-g++  # or export CXX=clang++ export CXXFLAGS="-lstdc++" export CPPFLAGS="-lstdc++" export CC="arm-linux-androideabi-gcc --sysroot=$SYSROOT" export LD="arm-linux-androideabi-ld" export AR="arm-linux-androideabi-ar" export RANLIB="arm-linux-androideabi-ranlib" export STRIP="arm-linux-androideabi-strip" export CPP="arm-linux-androideabi-gcc -E" cd ~  mkdir my-android-toolchain  $NDK/build/tools/make-standalone-toolchain.sh  --arch=arm  --install-dir=~/my-android-toolchain --platform=android-21 --stl=gnustl   cd ~/Downloads/speexdsp-1.2rc3  ./configurate --host=arm-linux-eabi

接下来就是编写CMakeLists.txt及jni中间文件

1. audio_echo.h

// // Created by vnetoo on 2020/5/8. // #include "echo_config.h" #ifndef SPEEX_AUDIO_ECHO_H #define SPEEX_AUDIO_ECHO_H #define NN 128           //帧长      一般都是  80,160,320, #define TAIL 1024        //尾长      一般都是  80*25 ,160*25 ,320*25 #define ECHO_ERROR -1 #define ECHO_OK 0 // defined speexEcho struct typedef struct SpeexEcho{   SpeexEchoState* st;   SpeexPreprocessState* den; int aec_init_flag;   pthread_mutex_t mutex; int enable_echo; int frame_size; int enable_vad; }SpeexEcho; /** * 初始化回声消除 * @param context * @param frameSize * @param filterSize * @param sampleRate * @return */ int echo_init(SpeexEcho* context,const unsigned short frameSize ,const unsigned short filterSize,const unsigned short sampleRate); /** * 设置回声消除参数 * @param context * @param key * @param value * @ 0/1 */ int echo_set_ctl(SpeexEcho* context,const unsigned short key , int value); /** * 获取回声消除器的参数 * @param context * @param key * @param result * @return */ int echo_get_ctl(SpeexEcho* context,const unsigned short key , void* result); /*** * 设置噪声参数 * @param context * @param key * @param value * @return */ int echo_set_preprocess_ctl(SpeexEcho* context,const unsigned short key , void* value); int echo_get_preprocess_ctl(SpeexEcho* context,const unsigned short key , void* value); /*** * 处理数据 * @param context * @param near mic数据 * @param far  播放数据 * @param out  处理之后的数据 * @return */ int echo_sync_process(const SpeexEcho* context,unsigned short* near,unsigned short* far, unsigned short* out,size_t size); int echo_denoise_only(const SpeexEcho* context,unsigned short* near); int echo_asyn_process_near(const SpeexEcho* context,unsigned short* near,unsigned short *out); int echo_asyn_process_far(const SpeexEcho* context,unsigned short* far); /** * 清除，释放 */ void echo_distroy(SpeexEcho* context); #endif //SPEEX_AUDIO_ECHO_H

2. audio_echo.c

// // Created by vnetoo on 2020/5/8. // #include "include/audio_echo.h" int echo_init(SpeexEcho *context, const unsigned short frameSize, const unsigned short filterSize, const unsigned short sampleRate) { pthread_mutex_lock(&(context->mutex)); unsigned short fs = frameSize; if (fs <= 0) { return ECHO_ERROR; } unsigned short fl = filterSize; if (fl <= 0) { return ECHO_ERROR; } int mSampleRate = sampleRate; if(mSampleRate<=0){ return ECHO_ERROR; }     context->st = speex_echo_state_init(fs, fl); ASSERT(context->st != NULL, "init echo error"); if (context->st == NULL) { LOGE("init echo error with frameSize:%d,filterSize:%d", fs, fl); return ECHO_ERROR; }    context->den = speex_preprocess_state_init(fs, sampleRate); ASSERT(context->den != NULL, "init preprocess with sampleRate: %d, error", mSampleRate); int flag = -1;     flag = speex_echo_ctl(context->st, SPEEX_ECHO_SET_SAMPLING_RATE, &mSampleRate); ASSERT(flag == 0, "set sampleRate for echo error");     flag = speex_preprocess_ctl(context->den, SPEEX_PREPROCESS_SET_ECHO_STATE, context->st); ASSERT(flag == 0, "set  aec proprocess to st error")     context->aec_init_flag = flag == 0 ? 1 : 0; pthread_mutex_unlock(&(context->mutex)); LOGI("init speex aec success"); return ECHO_OK; } int echo_set_ctl(SpeexEcho *context, const unsigned short key, int value) { ASSERT(context != NULL, "speexEcho is NULL") if (context != NULL && context->aec_init_flag == 1) { int result = speex_echo_ctl(context->st, key, &value); if (result == 0) { return ECHO_OK; } else { LOGE("set speex_echo_ctl(%d,%d) unknow key", key, value); } } return ECHO_ERROR; } int echo_get_ctl(SpeexEcho *context, const unsigned short key, void *result) { ASSERT(context != NULL, "speexEcho is NULL") if (context != NULL && context->aec_init_flag == 1) { int result = speex_echo_ctl(context->st, key, &result); if (result == 0) { return ECHO_OK; } else { LOGE("get speex_echo_ctl(%d,%d) unknow key", key, result); } } return ECHO_ERROR; } int echo_set_preprocess_ctl(SpeexEcho *context, const unsigned short key, void *value) { ASSERT(context != NULL, "speexEcho is NULL") if (context != NULL && context->aec_init_flag == 1) { pthread_mutex_lock(&(context->mutex)); int result = speex_preprocess_ctl(context->den, key, value); if(key == SPEEX_PREPROCESS_SET_NOISE_SUPPRESS){ int* v = (int*)value; LOGI("SPEEX_PREPROCESS_SET_NOISE_SUPPRESS=>%d result:%d",*v,result); }else if(key == SPEEX_PREPROCESS_SET_DENOISE){ int* v = (int*)value; LOGI("SPEEX_PREPROCESS_SET_DENOISE=>%d result:%d",*v,result); } else if(key == SPEEX_PREPROCESS_SET_AGC){ int* v = (int*)value; LOGI("SPEEX_PREPROCESS_SET_AGC=>%d result:%d",*v,result); }else if(key == SPEEX_PREPROCESS_SET_DEREVERB){ int* v = (int*)value; LOGI("SPEEX_PREPROCESS_SET_DEREVERB=>%d result:%d",*v,result); }else if(key == SPEEX_PREPROCESS_SET_VAD){ int* v = (int*)value; &context->enable_vad == *v; LOGI("SPEEX_PREPROCESS_SET_VAD=>%d result:%d",*v,result); }else if(key == SPEEX_PREPROCESS_SET_NOISE_SUPPRESS){ int* v = (int*)value; LOGI("SPEEX_PREPROCESS_SET_NOISE_SUPPRESS=>%d result:%d",*v,result); }else if(key == SPEEX_PREPROCESS_SET_AGC_LEVEL){ int* v = (int*)value; LOGI("SPEEX_PREPROCESS_SET_AGC_LEVEL=>%d result:%d",*v,result); } pthread_mutex_unlock(&(context->mutex)); if (result == 0) { return ECHO_OK; } else { LOGE("set echo_set_preprocess_ctl(%d) unknow key", key); } } return ECHO_ERROR; } int echo_get_preprocess_ctl(SpeexEcho *context, const unsigned short key, void *result) { ASSERT(context != NULL, "speexEcho is NULL") if (context != NULL && context->aec_init_flag == 1) { int ret = speex_preprocess_ctl(context->den, key, result); if (ret == 0) { return ECHO_OK; } else { LOGE("get echo_set_preprocess_ctl(%d) unknow key", key); } } return ECHO_ERROR; } int echo_sync_process(const SpeexEcho *context, unsigned short *near, unsigned short *far, unsigned short *out,size_t size) { ASSERT(context != NULL, "speexEcho is NULL") ASSERT(near != NULL, "mic record data is NULL") ASSERT(far != NULL, "playData is NULL") ASSERT(out != NULL, "outputBuffer is NULL") if (context != NULL && context->aec_init_flag == 1) { pthread_mutex_lock(&(context->mutex)); // speex_preprocess_run(context->den, far); speex_echo_cancellation(context->st, near, far, out); int result = speex_preprocess_run(context->den, out); pthread_mutex_unlock(&(context->mutex)); return result; } return ECHO_ERROR; } int echo_denoise_only(const SpeexEcho* context,unsigned short* near){ ASSERT(near != NULL, "near data is NULL") pthread_mutex_lock(&(context->mutex)); int result = speex_preprocess_run(context->den, near); pthread_mutex_unlock(&(context->mutex)); return result; } int echo_asyn_process_near(const SpeexEcho* context,unsigned short* near,unsigned short *out){ if (context != NULL && context->aec_init_flag == 1) { pthread_mutex_lock(&(context->mutex)); speex_echo_capture(context->st,near,out); pthread_mutex_unlock(&(context->mutex)); return ECHO_OK; } return ECHO_ERROR; } int echo_asyn_process_far(const SpeexEcho* context,unsigned short* far){ if (context != NULL && context->aec_init_flag == 1) { pthread_mutex_lock(&(context->mutex)); speex_echo_playback(context->st,far); pthread_mutex_unlock(&(context->mutex)); return ECHO_OK; } return ECHO_ERROR; } void echo_distroy(SpeexEcho *context) { if (context != NULL && context->aec_init_flag == 1) { pthread_mutex_lock(&(context->mutex)); speex_preprocess_state_destroy(context->den); speex_echo_state_destroy(context->st);        context->aec_init_flag = 0; pthread_mutex_unlock(&(context->mutex)); LOGE("release speex echo"); } }

3. echo_jni.c

// // Created by vnetoo on 2020/5/8. // #include <stdlib.h> #include <assert.h> #include <jni.h> #include <string.h> #include <pthread.h> #include "include/audio_echo.h" #define ClassName "com/vnetoo/speex/echo/SpeexEcho" #define EchoPk(method) Java_com_vnetoo_speex_echo_SpeexEcho_##method static SpeexEcho echo; static short *out; int debug = 1; inline void throwException(JNIEnv *env, const char *clasz, const char *errorMsg); void throwException(JNIEnv *env, const char *clasz, const char *errorMsg) {    jclass newExcCls; (*env)->ExceptionDescribe(env); (*env)->ExceptionClear(env);     newExcCls = (*env)->FindClass(env, clasz); if (newExcCls != NULL) { (*env)->ThrowNew(env, newExcCls, errorMsg); } }   JNIEXPORT jint JNICALL EchoPk(aecInit)(JNIEnv *env, jclass jclasz, jint frameSize, jint filterSize, jint sampleRate) { int result = echo_init(&echo, frameSize, filterSize, sampleRate); if (result == ECHO_ERROR) { throwException(env, "java/lang/IllegalStateException", "init aec error"); }     echo.frame_size = frameSize; LOGI("speex jni init aec success"); return result; }  JNIEXPORT jint JNICALL EchoPk(aec_1set_1feature)(JNIEnv *env, jclass jclasz, jint key, jint value) { if (echo.aec_init_flag) { return echo_set_ctl(&echo, key, value); } return ECHO_ERROR; }   JNIEXPORT jint JNICALL EchoPk(aec_1set_1other_1feature__II)(JNIEnv *env, jclass clazz,                                     jint key, jint value) { if (echo.aec_init_flag) { int v = value; return echo_set_preprocess_ctl(&echo, key, &v); } return ECHO_ERROR; }  JNIEXPORT jint JNICALL EchoPk(aec_1set_1other_1feature__IF)(JNIEnv *env, jclass clazz,                                     jint key, jfloat value) { if (echo.aec_init_flag) { float v = value; return echo_set_preprocess_ctl(&echo, key, &v); } return ECHO_ERROR; }  JNIEXPORT jint JNICALL EchoPk(aec_1process)(JNIEnv *env, jclass clazz, jbyteArray near,                     jbyteArray far,jbyteArray out) {    jbyteArray ret = NULL;    jbyte *nearData = (*env)->GetByteArrayElements(env, near, JNI_FALSE);    jbyte *fearData = (*env)->GetByteArrayElements(env, far, JNI_FALSE);    jbyte *outData = (*env)->GetByteArrayElements(env, out, JNI_FALSE); int result = 0;    bool needRet = false; if(echo.enable_echo == 1){        result= echo_sync_process(&echo, nearData, fearData, outData, echo.frame_size); LOGI("echo canncel :%d", result ); } else{        result = echo_denoise_only(&echo,nearData); LOGI("echo_denoise_only:%d", result ); } (*env)->ReleaseByteArrayElements(env, near, nearData, JNI_FALSE); (*env)->ReleaseByteArrayElements(env, far, fearData, JNI_FALSE); (*env)->ReleaseByteArrayElements(env, out, outData, JNI_FALSE); return result; }  JNIEXPORT void JNICALL EchoPk(destory)(JNIEnv *env, jclass clazz) { // pthread_mutex_lock(&(echo.mutex)); echo_distroy(&echo); free(out); // pthread_mutex_unlock(&(echo.mutex));    out = NULL; }  JNIEXPORT jint JNICALL EchoPk(aec_1set_1enable_1echo)(JNIEnv *env, jclass clazz,                               jboolean enable) { pthread_mutex_lock(&(echo.mutex));    echo.enable_echo = enable ? 1 : 0; LOGI("echo.enable_echo=%d", echo.enable_echo); pthread_mutex_unlock(&(echo.mutex)); return ECHO_OK; }  JNIEXPORT jfloat JNICALL EchoPk(aec_1get_1other_1float_1feature)(JNIEnv *env, jclass clazz,                                         jint key) { pthread_mutex_lock(&(echo.mutex)); float value = 0; echo_get_preprocess_ctl(&(echo),key,&value); pthread_mutex_unlock(&(echo.mutex)); return value; }  JNIEXPORT jint JNICALL EchoPk(aec_1get_1other_1int_1feature)(JNIEnv *env, jclass clazz,                                      jint key) { pthread_mutex_lock(&(echo.mutex)); int  value = 0; echo_get_preprocess_ctl(&(echo),key,&value); pthread_mutex_unlock(&(echo.mutex)); return value; }  JNIEXPORT jint JNICALL Java_com_vnetoo_speex_echo_SpeexEcho_ProcessStream(JNIEnv *env, jclass clazz, jbyteArray data,                                                   jint offset, jint len) {      jbyte *nearData = (*env)->GetByteArrayElements(env, data, JNI_FALSE); short*  out = (short*)malloc(len); memset(out,0,len); echo_asyn_process_near(&echo,nearData,out); memcpy(nearData,out,len); free(out); (*env)->ReleaseByteArrayElements(env, data, nearData, JNI_FALSE); return 0; }  JNIEXPORT jint JNICALL Java_com_vnetoo_speex_echo_SpeexEcho_ProcessReverseStream(JNIEnv *env, jclass clazz,                                                          jbyteArray far_end, jint offset,                                                          jint len) {     jbyte *nearData = (*env)->GetByteArrayElements(env, far_end, JNI_FALSE); echo_asyn_process_far(&echo,nearData); (*env)->ReleaseByteArrayElements(env, far_end, nearData, JNI_FALSE); return 0; }

4. SpeexEcho.java

package com.vnetoo.speex.echo; class SpeexEcho { public static native int aecInit(int frame_size, int filter_length, int sampling_rate) throws IllegalStateException; public static native int aec_set_enable_echo(boolean enable); public static native int aec_set_feature(int key,int value); public static native int aec_set_other_feature(int key,int  value); public static native int aec_set_other_feature(int key,float value); public static native float aec_get_other_float_feature(int key); public static native int aec_get_other_int_feature(int key); public static native int aec_process(byte[] near, byte[] far,byte[] out); public static native int ProcessStream(byte[] data,int offset, int len); public static native int ProcessReverseStream(byte[] far_end,int offset, int len); public static native void destory(); // public static native int aec_get_feature(int key); /**     * Set preprocessor denoiser state     */ public static final int SPEEX_PREPROCESS_SET_DENOISE = 0; /**     * Get preprocessor denoiser state     */ public static final int SPEEX_PREPROCESS_GET_DENOISE = 1; /**     * Set preprocessor Automatic Gain Control state     */ public static final int SPEEX_PREPROCESS_SET_AGC = 2; /**     * Get preprocessor Automatic Gain Control state     */ public static final int SPEEX_PREPROCESS_GET_AGC = 3; /**     * Set preprocessor Voice Activity Detection state     */ public static final int SPEEX_PREPROCESS_SET_VAD = 4; /**     * Get preprocessor Voice Activity Detection state     */ public static final int SPEEX_PREPROCESS_GET_VAD = 5; /**     * Set preprocessor Automatic Gain Control level (float)     */ public static final int SPEEX_PREPROCESS_SET_AGC_LEVEL = 6; /**     * Get preprocessor Automatic Gain Control level (float)     */ public static final int SPEEX_PREPROCESS_GET_AGC_LEVEL = 7; /**     * Set preprocessor dereverb state     */ public static final int SPEEX_PREPROCESS_SET_DEREVERB = 8; /**     * Get preprocessor dereverb state     */ public static final int SPEEX_PREPROCESS_GET_DEREVERB = 9; /**     * Set preprocessor dereverb level     */ public static final int SPEEX_PREPROCESS_SET_DEREVERB_LEVEL = 10; /**     * Get preprocessor dereverb level     */ public static final int SPEEX_PREPROCESS_GET_DEREVERB_LEVEL = 11; /**     * Set preprocessor dereverb decay     */ public static final int SPEEX_PREPROCESS_SET_DEREVERB_DECAY = 12; /**     * Get preprocessor dereverb decay     */ public static final int SPEEX_PREPROCESS_GET_DEREVERB_DECAY = 13; /**     * Set probability required for the VAD = to go from silence to voice     */ public static final int SPEEX_PREPROCESS_SET_PROB_START = 14; /**     * Get probability required for the VAD = to go from silence to voice     */ public static final int SPEEX_PREPROCESS_GET_PROB_START = 15; /**     * Set probability required for the VAD = to stay in the voice state (integer percent)     */ public static final int SPEEX_PREPROCESS_SET_PROB_CONTINUE = 16; /**     * Get probability required for the VAD = to stay in the voice state (integer percent)     */ public static final int SPEEX_PREPROCESS_GET_PROB_CONTINUE = 17; /**     * Set maximum attenuation of the noise in dB = (negative number)     */ public static final int SPEEX_PREPROCESS_SET_NOISE_SUPPRESS = 18; /**     * Get maximum attenuation of the noise in dB = (negative number)     */ public static final int SPEEX_PREPROCESS_GET_NOISE_SUPPRESS = 19; /**     * Set maximum attenuation of the residual echo in dB = (negative number)     */ public static final int SPEEX_PREPROCESS_SET_ECHO_SUPPRESS = 20; /**     * Get maximum attenuation of the residual echo in dB = (negative number)     */ public static final int SPEEX_PREPROCESS_GET_ECHO_SUPPRESS = 21; /**     * Set maximum attenuation of the residual echo in dB = when near end is active (negative number)     */ public static final int SPEEX_PREPROCESS_SET_ECHO_SUPPRESS_ACTIVE = 22; /**     * Get maximum attenuation of the residual echo in dB = when near end is active (negative number)     */ public static final int SPEEX_PREPROCESS_GET_ECHO_SUPPRESS_ACTIVE = 23; /**     * Set the corresponding echo canceller state so that residual echo suppression can be performed (NULL = for no residual echo suppression)     */ public static final int SPEEX_PREPROCESS_SET_ECHO_STATE = 24; /**     * Get the corresponding echo canceller state     */ public static final int SPEEX_PREPROCESS_GET_ECHO_STATE = 25; /**     * Set maximal gain increase in dB/second (int32)     */ public static final int SPEEX_PREPROCESS_SET_AGC_INCREMENT = 26; /**     * Get maximal gain increase in dB/second (int32)     */ public static final int SPEEX_PREPROCESS_GET_AGC_INCREMENT = 27; /**     * Set maximal gain decrease in dB/second (int32)     */ public static final int SPEEX_PREPROCESS_SET_AGC_DECREMENT = 28; /**     * Get maximal gain decrease in dB/second (int32)     */ public static final int SPEEX_PREPROCESS_GET_AGC_DECREMENT = 29; /**     * Set maximal gain in dB = (int32)     */ public static final int SPEEX_PREPROCESS_SET_AGC_MAX_GAIN = 30; /**     * Get maximal gain in dB = (int32)     */ public static final int SPEEX_PREPROCESS_GET_AGC_MAX_GAIN = 31; /*  Can't set loudness */ /**     * Get loudness     */ public static final int SPEEX_PREPROCESS_GET_AGC_LOUDNESS = 33; /*  Can't set gain */ /**     * Get current gain (int32 percent)     */ public static final int SPEEX_PREPROCESS_GET_AGC_GAIN = 35; /*  Can't set spectrum size */ /**     * Get spectrum size for power spectrum (int32)     */ public static final int SPEEX_PREPROCESS_GET_PSD_SIZE = 37; /*  Can't set power spectrum */ /**     * Get power spectrum (int32[] of squared values)     */ public static final int SPEEX_PREPROCESS_GET_PSD = 39; /*  Can't set noise size */ /**     * Get spectrum size for noise estimate (int32)     */ public static final int SPEEX_PREPROCESS_GET_NOISE_PSD_SIZE = 41; /*  Can't set noise estimate */ /**     * Get noise estimate (int32[] of squared values)     */ public static final int SPEEX_PREPROCESS_GET_NOISE_PSD = 43; /* Can't set speech probability */ /**     * Get speech probability in last frame (int32).     */ public static final int SPEEX_PREPROCESS_GET_PROB = 45; /**     * Set preprocessor Automatic Gain Control level (int32)     */ public static final int SPEEX_PREPROCESS_SET_AGC_TARGET = 46; /**     * Get preprocessor Automatic Gain Control level (int32)     */ public static final int SPEEX_PREPROCESS_GET_AGC_TARGET = 47; }

使用及例子及所有源码

我已经将所有源代码上传于github,各位可以自行下载修改，所有speex支持的参数设置，我已经通过jni公开。只是有很多参数

我也是不得要领，不知道有什么作为！

传送门

speexdsp使用手册

官方例子：

#ifdef HAVE_CONFIG_H #include "config.h" #endif #include "speex/speex_echo.h" #include "speex/speex_preprocess.h" #include <stdio.h> #include <stdlib.h> #include <sys/types.h> #include <sys/stat.h> #include <fcntl.h> #define NN 128 #define TAIL 1024 int main(int argc, char **argv) {   FILE *echo_fd, *ref_fd, *e_fd; short echo_buf[NN], ref_buf[NN], e_buf[NN];   SpeexEchoState *st;   SpeexPreprocessState *den; int sampleRate = 8000; if (argc != 4) { fprintf(stderr, "testecho mic_signal.sw speaker_signal.sw output.swn"); exit(1); }   echo_fd = fopen(argv[2], "rb");   ref_fd  = fopen(argv[1], "rb");   e_fd    = fopen(argv[3], "wb");    st = speex_echo_state_init(NN, TAIL);   den = speex_preprocess_state_init(NN, sampleRate); speex_echo_ctl(st, SPEEX_ECHO_SET_SAMPLING_RATE, &sampleRate); speex_preprocess_ctl(den, SPEEX_PREPROCESS_SET_ECHO_STATE, st); while (!feof(ref_fd) && !feof(echo_fd)) { fread(ref_buf, sizeof(short), NN, ref_fd); fread(echo_buf, sizeof(short), NN, echo_fd); speex_echo_cancellation(st, ref_buf, echo_buf, e_buf); speex_preprocess_run(den, e_buf); fwrite(e_buf, sizeof(short), NN, e_fd); } speex_echo_state_destroy(st); speex_preprocess_state_destroy(den); fclose(e_fd); fclose(echo_fd); fclose(ref_fd); return 0; }

本地验证呢，这个nn,与tail是最难确认的了。

结束

有人使用speexdsp作了测试，有人说效果可以，实际环境中使用效果如何，有待验证。

• Speex 回声消除 frame_size和filter_length
• Speex 回声消除接口介绍
• 关于speex及speexdsp详细介绍
