[前言] 你需要了解的地方

1、如果你不熟悉ansible，那么前后操作大概需要近两个小时的时间，需要执行的命令一共四条。

2、基础环境的操作我们使用ansible进行处理。

3、kubernetes的安装 我们使用的rke集群管理工具，自定义的pod资源创建使用的helm模板。

4、整体安装操作是离线状态，但是安装包需要提前下载，我提供有下载好的安装包，并附带了下载网盘地址。

5、本文结构分为四个部分

• 第一部分，下载离线安装包，执行前置剧本preposition.yml
• 第二部分，加载镜像到Harbor，执行脚本 rancher-load-images.sh
• 第三部分，安装kubernetes集群，执行安装剧本和后置剧本 k8sinstall.yml，postposition.yml。
• 第四部分，安装过程中可能会遇到的问题。

环境要求

kubernetes集群内相关组件版本

部署环境

部署工具

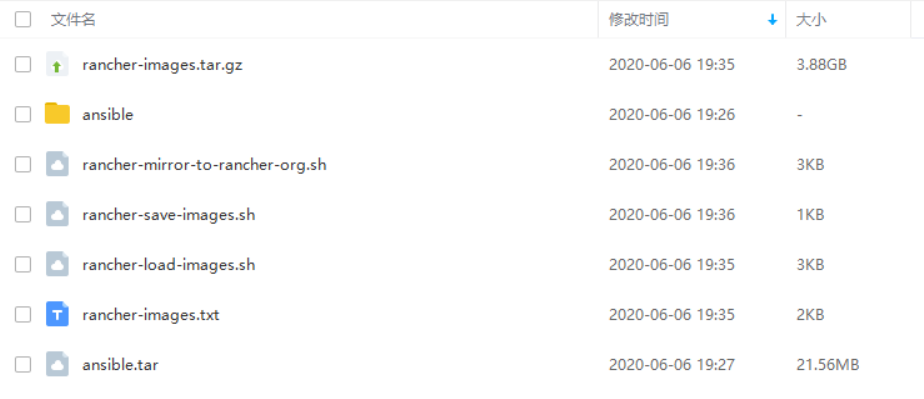

离线安装软件已上传至个人百度云盘
https://pan.baidu.com/s/11nImNp4x5qXAuHT3GWrWww 提取码：ith3

rancher-images.tar.gz 是kubernetes的离线安装包 大小3.88GB

下载很慢的童鞋可以选择下面的 rancher-save-images.sh 和 rancher-images.txt 通过这两个脚本下载kubernetes离线安装所需的镜像，当然镜像的拉取是需要网络的

ansible.tar 内是ansile的离线安装文件 21.56Mb

ansible 文件内是编写好的剧本，拿下来直接运行即可，大小1.3GB 因为内置的Harbor1.5版本的离线安装包比较大。

rancher-load-images.sh 是用来将本地镜像加载到harbor仓库的

一、准备三台及其以上服务器

这里使用本地三台虚拟机进行演示，

1、安装ansible

将所需软件包下载到本地，选择kubernetes集群任意节点作为ansible主机，并将ansible安装包上传至该服务器
这里选择192.168.91.231作为ansible客户端

在/mnt/ 下新建ansible目录

mkdir /mnt/ansible

并将安装文件ansible.tar上传至该目录执行安装命令

[root@localhost mnt]# tree . └── ansible     └── ansible.tar  1 directory, 1 file

执行安装命令

[root@localhost mnt]#cd /mnt/ansible && tar -xvf *.tar && rpm -ivh *.rpm --force --nodeps

[root@localhost ansible]# ansible --version ansible 2.9.7   config file = /etc/ansible/ansible.cfg   configured module search path = [u'/root/.ansible/plugins/modules', u'/usr/share/ansible/plugins/modules']   ansible python module location = /usr/lib/python2.7/site-packages/ansible   executable location = /usr/bin/ansible   python version = 2.7.5 (default, Oct 30 2018, 23:45:53) [GCC 4.8.5 20150623 (Red Hat 4.8.5-36)]

ansible安装完成

2、将下载好的ansible剧本复制到服务器上的ansible中

ansible默认的执行文件在 /etc/ansible 目录下

从百度云盘下载的文件内容

服务器上安装的ansible默认文件内容

[root@localhost ansible]# tree . ├── ansible.cfg ├── hosts └── roles  1 directory, 2 files

备份原有的ansible.cfg文件 将本地离线文件上传至服务器 hosts文件除外

[root@k1 ansible]# tree . ├── ansible.cfg ├── ansible.cfg.bak ├── hosts ├── k8sinstall.yml ├── postposition.yml ├── preposition.yml └── roles     ├── docker     │   ├── files     │   │   └── docker-19.03.0     │   │       ├── bin     │   │       │   ├── containerd     │   │       │   ├── containerd-shim     │   │       │   ├── ctr     │   │       │   ├── docker     │   │       │   ├── dockerd     │   │       │   ├── docker-init     │   │       │   ├── docker-proxy     │   │       │   └── runc     │   │       └── docker.service     │   ├── tasks     │   │   ├── main.yml     │   │   └── main.yml.bak1     │   └── templates     │       └── daemon.json     ├── env     │   ├── files     │   ├── tasks     │   │   └── main.yml     │   └── templates     │       └── hosts.j2     ├── harbor     │   ├── files     │   │   └── harbor1.5     │   │       ├── common     │   │       │   ├── config     │   │       │   │   ├── adminserver     │   │       │   │   │   └── env     │   │       │   │   ├── db     │   │       │   │   │   └── env     │   │       │   │   ├── jobservice     │   │       │   │   │   ├── config.yml     │   │       │   │   │   └── env     │   │       │   │   ├── log     │   │       │   │   │   └── logrotate.conf     │   │       │   │   ├── nginx     │   │       │   │   │   ├── client_body_temp     │   │       │   │   │   ├── conf.d     │   │       │   │   │   ├── fastcgi_temp     │   │       │   │   │   ├── nginx.conf     │   │       │   │   │   ├── proxy_temp     │   │       │   │   │   ├── scgi_temp     │   │       │   │   │   └── uwsgi_temp     │   │       │   │   ├── registry     │   │       │   │   │   ├── config.yml     │   │       │   │   │   └── root.crt     │   │       │   │   └── ui     │   │       │   │       ├── app.conf     │   │       │   │       ├── certificates     │   │       │   │       ├── env     │   │       │   │       └── private_key.pem     │   │       │   └── templates     │   │       │       ├── adminserver     │   │       │       │   └── env     │   │       │       ├── clair     │   │       │       │   ├── clair_env     │   │       │       │   ├── config.yaml     │   │       │       │   ├── postgres_env     │   │       │       │   └── postgresql-init.d     │   │       │       │       └── README.md     │   │       │       ├── db     │   │       │       │   └── env     │   │       │       ├── jobservice     │   │       │       │   ├── config.yml     │   │       │       │   └── env     │   │       │       ├── log     │   │       │       │   └── logrotate.conf     │   │       │       ├── nginx     │   │       │       │   ├── nginx.http.conf     │   │       │       │   ├── nginx.https.conf     │   │       │       │   ├── notary.server.conf     │   │       │       │   └── notary.upstream.conf     │   │       │       ├── notary     │   │       │       │   ├── mysql-initdb.d     │   │       │       │   │   ├── initial-notaryserver.sql     │   │       │       │   │   └── initial-notarysigner.sql     │   │       │       │   ├── notary-signer-ca.crt     │   │       │       │   ├── notary-signer.crt     │   │       │       │   ├── notary-signer.key     │   │       │       │   ├── server-config.json     │   │       │       │   ├── signer-config.json     │   │       │       │   └── signer_env     │   │       │       ├── registry     │   │       │       │   ├── config_ha.yml     │   │       │       │   ├── config.yml     │   │       │       │   └── root.crt     │   │       │       └── ui     │   │       │           ├── app.conf     │   │       │           ├── env     │   │       │           └── private_key.pem     │   │       ├── docker-compose     │   │       ├── docker-compose.clair.yml     │   │       ├── docker-compose.notary.yml     │   │       ├── docker-compose.yml     │   │       ├── ha     │   │       │   ├── docker-compose.clair.tpl     │   │       │   ├── docker-compose.clair.yml     │   │       │   ├── docker-compose.tpl     │   │       │   ├── docker-compose.yml     │   │       │   ├── registry.sql     │   │       │   └── sample     │   │       │       ├── active_active     │   │       │       │   ├── check.sh     │   │       │       │   └── keepalived_active_active.conf     │   │       │       └── active_standby     │   │       │           ├── check_harbor.sh     │   │       │           └── keepalived_active_standby.conf     │   │       ├── harbor.cfg     │   │       ├── harbor.v1.5.0.tar.gz     │   │       ├── install.sh     │   │       ├── LICENSE     │   │       ├── NOTICE     │   │       ├── prepare     │   │       └── start.sh     │   ├── tasks     │   │   └── main.yml     │   └── templates     │       └── harbor.cfg.j2     ├── k8s     │   ├── files     │   │   ├── create_self-signed-cert.sh     │   │   ├── rancher2.4.3     │   │   │   ├── Chart.yaml     │   │   │   ├── rancherInstall.sh     │   │   │   ├── templates     │   │   │   │   ├── clusterRoleBinding.yaml     │   │   │   │   ├── deployment.yaml     │   │   │   │   ├── _helpers.tpl     │   │   │   │   ├── ingress.yaml     │   │   │   │   ├── issuer-letsEncrypt.yaml     │   │   │   │   ├── issuer-rancher.yaml     │   │   │   │   ├── NOTES.txt     │   │   │   │   ├── serviceAccount.yaml     │   │   │   │   └── service.yaml     │   │   │   └── values.yaml     │   │   └── rkeup.sh     │   ├── tasks     │   │   └── main.yml     │   └── templates     │       ├── caproduction.sh.j2     │       └── helminstallrancher.sh.j2     ├── rke     │   ├── files     │   │   └── rkesh     │   │       ├── helm     │   │       ├── kubectl     │   │       ├── rke_linux-amd64     │   │       └── rkeup.sh     │   ├── tasks     │   │   └── main.yml     │   └── templates     │       ├── helm     │       ├── login.sh.j2     │       ├── rancher-cluster.yml     │       └── rke_linux-amd64     ├── rkepost     │   ├── files     │   │   └── config     │   ├── tasks     │   │   └── main.yml     │   └── templates     └── ssh         ├── files         ├── tasks         │   └── main.yml         └── templates  67 directories, 109 files

以百度云盘下载的hosts文件为模板 修改服务器上的hosts文件

模板内容 [Allip] 10.96.240.5 10.96.240.6 10.96.240.7 10.96.240.8 [master] 10.96.240.5 hostname=k1 nodename=10.96.240.5 10.96.240.6 hostname=k2 nodename=10.96.240.6 10.96.240.7 hostname=k3 nodename=10.96.240.7 [worker] 10.96.240.8 hostname=k4 nodename=10.96.240.8 [Harbor] 192.168.91.233 [AllNodes:children] master Harbor worker [ssh] 10.96.240.5 ansible_ssh_user=root ansible_ssh_pass=123 ansible_sudo_pass=123 10.96.240.6 ansible_ssh_user=root ansible_ssh_pass=123 ansible_sudo_pass=123 10.96.240.7 ansible_ssh_user=root ansible_ssh_pass=123 ansible_sudo_pass=123 10.96.240.8 ansible_ssh_user=root ansible_ssh_pass=123 ansible_sudo_pass=123 [ansible] 10.96.240.5 [rke:children] ansible Harbor

本地服务器修改内容

[Allip] 192.168.91.231 192.168.91.232 192.168.91.233 [master] 192.168.91.231 hostname=k1 nodename=192.168.91.231 192.168.91.232 hostname=k2 nodename=192.168.91.232 192.168.91.233 hostname=k3 nodename=192.168.91.233 [worker]  #这里我们没有单独的worker节点将这里空置 #如果有则以master的格式添加即可 #这里不能注释掉，不然后面的脚本会报错 [Harbor] 192.168.91.233 [AllNodes:children] master Harbor [ssh] 192.168.91.231 ansible_ssh_user=root ansible_ssh_pass=123 ansible_sudo_pass=123 192.168.91.232 ansible_ssh_user=root ansible_ssh_pass=123 ansible_sudo_pass=123 192.168.91.233 ansible_ssh_user=root ansible_ssh_pass=123 ansible_sudo_pass=123 [ansible] 192.168.91.231 [rke:children] ansible Harbor

3、 设置ansible客户端root用户ssh到其他机器

[root@localhost ansible]# ssh-keygen -t rsa -N '' -f /root/.ssh/id_rsa -q  [root@localhost ansible]# ssh-copy-id 192.168.91.231 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub" The authenticity of host '192.168.91.231 (192.168.91.231)' can't be established. ECDSA key fingerprint is SHA256:a9m0kn3f82CgKbeaExfsyI9gA1eNtjNxHrsF7Pt6c8E. ECDSA key fingerprint is MD5:6e:a7:9f:98:4b:30:15:0c:81:cb:8c:12:21:4a:d7:a2. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys root@192.168.91.231's password:   Number of key(s) added: 1  Now try logging into the machine, with:   "ssh '192.168.91.231'" and check to make sure that only the key(s) you wanted were added.   [root@localhost ansible]# ssh-copy-id 192.168.91.232 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub" The authenticity of host '192.168.91.232 (192.168.91.232)' can't be established. ECDSA key fingerprint is SHA256:cWBnOseD+d8luVa9rpoxpyymVjsQ0UKgEpOYmGvf8s4. ECDSA key fingerprint is MD5:f2:23:d6:cb:f6:a5:d0:23:8b:3e:91:3d:64:3d:60:aa. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys root@192.168.91.232's password:   Number of key(s) added: 1  Now try logging into the machine, with:   "ssh '192.168.91.232'" and check to make sure that only the key(s) you wanted were added.  [root@localhost ansible]# ssh-copy-id 192.168.91.233 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub" The authenticity of host '192.168.91.233 (192.168.91.233)' can't be established. ECDSA key fingerprint is SHA256:mlX1xTguF377Tz93YicCJOSFN3Byl3iJJK80kXuvF0U. ECDSA key fingerprint is MD5:c6:48:24:ae:ad:d8:ab:a6:6d:a9:d7:01:eb:1e:9c:2d. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys root@192.168.91.233's password:   Number of key(s) added: 1  Now try logging into the machine, with:   "ssh '192.168.91.233'" and check to make sure that only the key(s) you wanted were added.

4、执行ansible剧本

[root@localhost ansible]# ansible-playbook preposition.yml

请耐心等待20分钟左右

该剧本做了以下操作 假定这里的每台服务器都是k8s集群内的节点

• 1、关闭每台服务器的防火墙
• 2、关闭每台服务器的swap分区
• 3、关闭每台服务器的selinux
• 4、清除每台服务器的iptables规则
• 5、修改每台服务器的hostname
• 6、修改每台服务器的hosts文件
• 7、为每台服务器安装docker
• 8、为指定服务器安装harbor仓库
• 9、为每台服务器安装rke、helm、kubectl工具

二、 将kubernetes离线安装镜像推送至harbor私仓

将百度云盘下载的镜像tar.gz包和脚本上传至任意kubernetes任意节点

这里我选择上传至harbor仓库所在服务器，并放置在/mnt/ 目录下

• 1、登录harbor 创建目录rancher并设置为public权限

  账户 admin 密码 Harbor12345 这里我们使用了默认密码

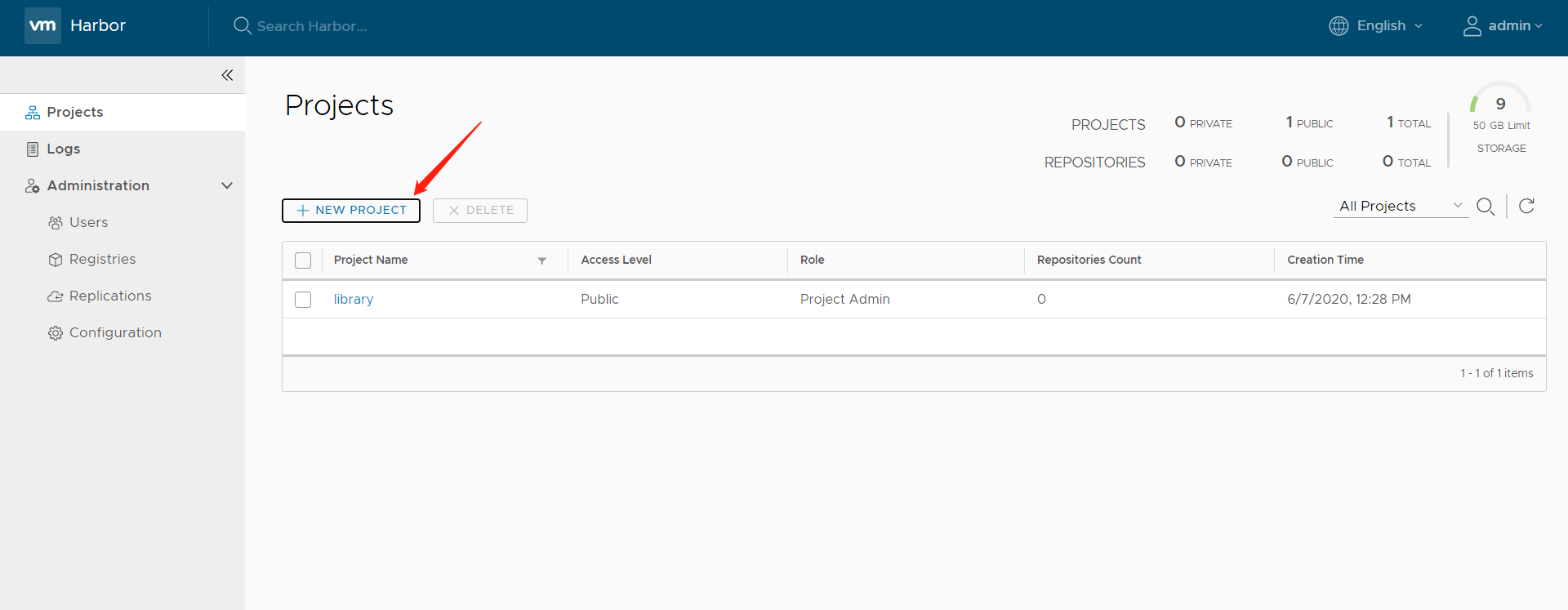

• 2、创建工程目录

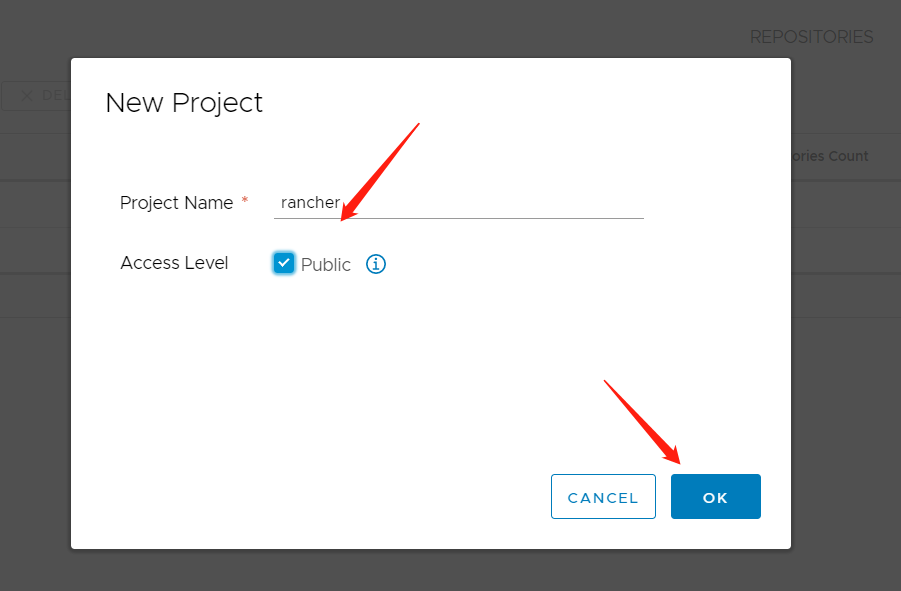

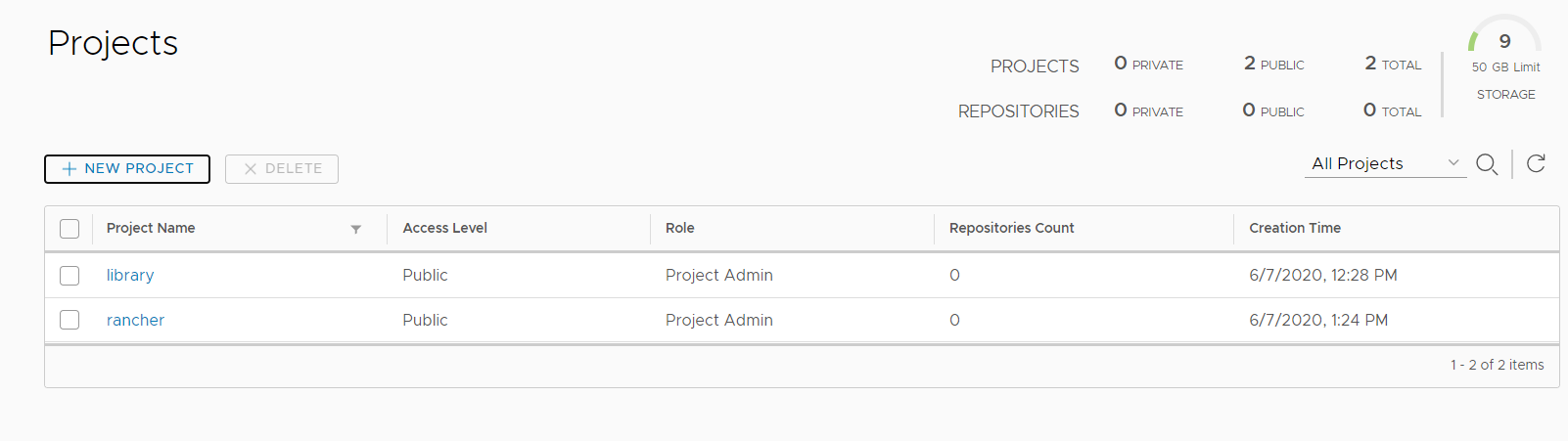

• 3、创建rancher目录

• 4、执行脚本将镜像加载到Harbor

[root@k3 mnt]# cd /mnt &&  chmod +x rancher-load-images.sh  && ./rancher-load-images.sh -l ./rancher-images.txt  -i rancher-images.tar.gz -r 192.168.91.233:88

耐心等待大约20分钟

三、安装kubernetes集群

为每台服务器配置rancher用户的ssh互信

建议此操作在每个节点上都要执行，执行安装命令的机器必须执行，如果你只设置一台，请使用安装了ansible的机器 [root@k1 ansible]# su rancher [rancher@k1 ansible]$ ssh-keygen -t rsa -N '' -f /home/rancher/.ssh/id_rsa -q  [rancher@k1 ansible]$ ssh-copy-id -i /home/rancher/.ssh/id_rsa.pub  rancher@192.168.91.231 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/rancher/.ssh/id_rsa.pub" The authenticity of host '192.168.91.231 (192.168.91.231)' can't be established. ECDSA key fingerprint is SHA256:a9m0kn3f82CgKbeaExfsyI9gA1eNtjNxHrsF7Pt6c8E. ECDSA key fingerprint is MD5:6e:a7:9f:98:4b:30:15:0c:81:cb:8c:12:21:4a:d7:a2. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys rancher@192.168.91.231's password:  Permission denied, please try again. rancher@192.168.91.231's password:   Number of key(s) added: 1  Now try logging into the machine, with:   "ssh 'rancher@192.168.91.231'" and check to make sure that only the key(s) you wanted were added.  [rancher@k1 ansible]$ ssh-copy-id -i /home/rancher/.ssh/id_rsa.pub  rancher@192.168.91.232 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/rancher/.ssh/id_rsa.pub" The authenticity of host '192.168.91.232 (192.168.91.232)' can't be established. ECDSA key fingerprint is SHA256:cWBnOseD+d8luVa9rpoxpyymVjsQ0UKgEpOYmGvf8s4. ECDSA key fingerprint is MD5:f2:23:d6:cb:f6:a5:d0:23:8b:3e:91:3d:64:3d:60:aa. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys rancher@192.168.91.232's password:   Number of key(s) added: 1  Now try logging into the machine, with:   "ssh 'rancher@192.168.91.232'" and check to make sure that only the key(s) you wanted were added.  [rancher@k1 ansible]$ ssh-copy-id -i /home/rancher/.ssh/id_rsa.pub  rancher@192.168.91.233 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/rancher/.ssh/id_rsa.pub" The authenticity of host '192.168.91.233 (192.168.91.233)' can't be established. ECDSA key fingerprint is SHA256:mlX1xTguF377Tz93YicCJOSFN3Byl3iJJK80kXuvF0U. ECDSA key fingerprint is MD5:c6:48:24:ae:ad:d8:ab:a6:6d:a9:d7:01:eb:1e:9c:2d. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys rancher@192.168.91.233's password:   Number of key(s) added: 1  Now try logging into the machine, with:   "ssh 'rancher@192.168.91.233'" and check to make sure that only the key(s) you wanted were added.

ssh设置完成之后 继续执行剧本

[root@k1 ansible]# ansible-playbook k8sinstall.yml

大概等待20分钟左右的时间，安装完成

该剧本做了以下操作

• 1、安装kubernetes集群
• 2、制作私有CA证书
• 3、将CA证书加入kubernetes的cattle-system命名空间下
• 4、安装rancher

安装完成后继续执行剧本

[root@k1 ansible]# ansible-playbook postposition.yml

该剧本做了以下操作

• 1、将kubernetes config文件分发至所有节点
  每台服务器均可以执行kubectl命令

至此，kubernetes集群和Rancher已经安装完成。

四、部署过程中可能会遇到的问题

1、关于Docker版本问题

Docker版本请与我保持一致，或使用17.0.0以上的版本

2、 关于防火墙问题

由于是内网，这里我将防火墙全部关闭了，如果必须要开启防火墙
你需要开放以下端口

3、对于经过多次部署的环境

多次部署的环境必须清理历史环境信息

df -h|grep kubelet |awk -F % '{print $2}'|xargs umount  rm /var/lib/kubelet/* -rf  rm /etc/kubernetes/* -rf  rm /var/lib/rancher/* -rf  rm /var/lib/etcd/* -rf  rm /var/lib/cni/* -rf  iptables -F && iptables -t nat –F  ip link del flannel.1  docker ps -a|awk '{print $1}'|xargs docker rm -f  docker volume ls|awk '{print $2}'|xargs docker volume rm

4、关于openssh版本问题

通常这个问题会在安装kubernetes集群时出现。

会有Failed to dial to /var/run/docker.sock

他会明确告诉很多可能会解决当前问题的操作，其中一条会是openssh的版本需要在6.8以上，不过我还是建议你将openssh版本升级到7.0+

5、关于创建的rancher用户

在使用Centos/Redhat 时是不允许root用户进行ssh tunnel操作的 因此我们需要使用普通用户，同时将其加入Docker组。

当然你可以自定义用户组，但是他必须拥有操作Docker的权限

[尾语]

如果你在操作过程中遇到了问题或是在文中发现了任何问题，欢迎给我留言或者私信，我会及时更正。
