前言

效果图

项目实现

用到的属性

重写三个构造方法

初始化各个指针的画笔，指针的矩形

重写 onMeasure方法

获取系统的时间

重写ondraw方法

最后给时钟添加上属性动画

前言

之前项目有个需求是在桌面上增加一个桌面时钟，当时是参考别人的博客，在其基础上添加了属性动画然后实现的。因此今天特地重新写了一遍这个自定义view 加深印象并出来

效果图

用手机拍的视频，然后转为GIF的，因为是试用的，所以就是这个渣渣效果，还有水印，求推荐一个好用的格式转换工具

项目实现

为了编写方便，这里没有用到自定义属性，有需要的话，可以自行添加自定义属性，同时在代码中注释很详细，文章这里只简单介绍一下

用到的属性

  private Paint hPaint ,mPaint ,sPaint ,circlePaint ,cPointPaint,paintDegree,txtPaint,titlePaint;     private final int maxWidth = 400;     int width ,height;      int hSound = 0;     int mSound = 0;     int sSound = 0;      private int hcount = 0;//当前小时数     private int mcount = 0;//当前分钟数     private int scount = 0;//当前秒钟数      private final int hScale = 30;//每小时之间30度     private static final int mScale = 6;//每分钟之间是6度      RectF hRect , mRect ,sRect ;//三个     boolean first = true;//执行动画之后再转动指针

重写三个构造方法

 public ClockView(Context context) {         super(context);         init();     }      public ClockView(Context context, AttributeSet attrs) {         super(context, attrs);         init();     }      public ClockView(Context context, AttributeSet attrs, int defStyleAttr) {         super(context, attrs, defStyleAttr);         init();     }

初始化各个指针的画笔，指针的矩形

这里各种new操作不要放在Ondraw方法中，避免重复实现

  private void init(){         //外圆盘画笔         circlePaint = new Paint();         circlePaint.setAntiAlias(true);         circlePaint.setDither(true);         circlePaint.setStyle(Paint.Style.STROKE);         circlePaint.setColor(Color.BLACK);         circlePaint.setStrokeWidth(1);          //圆心画笔         cPointPaint = new Paint();         cPointPaint.setAntiAlias(true);         cPointPaint.setDither(true);         cPointPaint.setStyle(Paint.Style.FILL_AND_STROKE);         cPointPaint.setColor(0xff4CAF50);//绿色         cPointPaint.setStrokeWidth(2);          //时针画笔         hPaint = new Paint();         hPaint.setAntiAlias(true);         hPaint.setDither(true);         hPaint.setStyle(Paint.Style.FILL_AND_STROKE);         hPaint.setColor(0xff349CE2);//蓝色         hPaint.setStrokeWidth(7);         //时针矩形         hRect = new RectF(-16,0,89,0);          //分针画笔         mPaint = new Paint();         mPaint.setAntiAlias(true);         mPaint.setDither(true);         mPaint.setStyle(Paint.Style.FILL_AND_STROKE);         mPaint.setColor(0xffDB2540);//红色         mPaint.setStrokeWidth(6);         //分针矩形         mRect = new RectF(-25,0,140,0);          //秒针画笔         sPaint = new Paint();         sPaint.setAntiAlias(true);         sPaint.setDither(true);         sPaint.setStyle(Paint.Style.FILL_AND_STROKE);         sPaint.setColor(0xff4CAF50);//绿色         sPaint.setStrokeWidth(5);         //秒钟矩形         sRect = new RectF(-30,0,180,0);          //刻度画笔         paintDegree  = new Paint();         paintDegree.setColor(0xff000000);         paintDegree.setStyle(Paint.Style.STROKE);         paintDegree.setAntiAlias(true);          //文字画笔         txtPaint = new Paint();         txtPaint.setColor(0xff000000);         txtPaint.setTextSize(20);         txtPaint.setAntiAlias(true);          //标题画笔         titlePaint = new Paint();         titlePaint.setColor(0xff000000);         titlePaint.setTextSize(45);         titlePaint.setAntiAlias(true);      }

重写 onMeasure方法

 @Override     protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {         super.onMeasure(widthMeasureSpec, heightMeasureSpec);         int width = MeasureSpec.getSize(widthMeasureSpec);         int widthMode = MeasureSpec.getMode(widthMeasureSpec);         int height = MeasureSpec.getSize(heightMeasureSpec);         int heightMode = MeasureSpec.getMode(heightMeasureSpec);          if (widthMode == MeasureSpec.AT_MOST && heightMode ==MeasureSpec.AT_MOST){             setMeasuredDimension(maxWidth,maxWidth);         }else if (widthMode == MeasureSpec.AT_MOST ){             setMeasuredDimension(maxWidth,width);         }else if (heightMode ==MeasureSpec.AT_MOST ){             setMeasuredDimension(height,maxWidth);         }     }

获取系统的时间

   private void getDatas() {         SimpleDateFormat format = new SimpleDateFormat("HH,mm,ss");         String time = format.format(new Date());         try {             String s[] = time.split(",");             hcount = Integer.parseInt(s[0]);             mcount = Integer.parseInt(s[1]);             scount = Integer.parseInt(s[2]);         } catch (Exception ex) {             ex.printStackTrace();         }     }

重写ondraw方法

首先获取并计算宽高，设置各指针长度以及外圆的半径

   super.onDraw(canvas);         width = getMeasuredWidth()-getPaddingStart()-getPaddingEnd();         height = getMeasuredHeight()-getPaddingBottom()-getPaddingTop();         width = height = Math.min(width,height);          //圆心点         int cpoints = width/2;         hSound = width/8;//时针长度         mSound = width/6;//分针长度         sSound = width/4;//秒针长度          int radius =cpoints*3/4;//外圆半径

借用一下别人的图

这里判断是否是第一次显示时钟,等于true为第一次，然后绘制标题，位置的计算根据上图

   if(!first){             getDatas();         }          String titleText = "三原色时钟";         //X坐标等于圆心的X坐标减去文字的一半的长度,Y坐标等于圆心的Y坐标减圆的半径再减20         canvas.drawText(titleText,cpoints - titlePaint.measureText(titleText) / 2 ,cpoints-radius-20,titlePaint);

然后绘制刻度，圆盘

  //画出12个小时的刻度线及文字         for (int i = 0; i < 12; i++) {             String txtTime = Integer.toString(i);             //3，6，9，12比其他的略粗略长             if(i%3==0) {                 if (i==0){                     txtTime = "12";                 }                 paintDegree.setStrokeWidth(5);                 canvas.drawLine(width / 2, height / 2 - radius, width / 2, height / 2 - radius + 20, paintDegree);             }else{                 paintDegree.setStrokeWidth(4);                 canvas.drawLine(width / 2, height / 2 - radius, width / 2, height / 2 - radius + 15, paintDegree);             }             canvas.drawText(txtTime,cpoints - txtPaint.measureText(txtTime) / 2,height / 2 - radius + 40,txtPaint);             canvas.rotate(hScale, width / 2, height / 2);         }          //画出60个分钟的刻度线         for (int x = 0; x < 60; x++) {             paintDegree.setStrokeWidth(3);             if (x % 5 != 0) {//当x % 5 == 0时即是时钟刻度，因此不需要绘制，避免重复绘制                 canvas.drawLine(width / 2, height / 2 - radius, width / 2, height / 2 - radius + 8, paintDegree);             }             canvas.rotate(mScale, width / 2, height / 2);         }          //画外层圆         canvas.drawCircle(cpoints,cpoints,radius,circlePaint);         //画内层圆         canvas.drawCircle(cpoints,cpoints,radius/6,circlePaint);         //平移至中心点         canvas.translate(cpoints,cpoints);         //保存画布         canvas.save();

最后是绘制三个指针

 //int hRotate = 270 + hScale * hcount;         int offset = 30 * mcount / 60;         offset -= offset % mScale;//时针相对分针数，有一个偏移量         int hRotate = 270 + hScale * hcount + offset;         canvas.rotate(hRotate); //        canvas.drawLine(0, -10, 0, hSound, hPaint);//画时针          canvas.drawRoundRect(hRect,15,15,hPaint);//画时针          canvas.restore();         canvas.save();         int mRotate = 270 + mScale * mcount ;         canvas.rotate(mRotate);          canvas.drawRoundRect(mRect,25,25,mPaint);//画分针         //canvas.drawLine(0, -15, 0, mSound, mPaint);//画分针          canvas.restore();         canvas.save();         //一圈360度,总共60秒，因此时间每多一秒，度数加6         int sRotate = 270 + mScale * scount ;         canvas.rotate(sRotate);         //canvas.drawLine(0, -25, 0, sSound, sPaint);//画秒针          canvas.drawRoundRect(sRect,15,15,sPaint);//画秒针

绘制指针上的圆心点

 canvas.drawCircle(0,0,6,cPointPaint);//画圆心

第一次出现时不转动指针

   if(!first){             postInvalidateDelayed(1000);         }

最后给时钟添加上属性动画

在View中添加一个公共方法给外部调用

 public void startAnim(){         getDatas();         final ValueAnimator animatorh = ValueAnimator.ofInt(0,hcount>12?hcount-12:hcount);//大于十二点时减去12 避免转两圈         final ValueAnimator animatorm=ValueAnimator.ofInt(0,mcount);         final ValueAnimator animators=ValueAnimator.ofInt(0,scount);          //设置动画时长         animatorh.setDuration(1500);         animatorm.setDuration(1500);         animators.setDuration(1500);         animatorh.setInterpolator(new LinearInterpolator());         animatorh.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {             @Override             public void onAnimationUpdate(ValueAnimator animation) {                 hcount = (int)animation.getAnimatedValue();             }         });         animatorh.start();          animatorm.setInterpolator(new LinearInterpolator());         animatorm.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {             @Override             public void onAnimationUpdate(ValueAnimator animation) {                 mcount = (int)animation.getAnimatedValue();             }         });         animatorm.start();          animators.setInterpolator(new LinearInterpolator());         animators.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {             @Override             public void onAnimationUpdate(ValueAnimator animation) {                 scount = (int)animation.getAnimatedValue();                 postInvalidate();//添加之后动画才会执行，不然看不到效果             }         });         animators.start();         //添加动画完成时的监听,在动画完成之后开始指针的转动         animators.addListener(new AnimatorListenerAdapter() {             @Override             public void onAnimationEnd(Animator animation) {                 first = false ;                 postInvalidate();             }         });     }

有时不需要执行动画的话，可以再添加一个公共方法直接设置first 为false

 public void SetFirstInit(Boolean  ttt) {         first =ttt;     }

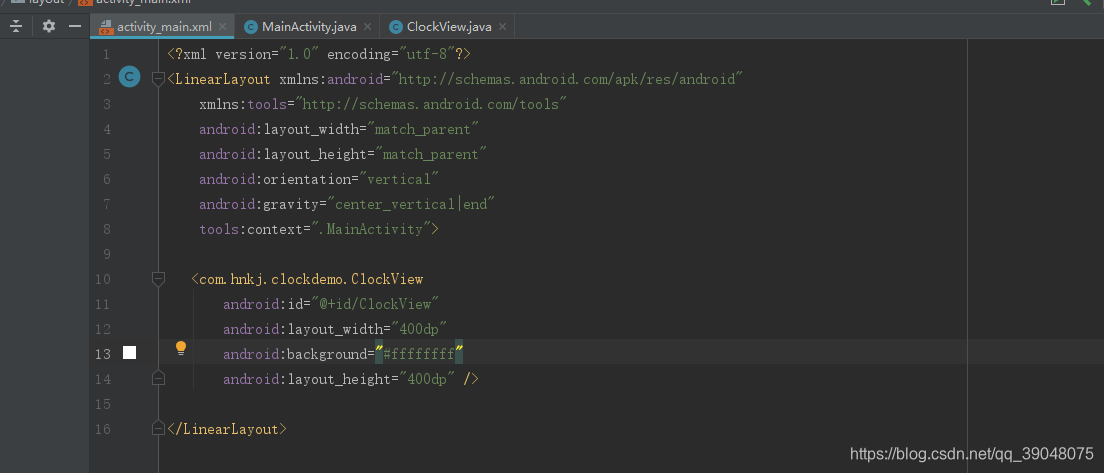

//然后在布局添加自定义view即可

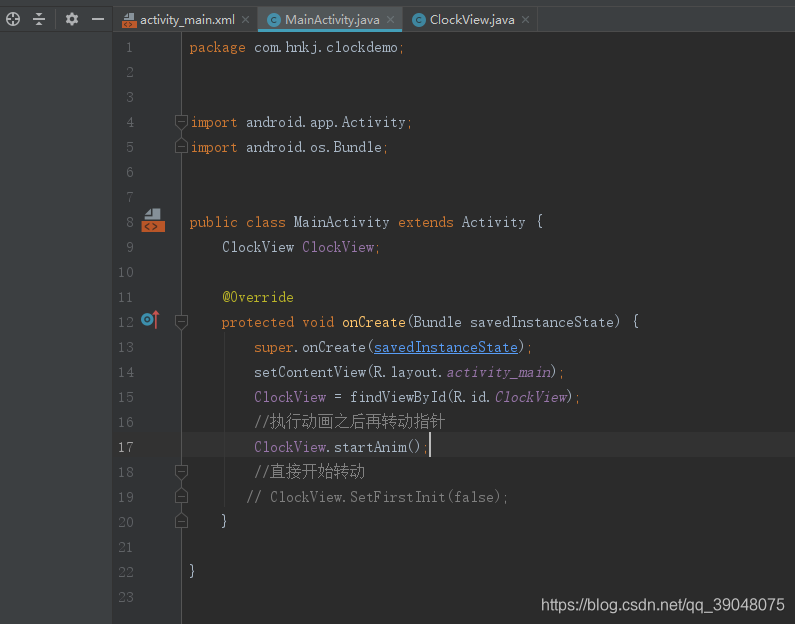

在Activity中使用ClockView并根据需求调用对应的方法

到这里文章就结束了，觉得还算可以的，欢迎啊
