项目简述

基本上懂点FPGA信号处理操作的同学都听过CORDIC算法，该算法可以被使用计算常见函数及超越函数。那么喜欢刨根问底的同学就会问为什么CORDIC算法可以被使用来计算常见函数，该算法又可以使用计算哪些函数，精度如何等等问题。那么这篇文章及接下来的文章将用来介绍这些问题，其实关于该算法在ImapBox上面已经又比较完善的ImapBox博主进行了介绍，包括我也是使用上面的博客进行的学习，博主的连接以及一些参考文献会在文章的最后给出。

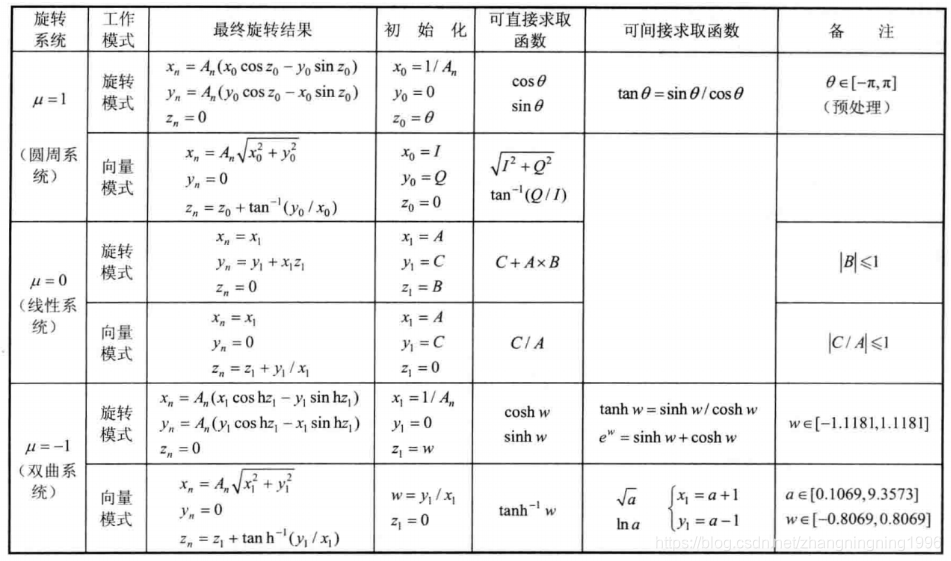

首先CORDIC的全称是 Coordinate Rotation Digital Computer 也就是我们常说的坐标旋转算法。既然是坐标旋转算法，那么就需要坐标进而坐标系是必须需要提前确定。常见在CORDIC算法中使用的系统有圆周系统、线性系统、双曲系统，每种系统又分为向量模式与旋转模式，每种模式可以使用计算不同的函数。包括如果掌握了CORDIC的原理计算一些其他特殊函数也是可能的。 CORDIC函数可以使用计算的函数如下：

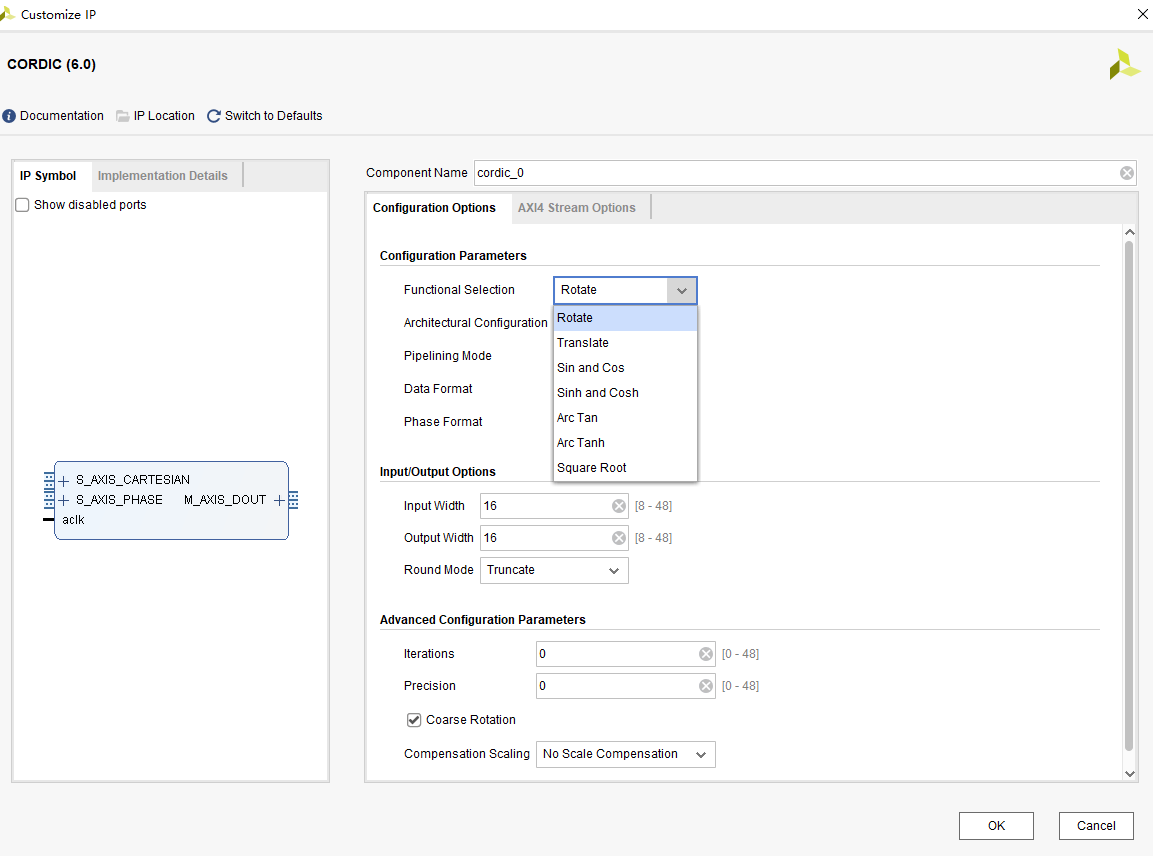

下面是VIVADO中CORDIC IP中可以计算的函数

这里是不是可以看出上面的函数基本上是一一对应的。

CORDIC算法向量模式原理

CIRDIC算法向量模式推导步骤一

这里主要参考的是参考文献[1]中的文章，大家可以进行相应的阅读。
平面上一点在直角坐标系下的坐标（X,Y）=（100，200），如何求的在极坐标系下的坐标（ρ,θ）。用计算器计算一下可知答案是（223.61，63.435）。

为了突出重点，这里我们只讨论X和Y都为正数的情况。这里或许有同学要说如果X和Y中有为负值的情况应该咋么办，其实这部分的算法不需要X和Y都为正值，但是需要X为正值。如果X为负值，那么我们便需要进行相应的处理，方法就是将X轴的值变成正值，但是这部分不要忘记CORDIC迭代的初始值发生变化。当X变成正值之后θ=atan(y/x)。求θ的过程也就是求atan 函数的过程。Cordic算法采用的想法很直接，将
$(x,y)$

(x,y)旋转一定的度数，如果旋转完纵坐标变为了0，那么旋转的度数就是θ。坐标旋转的公式可能大家都忘了，这里把公式列出了。设
$(x,y)$

(x,y)是原始坐标点，将其以原点为中心，顺时针旋转θ之后的坐标记为
$(x_1,y_1)$

(x1​,y1​),则有如下公式：

这里要明确我们的目标是为了将
$y$

y变成零，为了减少计算量，都是先用二分法进行旋转，也就是说第一次旋转45度，至于是顺时针旋转还是逆时针旋转取决于
$y$

y的符号。

旋转之后纵坐标为70.71，还是大于0，说明旋转的度数不够，接着再旋转22.5度。

这时总共旋转了45+22.5=67.5度。结果纵坐标变为了负数，说明θ<67.5度，这时就要往回转，还是二分查找法的思想，这次转11.25度。

这时总共旋转了45+22.5-11.25=56.25度。又转过头了，接着旋转，这次顺时针转5.625度。

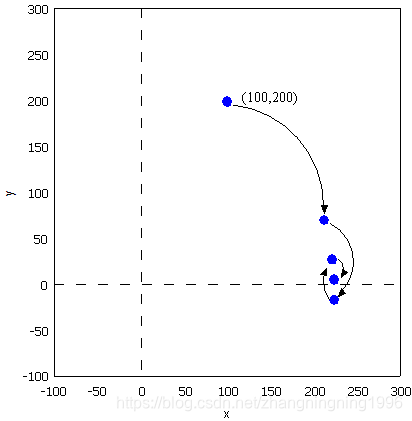

这时总共旋转了45+22.5-11.25+5.625=61.875度。这时纵坐标已经很接近0了。我们只是说明算法的思想，因此就不接着往下计算了。计算到这里我们给的答案是 61.875±5.625。二分查找法本质上查找的是一个区间，因此我们给出的是θ值的一个范围。同时，坐标到原点的距离ρ也求出来了，ρ=223.52。与标准答案比较一下计算的结果还是可以的。旋转的过程图示如下。

可能有读者会问，计算中用到了 sin 函数和 cos 函数，这些值又是怎么计算呢。很简单，我们只用到很少的几个特殊点的sin 函数和 cos 函数的值，提前计算好存起来，用查找表。这里需要注意，这种思想在FPGA中非常容易遇见。

将上面的思想我们使用MATLAB来实现如下：

clc; clear all;  sine = [0.7071067811865,0.3826834323651,0.1950903220161,0.09801714032956,0.04906767432742,0.02454122852291,0.01227153828572,0.006135884649154,0.003067956762966,0.001533980186285,7.669903187427045e-4,3.834951875713956e-4,1.917475973107033e-4,9.587379909597735e-5,4.793689960306688e-5,2.396844980841822e-5]; cosine = [0.7071067811865,0.9238795325113,0.9807852804032,0.9951847266722, ... 0.9987954562052,0.9996988186962,0.9999247018391,0.9999811752826,0.9999952938096, ... 0.9999988234517,0.9999997058629,0.9999999264657,0.9999999816164,0.9999999954041, ... 0.999999998851,0.9999999997128]; angle = 45; a = zeros(16,1); for i = 1:16 a(i) = angle;     angle = angle/2; end   x = 100;  y = -300;  z = 0; for i = 1:16 if(y > 0)         x_new = x*cosine(i) + y*sine(i);         y_new = y*cosine(i) - x*sine(i);         x = x_new;         y = y_new;         z = z + a(i); else         x_new = x*cosine(i) - y*sine(i);         y_new = y*cosine(i) + x*sine(i);         x = x_new;         y = y_new;         z = z - a(i);     end end z

结果如下：

CIRDIC算法向量模式推导步骤二

CORDIC一般是在FPGA中实现。FPGA中的DSP资源是非常宝贵的资源，所以我们要尽可能减少CORDIC中的乘法的个数，所以将公式变形如下：

这里因为我们要计算相位
$arctan(y/x)$

arctan(y/x)，所以我们先将缩放因子去掉

但是我们注意到 CIRDIC算法向量模式不仅可以计算
$arctan(y/x)$

arctan(y/x)而且可以计算
$sqrt{x^2+y^2}$

x2+y2​，所以这个补偿因子到最后肯定会补偿回来，在FPGA中同样利用查表得方法补偿回来。
省略cos(θ)后发生了什么呢，每次旋转后的新坐标点到原点的距离都变长了，放缩的系数是1/cos(θ)。不过没有关系，我们求的是θ，不关心ρ的改变。这样的变形非常的简单，但是每次循环的运算量一下就从4次乘法降到了2次乘法了。

将上面的思想我们使用MATLAB来实现如下：

clc; clear all;  tangent = [1.0,0.4142135623731,0.1989123673797,0.09849140335716,0.04912684976947, ... 0.02454862210893,0.01227246237957,0.006136000157623,0.003067971201423, ... 0.001533981991089,7.669905443430926e-4,3.83495215771441e-4,1.917476008357089e-4, ... 9.587379953660303e-5,4.79368996581451e-5,2.3968449815303e-5]; angle = 45; a = zeros(16,1); for i = 1:16 a(i) = angle;     angle = angle/2; end   x = 100;  y = -300;  z = 0; for i = 1:16 if(y > 0)         x_new = x+ y*tangent(i);         y_new = y - x*tangent(i);         x = x_new;         y = y_new;         z = z + a(i); else         x_new = x- y*tangent(i);         y_new = y + x*tangent(i);         x = x_new;         y = y_new;         z = z - a(i);     end end z

结果与公式变形前得结果一摸一样，进而说明了我们实验得正确性。

CIRDIC算法向量模式推导步骤三

在FPGA中多得是寄存器查找表等资源，DSP资源非常少，所以我们要尽可能得消除CORDIC中得乘法，消除得方法是变下面公式中得乘法为移位操作：

所以我们要求
$tan(θ)$

tan(θ)是2得负整数次幂。然后我们对上面得式子进行分析：
第一次循环时，tan(45)=1，所以第一次循环实际上是不需要乘法运算的。第二次运算呢？

Tan(22.5)=0.4142135623731,很不幸，第二次循环乘数是个很不整的小数。是否能对其改造一下呢？答案是肯定的。第二次选择22.5度是因为二分查找法的查找效率最高。如果选用个在22.5到45度之间的值，查找的效率会降低一些。如果稍微降低一点查找的效率能让我们有效的减少乘法的次数，使最终的计算速度提高了，那么这种改进就是值得的。

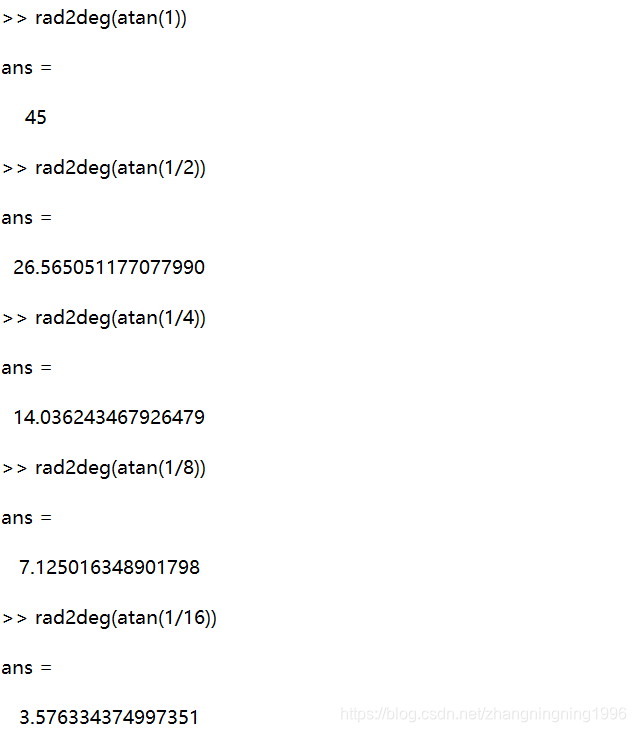

我们发现tan(26.565051177078)=0.5，如果我们第二次旋转采用26.565051177078度，那么乘数变为0.5，如果我们采用定点数运算的话（没有浮点协处理器时为了加速计算我们会大量的采用定点数算法）乘以0.5就相当于将乘数右移一位。右移运算是很快的，这样第二次循环中的乘法运算也被消除了。

类似的方法，第三次循环中不用11.25度，而采用 14.0362434679265 度。

Tan(14.0362434679265)= 1/4

乘数右移两位就可以了。剩下的都以此类推。

所以我们给出相应的MATLAB代码：

clc; clear all;  angle = [45.0, 26.565051177078, 14.0362434679265, 7.1250163489018, 3.57633437499735, ... 1.78991060824607, 0.8951737102111, 0.4476141708606, 0.2238105003685, 0.1119056770662, ... 0.0559528918938, 0.027976452617, 0.01398822714227, 0.006994113675353, 0.003497056850704,0.001748528426980];                       tangent = [1.0, 1 / 2.0, 1 / 4.0, 1 / 8.0, 1 / 16.0, ... 1 / 32.0, 1 / 64.0, 1 / 128.0, 1 / 256.0, 1 / 512.0, ... 1 / 1024.0, 1 / 2048.0, 1 / 4096.0, 1 / 8192.0, 1 / 16384.0,1/32768];    x = 100;  y = -300;  z = 0; for i = 1:16 if(y > 0)         x_new = x+ y*tangent(i);         y_new = y - x*tangent(i);         x = x_new;         y = y_new;         z = z + angle(i); else         x_new = x- y*tangent(i);         y_new = y + x*tangent(i);         x = x_new;         y = y_new;         z = z - angle(i);     end end z

上面的程序由于MATLAB本身不利于移位操作，所以我们也就乘以了相应的数，但这点在FPGA中是相当容易操作的。
运行结果如下：

到这里 CORDIC 算法的最核心的思想就介绍完了。当然，这里介绍的只是CORDIC算法最基本的内容，实际上，利用CORDIC 算法不光可以计算 atan 函数，其他的像 Sin，Cos，Sinh，Cosh 等一系列的函数都可以计算。

CIRDIC算法向量模式推导步骤三

上面为计算过程中我们将
$cos(θ)$

cos(θ)省略，所以为了计算
$sqrt{x^2+y^2}$

x2+y2​，所以这个补偿因子到最后肯定会补偿回来。因为每次推导我们都省略了
$cos(θ)$

cos(θ)，所以我们最终的真实值
$(x_{n1},y_{n1})$

(xn1​,yn1​)需要进行的缩放处理如下：

由前面可知：

所以：

若总的旋转次数为n， 则总的模长补偿因子K可表示为:

当n趋于无穷大时，K 逼近 0.607252935。
对应的MATLAB程序如下：

clc; clear all;  angle = [45.0, 26.565051177078, 14.0362434679265, 7.1250163489018, 3.57633437499735, ... 1.78991060824607, 0.8951737102111, 0.4476141708606, 0.2238105003685, 0.1119056770662, ... 0.0559528918938, 0.027976452617, 0.01398822714227, 0.006994113675353, 0.003497056850704,0.001748528426980];                       tangent = [1.0, 1 / 2.0, 1 / 4.0, 1 / 8.0, 1 / 16.0, ... 1 / 32.0, 1 / 64.0, 1 / 128.0, 1 / 256.0, 1 / 512.0, ... 1 / 1024.0, 1 / 2048.0, 1 / 4096.0, 1 / 8192.0, 1 / 16384.0,1/32768];    x = 100;  y = -300;  z = 0; for i = 1:16 if(y > 0)         x_new = x+ y*tangent(i);         y_new = y - x*tangent(i);         x = x_new;         y = y_new;         z = z + angle(i); else         x_new = x- y*tangent(i);         y_new = y + x*tangent(i);         x = x_new;         y = y_new;         z = z - angle(i);     end end K = 1; for i = 1:16     K = K*1/sqrt(1+2^-(2*(i-1))); end x_new = x_new*K  z

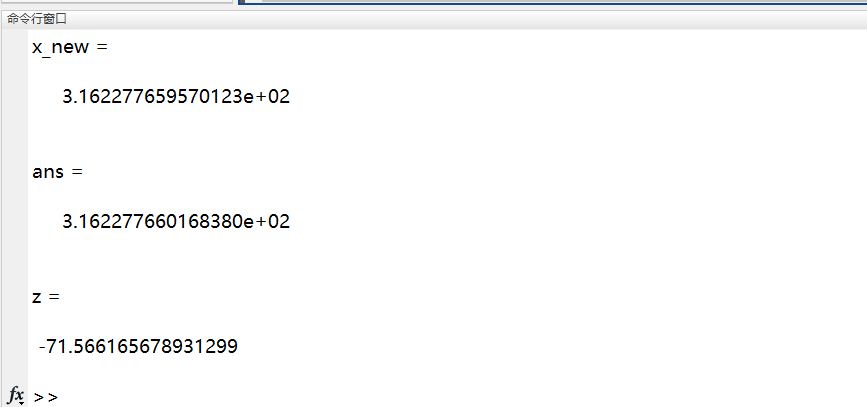

运行结果如下：

从上面可以验证我们实验的正确性，并且K值在实际FPGA中也是进行查表而不是上面程序那样计算。

MATLAB实现

上面的MATLAB代码知识为了验证我们的推导过程专门写的代码，这样写的代码没办法与FPGA内部生成的代码一一对应起来，其中最主要的原因也是因为没有对数据进行相应的量化操作，也没有在程序中进行相应的预处理操作。所以接下来给出相应的完整的代码，这部分代码参考了电子发烧友，本来想自己写，但是架不住别人写的代码太好，相应的链接已经在参考文献中给出，需要的同学可以自己学习。

clc; clear all; Ninter = 12;%迭代次数 N = 32; %y: y坐标值(Q（N,N-2)) %x: x坐标值(Q（N,N-2)) %angle:Q(18,15) %这些量化指标都是为了与FPGA中的一致才进行这样精度的量化 ang = quantizer('mode','fixed','roundmode','nearest','overflowmod','saturate','format',[18,15]); input = quantizer('mode','fixed','roundmode','floor','overflowmod','saturate','format',[N,N-2]); amp = quantizer('mode','fixed','roundmode','floor','overflowmod','saturate','format',[N,N-2]); ampcoe = quantizer('mode','fixed','roundmode','nearest','overflowmod','saturate','format',[18,16]); amp2 = quantizer('mode','fixed','roundmode','floor','overflowmod','saturate','format',[48,45]); amp3 = quantizer('mode','fixed','roundmode','floor','overflowmod','saturate','format',[25,22]);   times = 100;  num=0;  fid1 = fopen('x_random_fpga.txt','r'); x_fix = fscanf(fid1,'%d');   x_fix = x_fix/2^(N-2);  fid1 = fopen('y_random_fpga.txt','r'); y_fix = fscanf(fid1,'%d');   y_fix = y_fix/2^(N-2);    PreciseAng_data = zeros(1,times); PreciseAmp_data = zeros(1,times); Ang_data=zeros(1,times); Amp_data=zeros(1,times); for t=1:times      num=num+1;      x = x_fix(t); y= y_fix(t);  K = zeros(1,Ninter+1); K(1) = 1; for i=2:Ninter + 1 K(i) = K(i-1)*sqrt(1+2^(-2*i+4));     end K = quantize(ampcoe,1./K); y1 =y; z = 0; x1 = abs(x); x1 = x1; y1 = y1; d = -sign(y1);  atan_z = zeros(1,Ninter); atan_z_dectobin =zeros(Ninter,15); for i=0:Ninter-1 atan_z(i+1) = quantize(ang,atan(2^(-i))); end     for n=0:Ninter-1 if(y1 == 0) break;     end   x1_q = quantize(amp2,(2^(-n)*x1));   y1_q = quantize(amp2,(2^(-n)*y1));%(48,45)       x1 = quantize(amp2,x1 - d*y1_q);   y1 = quantize(amp2,y1 + d*x1_q);        atan_z_qu = quantize(ang,atan_z(n+1));   z = quantize(ang,z - d*atan_z_qu);      atan_zzz = atan_z_qu*2^15;      z_comp =z*2^15;   d = -sign(y1); end %坐标点预处理 pi_quan = quantize(ang,pi); if(x  < 0) if(y < 0)      Ang = -z - pi_quan  ; else      Ang = - z + pi_quan ;   end else     Ang = z; end  Ang_q =Ang*2^15;  x1 = quantize(amp3,x1);%(25,21)这些是与FPGA中的量化代码相互对应的部分  Amp = quantize(amp,x1*K(n+1));%K(18,16) Amp_q = Amp*2^(N-2);   err = Ang - angle(x + j*y); PreciseAng = log2(abs(err)); err = Amp - abs(x+j*y); PreciseAmp = log2(abs(err)); Ang_data(t)=Ang_q; Amp_data(t)=Amp_q; PreciseAng_data(t)=PreciseAng; PreciseAmp_data(t)=PreciseAmp; if(PreciseAng_data(t)==0) break; end   if(PreciseAmp_data(t)==0) break; end  end      PreciseAng_s_max = max(PreciseAng_data) PreciseAmp_s_max = max(PreciseAmp_data) fid_ang = fopen('Ang_matlab.txt','w'); fprintf(fid_ang,'%dn',Ang_data);     fid_amp = fopen('Amp_matlab.txt','w'); fprintf(fid_amp,'%dn',Amp_data);

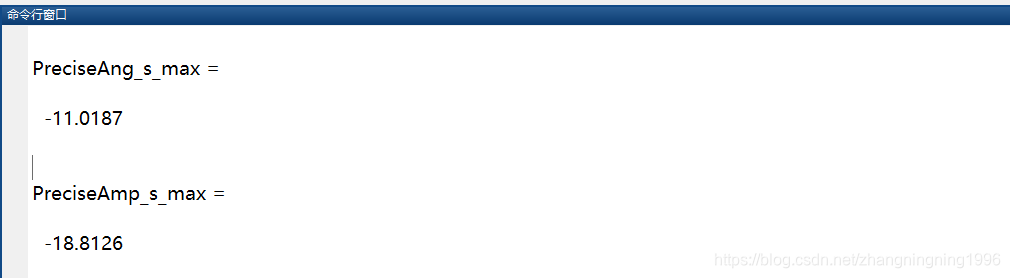

然后对比一下100个数据之后算法计算的最大误差：

上面的结果是将数据转换成dB的格式，所以说上面的算法处理的是正确的。
上面的难点在意量化操作再FPGA中实现的方式：

在下面FPGA实现的时候我们会进行相应的介绍。

FPGA实现

其实上面代码的FPGA实现是非常容易的，FPGA的程序是在电子发烧友的基础上改的，为了尊重原作者，大家可以购买相应的课程，课程里面的代码都非常棒，我也只是改了一小部分。接下来的代码其实如果想简单点就可以不使用DSP原语而是直接使用组合逻辑或者IP完成相应的操作。其实关于CORDIC算法的Verilog实现博主19年的时候写过，还是比较容易的，但是却没办法与MATLAB相互验证，也没办法控制DSP资源的复用，通过该课程的学习我真正掌握了MATLAB与FPGA的相互验证方法。这一部分由于我只是做了稍微一点改动，所以原作者的信息在博客中保留。

`timescale 1ns / 1ps  //////////////////////////////////////////////////////////////////////////////// // Company: MYMINIEYE // Engineer:Mill // // Create Date:   2016/12/29 14:26:00 // Design Name:   CORDICang_stream // Module Name:   CORDICang_vector_ip // Project Name:  FS_cofdm_rx_v00 // Target Device:  zc7045 // Tool versions:  vivado 2015.1 // Description: Cordic  //  // // // Dependencies: //  // Revision:v02 // Revision 0.01 - File Created // Additional Comments: contact us: mill@myminieye.com //  //////////////////////////////////////////////////////////////////////////////// module CORDICang_vector_ip # (  parameter   Ninter   = 13,  parameter   N    = 32 ) (  input     sclk   ,  input     rst_n   ,  input   [N-1:0] x    ,  input   [N-1:0] y    ,  input     valid   ,    output reg [17:0] Ang       ,  output reg [N-1:0] Amp    ,  output reg   Ang_en   ); //======================================================================================== //**************  Main   Code  ********************************** //========================================================================================/ /*=================================================================== ====================================================================*/ reg      valid_d   ; reg      valid_a   ; reg    [N-1:0] x_a    ; reg    [N-1:0] y_a    ; reg    [ 4:0] cordic_cnt  ;  always @(posedge sclk)  valid_d   <=   valid;  always @(posedge sclk) if(!rst_n)   valid_a  <= 1'b0; else if(valid && valid_d==1'b0)   valid_a  <= 1'b1; else if(cordic_cnt == 5'd29)   valid_a  <= 1'b0;  always @(posedge sclk) if(!valid_a)   cordic_cnt  <= 3'd0; else     cordic_cnt  <=    cordic_cnt + 1'b1;    always @(posedge sclk) if(valid&&valid_d==1'b0)begin   x_a   <=    x;   y_a   <=    y;  end  /*=================================================================== ====================================================================*/ reg    [ 4:0] Ninter_cnt  ; reg    [ 4:0] Ninter_cnt_copy1; wire    [17:0]  K_quantize  ; wire    [17:0] atanz   ; reg      valid_reg  ; reg     [47:0]  x1    ; wire    [47:0]  x_reg_dsp_x1 ; reg     [47:0]  y1    ; wire    [47:0]  y_reg_dsp_y1 ; reg      x1_add_en  ; reg      y1_add_en  ; reg     [17:0]  z    ; wire    [17:0]  z_dsp_lut  ; reg     [17:0]  z_dsp_lut_delay1; wire    [29:0]  A_IN_x1   ; reg    [17:0] B_IN_x1   ; reg    [47:0]  C_x1   ; wire    [24:0]  D    ; wire    [47:0]  P_x1   ; reg    [24:0]  x1_mux   ; reg    [ 6:0] OPMODE_x1  ; reg    [ 3:0] ALUMODE_x1  ; reg    [ 4:0] INMODE_x1  ; reg    [ 6:0] OPMODE_y1  ; reg    [ 3:0] ALUMODE_y1  ; wire    [ 4:0] INMODE_y1  ; reg    [29:0] A_IN_y1   ; reg    [17:0] B_IN_y1   ; reg    [47:0]  C_y1   ; wire    [47:0]  P_y1   ; reg    [47:0] shift_y_reg  ; reg    [47:0] shift_x_reg  ; reg      break_out   ; reg      break_happen  ; wire      break_cal  ; reg      cal_control  ; reg      first_break_happen ; always @(posedge sclk) if(!rst_n)   cal_control   <= 1'b0; else if(valid_a)   cal_control   <= ~cal_control;  always @(*)//这个信号没有用处 if(Ninter_cnt_copy1 != 0 && break_cal && cal_control == 1'b0)   break_happen   = 1'b1; else    break_happen   = 1'b0;   always @(posedge sclk) if(!rst_n)   first_break_happen  <= 1'b0; else if(break_happen)   first_break_happen  <= 1'b1; else if(Ninter_cnt_copy1 == 4'd14)   first_break_happen  <= 1'b0; /*=================================================================== ====================================================================*/   reg      x_sign,y_sign ; reg      Pos_valid  ; reg    [3:0] k_addr   ;  always @(posedge sclk)  valid_reg     <=    valid_a;   always @(posedge sclk) if(!rst_n)   x_sign     <= 1'b0; else if(x_a[N-1]&&valid_a&&(~valid_reg))   x_sign     <= 1'b1; else if(x_a[N-1]==1'b0&&valid_a&&(~valid_reg))   x_sign     <= 1'b0;  always @(posedge sclk) if(!rst_n)   y_sign     <= 1'b0; else if(y_a[N-1]&&valid_a&&(~valid_reg))   y_sign     <= 1'b1; else if(y_a[N-1]==1'b0&&valid_a&&(~valid_reg))   y_sign     <= 1'b0;   always @(posedge sclk) if(!rst_n)   Pos_valid    <= 1'b0; else if(valid_a && (~valid_reg))   Pos_valid    <= 1'b1; else if(Ninter_cnt_copy1==5'h1f)   Pos_valid    <= 1'b0;     always @(posedge sclk) if(!rst_n||(!valid_a))   Ninter_cnt    <= 4'd0; else if(valid_a&&cal_control)     Ninter_cnt    <=    Ninter_cnt + 1'b1;   always @(posedge sclk) if(!rst_n||(!valid_a))   Ninter_cnt_copy1  <= 4'd0; else if(valid_a&&cal_control)     Ninter_cnt_copy1  <=    Ninter_cnt_copy1 + 1'b1;  always @(posedge sclk) if(!rst_n)   break_out    <= 1'b0; else if(break_happen==1'b1&&first_break_happen==1'b0)   break_out    <= 1'b1; else if(Ninter_cnt_copy1==4'd14)   break_out    <= 1'b0;     always @(posedge sclk) if(!rst_n)   k_addr     <= 4'd0; else if(y1[47:48-N]==32'd0)   k_addr     <= 4'd0; else if(break_happen&&first_break_happen==1'b0)   k_addr     <=    Ninter_cnt_copy1; else if(!break_out)   k_addr     <=    Ninter;    K_quantize_dis_rom #( .ROM_WIDTH       (18 ), .ROM_ADDR_BITS   (4 ), .ROM_DEPTH       (16 ) ) u_K_quantize_dis_rom( .clock        (sclk     ), .enable       (1'b1     ), .address      (k_addr     ), .output_data  (K_quantize    ) );    atan_z_dis_rom #( .ROM_WIDTH       (18 ), .ROM_ADDR_BITS   (4 ), .ROM_DEPTH       (16 ) )u_atan_z_dis_rom( .clock        (sclk     ), .enable       (1'b1     ), .address      (Ninter_cnt_copy1[3:0] ), .output_data  (atanz      ) ); /*=================================================================== ====================================================================*/   reg     [N-1:0] x_abs   ; always @(posedge sclk) if(x_a[N-1]==1)   x_abs   <= (~x_a)+1'b1; else        x_abs   <=    x_a; /*=================================================================== ====================================================================*/  always @(posedge sclk) case(Ninter_cnt[3:0]) 4'd0:shift_y_reg <=   {{2{y_a[N-1]}},{y_a[N-2:0]},{(47-N){1'b0}}};//floor 4'd1: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{1{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:1]};//floor 4'd2: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{2{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:2]};//floor 4'd3: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{3{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:3]};//floor 4'd4: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{4{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:4]};//floor 4'd5: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{5{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:5]};//floor 4'd6: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{6{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:6]};//floor 4'd7: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{7{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:7]};//floor  4'd8: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{8{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:8]};//floor 4'd9: if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{9{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:9]};//floor 4'd10:if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{10{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:10]};//floor 4'd11:if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{11{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:11]};//floor 4'd12:if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{12{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:12]};//floor 4'd13:if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{13{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:13]};//floor 4'd14:if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{14{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:14]};//floor 4'd15:if(cal_control==1'b0)shift_y_reg <= {y_reg_dsp_y1[47],{15{y_reg_dsp_y1[47]}},y_reg_dsp_y1[46:15]};//floor  default:shift_y_reg <=   shift_y_reg;  endcase    always @(posedge sclk) case(Ninter_cnt[3:0]) 4'd0:shift_x_reg  <=   {{2{x_abs[N-1]}},{x_abs[N-2:0]},{(47-N){1'b0}}}; 4'd1:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{1{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:1]};//floor 4'd2:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{2{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:2]};//floor 4'd3:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{3{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:3]};//floor 4'd4:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{4{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:4]};//floor 4'd5:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{5{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:5]};//floor 4'd6:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{6{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:6]};//floor 4'd7:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{7{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:7]};//floor  4'd8:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{8{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:8]};//floor 4'd9:if(cal_control==1'b0)shift_x_reg  <= {x_reg_dsp_x1[47],{9{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:9]};//floor 4'd10:if(cal_control==1'b0)shift_x_reg <= {x_reg_dsp_x1[47],{10{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:10]};//floor 4'd11:if(cal_control==1'b0)shift_x_reg <= {x_reg_dsp_x1[47],{11{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:11]};//floor 4'd12:if(cal_control==1'b0)shift_x_reg <= {x_reg_dsp_x1[47],{12{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:12]};//floor 4'd13:if(cal_control==1'b0)shift_x_reg <= {x_reg_dsp_x1[47],{13{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:13]};//floor 4'd14:if(cal_control==1'b0)shift_x_reg <= {x_reg_dsp_x1[47],{14{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:14]};//floor 4'd15:if(cal_control==1'b0)shift_x_reg <= {x_reg_dsp_x1[47],{15{x_reg_dsp_x1[47]}},x_reg_dsp_x1[46:15]};//floor  default:shift_x_reg <=    shift_x_reg;  endcase /*=============================================================================  x1 = x_reg - d*(shift(n+1)*y_reg); and Amp = quantize(q_amp,x1*K(n+1));  DSP X1: add/sub and mult; MUX:P=(A:B)+/-C; P=B*D ==============================================================================*/ reg     [47:0] x1_temp   ; reg     [47:0] x_reg_dsp_x1_d ;  assign   A_IN_x1  =  shift_y_reg[47:18]; assign   D       =  x1_temp[47:23]; assign   x_reg_dsp_x1=  P_x1;  always @(*) if(Ninter_cnt==4'd0&&Pos_valid)   x1     = {{2{x_abs[N-1]}},{x_abs[N-2:0]},{(47-N){1'b0}}}; else     x1     =   x_reg_dsp_x1;  always @(posedge sclk) if(y1[47:48-N]==32'd0)//y1[47:48-N]==32'd0||break_out   x1_temp   <= {{2{x_abs[N-1]}},{x_abs[N-2:0]},{(47-N){1'b0}}}; else if(break_happen == 1'b1)   x1_temp   <=    x_reg_dsp_x1; else if(cal_control==1'b0 && break_out==1'b0 && Ninter_cnt==Ninter)//if(break_happen&&first_break_happen==1'b0)   x1_temp   <=    x_reg_dsp_x1;  always @(posedge sclk)  y1      <= {{2{y_a[N-1]}},{y_a[N-2:0]},{(47-N){1'b0}}};//x1 <=   {4'b0000,{x[N-2:0]},{(45-N){1'b0}}};//    always @(posedge sclk) if(y_a[N-1]==1'b0 && Ninter_cnt==0)   x1_add_en   <= 1'b1; else if(y_a[N-1]==1'b1 && Ninter_cnt==0)   x1_add_en   <= 1'b0; else if(y_reg_dsp_y1[47]==1'b1&&cal_control==1'b0)   x1_add_en   <= 1'b0; else if(y_reg_dsp_y1[47]==1'b0&&cal_control==1'b0)   x1_add_en   <= 1'b1; else    x1_add_en   <=     x1_add_en;  always @(posedge sclk) if(Ninter_cnt==Ninter||break_out)   x1_mux    <=   x1[47:23]; else   x1_mux    <= 25'd0;   always @(posedge sclk)  x_reg_dsp_x1_d   <=    x_reg_dsp_x1;   always @(*) if(Ninter_cnt>=Ninter||break_out)   B_IN_x1   =   K_quantize; else if(cal_control<Ninter&&cal_control)   B_IN_x1   =   shift_y_reg[17:0]; else    B_IN_x1   = 18'd0;  always @(*) if(Ninter_cnt==0 && cal_control)   C_x1    = {{2{x_abs[N-1]}},{x_abs[N-2:0]},{(47-N){1'b0}}}; else if(cal_control == 1'b1)   C_x1    =   x_reg_dsp_x1_d; else    C_x1    = 48'd0;  always @(*) if(Ninter_cnt>=Ninter)   OPMODE_x1   = 7'b000_01_01;//B*D else if(x1_add_en == 1'b1)//C+(A:B)   OPMODE_x1   = 7'b000_11_11; else    OPMODE_x1   = 7'b011_00_11;//C-(A:B)     always @(posedge sclk) if(Ninter_cnt>=Ninter-2)   INMODE_x1   <= 5'b00110; else   INMODE_x1   <= 5'b00000;   always @(*) if(Ninter_cnt>=Ninter)   ALUMODE_x1   = 4'b0000; else if(x1_add_en == 1'b1)   ALUMODE_x1   = 4'b0000; else   ALUMODE_x1   = 4'b0011;      always @(posedge sclk) if(!rst_n)   Amp    <= 0; else if(x_reg_dsp_x1[42]==1'b0&& |x_reg_dsp_x1[41:39] && Ninter_cnt==(Ninter+1)&&cal_control==1'b0)    Amp    <= 32'b0111_1111_1111_1111_1111_1111_1111_1111; else if(x_reg_dsp_x1[42]&& &x_reg_dsp_x1[41:39]==1'b0 && Ninter_cnt==(Ninter+1)&&cal_control==1'b0)    Amp    <= 32'b1000_0000_0000_0000_0000_0000_0000_0000; else if(Ninter_cnt==(Ninter+1)&&cal_control==1'b0)    Amp    <= {x_reg_dsp_x1[42],x_reg_dsp_x1[38],x_reg_dsp_x1[37:40-N]}; else   Amp    <=    Amp;  wire   rst  = ~rst_n;  wire     rst_x  ; assign   rst_x = ~rst_n;   DSP48E1 #( // Feature Control Attributes: Data Path Selection .A_INPUT("DIRECT"), // Selects A input source, "DIRECT" (A port) or "CASCADE" (ACIN port) .B_INPUT("DIRECT"), // Selects B input source, "DIRECT" (B port) or "CASCADE" (BCIN port) .USE_DPORT("TRUE"), // Select D port usage (TRUE or FALSE) .USE_MULT("DYNAMIC"), // Select multiplier usage ("MULTIPLY", "DYNAMIC", or "NONE") .USE_SIMD("ONE48"), // SIMD selection ("ONE48", "TWO24", "FOUR12") // Pattern Detector Attributes: Pattern Detection Configuration .AUTORESET_PATDET("NO_RESET"), // "NO_RESET", "RESET_MATCH", "RESET_NOT_MATCH" .MASK(48'h3fffffffffff), // 48-bit mask value for pattern detect (1=ignore) .PATTERN(48'h000000000000), // 48-bit pattern match for pattern detect .SEL_MASK("MASK"), // "C", "MASK", "ROUNDING_MODE1", "ROUNDING_MODE2" .SEL_PATTERN("PATTERN"), // Select pattern value ("PATTERN" or "C") .USE_PATTERN_DETECT("NO_PATDET"), // Enable pattern detect ("PATDET" or "NO_PATDET") // Register Control Attributes: Pipeline Register Configuration .ACASCREG(0), // Number of pipeline stages between A/ACIN and ACOUT (0, 1 or 2) .ADREG(0), // Number of pipeline stages for pre-adder (0 or 1) .ALUMODEREG(0), // Number of pipeline stages for ALUMODE (0 or 1) .AREG(0), // Number of pipeline stages for A (0, 1 or 2) .BCASCREG(0), // Number of pipeline stages between B/BCIN and BCOUT (0, 1 or 2) .BREG(0), // Number of pipeline stages for B (0, 1 or 2) .CARRYINREG(0), // Number of pipeline stages for CARRYIN (0 or 1) .CARRYINSELREG(0), // Number of pipeline stages for CARRYINSEL (0 or 1) .CREG(0), // Number of pipeline stages for C (0 or 1) .DREG(0), // Number of pipeline stages for D (0 or 1) .INMODEREG(1), // Number of pipeline stages for INMODE (0 or 1) .MREG(0), // Number of multiplier pipeline stages (0 or 1) .OPMODEREG(0), // Number of pipeline stages for OPMODE (0 or 1) .PREG(1) // Number of pipeline stages for P (0 or 1) )  DSP48E1_cal_x1 ( // Cascade: 30-bit (each) output: Cascade Ports .ACOUT(), // 30-bit output: A port cascade output .BCOUT(), // 18-bit output: B port cascade output .CARRYCASCOUT(), // 1-bit output: Cascade carry output .MULTSIGNOUT(), // 1-bit output: Multiplier sign cascade output .PCOUT(), // 48-bit output: Cascade output // Control: 1-bit (each) output: Control Inputs/Status Bits .OVERFLOW(), // 1-bit output: Overflow in add/acc output .PATTERNBDETECT(), // 1-bit output: Pattern bar detect output .PATTERNDETECT(), // 1-bit output: Pattern detect output .UNDERFLOW(), // 1-bit output: Underflow in add/acc output // Data: 4-bit (each) output: Data Ports .CARRYOUT(), // 4-bit output: Carry output .P(P_x1), // 48-bit output: Primary data output // Cascade: 30-bit (each) input: Cascade Ports .ACIN(30'd0), // 30-bit input: A cascade data input .BCIN(18'd0), // 18-bit input: B cascade input .CARRYCASCIN(1'b0), // 1-bit input: Cascade carry input .MULTSIGNIN(1'b0), // 1-bit input: Multiplier sign input .PCIN(48'd0), // 48-bit input: P cascade input // Control: 4-bit (each) input: Control Inputs/Status Bits .ALUMODE(ALUMODE_x1), // 4-bit input: ALU control input .CARRYINSEL(3'b000), // 3-bit input: Carry select input .CLK(sclk), // 1-bit input: Clock input .INMODE(INMODE_x1), // 5-bit input: INMODE control input .OPMODE(OPMODE_x1), // 7-bit input: Operation mode input // Data: 30-bit (each) input: Data Ports .A(A_IN_x1), // 30-bit input: A data input //A_IN .B(B_IN_x1), // 18-bit input: B data input //B_IN .C(C_x1), // 48-bit input: C data input .CARRYIN(1'b0), // 1-bit input: Carry input signal .D(D), // 25-bit input: D data input // Reset/Clock Enable: 1-bit (each) input: Reset/Clock Enable Inputs .CEA1(1'b1), // 1-bit input: Clock enable input for 1st stage AREG .CEA2(1'b0), // 1-bit input: Clock enable input for 2nd stage AREG .CEAD(1'b0), // 1-bit input: Clock enable input for ADREG .CEALUMODE(1'b1), // 1-bit input: Clock enable input for ALUMODE .CEB1(1'b1), // 1-bit input: Clock enable input for 1st stage BREG .CEB2(1'b0), // 1-bit input: Clock enable input for 2nd stage BREG .CEC(1'b1), // 1-bit input: Clock enable input for CREG .CECARRYIN(1'b0), // 1-bit input: Clock enable input for CARRYINREG .CECTRL(1'b1), // 1-bit input: Clock enable input for OPMODEREG and CARRYINSELREG .CED(1'b1), // 1-bit input: Clock enable input for DREG .CEINMODE(1'b1), // 1-bit input: Clock enable input for INMODEREG .CEM(1'b1), // 1-bit input: Clock enable input for MREG .CEP(1'b1), // 1-bit input: Clock enable input for PREG .RSTA(rst_x), // 1-bit input: Reset input for AREG .RSTALLCARRYIN(rst_x), // 1-bit input: Reset input for CARRYINREG .RSTALUMODE(rst_x), // 1-bit input: Reset input for ALUMODEREG .RSTB(rst_x), // 1-bit input: Reset input for BREG .RSTC(rst_x), // 1-bit input: Reset input for CREG .RSTCTRL(rst_x), // 1-bit input: Reset input for OPMODEREG and CARRYINSELREG .RSTD(rst_x), // 1-bit input: Reset input for DREG and ADREG .RSTINMODE(rst_x), // 1-bit input: Reset input for INMODEREG .RSTM(rst_x), // 1-bit input: Reset input for MREG .RSTP(rst_x) // 1-bit input: Reset input for PREG ); /*===================================================================      y1 = y_reg + d*(shift(n+1)*x_reg); ====================================================================*/ wire   [47:0]  cal_x_abs  ; reg   [47:0]  y_reg_dsp_y1_d ;  assign  cal_x_abs   = {{2{x_abs[N-1]}},{x_abs[N-2:0]},{(47-N){1'b0}}}; assign  y_reg_dsp_y1  =  P_y1;   always @(posedge sclk) if(y_a[N-1]==1'b0 && Ninter_cnt_copy1==0)   y1_add_en    <= 1'b0; else if(y_a[N-1]==1'b1 && Ninter_cnt_copy1==0)   y1_add_en    <= 1'b1; else if(y_reg_dsp_y1[47]==1'b1&&cal_control==1'b0)   y1_add_en    <= 1'b1; else if(y_reg_dsp_y1[47]==1'b0&&cal_control==1'b0)   y1_add_en    <= 1'b0; else    y1_add_en    <= 1'b0;  always @(posedge sclk)  y_reg_dsp_y1_d    <=    y_reg_dsp_y1;  always @(*) if(Ninter_cnt_copy1==0&&cal_control)   A_IN_y1    =   cal_x_abs[47:18]; else if(cal_control)   A_IN_y1    =   shift_x_reg[47:18]; else    A_IN_y1     = 30'd0;   always @(*) if(Ninter_cnt_copy1==0&&cal_control)   B_IN_y1    =   cal_x_abs[17:0]; else if(cal_control == 1'b1)   B_IN_y1    =   shift_x_reg[17:0]; else    B_IN_y1    = 30'd0;  always @(*) if(Ninter_cnt_copy1==0&&cal_control)   C_y1     =   y1; else if(cal_control)   C_y1     =   y_reg_dsp_y1_d; else    C_y1     = 30'd0; /*=======================================================================    DSP y1 control :add sub and pattern  =======================================================================*/ assign INMODE_y1    = 5'b00000;  always @(*) if(y1_add_en == 1'b1)//C+(A:B)   OPMODE_y1    = 7'b000_11_11; else    OPMODE_y1    = 7'b011_00_11;//C-(A:B)    always @(*) if(y1_add_en == 1'b1)   ALUMODE_y1    = 4'b0000; else   ALUMODE_y1    = 4'b0011; /*=======================================================================    DSP y1 control =======================================================================*/ DSP48E1 #( // Feature Control Attributes: Data Path Selection .A_INPUT("DIRECT"), // Selects A input source, "DIRECT" (A port) or "CASCADE" (ACIN port) .B_INPUT("DIRECT"), // Selects B input source, "DIRECT" (B port) or "CASCADE" (BCIN port) .USE_DPORT("FALSE"), // Select D port usage (TRUE or FALSE) .USE_MULT("NONE"), // Select multiplier usage ("MULTIPLY", "DYNAMIC", or "NONE") .USE_SIMD("ONE48"), // SIMD selection ("ONE48", "TWO24", "FOUR12") // Pattern Detector Attributes: Pattern Detection Configuration .AUTORESET_PATDET("NO_RESET"), // "NO_RESET", "RESET_MATCH", "RESET_NOT_MATCH" .MASK(48'd0), // 48-bit mask value for pattern detect (1=ignore) .PATTERN(48'h000000000000), // 48-bit pattern match for pattern detect .SEL_MASK("MASK"), // "C", "MASK", "ROUNDING_MODE1", "ROUNDING_MODE2" .SEL_PATTERN("PATTERN"), // Select pattern value ("PATTERN" or "C") .USE_PATTERN_DETECT("PATDET"), // Enable pattern detect ("PATDET" or "NO_PATDET") // Register Control Attributes: Pipeline Register Configuration .ACASCREG(0), // Number of pipeline stages between A/ACIN and ACOUT (0, 1 or 2) .ADREG(0), // Number of pipeline stages for pre-adder (0 or 1) .ALUMODEREG(0), // Number of pipeline stages for ALUMODE (0 or 1) .AREG(0), // Number of pipeline stages for A (0, 1 or 2) .BCASCREG(0), // Number of pipeline stages between B/BCIN and BCOUT (0, 1 or 2) .BREG(0), // Number of pipeline stages for B (0, 1 or 2) .CARRYINREG(0), // Number of pipeline stages for CARRYIN (0 or 1) .CARRYINSELREG(0), // Number of pipeline stages for CARRYINSEL (0 or 1) .CREG(0), // Number of pipeline stages for C (0 or 1) .DREG(0), // Number of pipeline stages for D (0 or 1) .INMODEREG(0), // Number of pipeline stages for INMODE (0 or 1) .MREG(0), // Number of multiplier pipeline stages (0 or 1) .OPMODEREG(0), // Number of pipeline stages for OPMODE (0 or 1) .PREG(1) // Number of pipeline stages for P (0 or 1) )  DSP48E1_cal_y1 ( // Cascade: 30-bit (each) output: Cascade Ports .ACOUT(), // 30-bit output: A port cascade output .BCOUT(), // 18-bit output: B port cascade output .CARRYCASCOUT(), // 1-bit output: Cascade carry output .MULTSIGNOUT(), // 1-bit output: Multiplier sign cascade output .PCOUT(), // 48-bit output: Cascade output // Control: 1-bit (each) output: Control Inputs/Status Bits .OVERFLOW(), // 1-bit output: Overflow in add/acc output .PATTERNBDETECT(), // 1-bit output: Pattern bar detect output .PATTERNDETECT(break_cal), // 1-bit output: Pattern detect output .UNDERFLOW(), // 1-bit output: Underflow in add/acc output // Data: 4-bit (each) output: Data Ports .CARRYOUT(), // 4-bit output: Carry output .P(P_y1), // 48-bit output: Primary data output // Cascade: 30-bit (each) input: Cascade Ports .ACIN(30'd0), // 30-bit input: A cascade data input .BCIN(18'd0), // 18-bit input: B cascade input .CARRYCASCIN(1'b0), // 1-bit input: Cascade carry input .MULTSIGNIN(1'b0), // 1-bit input: Multiplier sign input .PCIN(48'd0), // 48-bit input: P cascade input // Control: 4-bit (each) input: Control Inputs/Status Bits .ALUMODE(ALUMODE_y1), // 4-bit input: ALU control input .CARRYINSEL(3'b000), // 3-bit input: Carry select input .CLK(sclk), // 1-bit input: Clock input .INMODE(INMODE_y1), // 5-bit input: INMODE control input .OPMODE(OPMODE_y1), // 7-bit input: Operation mode input // Data: 30-bit (each) input: Data Ports .A(A_IN_y1), // 30-bit input: A data input //A_IN .B(B_IN_y1), // 18-bit input: B data input //B_IN .C(C_y1), // 48-bit input: C data input .CARRYIN(1'b0), // 1-bit input: Carry input signal .D(), // 25-bit input: D data input // Reset/Clock Enable: 1-bit (each) input: Reset/Clock Enable Inputs .CEA1(1'b1), // 1-bit input: Clock enable input for 1st stage AREG .CEA2(1'b0), // 1-bit input: Clock enable input for 2nd stage AREG .CEAD(1'b0), // 1-bit input: Clock enable input for ADREG .CEALUMODE(1'b1), // 1-bit input: Clock enable input for ALUMODE .CEB1(1'b1), // 1-bit input: Clock enable input for 1st stage BREG .CEB2(1'b0), // 1-bit input: Clock enable input for 2nd stage BREG .CEC(1'b1), // 1-bit input: Clock enable input for CREG .CECARRYIN(1'b0), // 1-bit input: Clock enable input for CARRYINREG .CECTRL(1'b1), // 1-bit input: Clock enable input for OPMODEREG and CARRYINSELREG .CED(1'b0), // 1-bit input: Clock enable input for DREG .CEINMODE(1'b1), // 1-bit input: Clock enable input for INMODEREG .CEM(1'b1), // 1-bit input: Clock enable input for MREG .CEP(1'b1), // 1-bit input: Clock enable input for PREG .RSTA(rst), // 1-bit input: Reset input for AREG .RSTALLCARRYIN(rst), // 1-bit input: Reset input for CARRYINREG .RSTALUMODE(rst), // 1-bit input: Reset input for ALUMODEREG .RSTB(rst), // 1-bit input: Reset input for BREG .RSTC(rst), // 1-bit input: Reset input for CREG .RSTCTRL(rst), // 1-bit input: Reset input for OPMODEREG and CARRYINSELREG .RSTD(rst), // 1-bit input: Reset input for DREG and ADREG .RSTINMODE(rst), // 1-bit input: Reset input for INMODEREG .RSTM(rst), // 1-bit input: Reset input for MREG .RSTP(rst) // 1-bit input: Reset input for PREG ); /*====================================================================*/ //quantize nearest;  z = quantize(q_ang,z - d*atan_z(n+1)); // Ang = -z -/+ pi_quan  ; /*====================================================================*/ /*=======================================================================    DSP z control and input =======================================================================*/ wire    [29:0]  A_IN_z  ; reg    [17:0]  B_IN_z  ; reg    [47:0]  C_IN_z  ; wire    [47:0]  P_Z   ; reg    [17:0]  z_dsp_lut_d ; reg    [ 6:0]  OPMODE_z ; reg       z_add  ; wire    [ 4:0]  INMODE_z ; reg    [ 3:0]  ALUMODE_z ;  assign A_IN_z   = 30'd0;//x1[47:18]; assign z_dsp_lut  =   P_Z[17:0]; assign INMODE_z  = 5'b00000;  always @(*) if(cal_control==1'b1)   B_IN_z   =   atanz[17:0]; else    B_IN_z   = 18'd0;  always @(*) if(Ninter_cnt_copy1==0)   C_IN_z   = 48'd0; else if(cal_control==1'b1)   C_IN_z   = {30'd0,z_dsp_lut_d}; else    C_IN_z  = 48'd0;   always @(posedge sclk)  z_dsp_lut_d  <=    P_Z[17:0];  always @(posedge sclk) if(y_a[N-1]==1'b0 && Ninter_cnt_copy1==0)   z_add   <= 1'b1; else if(y_a[N-1]==1'b1 && Ninter_cnt_copy1==0)   z_add   <= 1'b0; else if(y_reg_dsp_y1[47]==1'b1&&cal_control==1'b0)   z_add   <= 1'b0; else if(y_reg_dsp_y1[47]==1'b0&&cal_control==1'b0)   z_add   <= 1'b1; else    z_add   <=     z_add;  always @(*) if(z_add == 1'b1)//C+(A:B)   OPMODE_z  = 7'b000_11_11; else    OPMODE_z  = 7'b011_00_11;//C-(A:B)     always @(*) if(z_add == 1'b1)   ALUMODE_z = 4'b0000; else   ALUMODE_z   = 4'b0011;      wire    rst_z      ; assign    rst_z   =   rst_x; DSP48E1 #( // Feature Control Attributes: Data Path Selection .A_INPUT("DIRECT"), // Selects A input source, "DIRECT" (A port) or "CASCADE" (ACIN port) .B_INPUT("DIRECT"), // Selects B input source, "DIRECT" (B port) or "CASCADE" (BCIN port) .USE_DPORT("FALSE"), // Select D port usage (TRUE or FALSE) .USE_MULT("NONE"), // Select multiplier usage ("MULTIPLY", "DYNAMIC", or "NONE") .USE_SIMD("ONE48"), // SIMD selection ("ONE48", "TWO24", "FOUR12") // Pattern Detector Attributes: Pattern Detection Configuration .AUTORESET_PATDET("NO_RESET"), // "NO_RESET", "RESET_MATCH", "RESET_NOT_MATCH" .MASK(48'd0), // 48-bit mask value for pattern detect (1=ignore) .PATTERN(48'h000000000000), // 48-bit pattern match for pattern detect .SEL_MASK("MASK"), // "C", "MASK", "ROUNDING_MODE1", "ROUNDING_MODE2" .SEL_PATTERN("PATTERN"), // Select pattern value ("PATTERN" or "C") .USE_PATTERN_DETECT("NO_PATDET"), // Enable pattern detect ("PATDET" or "NO_PATDET") // Register Control Attributes: Pipeline Register Configuration .ACASCREG(0), // Number of pipeline stages between A/ACIN and ACOUT (0, 1 or 2) .ADREG(0), // Number of pipeline stages for pre-adder (0 or 1) .ALUMODEREG(0), // Number of pipeline stages for ALUMODE (0 or 1) .AREG(0), // Number of pipeline stages for A (0, 1 or 2) .BCASCREG(0), // Number of pipeline stages between B/BCIN and BCOUT (0, 1 or 2) .BREG(0), // Number of pipeline stages for B (0, 1 or 2) .CARRYINREG(0), // Number of pipeline stages for CARRYIN (0 or 1) .CARRYINSELREG(0), // Number of pipeline stages for CARRYINSEL (0 or 1) .CREG(0), // Number of pipeline stages for C (0 or 1) .DREG(0), // Number of pipeline stages for D (0 or 1) .INMODEREG(0), // Number of pipeline stages for INMODE (0 or 1) .MREG(0), // Number of multiplier pipeline stages (0 or 1) .OPMODEREG(0), // Number of pipeline stages for OPMODE (0 or 1) .PREG(1) // Number of pipeline stages for P (0 or 1) )  DSP48E1_cal_z ( // Cascade: 30-bit (each) output: Cascade Ports .ACOUT(), // 30-bit output: A port cascade output .BCOUT(), // 18-bit output: B port cascade output .CARRYCASCOUT(), // 1-bit output: Cascade carry output .MULTSIGNOUT(), // 1-bit output: Multiplier sign cascade output .PCOUT(), // 48-bit output: Cascade output // Control: 1-bit (each) output: Control Inputs/Status Bits .OVERFLOW(), // 1-bit output: Overflow in add/acc output .PATTERNBDETECT(), // 1-bit output: Pattern bar detect output .PATTERNDETECT(), // 1-bit output: Pattern detect output .UNDERFLOW(), // 1-bit output: Underflow in add/acc output // Data: 4-bit (each) output: Data Ports .CARRYOUT(), // 4-bit output: Carry output .P(P_Z), // 48-bit output: Primary data output // Cascade: 30-bit (each) input: Cascade Ports .ACIN(30'd0), // 30-bit input: A cascade data input .BCIN(18'd0), // 18-bit input: B cascade input .CARRYCASCIN(1'b0), // 1-bit input: Cascade carry input .MULTSIGNIN(1'b0), // 1-bit input: Multiplier sign input .PCIN(48'd0), // 48-bit input: P cascade input // Control: 4-bit (each) input: Control Inputs/Status Bits .ALUMODE(ALUMODE_z), // 4-bit input: ALU control input .CARRYINSEL(3'b000), // 3-bit input: Carry select input .CLK(sclk), // 1-bit input: Clock input .INMODE(INMODE_z), // 5-bit input: INMODE control input .OPMODE(OPMODE_z), // 7-bit input: Operation mode input // Data: 30-bit (each) input: Data Ports .A(A_IN_z), // 30-bit input: A data input //A_IN .B(B_IN_z), // 18-bit input: B data input //B_IN .C(C_IN_z), // 48-bit input: C data input .CARRYIN(1'b0), // 1-bit input: Carry input signal .D(25'd0), // 25-bit input: D data input // Reset/Clock Enable: 1-bit (each) input: Reset/Clock Enable Inputs .CEA1(1'b1), // 1-bit input: Clock enable input for 1st stage AREG .CEA2(1'b0), // 1-bit input: Clock enable input for 2nd stage AREG .CEAD(1'b0), // 1-bit input: Clock enable input for ADREG .CEALUMODE(1'b1), // 1-bit input: Clock enable input for ALUMODE .CEB1(1'b1), // 1-bit input: Clock enable input for 1st stage BREG .CEB2(1'b0), // 1-bit input: Clock enable input for 2nd stage BREG .CEC(1'b1), // 1-bit input: Clock enable input for CREG .CECARRYIN(1'b0), // 1-bit input: Clock enable input for CARRYINREG .CECTRL(1'b1), // 1-bit input: Clock enable input for OPMODEREG and CARRYINSELREG .CED(1'b0), // 1-bit input: Clock enable input for DREG .CEINMODE(1'b1), // 1-bit input: Clock enable input for INMODEREG .CEM(1'b1), // 1-bit input: Clock enable input for MREG .CEP(1'b1), // 1-bit input: Clock enable input for PREG .RSTA(rst_z), // 1-bit input: Reset input for AREG .RSTALLCARRYIN(rst_z), // 1-bit input: Reset input for CARRYINREG .RSTALUMODE(rst_z), // 1-bit input: Reset input for ALUMODEREG .RSTB(rst_z), // 1-bit input: Reset input for BREG .RSTC(rst_z), // 1-bit input: Reset input for CREG .RSTCTRL(rst_z), // 1-bit input: Reset input for OPMODEREG and CARRYINSELREG .RSTD(rst_z), // 1-bit input: Reset input for DREG and ADREG .RSTINMODE(rst_z), // 1-bit input: Reset input for INMODEREG .RSTM(rst_z), // 1-bit input: Reset input for MREG .RSTP(rst_z) // 1-bit input: Reset input for PREG );  always @(posedge sclk) if(!rst_n)    z_dsp_lut_delay1    <= 0; else if(break_happen==1'b1&&first_break_happen==1'b0)   z_dsp_lut_delay1    <=     z_dsp_lut; else if(Ninter_cnt_copy1[3:0]==Ninter&&cal_control&&break_out==1'b0)   z_dsp_lut_delay1    <=     z_dsp_lut_d;  always @(posedge sclk) if(!rst_n)   z        <= 0; else if(break_happen==1'b1&&first_break_happen==1'b0)   z        <= (~z_dsp_lut[17:0])+1'b1; else if(Ninter_cnt_copy1[3:0]==Ninter&&cal_control&&break_out==1'b0)   z        <= (~z_dsp_lut_d[17:0])+1'b1; else   z        <=     z;  always @(posedge sclk) if(!rst_n)   Ang       <= 0; else if(y_a==0&&x_a[N-1]==1'b0)   Ang       <= 0; else if(y_a==0&&x_a[N-1]==1'b1)   Ang       <= 18'b011001001000100000; else if(Ninter_cnt_copy1==Ninter+1 && x_sign && y_sign)   Ang       <=      z - 18'b011001001000100000; else if(Ninter_cnt_copy1==Ninter+1 && x_sign && y_sign==0)   Ang       <=      z + 18'b011001001000100000; else if(Ninter_cnt_copy1==Ninter+1)   Ang       <=      z_dsp_lut_delay1; else    Ang       <=      Ang;  always @(posedge sclk) if(Ninter_cnt_copy1==4'he&&cal_control==1'b0)   Ang_en       <= 1'b1; else    Ang_en       <= 1'b0;  endmodule

上面的代码为了限制使用DSP的数目，所以使用了DSP原语，这也是导致代码长度过长的原因。如果我们不考虑使用DSP原语而是让编译器自动帮我们进行编译综合，那么我代码可以精简到300行。至于DSP原语的使用这里不再赘述，个人感觉吃力不讨好，当然不排除自己人太菜没达到那种逼格。我们这里重点关注一下MATLAB与FPGA之间量化的对应。
ang在MATLAB中的量化：

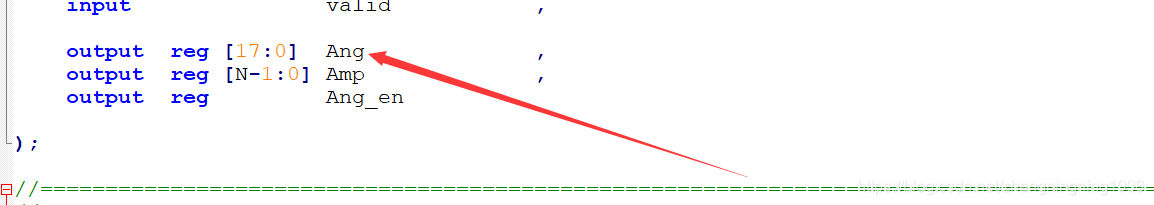

对应在FPGA中的处理：


这里需要注意FPGA默认的量化截取方式与下面对应：

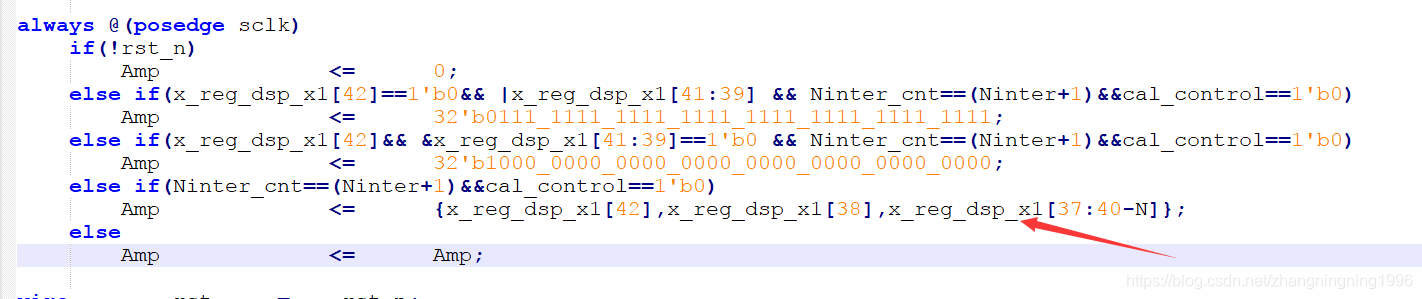

amp在MATLAB中的量化：

ang在MATLAB中的量化：

其实就是直接截取了低位，关于量化的操作在FPGA与MATLAB数据相互对应的方面是特别重要的。

这里简要总结一下就是FPGA自己计算的就是：

如果我们进行了截位就是：

MATLAB测试代码

这里我们给出MATLAB测试代码用来对比MATLAB与Modelsim两者仿真之间代码的一致性，代码如下：

clc; clear all;  fid1 = fopen('Ang_matlab.txt','r'); x_fix = fscanf(fid1,'%d');    fid2 = fopen('Amp_matlab.txt','r'); y_fix = fscanf(fid2,'%d');    fid3 = fopen('Ang_fpga.txt','r'); x_fpga = fscanf(fid3,'%d');    fid4 = fopen('Amp_fpga.txt','r'); y_fpga = fscanf(fid4,'%d');    sum1 = sum(abs(x_fix - x_fpga)); sum2 = sum(abs(y_fix - y_fpga));

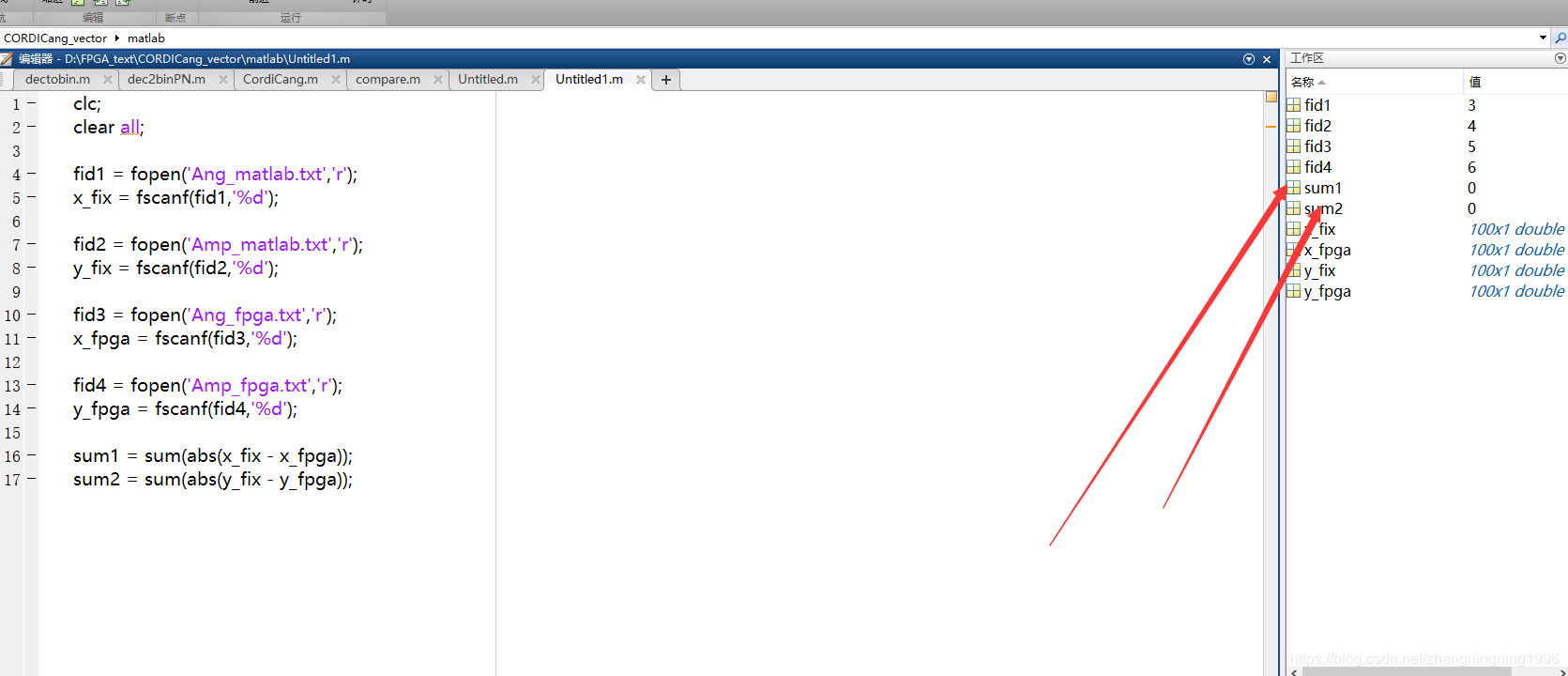

结果如下：

从上面实验验证了我们实验的正确性。
