一、安装Docker toolbox

下载链接：（DockerToolbox-18.03.0-ce.exe）

1.运行安装包

双击安装包，在安装界面勾选上Git（如果你已经有了Git就不用勾选）

注意：使用docker需要在BIOS里开启CPU虚拟化技术，并关闭Windows系统的Hype-V功能，否则会报错！！！

成功提示：

2.修改启动项

（1）新建一个start.sh的文件，将以下代码复制进去

#!/bin/bash trap '[ "$?" -eq 0 ] || read -p "Looks like something went wrong in step ´$STEP´... Press any key to continue..."' EXIT  #Quick Hack: used to convert e.g. "C:Program FilesDocker Toolbox" to "/c/Program Files/Docker Toolbox" win_to_unix_path(){   wd="$(pwd)" cd "$1"   the_path="$(pwd)" cd "$wd" echo $the_path } # This is needed  to ensure that binaries provided # by Docker Toolbox over-ride binaries provided by # Docker for Windows when launching using the Quickstart. export PATH="$(win_to_unix_path "${DOCKER_TOOLBOX_INSTALL_PATH}"):$PATH" VM=${DOCKER_MACHINE_NAME-default} DOCKER_MACHINE="${DOCKER_TOOLBOX_INSTALL_PATH}docker-machine.exe"  STEP="Looking for vboxmanage.exe" if [ ! -z "$VBOX_MSI_INSTALL_PATH" ]; then   VBOXMANAGE="${VBOX_MSI_INSTALL_PATH}VBoxManage.exe" else   VBOXMANAGE="${VBOX_INSTALL_PATH}VBoxManage.exe" fi  BLUE='33[1;34m' GREEN='33[0;32m' NC='33[0m' #clear all_proxy if not socks address if [[ $ALL_PROXY != socks* ]]; then   unset ALL_PROXY fi if [[ $all_proxy != socks* ]]; then   unset all_proxy fi if [ ! -f "${DOCKER_MACHINE}" ]; then echo "Docker Machine is not installed. Please re-run the Toolbox Installer and try again." exit 1 fi if [ ! -f "${VBOXMANAGE}" ]; then echo "VirtualBox is not installed. Please re-run the Toolbox Installer and try again." exit 1 fi "${VBOXMANAGE}" list vms | grep ""${VM}"" &> /dev/null VM_EXISTS_CODE=$?  set -e  STEP="Checking if machine $VM exists" if [ $VM_EXISTS_CODE -eq 1 ]; then   "${DOCKER_MACHINE}" rm -f "${VM}" &> /dev/null || :   rm -rf ~/.docker/machine/machines/"${VM}"   #set proxy variables if they exists   if [ "${HTTP_PROXY}" ]; then     PROXY_ENV="$PROXY_ENV --engine-env HTTP_PROXY=$HTTP_PROXY"   fi   if [ "${HTTPS_PROXY}" ]; then     PROXY_ENV="$PROXY_ENV --engine-env HTTPS_PROXY=$HTTPS_PROXY"   fi   if [ "${NO_PROXY}" ]; then     PROXY_ENV="$PROXY_ENV --engine-env NO_PROXY=$NO_PROXY"   fi   "${DOCKER_MACHINE}" create -d virtualbox --virtualbox-no-vtx-check $PROXY_ENV "${VM}" fi  STEP="Checking status on $VM" VM_STATUS="$( set +e ; "${DOCKER_MACHINE}" status "${VM}" )" if [ "${VM_STATUS}" != "Running" ]; then   "${DOCKER_MACHINE}" start "${VM}"   yes | "${DOCKER_MACHINE}" regenerate-certs "${VM}" fi  STEP="Setting env" eval "$("${DOCKER_MACHINE}" env --shell=bash --no-proxy "${VM}" | sed -e "s/export/SETX/g" | sed -e "s/=/ /g")" &> /dev/null #for persistent Environment Variables, available in next sessions eval "$("${DOCKER_MACHINE}" env --shell=bash --no-proxy "${VM}")" #for transient Environment Variables, available in current session  STEP="Finalize" clear cat << EOF                           ##         .                   ## ## ##        ==                ## ## ## ## ##    ===            /"""""""""""""""""___/ ===       ~~~ {~~ ~~~~ ~~~ ~~~~ ~~~ ~ /  ===- ~~~            ______ o           __/                           __/               ___________/  EOF echo -e "${BLUE}docker${NC} is configured to use the ${GREEN}${VM}${NC} machine with IP ${GREEN}$("${DOCKER_MACHINE}" ip ${VM})${NC}" echo "For help getting started, check out the docs at https://docs.docker.com" echo echo #cd #Bad: working dir should be whatever directory was invoked from rather than fixed to the Home folder  docker () {   MSYS_NO_PATHCONV=1 docker.exe "$@" } export -f docker  if [ $# -eq 0 ]; then echo "Start interactive shell" exec "$BASH" --login -i else echo "Start shell with command" exec "$BASH" -c "$*" fi

（2）把start.sh这个文件拖进Docker toolbox的安装目录，替换原有的启动项文件。（注意：需要管理员权限！！）

3.启动docker

（1）双击桌面上的Docker Quickstart Terminal图标进行启动

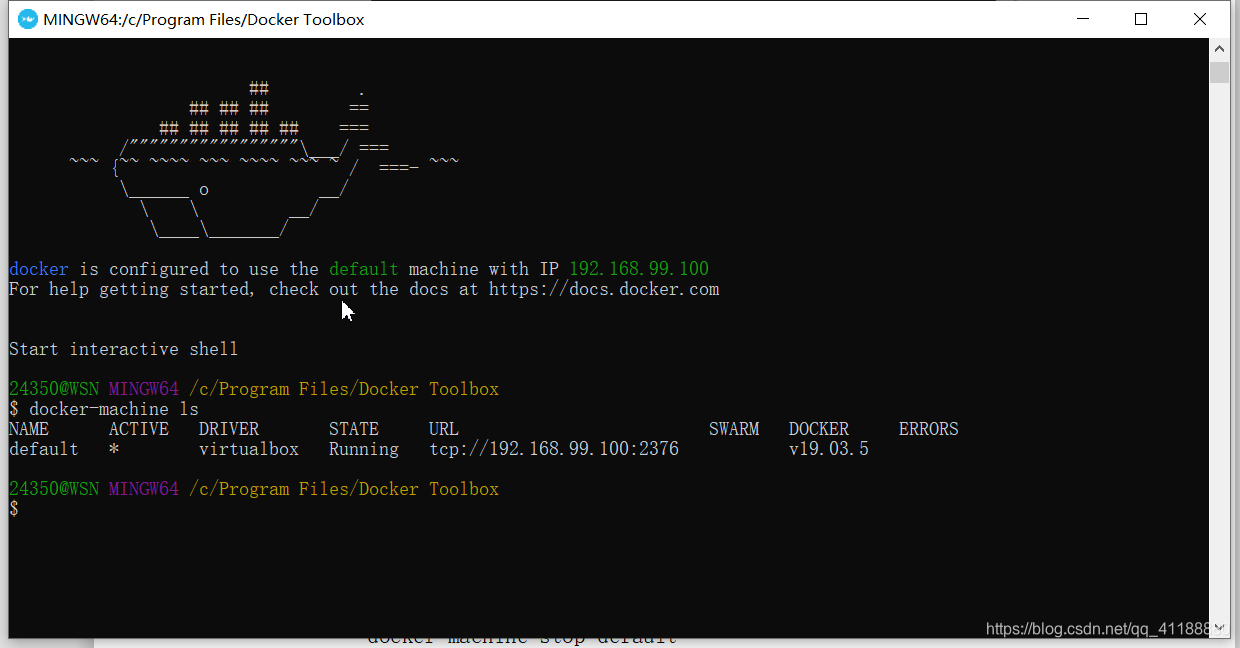

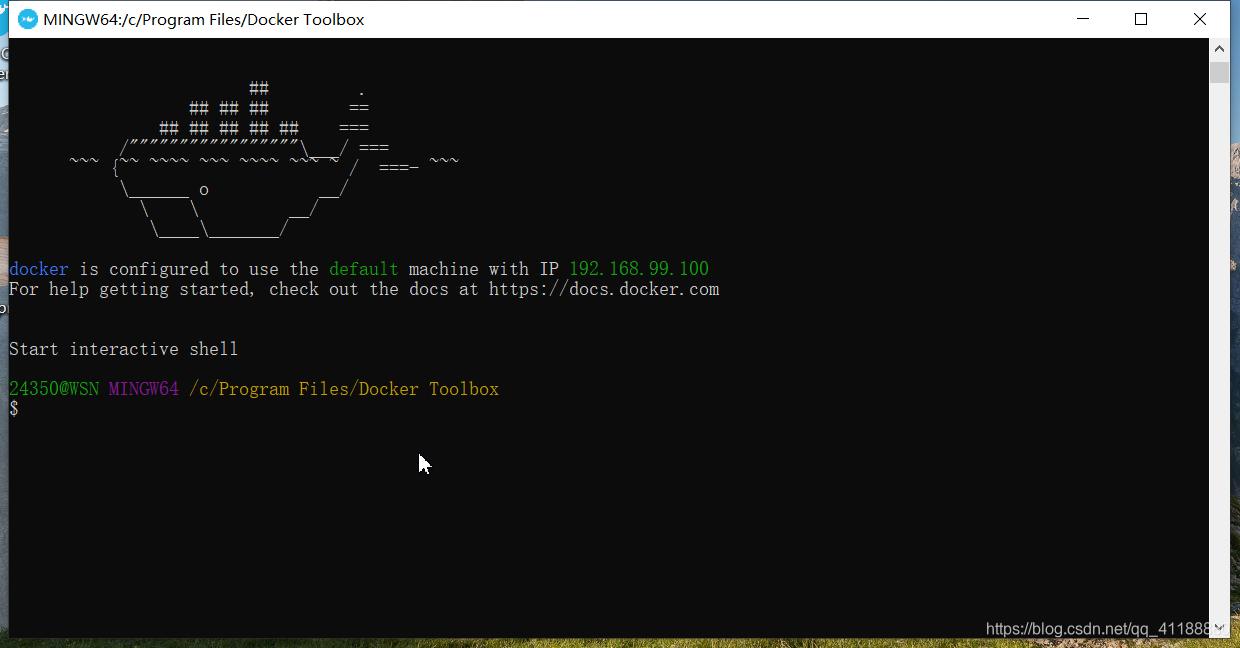

（2）经过漫长的等待会出现以下画面，这就意味着成功了
PS：启动docker时会出现卡在waiting for an IP…的情况，可以选择断开网络，再进行启动。这一步骤主要利用GitHub是boot2docker.iso进行升级。安装docker前可以测试一下和GitHub的连接，如果网络状况良好，就不用断网，等上大概五六分钟就好了。

（3）可以输入命令docker-machine ls查看一下

（4）这里附上菜鸟教程的docker命令大全，方便学习。

二、搭建hadoop集群

1.停止docker容器

命令：docker-machine stop default

2.创建共享文件夹

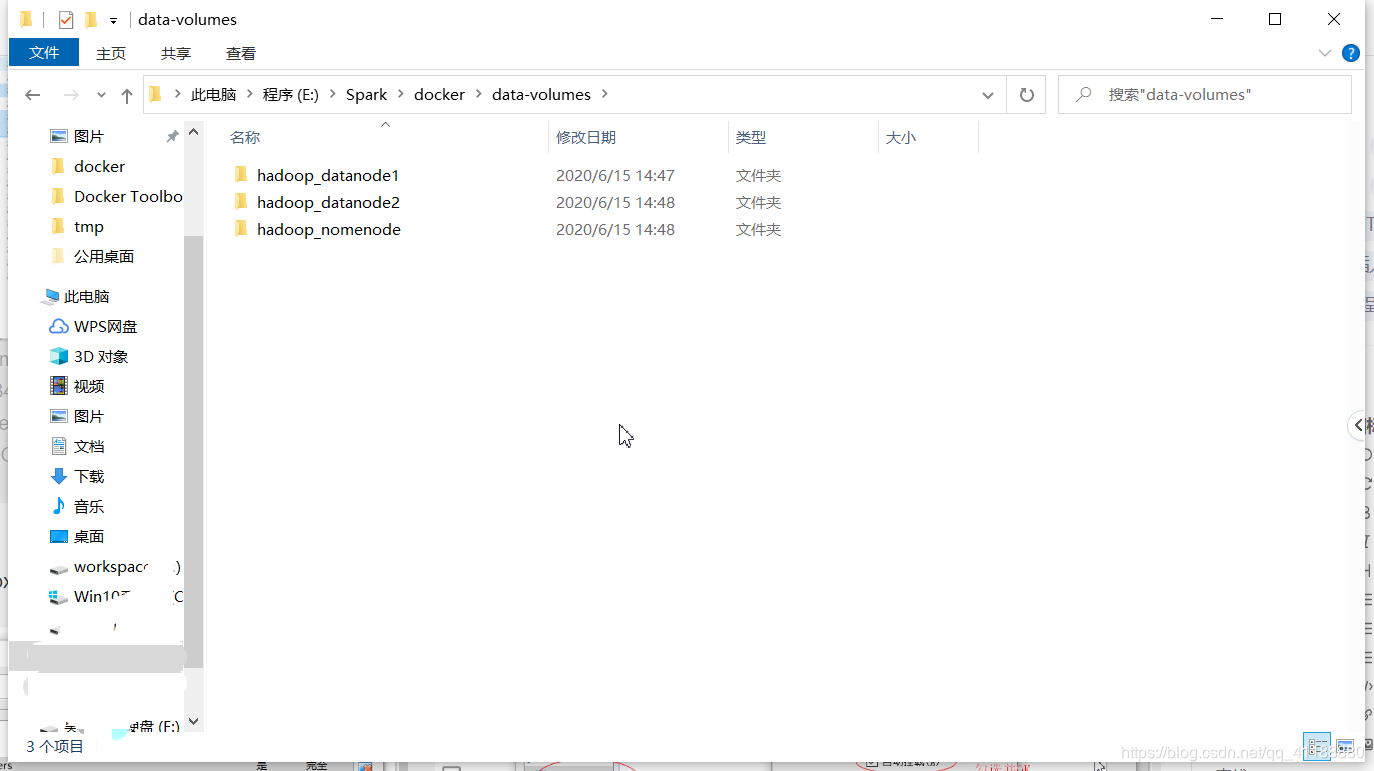

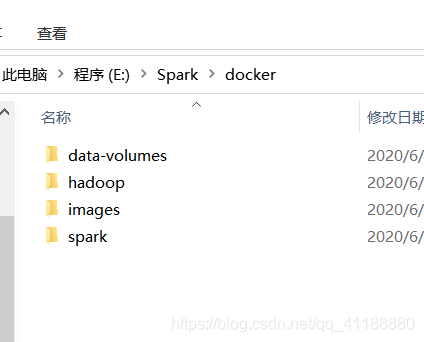

（1）创建下图的3个文件夹，目录不能改变

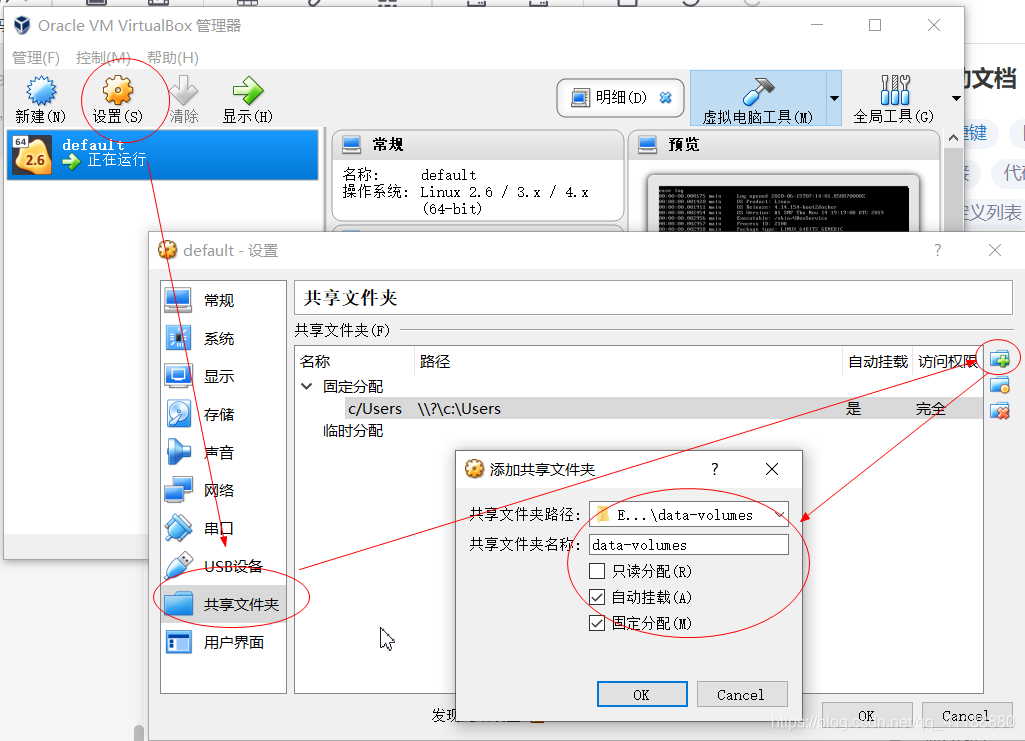

（2）打开Oracle VM VirtualBox并设置docker的共享文件夹

（3）可以顺便设置一下docker容器的其他配置信息，配置完成后点击Docker Quickstart Terminal图标启动

3.创建docker-compose.yml文件

（1）创建目录e:sparkdockerhadoop
（2）创建docker-compose.yml文件
在文件中输入以下命令

version: "2"  services:      #hue: #  image: gethue/hue #  hostname: hue #  container_name: hue   #  volumes: #    - ./hue.ini:/usr/share/hue/desktop/conf/z-hue.ini #  ports: #    - "8888:8888" #filebrowser: #  image: bde2020/hdfs-filebrowser #  hostname: filebrowser #  container_name: filebrowser #  domainname: hadoop #  #net: hadoop #  environment: #    - NAMENODE_HOST=namenode #  ports: #    - "18088:8088"        namenode:     image: bde2020/hadoop-namenode:1.1.0-hadoop2.7.1-java8     container_name: namenode     volumes:       - /data-volumes/hadoop_namenode/:/hadoop/dfs/name     environment:       - CLUSTER_NAME=test     env_file:       - ./hadoop.env     ports:       - "9999:50070"       - "8020:8020"      resourcemanager:     image: bde2020/hadoop-resourcemanager:1.1.0-hadoop2.7.1-java8     container_name: resourcemanager     depends_on:       - namenode       - datanode1       - datanode2     env_file:       - ./hadoop.env     ports:       - "8088:8088" #historyserver: #  image: bde2020/hadoop-historyserver:1.1.0-hadoop2.7.1-java8 #   container_name: historyserver #  depends_on: #   - namenode #  - datanode1 # - datanode2 #volumes: #  - ../data-volumes/hadoop_historyserver/:/hadoop/yarn/timeline # env_file: #  - ./hadoop.env # ports: #  - "8188:8188"      nodemanager1:     image: bde2020/hadoop-nodemanager:1.1.0-hadoop2.7.1-java8     container_name: nodemanager1     depends_on:       - namenode       - datanode1       - datanode2     env_file:       - ./hadoop.env     ports:       - "8042:8042"      datanode1:     image: bde2020/hadoop-datanode:1.1.0-hadoop2.7.1-java8     container_name: datanode1     depends_on:       - namenode     volumes:       - /data-volumes/hadoop_datanode1/:/hadoop/dfs/data     env_file:       - ./hadoop.env     ports:       - "50075:50075"      datanode2:     image: bde2020/hadoop-datanode:1.1.0-hadoop2.7.1-java8     container_name: datanode2     depends_on:       - namenode     volumes:       - /data-volumes/hadoop_datanode2/:/hadoop/dfs/data     env_file:       - ./hadoop.env   networks:   default:     external:       name: hdfs_share        #docker network create hdfs_share

4.创建虚拟网络

（1）进入Git bash命令窗口
（2）输入命令docker network create hdfs_share

5.docker加载hadoop镜像

（1）下载镜像
链接：https://pan.baidu.com/s/1zUvtvZt7REIYiGFWUrLc_Q
提取码：vz4z

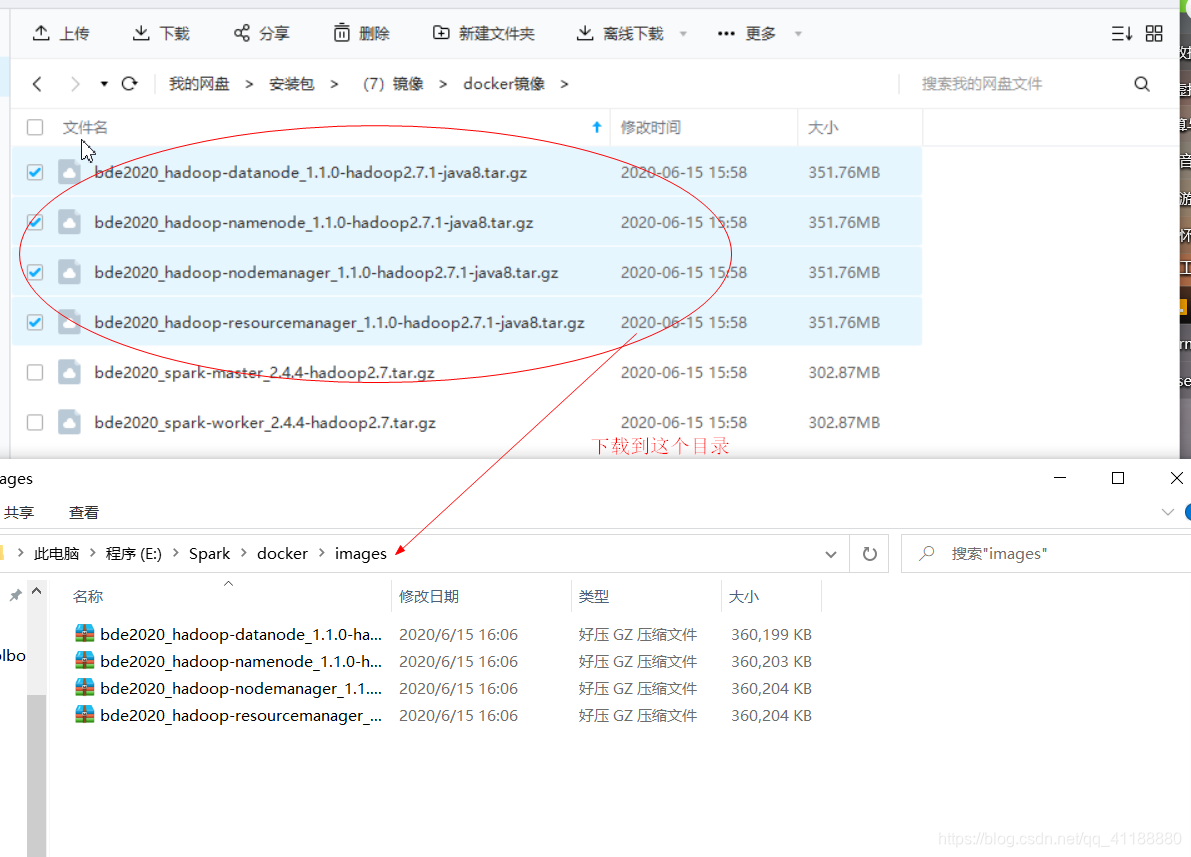

（2）将这四个文件拖到如下的目录里

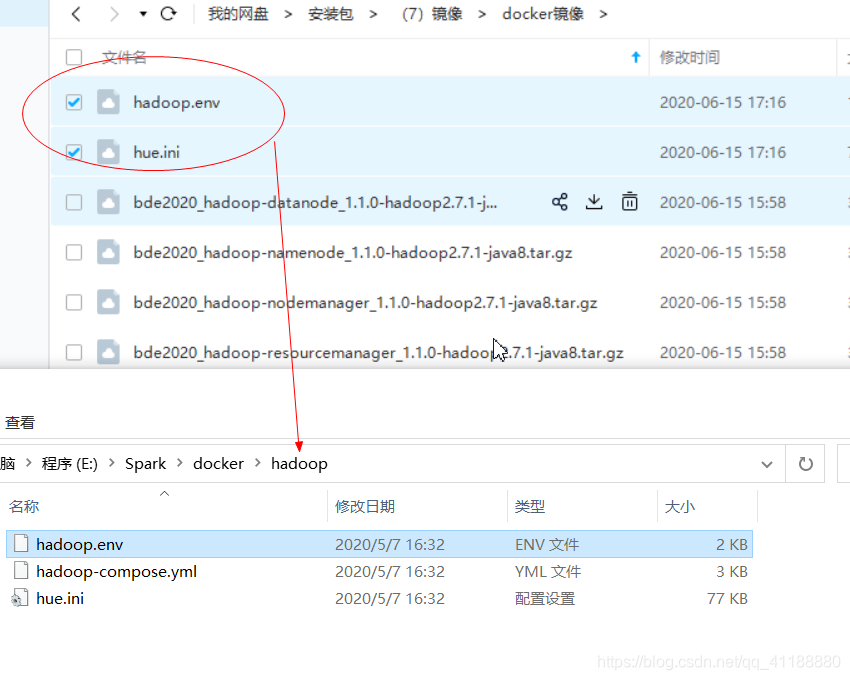

将hadoop.env和hue.ini拖入下图的文件夹中

（3）在docker的命令窗口里分别输入如下命令

docker load -i E:/spark/docker/images/bde2020_hadoop-namenode_1.1.0-hadoop2.7.1-java8.tar.gz  docker load -i E:/spark/docker/images/bde2020_hadoop-datanode_1.1.0-hadoop2.7.1-java8.tar.gz  docker load -i E:/spark/docker/images/bde2020_hadoop-resourcemanager_1.1.0-hadoop2.7.1-java8.tar.gz  docker load -i E:/spark/docker/images/bde2020_hadoop-nodemanager_1.1.0-hadoop2.7.1-java8.tar.gz

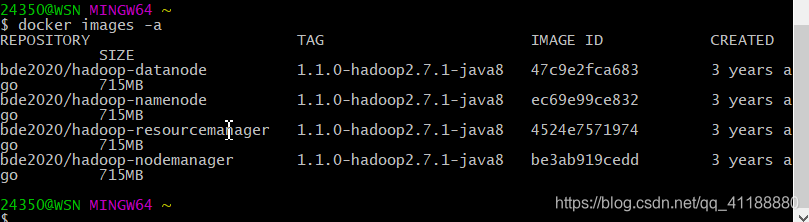

（4）输入命令docker images -a查看

（5）cd到E:/spark/docker/hadoop下
命令cd E:/spark/docker/hadoop

（6）输入命令docker-compose.exe -f hadoop-compose.yml up -d初始化hadoop集群

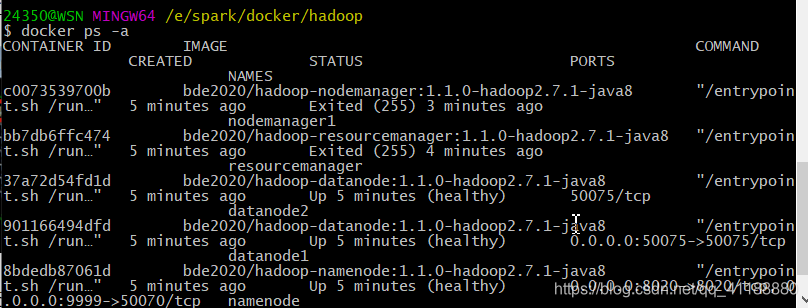

（7）利用命令·docker ps -a·验证一下

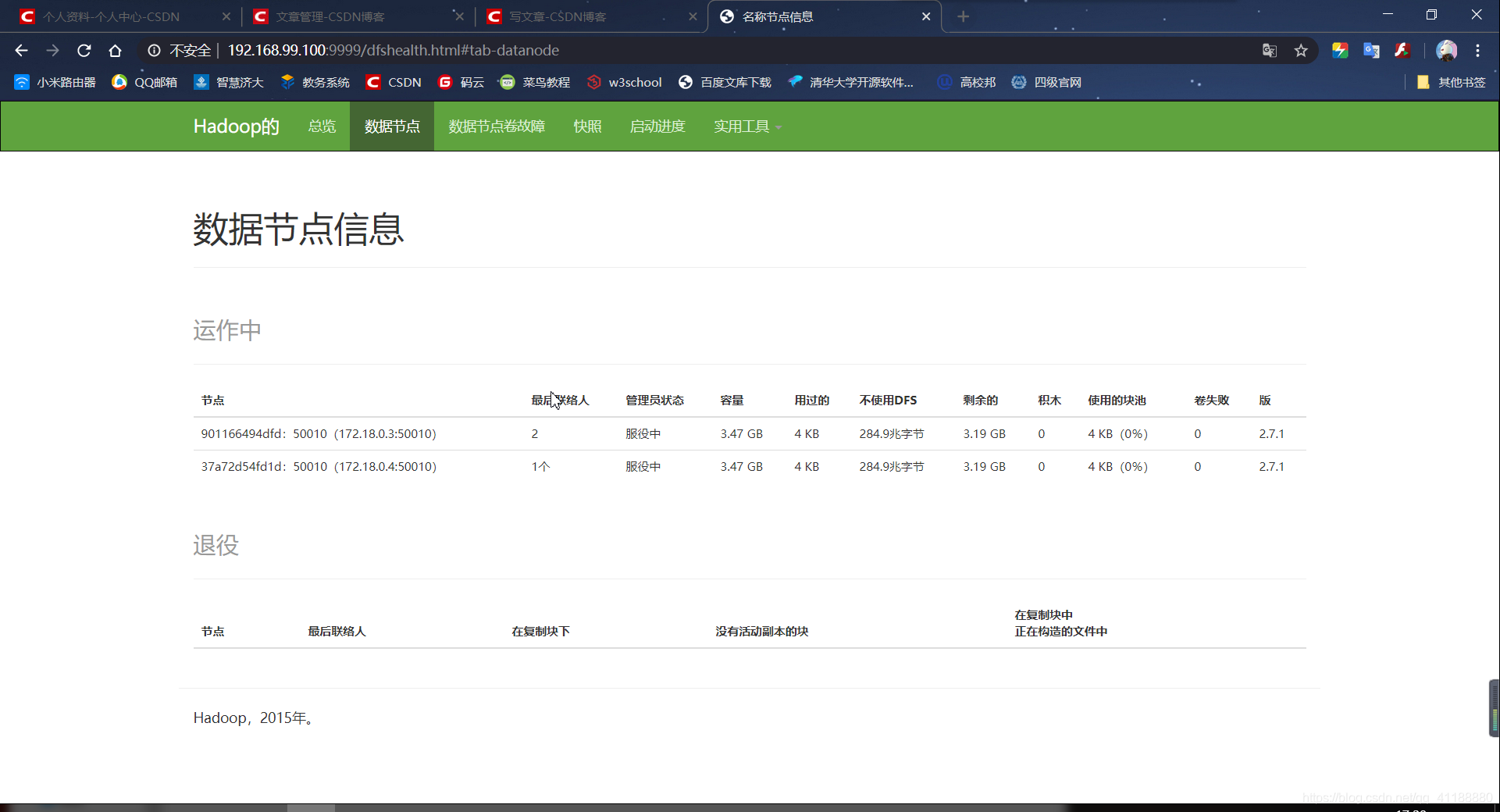

（8）访问 https://192.168.99.100:9999/dfshealth.html#tab-datanode，查看hadoop的datanode的两个节点是否正常。

三、搭建spark集群

1.新建目录

新建目录E:Sparkdockerspark

2.新建docker-compose.yml文件

在新建的目录里创建docker-compose.yml，并输入以下内容

version: '2' services:   spark-master:     image: bde2020/spark-master:2.4.4-hadoop2.7     container_name: spark-master     ports:       - "8080:8080"       - "7077:7077"     environment:       - INIT_DAEMON_STEP=setup_spark   spark-worker-1:     image: bde2020/spark-worker:2.4.4-hadoop2.7     container_name: spark-worker-1     depends_on:       - spark-master     ports:       - "8081:8081"     environment:       - "SPARK_MASTER=spark://spark-master:7077"        networks:   default:     external:       name: hdfs_share

3.docker加载Spark镜像

（1）下载镜像
链接：https://pan.baidu.com/s/1zUvtvZt7REIYiGFWUrLc_Q
提取码：vz4z

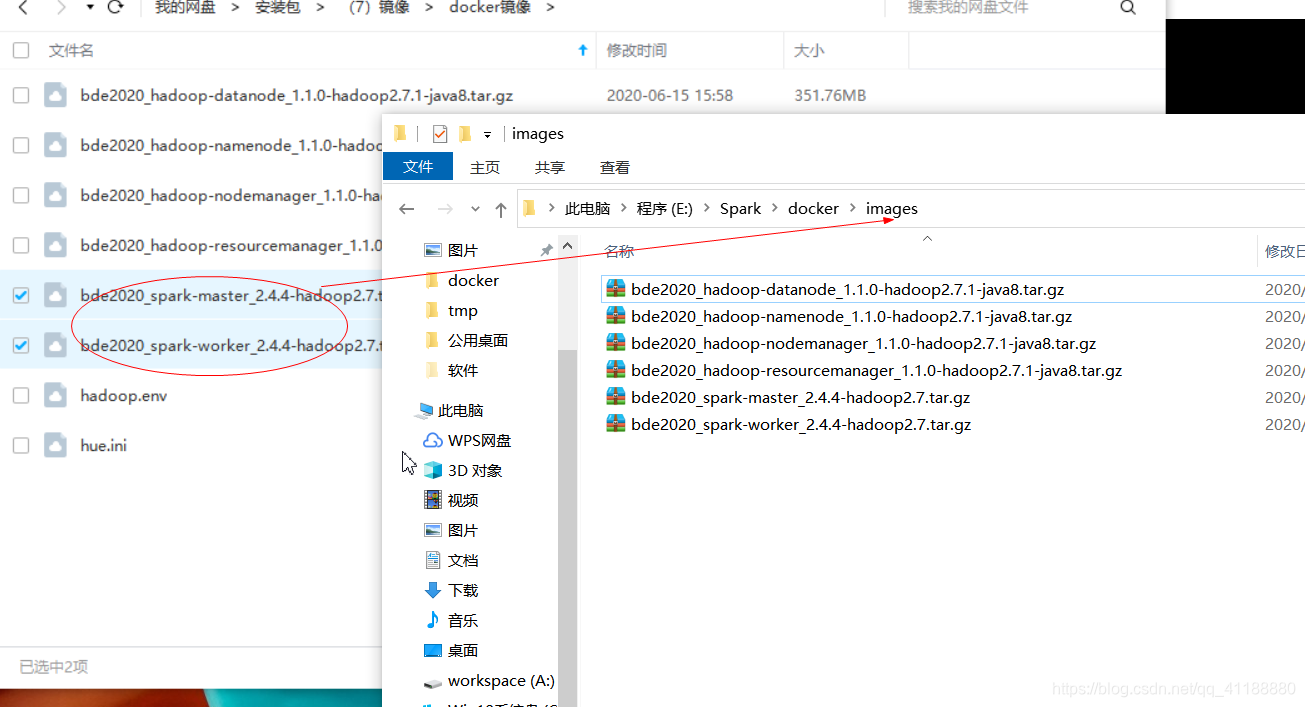

（2）将这两个镜像放到如下目录

（3）打开docker的命令窗口并输入：

docker load -i E:/spark/docker/images/bde2020_spark-master_2.4.4-hadoop2.7.tar.gz  docker load -i E:/spark/docker/images/bde2020_spark-worker_2.4.4-hadoop2.7.tar.gz

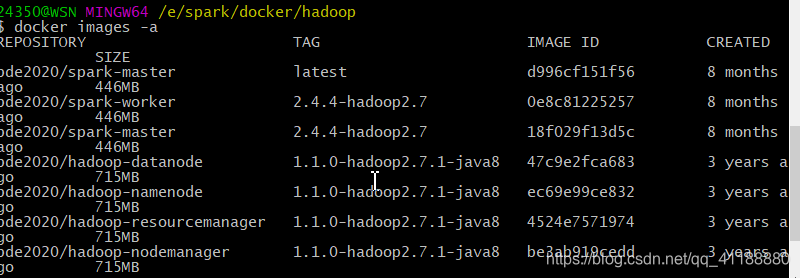

（4）利用命令docker images -a查看

（5）cd 到 E:sparkdockerspark
命令cd E:/spark/docker/spark

（6）输入命令docker-compose.exe -f spark-compose.yml up -d启动spark集群

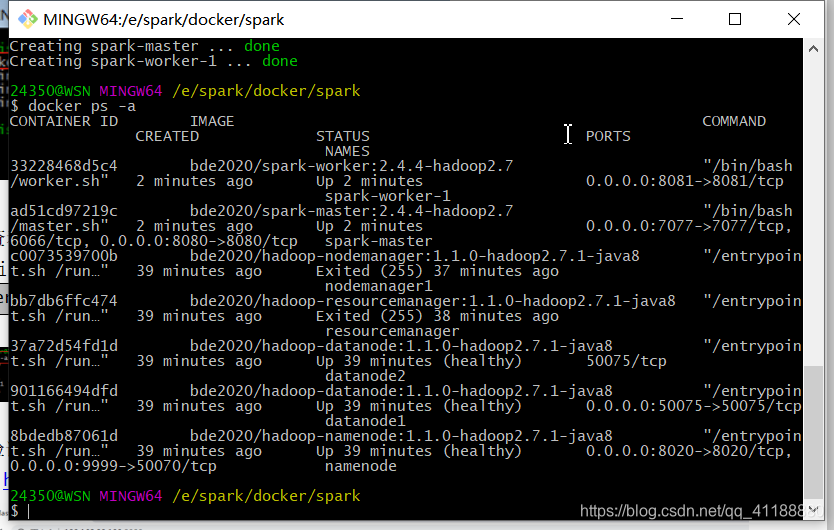

（7）输入命令docker ps -a可以查看状态

4) 验证spark服务

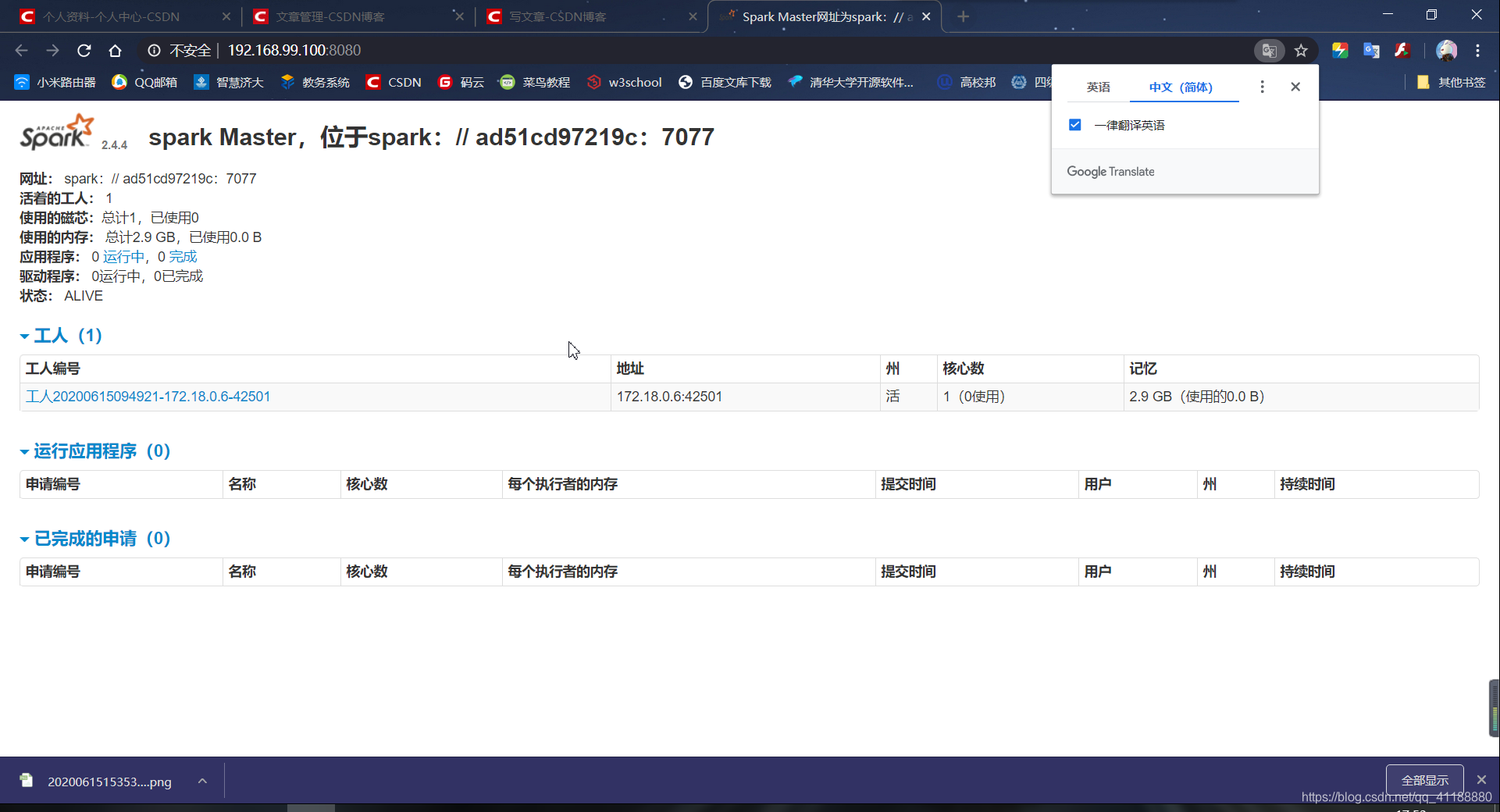

访问 https://192.168.99.100:8080/，查看spark的各个节点是否正常。

PS：192.168.99.10，如果用虚拟机linux运行docker，在浏览器访问docke容器服务时，不要用localhost或者127.0.0.1，而是用docker 创建的Oracle VM这个虚拟机linux的ip地址。
