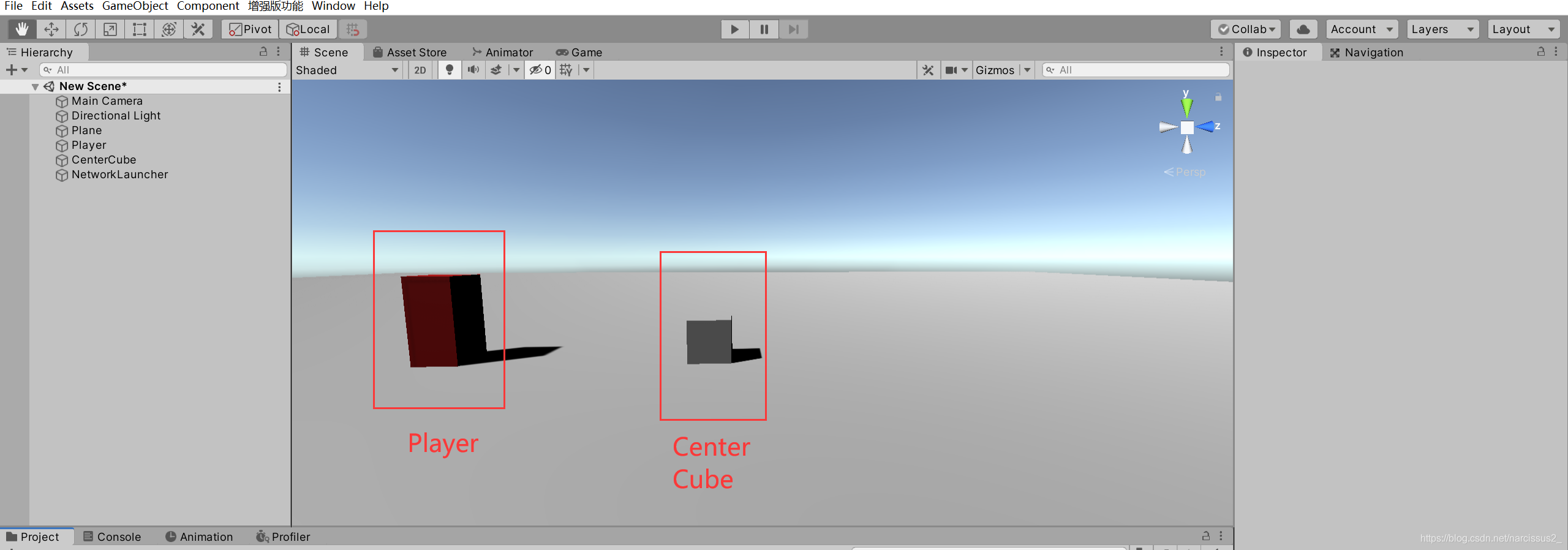

Goal

• When player touch the sample cube and press B, center cube turn blue.
• When player touch the sample cube and press R, center cube turn red.
• Use photon to synchronize

Step 1: Make Player Move

• Add MoveCube to Player

using UnityEngine; using System.Collections; using Photon.Pun; // This script moves the character controller forward // and sideways based on the arrow keys. // It also jumps when pressing space. // Make sure to attach a character controller to the same game object. // It is recommended that you make only one call to Move or SimpleMove per frame. public class MoveCube : MonoBehaviourPun { CharacterController characterController; public float speed = 6.0f; public float jumpSpeed = 8.0f; public float gravity = 20.0f; private Vector3 moveDirection = Vector3.zero; void Start() {         characterController = GetComponent<CharacterController>(); } void Update() { if (characterController.isGrounded&&             PhotonNetwork.IsConnected&&//check whether connect             photonView.IsMine)//check whether is mine { // We are grounded, so recalculate // move direction directly from axes              moveDirection = new Vector3(-Input.GetAxis("Vertical"), 0.0f, Input.GetAxis("Horizontal"));             moveDirection *= speed; if (Input.GetButton("Jump")) {                 moveDirection.y = jumpSpeed; } } // Apply gravity. Gravity is multiplied by deltaTime twice (once here, and once below // when the moveDirection is multiplied by deltaTime). This is because gravity should be applied // as an acceleration (ms^-2)         moveDirection.y -= gravity * Time.deltaTime; // Move the controller         characterController.Move(moveDirection * Time.deltaTime); } }

2. Store the material to the cube

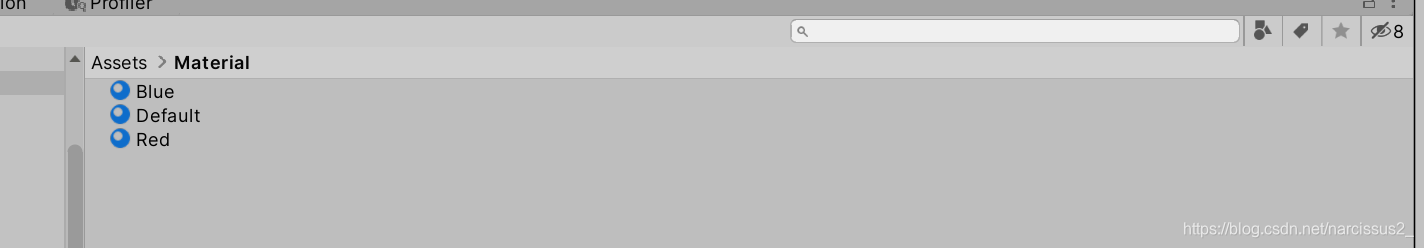

2.1. Create Material

2.2. Attach Center Cube to CenterCube

using System.Collections; using System.Collections.Generic; using UnityEngine; public class CenterCube : MonoBehaviour { public Material[] material; public int curMaterial; private void Awake() {         curMaterial = 2; } private void OnTriggerStay(Collider other) { if(other.CompareTag("Player")) {             Debug.Log("In"); if(Input.GetKeyDown(KeyCode.B)) { GetComponent<MeshRenderer>().material = material[0];                 curMaterial = 0; }else if(Input.GetKeyDown(KeyCode.R)) { GetComponent<MeshRenderer>().material = material[1];                 curMaterial = 1; } } } }

3. Set the photon network

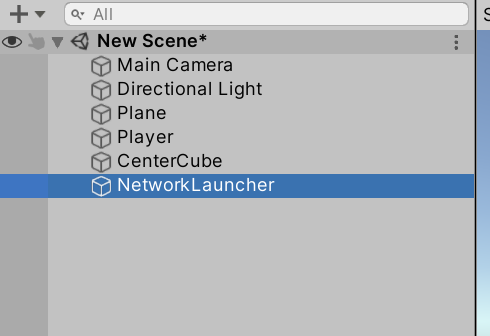

3.1. Create an empty gameobject and name it as NetworkLauncher

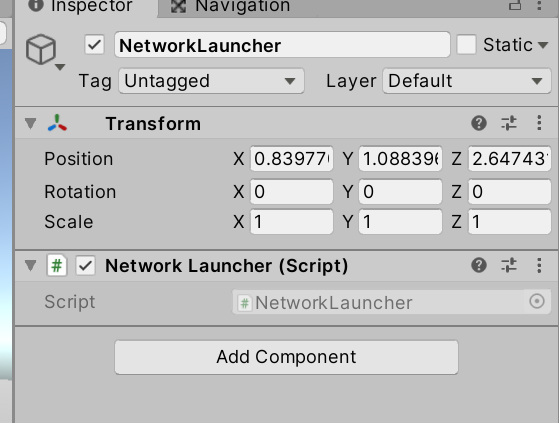

3.2. Attach the NetworkLauncher script to the NetworkLauncehr

using System.Collections; using System.Collections.Generic; using UnityEngine; using Photon.Pun; public class NetworkLauncher : MonoBehaviourPunCallbacks { // Start is called before the first frame update void Start() {         PhotonNetwork.ConnectUsingSettings(); } public override void OnConnectedToMaster() { base.OnConnectedToMaster();         Debug.Log("Welcome");          PhotonNetwork.JoinOrCreateRoom("Room", new Photon.Realtime.RoomOptions() { MaxPlayers = 2 }, default); } public override void OnJoinedRoom() { base.OnJoinedRoom(); GameObject obj = PhotonNetwork.Instantiate("Player", new Vector3(2.84f, 1f, -4.79f),             Quaternion.identity, 0);         obj.tag = "Player"; } }

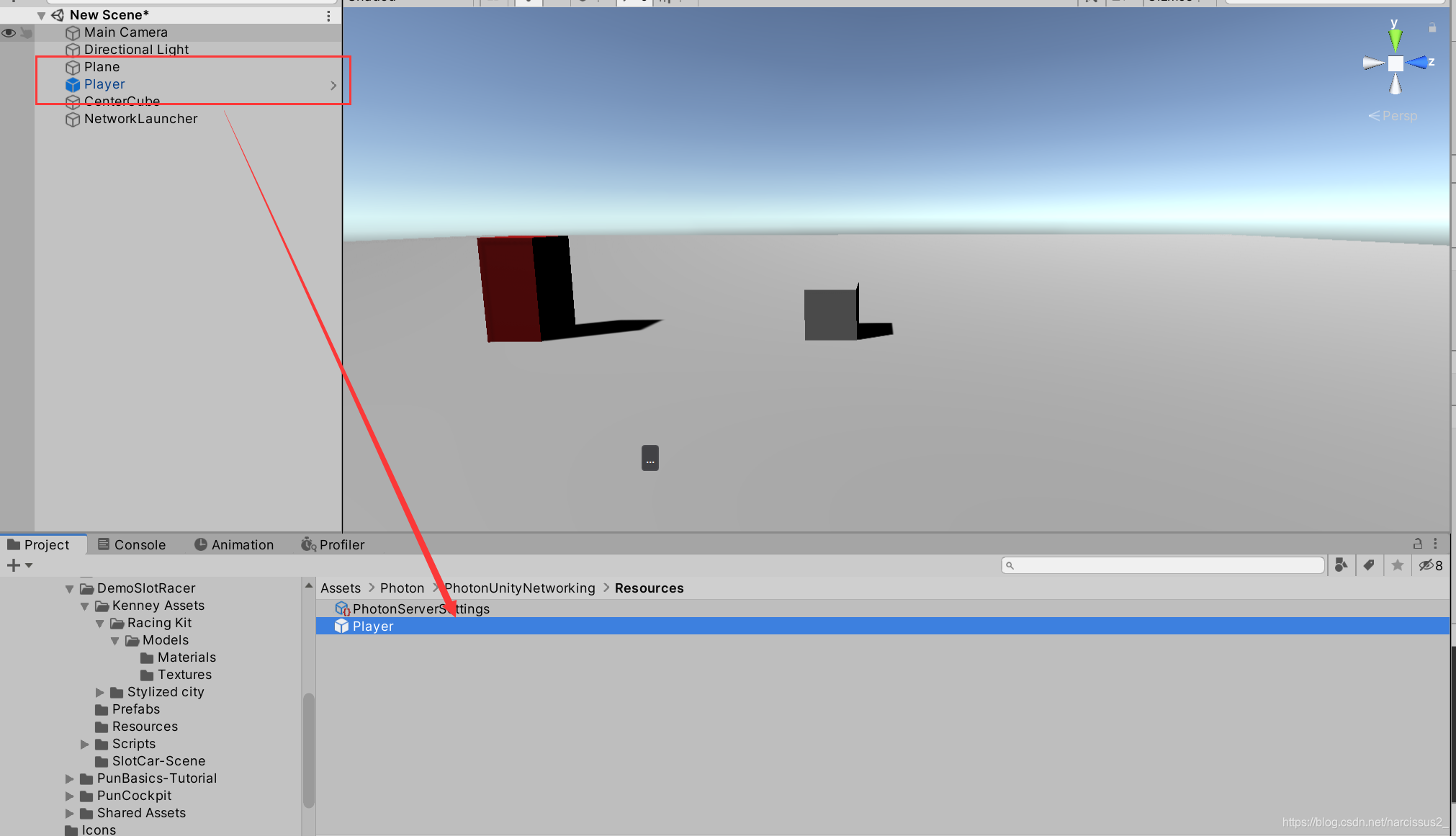

3.2. Drag the Player to the resource directory in photon

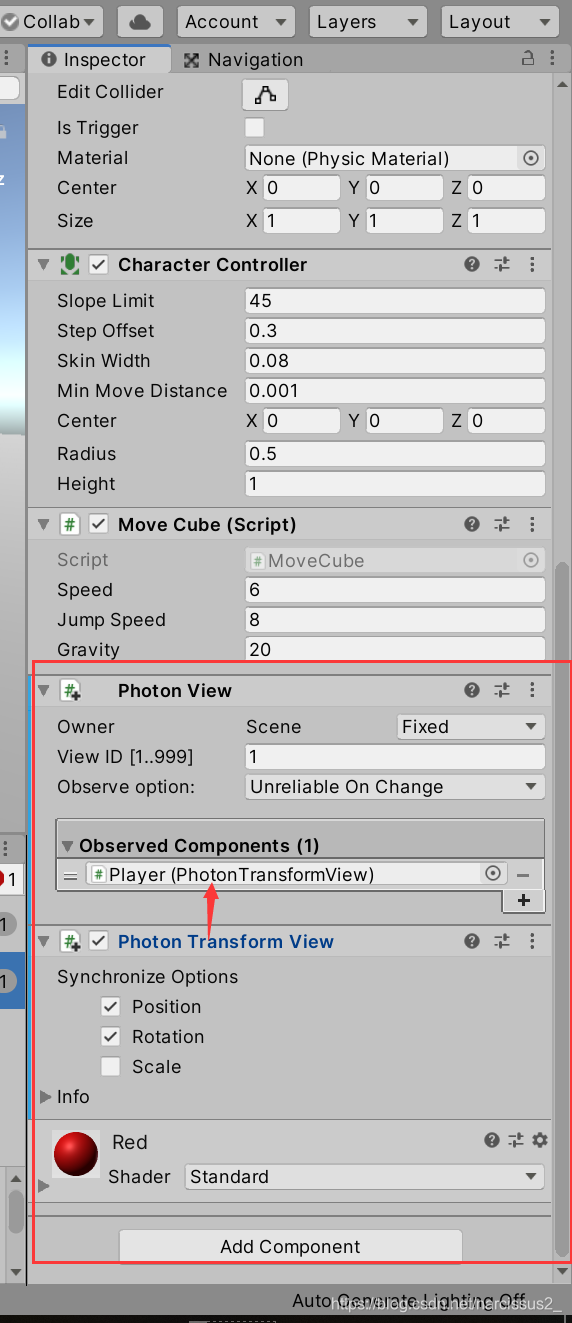

3.3. Add photon component to the Player

• Remember drag the “Photon Transform View” to the Observed Components.
• Remember to override the prefab.

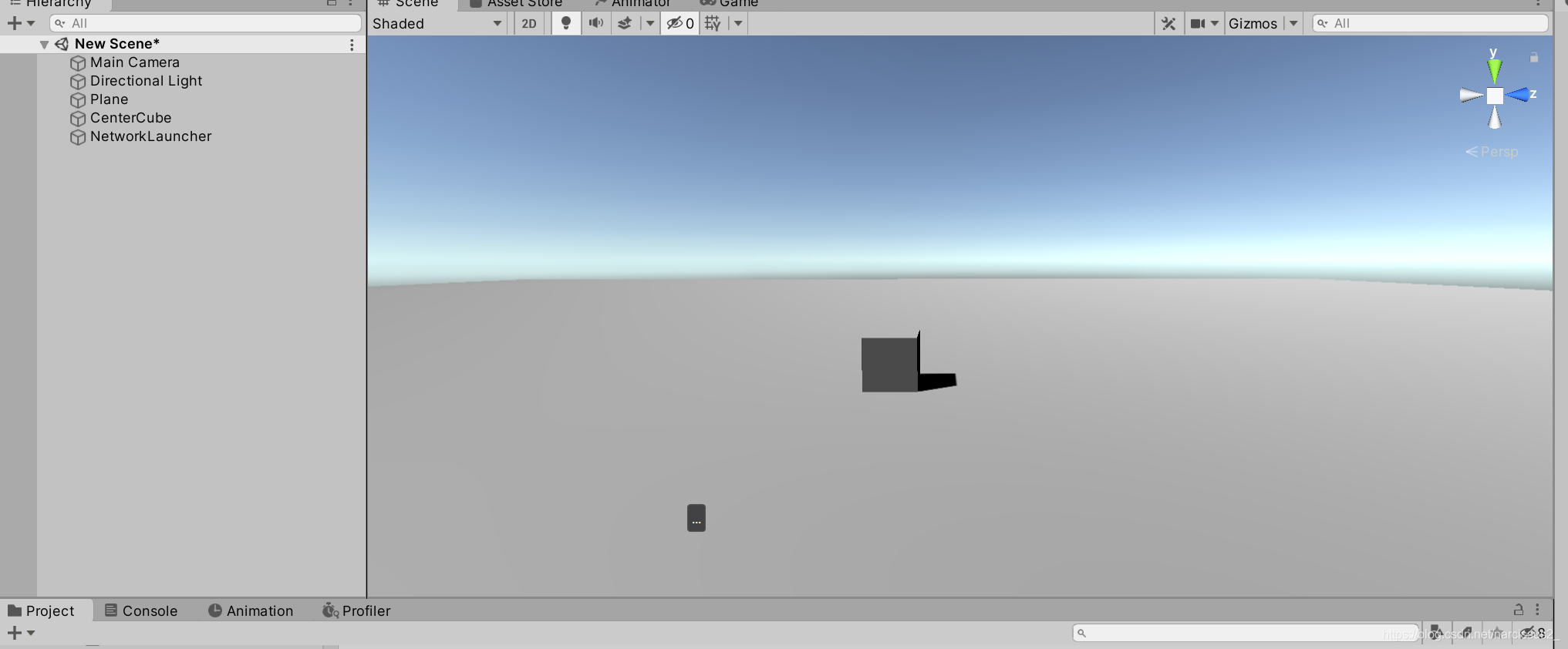

3.4. Delete the Player in hierarchy

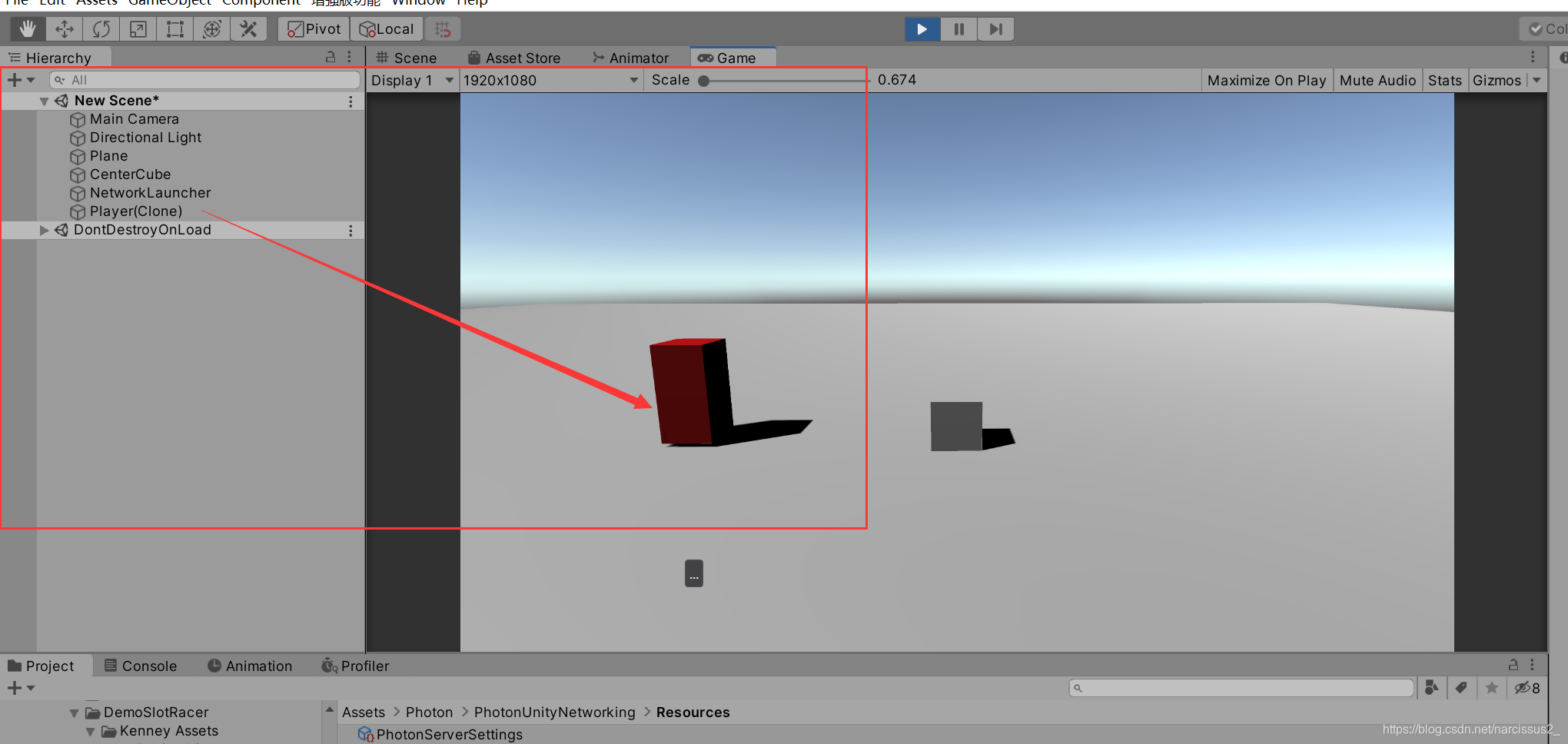

4. Run the project to check whether generate the player

4.1. Build another window to check sychronize

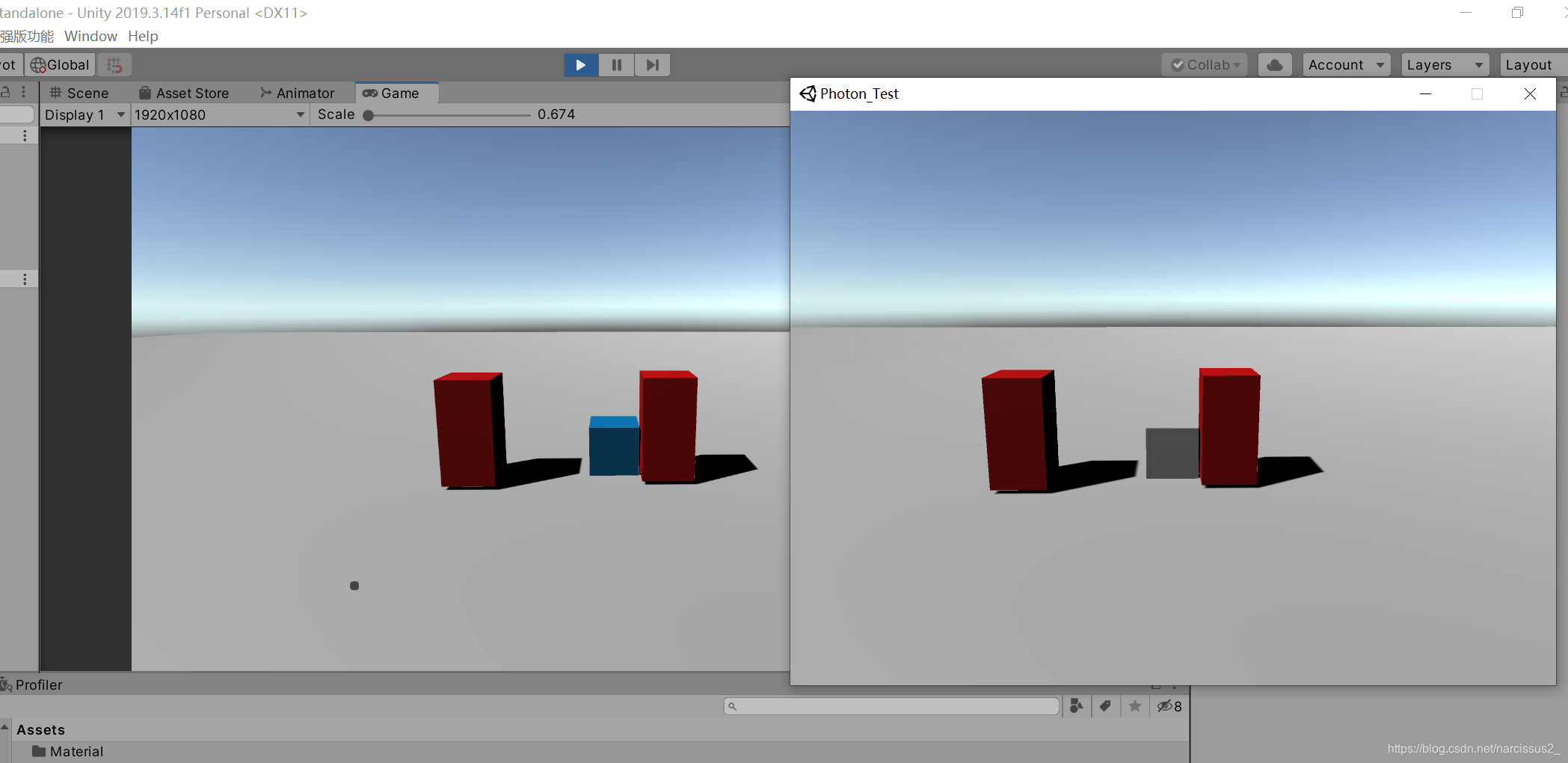

• We find that the player position is synchronized but the center cube color is not sychronze.

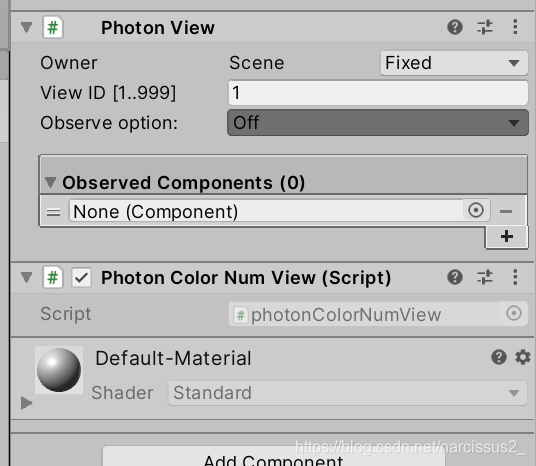

5. Add this two component to the center cube

5.1. Write code in PhotonColorNumView

using Photon.Pun; using System.Collections; using System.Collections.Generic; using UnityEngine; using Object = System.Object; [RequireComponent(typeof(PhotonView))] [RequireComponent(typeof(CenterCube))] [AddComponentMenu("Photon Networking/Photon ColorNum View")] public class photonColorNumView : MonoBehaviour, IPunObservable { [SerializeField] bool m_SynchronizeColorNum = true; // Start is called before the first frame update void Start() { } // Update is called once per frame void Update() { } public void OnPhotonSerializeView(PhotonStream stream, PhotonMessageInfo info) { if (stream.IsWriting) { if (m_SynchronizeColorNum) { int colorNum = GetComponent<CenterCube>().curMaterial;                 stream.SendNext(colorNum); } } else { if (m_SynchronizeColorNum) { GetComponent<MeshRenderer>().material = GetComponent<CenterCube>().material[ (int)stream.ReceiveNext()]; } } } }

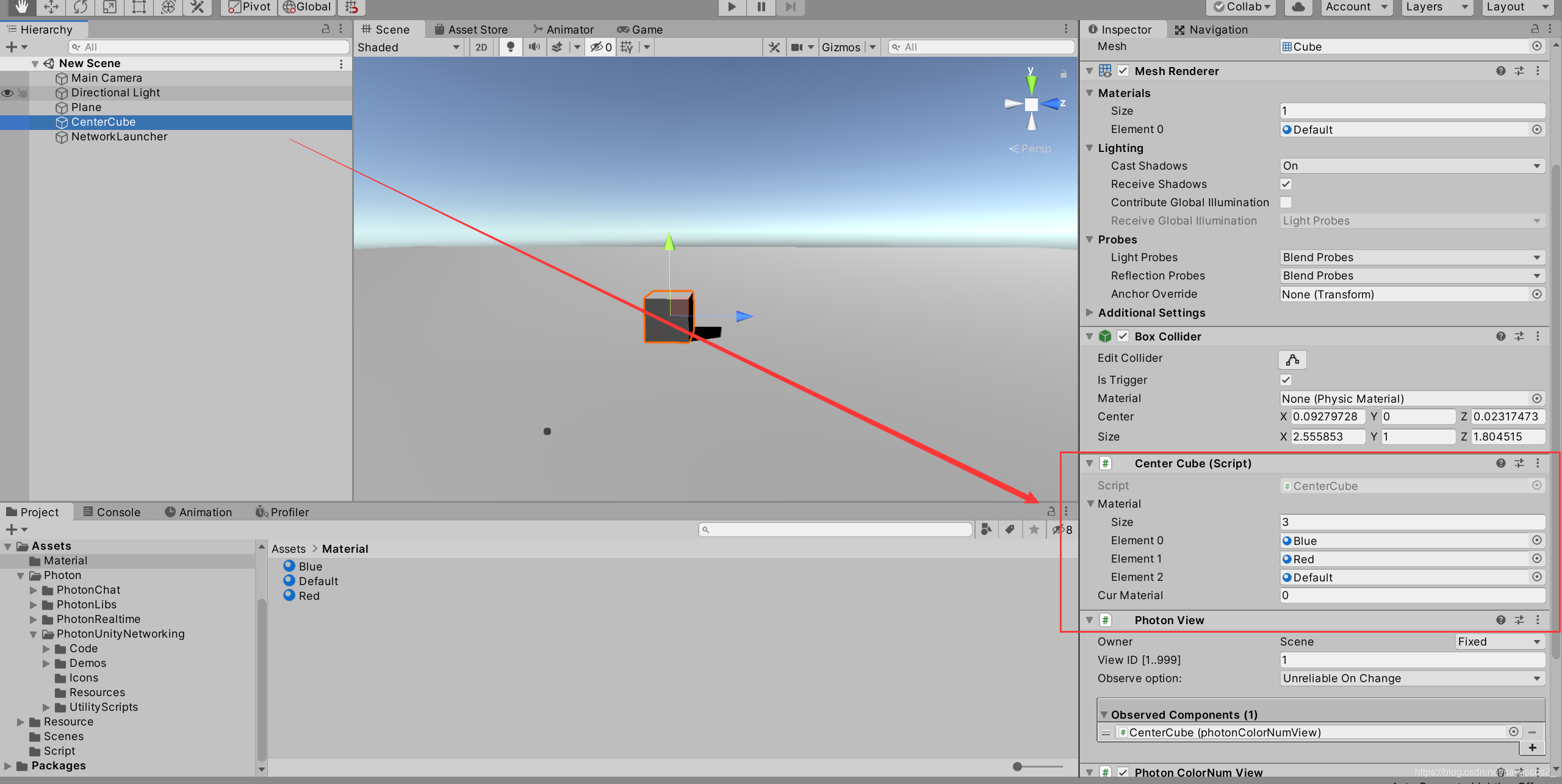

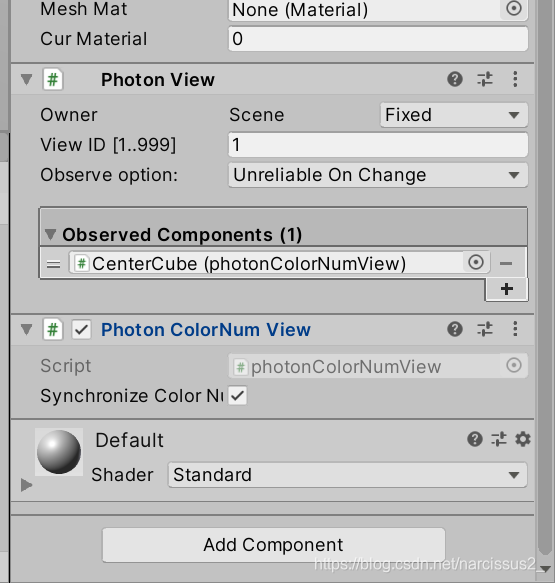

• Drag the script to the photon view


6. Build the project

• Only the window build first can control the color

6.1. Add this line to Center Cube, make sure the player touch the object is the master client

using Photon.Pun; using System.Collections; using System.Collections.Generic; using UnityEngine; public class CenterCube : MonoBehaviourPun { public Material[] material; public int curMaterial; private void Awake() {         curMaterial = 2; } private void OnTriggerStay(Collider other) { //Add this line         PhotonNetwork.SetMasterClient(PhotonNetwork.LocalPlayer); if(other.CompareTag("Player")) {             Debug.Log("In"); if(Input.GetKeyDown(KeyCode.B)) { GetComponent<MeshRenderer>().material = material[0];                 curMaterial = 0; }else if(Input.GetKeyDown(KeyCode.R)) { GetComponent<MeshRenderer>().material = material[1];                 curMaterial = 1; } } } }

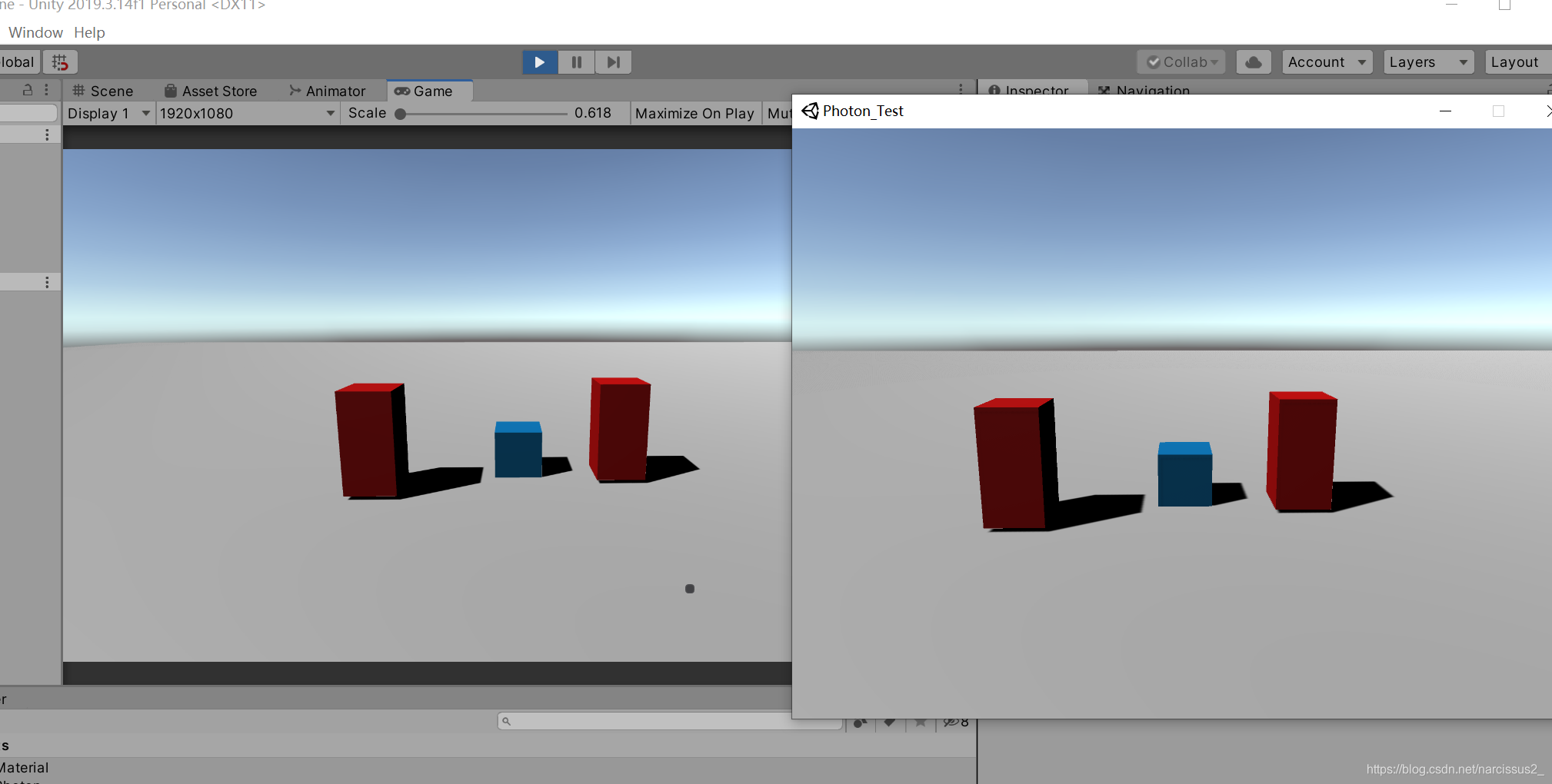

SUCCESS!!
