基于UDP通信的虚拟红外测距仪

分为两个部分
sensor：负责接收初始化信息并根据不同指令做出操作
以生成随机数的方式模拟时间测量
代码部分：

// Sensor_UDP.cpp: 定义控制台应用程序的入口点。 #include <winsock2.h> #pragma comment (lib, "ws2_32.lib")   // 使用WinSock2.2实现网络通信所需文件 #define _WINSOCK_DEPRECATED_NO_WARNINGS  #include <time.h> #include <stdio.h> #include <math.h> #include<time.h> #define BUFF_SIZE 64 double generate(); char response[BUFF_SIZE]; int main() { //创建接收与发送缓冲区 char recvbuff[BUFF_SIZE]; char sendbuff[BUFF_SIZE];  WSADATA wsaData; if (WSAStartup(MAKEWORD(2, 2), &wsaData) != 0) { printf("dll初始化失败"); } //创建套接字  SOCKET hServer = socket(AF_INET, SOCK_DGRAM, IPPROTO_UDP); if (hServer == INVALID_SOCKET) { printf("socket failed n"); return 0; } //创建服务器端地址并绑定端口号的IP地址  sockaddr_in addrServer;  addrServer.sin_family = AF_INET;  addrServer.sin_port = htons(8889);  addrServer.sin_addr.S_un.S_addr = INADDR_ANY; int nRet = bind(hServer, (sockaddr*)&addrServer, sizeof(addrServer)); if (nRet == SOCKET_ERROR) { printf("socket bind failedn"); closesocket(hServer); WSACleanup(); return 0; } //接收客户端请求  SOCKADDR clntAddr; //客户端地址信息 int nSize = sizeof(SOCKADDR); //等待接收初始化命令 while (1) { int strLen = recvfrom(hServer, recvbuff, BUFF_SIZE, 0, &clntAddr, &nSize); //接收指令,并储存数据长度   recvbuff[strLen] = ''; //防止出现乱码 if (recvbuff != 0) { sendto(hServer, "1", strlen("1"), 0, &clntAddr, nSize); break; } } memset(recvbuff, 0, BUFF_SIZE); //重置缓冲区 while (1) { int strLen = recvfrom(hServer, recvbuff, BUFF_SIZE, 0, &clntAddr, &nSize); //接收指令,并储存数据长度   recvbuff[strLen] = ''; //防止出现乱码 if (strcmp(recvbuff, "read_mode") == 0) { //判断指令 double timing = generate(); //产生模拟数据 printf("单次距离读取指令n"); sprintf_s(response, sizeof(response), "%.6f", timing); //double 转 字符串 sendto(hServer, response, strlen(response), 0, &clntAddr, nSize); } else if (strcmp(recvbuff, "close") == 0) { printf("断开连接指令n"); sendto(hServer, "服务器已关闭", strlen("服务器已关闭"), 0, &clntAddr, nSize); break; } else { printf("指令输入有误n"); sendto(hServer, "指令输入有误", strlen("指令输入有误"), 0, &clntAddr, nSize); printf("错误指令：%sn", recvbuff); } memset(recvbuff, 0, BUFF_SIZE); //重置缓冲区 memset(sendbuff, 0, BUFF_SIZE); //重置缓冲区 } //关闭套接字 closesocket(hServer); WSACleanup(); return 0; } double generate() { //产生模拟数据 srand((unsigned)time(NULL)); double timing = (rand() % 1000);//生成时间单位为微秒 return timing; }

workstation：负责发送初始化信息，并通过用户输入不同指令进行指挥sensor操作，并对传输数据进行转换、记录、回查、显示
代码部分

#include<winsock2.h> #pragma comment(lib,"ws2_32.lib")  // 使用WinSock2.2实现网络通信所需文件 #include<stdlib.h> #include<windows.h> #include<iostream> #include<stdio.h> #include<string> #include <Ws2tcpip.h> #define _WINSOCK_DEPRECATED_NO_WARNINGS #define BUFF_SIZE 64  // 缓冲区大小 #define STORAGE_SIZE 10  //历史记录上限 #define Cspeed 3.0e8 #define ACCURACY 3 const int BUFFER_SIZE = 1024; char buffer[BUFFER_SIZE]; //show函数中所用 char recvbuff[BUFF_SIZE] = { 0 }; char sendbuff[BUFF_SIZE] = { 0 }; // 创建接收与发送缓冲 double timing = 0.0; double storage[STORAGE_SIZE] = { 0,0,0,0,0,0,0,0,0,0 }; //储存历史数据 int J = -1; //指向最新数据 int K = 0; //指向回查数据 //函数声明 int sensorInit(SOCKET ConnectSocket, sockaddr_in servAddr, int accuracy); //初始化  double trans(double timing); //把时间转换成距离并存储 double read_storage(); //阅读历史数据 void read_mode(SOCKET ConnectSocket); //读取距离 void show(double storage[STORAGE_SIZE]); //把历史数据转换成曲线 sockaddr serSockAddr; //不断获取输入并发送到服务器，接收服务器数据 int addrLen = sizeof(serSockAddr); int main() { // WSADATA结构体主要包含了系统所支持的winsock版本  WSADATA wsaData; // 初始化winsock 2.2 if (WSAStartup(MAKEWORD(2, 2), &wsaData) != 0) { printf("WSAStartup 无法初始化! "); return 0; } //创建连接到服务器的SOCKET对象  SOCKET sClient;  sClient = socket(AF_INET, SOCK_DGRAM, IPPROTO_UDP); if (SOCKET_ERROR == sClient) { printf("socket failed !n"); return 0; } //创建服务器端地址  sockaddr_in serverAddr; //创建服务器端地址  sockaddr_in clientAddr; //设置服务器端地址，端口号，协议族  serverAddr.sin_family = AF_INET;  serverAddr.sin_port = htons(8889);  serverAddr.sin_addr.S_un.S_addr = inet_addr("127.0.0.1"); // 传感器初始化 int init_zet = sensorInit(sClient, serverAddr, ACCURACY); //char strC1[30] = "单次距离读取",strC2[30] = "读取历史数据",strC3[30] = "清除历史数据"; printf("提示: n read_mode:单次距离读取n read_storage:读取历史数据n clear_storage:清空历史数据nclose:关闭服务端n"); while (1) { if (init_zet == 1) { printf("Input a command:"); //输入命令 scanf_s("%s", sendbuff, BUFF_SIZE); if (strcmp(sendbuff, "read_storage") == 0) { printf("历史记录: %fn", read_storage()); //读取历史记录 } else if (strcmp(sendbuff, "clear_storage") == 0) { memset(storage, 0, STORAGE_SIZE); } else { sendto(sClient, sendbuff, strlen(sendbuff), 0, (struct sockaddr*) & serverAddr, sizeof(serverAddr)); //发送数据 } if (strcmp(sendbuff, "read_mode") == 0) { read_mode(sClient); } if (strcmp(sendbuff, "close") == 0) { printf("服务端已关闭n"); } memset(recvbuff, 0, BUFF_SIZE); memset(sendbuff, 0, BUFF_SIZE); //重置缓冲区 } else { printf("传感器初始化失败n"); Sleep(10000); break; } } closesocket(sClient); WSACleanup(); // 释放资源 // 清除工作 if (WSACleanup() == SOCKET_ERROR) printf("WSACleanup 出错! "); printf("nn"); system("pause"); return 0; } int sensorInit(SOCKET ConnectSocket, sockaddr_in servAddr, int accuracy) //初始化:成功返回1，不成功返回0   { int i = 0; sprintf_s(sendbuff, sizeof(sendbuff), "%d", accuracy); while (strcmp(recvbuff, "1") != 0) { sendto(ConnectSocket, sendbuff, strlen(sendbuff), 0, (struct sockaddr*) & servAddr, sizeof(servAddr)); //发送初始化信息,并建立连接 recvfrom(ConnectSocket, recvbuff, BUFF_SIZE, 0, &serSockAddr, &addrLen); //接收初始化结果信息 Sleep(1); //延时1ms   i++; } if (i > 10) //等待10ms以上 { return 0; //初始化失败 } else return 1; //初始化成功 } double read_storage() { char recvdata[BUFF_SIZE]; printf("回看记录数(范围：0-9)："); scanf_s("%s", recvdata, sizeof(recvdata));  K = (J - strtol(recvdata, NULL, 10) + STORAGE_SIZE) % STORAGE_SIZE; //求回看数 return storage[K]; } double trans(double timing) { double distance = 0;  distance = timing * Cspeed / 2;  J = (J + 1) % STORAGE_SIZE;  storage[J] = distance; printf("Message from server:%fn", distance); return 0; } void read_mode(SOCKET ConnectSocket) { recvfrom(ConnectSocket, recvbuff, BUFF_SIZE, 0, &serSockAddr, &addrLen); //接收数据  timing = strtod(recvbuff, NULL) / 1000000; //把字符型数据转换成整形 trans(timing); //转换并存储 }

workstation的show函数部分将在下篇文章中展示，包括dll封装及GUI设计也在以后推出，欢迎！

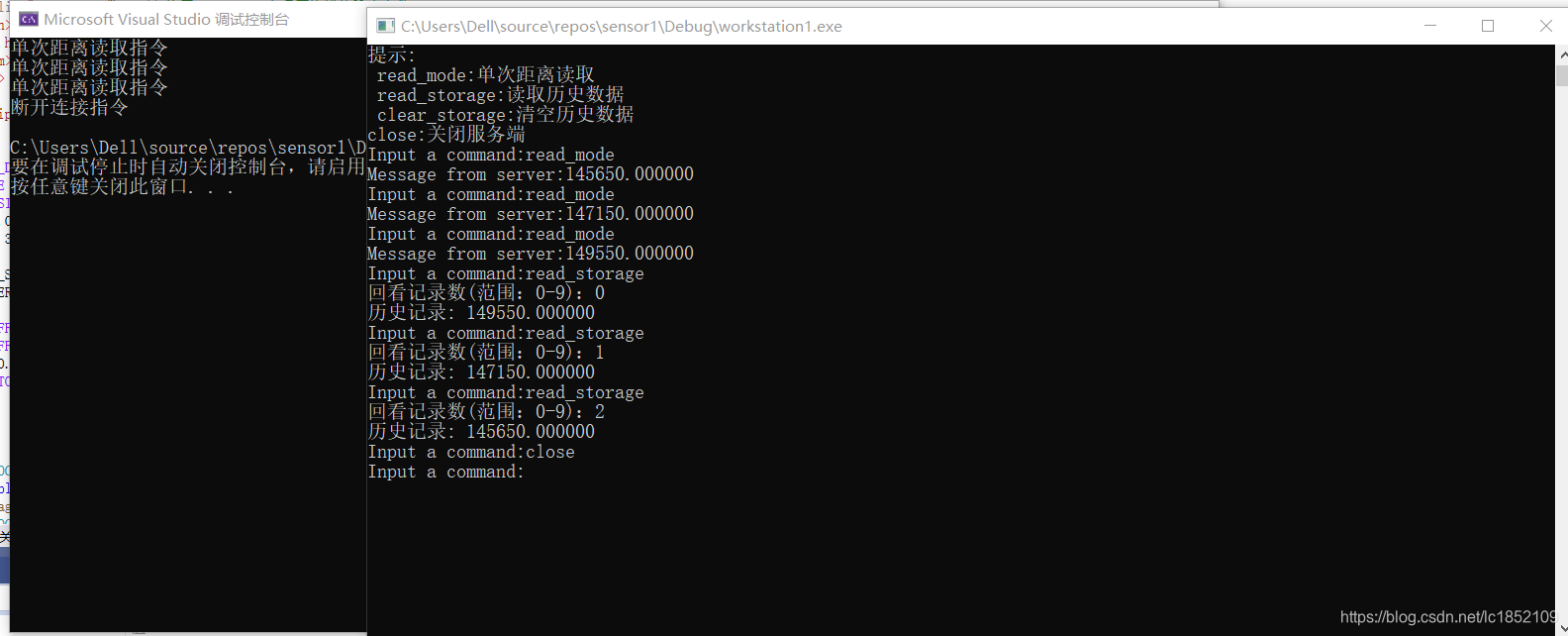

最终效果：
