Spark内核解析(一) Spark向Yarn提交应用(源码解析)

执行脚本提交任务

实际是启动一个SparkSubmit的JVM进程

• 提交应用的脚本如下：

bin/spark-submit  --class org.apache.spark.examples.SparkPi  --master yarn  // 默认client --deploy-mode cluster  ./examples/jars/spark-examples_2.12-2.4.5.jar  10

• 我们打开bin目录下的spark-submit文件，看看做了啥：

exec "${SPARK_HOME}"/bin/spark-class org.apache.spark.deploy.SparkSubmit "$@"

• 可以看见执行了bin/spark-class脚本，最终形成了如下指令：

exec ${JAVA_HOME}/bin/java org.apache.spark.deploy.SparkSubmit

• 用bin/java启动的类，就会启动相应的JVM进程，所以我们去看看SparkSubmit的main方法

  override def main(args: Array[String]): Unit = {     val submit = new SparkSubmit() {       self =>       override def doSubmit(args: Array[String]): Unit = {         try {           super.doSubmit(args)         } catch {           case e: SparkUserAppException =>             exitFn(e.exitCode)         }       }     }     submit.doSubmit(args)   }

执行提交操作

• 代码有删减，只看关键部分。我们点击submit.doSubmit(args)进入到super.doSubmit(args)，可以看到：

  def doSubmit(args: Array[String]): Unit = {     val appArgs = parseArguments(args)      appArgs.action match {       case SparkSubmitAction.SUBMIT => submit(appArgs, uninitLog)       case SparkSubmitAction.KILL => kill(appArgs)       case SparkSubmitAction.REQUEST_STATUS => requestStatus(appArgs)       case SparkSubmitAction.PRINT_VERSION => printVersion()     }   }

解析参数

• 进入parseArguments(args)，可以看到返回了SparkSubmitArguments的实例对象：

protected def parseArguments(args: Array[String]): SparkSubmitArguments = {     new SparkSubmitArguments(args) }

• Scala里面的主构造方法会被调用，以下代码会被执行：

var master: String = null var deployMode: String = null var mainClass: String = null var action: SparkSubmitAction = null  // 解析一系列spark-submit命令行的选项 parse(args.asJava)

• 这里主要就是看parse(args.asJava)利用正则，匹配出key和value，然后交给handle(name, value)处理：

// SparkSubmitArguments.scala    override protected def handle(opt: String, value: String): Boolean = {     opt match {            case MASTER =>         master = value        case CLASS =>         mainClass = value        case DEPLOY_MODE =>         if (value != "client" && value != "cluster") {           error("--deploy-mode must be either "client" or "cluster"")         }         deployMode = value   }

• 可以看到，该方法将命令行参数进行了模式匹配：

--master yarn => master --deploy-mode cluster => deployMode --class SparkPI(WordCount) => mainClass

提交

• action = Option(action).getOrElse(SUBMIT)，所以进入submit(appArgs, uninitLog)：

  private def submit(args: SparkSubmitArguments, uninitLog: Boolean): Unit = {      def doRunMain(): Unit = {       if (args.proxyUser != null) {                } else {         runMain(args, uninitLog)       }     }      if (args.isStandaloneCluster && args.useRest) {            } else {       doRunMain()     }   }

使用提交的参数，运行child class的main方法

• 因为是Yarn模式，所以会进入到doRunMain()，接着进入到runMain(args, uninitLog)：

  private def runMain(args: SparkSubmitArguments, uninitLog: Boolean): Unit = {     val (childArgs, childClasspath, sparkConf, childMainClass) = prepareSubmitEnvironment(args)      Thread.currentThread.setContextClassLoader(loader)      for (jar <- childClasspath) {       addJarToClasspath(jar, loader)     }      var mainClass: Class[_] = null      mainClass = Utils.classForName(childMainClass)      val app: SparkApplication = if (classOf[SparkApplication].isAssignableFrom(mainClass)) {       mainClass.newInstance().asInstanceOf[SparkApplication]     } else {       new JavaMainApplication(mainClass)     }      app.start(childArgs.toArray, sparkConf)   }

准备提交环境

• prepareSubmitEnvironment方法很重要，返回参数也很重要，我们根据它的返回值(childArgs, childClasspath, sparkConf, childMainClass)往上搜索childMainClass可以看到：

cluster： childMainClass = org.apache.spark.deploy.yarn.YarnClusterApplication  client： childMainClass = mainClass

这里，我们主要想了解Yarn的cluster模式

• 设置类加载器，用于后面的反射

Thread.currentThread.setContextClassLoader(loader)

通过类名加载这个类

mainClass = Utils.classForName(childMainClass)

反射创建类的对象并进行类型转换

val app: SparkApplication = mainClass.newInstance().asInstanceOf[SparkApplication]

运行childMainClass的start方法

app.start(childArgs.toArray, sparkConf)

运行YarnClusterApplication

  override def start(args: Array[String], conf: SparkConf): Unit = {     new Client(new ClientArguments(args), conf).run()   }

封装参数

• new ClientArguments(args)封装参数，类似于SparkSubmit中的parseArguments(args)，这里不再多说了

创建客户端对象

• 进入Client的主构造方法，可以看到一个重要的属性：

yarnClient = YarnClient.createYarnClient    public static YarnClient createYarnClient() {     YarnClient client = new YarnClientImpl();     return client;   }

• 在YarnClientImpl里可以看到一个重要的属性：

ApplicationClientProtocol rmClient

用于向RourceManager提交应用。

运行 – 提交应用

• 我们来看看run干了些啥

  def run(): Unit = {     this.appId = submitApplication()   }

• 只需要看submitApplication()方法，来提交应用到ResourceManager，运行ApplicationMaster。

  def submitApplication(): ApplicationId = {     var appId: ApplicationId = null          launcherBackend.connect()     yarnClient.init(hadoopConf)     yarnClient.start()      // Get a new application from our RM     val newApp = yarnClient.createApplication()     val newAppResponse = newApp.getNewApplicationResponse()     appId = newAppResponse.getApplicationId()      // Set up the appropriate contexts to launch our AM     // 设置合适的上下文环境来启动我们的AM     val containerContext = createContainerLaunchContext(newAppResponse)     val appContext = createApplicationSubmissionContext(newApp, containerContext)      // Finally, submit and monitor the application     yarnClient.submitApplication(appContext)     launcherBackend.setAppId(appId.toString)     reportLauncherState(SparkAppHandle.State.SUBMITTED)      appId   }

配置JVM的启动参数

• 这里主要看两个方法：createContainerLaunchContext和createApplicationSubmissionContext
• createContainerLaunchContext用来设置一个ContainerLaunchContext来启动我们的Application Master的container
• 为启动AM而设置启动环境，java options, and the command

val amContainer = Records.newRecord(classOf[ContainerLaunchContext]) amContainer.setLocalResources(localResources.asJava) amContainer.setEnvironment(launchEnv.asJava)  amContainer.setCommands(printableCommands.asJava)

• 封装

val amClass =   if (isClusterMode) {     Utils.classForName("org.apache.spark.deploy.yarn.ApplicationMaster").getName   } else {     Utils.classForName("org.apache.spark.deploy.yarn.ExecutorLauncher").getName   }    cluster： command = bin/java org.apache.spark.deploy.yarn.ApplicationMaster  client： command = bin/java org.apache.spark.deploy.yarn.ExecutorLauncher

向Yarn提交应用

• yarnClient.submitApplication(appContext)向Yarn提交应用。
• 调用rmClient.submitApplication(request);

运行ApplicationMaster

• 上面说过，bin/java会启动相应类的JVM进程，于是我们只需要看ApplicationMaster的main方法：

  def main(args: Array[String]): Unit = {     SignalUtils.registerLogger(log)     val amArgs = new ApplicationMasterArguments(args)     master = new ApplicationMaster(amArgs)     System.exit(master.run())   }

• ApplicationMasterArguments也是封装参数用的，我们直接看master.run()

  final def run(): Int = {     doAsUser {       runImpl()     }     exitCode   }

• 重点代码块如下：

if (isClusterMode) {   runDriver() } else {   runExecutorLauncher() }

• 我们是集群模式，所以AM启动还需要运行driver，所以点进去看runDriver()

  private def runDriver(): Unit = {     userClassThread = startUserApplication()      try {       val sc = ThreadUtils.awaitResult(sparkContextPromise.future,         Duration(totalWaitTime, TimeUnit.MILLISECONDS))       if (sc != null) {         rpcEnv = sc.env.rpcEnv          val userConf = sc.getConf         val host = userConf.get("spark.driver.host")         val port = userConf.get("spark.driver.port").toInt         registerAM(host, port, userConf, sc.ui.map(_.webUrl))          val driverRef = rpcEnv.setupEndpointRef(           RpcAddress(host, port),           YarnSchedulerBackend.ENDPOINT_NAME)         createAllocator(driverRef, userConf)       } else {         throw new IllegalStateException("User did not initialize spark context!")       }       resumeDriver()       userClassThread.join()     } catch {          } finally {       resumeDriver()     }   }

启动用户的应用

• 在单独的线程中，启动包含spark driver的用户类

private def startUserApplication(): Thread = {     val mainMethod = userClassLoader.loadClass(args.userClass)       .getMethod("main", classOf[Array[String]])      val userThread = new Thread {       override def run() {         try {           if (!Modifier.isStatic(mainMethod.getModifiers)) {             logError(s"Could not find static main method in object ${args.userClass}")             finish(FinalApplicationStatus.FAILED, ApplicationMaster.EXIT_EXCEPTION_USER_CLASS)           } else {             mainMethod.invoke(null, userArgs.toArray)             finish(FinalApplicationStatus.SUCCEEDED, ApplicationMaster.EXIT_SUCCESS)             logDebug("Done running user class")           }         } catch {           } finally {           sparkContextPromise.trySuccess(null)         }       }     }     userThread.setContextClassLoader(userClassLoader)     userThread.setName("Driver")     userThread.start()     userThread   }

• 反射加载类，获取类的main方法(–class SparkPI(WordCount))

val mainMethod = userClassLoader.loadClass(args.userClass) .getMethod("main", classOf[Array[String]])

• driver就是AM的一个线程

userThread = new Thread   userThread.setName("Driver") userThread.start()

• 再执行main方法

mainMethod.invoke

线程阻塞，等待对象(SparkContext)的返回

val sc = ThreadUtils.awaitResult(sparkContextPromise.future, Duration(totalWaitTime, TimeUnit.MILLISECONDS))

注册AM

val userConf = sc.getConf val host = userConf.get("spark.driver.host") val port = userConf.get("spark.driver.port").toInt registerAM(host, port, userConf, sc.ui.map(_.webUrl))

• 关注registerAM

  private def registerAM(       host: String,       port: Int,       _sparkConf: SparkConf,       uiAddress: Option[String]): Unit = {             // client = doAsUser { new YarnRMClient() }     client.register(host, port, yarnConf, _sparkConf, uiAddress, historyAddress)     registered = true   }

• 向RM注册AM

  def register(       driverHost: String,       driverPort: Int,       conf: YarnConfiguration,       sparkConf: SparkConf,       uiAddress: Option[String],       uiHistoryAddress: String): Unit = {     amClient = AMRMClient.createAMRMClient()     amClient.init(conf)     amClient.start()      synchronized {       amClient.registerApplicationMaster(driverHost, driverPort, trackingUrl)       registered = true     }   }

RPC通信，AM向RM申请资源

rpcEnv = sc.env.rpcEnv  val driverRef = rpcEnv.setupEndpointRef(   RpcAddress(host, port),   YarnSchedulerBackend.ENDPOINT_NAME) createAllocator(driverRef, userConf)

• 申请资源的一系列操作

  private def createAllocator(driverRef: RpcEndpointRef, _sparkConf: SparkConf): Unit = {     val appId = client.getAttemptId().getApplicationId().toString()     val driverUrl = RpcEndpointAddress(driverRef.address.host, driverRef.address.port,       CoarseGrainedSchedulerBackend.ENDPOINT_NAME).toString      allocator = client.createAllocator(       yarnConf,       _sparkConf,       driverUrl,       driverRef,       securityMgr,       localResources)      rpcEnv.setupEndpoint("YarnAM", new AMEndpoint(rpcEnv, driverRef))      allocator.allocateResources()   }

• 创建资源分配器

  def createAllocator(       conf: YarnConfiguration,       sparkConf: SparkConf,       driverUrl: String,       driverRef: RpcEndpointRef,       securityMgr: SecurityManager,       localResources: Map[String, LocalResource]): YarnAllocator = {     require(registered, "Must register AM before creating allocator.")     new YarnAllocator(driverUrl, driverRef, conf, sparkConf, amClient, getAttemptId(), securityMgr,       localResources, new SparkRackResolver())   }

• 分配资源

def allocateResources(): Unit = synchronized {      val allocateResponse = amClient.allocate(progressIndicator)      val allocatedContainers = allocateResponse.getAllocatedContainers()     allocatorBlacklistTracker.setNumClusterNodes(allocateResponse.getNumClusterNodes)      if (allocatedContainers.size > 0) {       handleAllocatedContainers(allocatedContainers.asScala)     }   }

获取可用的资源列表

val allocateResponse = amClient.allocate(progressIndicator)  val allocatedContainers = allocateResponse.getAllocatedContainers()

处理可用的资源

handleAllocatedContainers(allocatedContainers.asScala)

• 进入到handleAllocatedContainers，可以看到几行重要的代码：

matchContainerToRequest  runAllocatedContainers(containersToUse)

• 所谓的处理，其实是优先位置的选择。

本地化级别：进程本地化，节点本地化，机架本地化，任意

1. 计算和数据在同一个Executor中，称之进程本地化
2. 计算和数据在同一个节点中，称之节点本地化
3. 计算和数据在同一个机架中，称之机架本地化

• 运行在匹配后的资源中的executor，runAllocatedContainers(containersToUse)

  private def runAllocatedContainers(containersToUse: ArrayBuffer[Container]): Unit = {     for (container <- containersToUse) {        if (runningExecutors.size() < targetNumExecutors) {         numExecutorsStarting.incrementAndGet()         if (launchContainers) {           launcherPool.execute(new Runnable {             override def run(): Unit = {               try {                 new ExecutorRunnable(                   Some(container),                   conf,                   sparkConf,                   driverUrl,                   executorId,                   executorHostname,                   executorMemory,                   executorCores,                   appAttemptId.getApplicationId.toString,                   securityMgr,                   localResources                 ).run()                 updateInternalState()               } catch {                }             }           })         } else {           // For test only           updateInternalState()         }       } else {        }     }   }

• 一个container对应一个Executor
• 进入ExecutorRunnable可以看到两个重要的属性，用于和NodeManager交互

var rpc: YarnRPC = YarnRPC.create(conf) var nmClient: NMClient = _

• run()方法 – 启动容器

  def run(): Unit = {     logDebug("Starting Executor Container")     nmClient = NMClient.createNMClient()     nmClient.init(conf)     nmClient.start()     startContainer()   }

• 与NodeManager连接上了，就可以启动容器了

def startContainer(): java.util.Map[String, ByteBuffer] = {     val ctx = Records.newRecord(classOf[ContainerLaunchContext])       .asInstanceOf[ContainerLaunchContext]     val env = prepareEnvironment().asJava      ctx.setLocalResources(localResources.asJava)     ctx.setEnvironment(env)      val commands = prepareCommand()      ctx.setCommands(commands.asJava)      // Send the start request to the ContainerManager     try {       nmClient.startContainer(container.get, ctx)     } catch {      }   }

• 还是一样，发送指令，启动容器。具体封装指令的操作在prepareCommand：

command = bin/java org.apache.spark.executor.CoarseGrainedExecutorBackend

• 让NM启动容器，启动Executor

nmClient.startContainer(container.get, ctx)

CoarseGrainedExecutorBackend

• 还是一样，启动的JVM进程，看main方法：

  def main(args: Array[String]) {      run(driverUrl, executorId, hostname, cores, appId, workerUrl, userClassPath)    }

• 进入run方法：

  private def run(       driverUrl: String,       executorId: String,       hostname: String,       cores: Int,       appId: String,       workerUrl: Option[String],       userClassPath: Seq[URL]) {      SparkHadoopUtil.get.runAsSparkUser { () =>        val env = SparkEnv.createExecutorEnv(         driverConf, executorId, hostname, cores, cfg.ioEncryptionKey, isLocal = false)        env.rpcEnv.setupEndpoint("Executor", new CoarseGrainedExecutorBackend(         env.rpcEnv, driverUrl, executorId, hostname, cores, userClassPath, env))        env.rpcEnv.awaitTermination()     }   }

• 设置终端Executor

NettyRpcEnv.scala    override def setupEndpoint(name: String, endpoint: RpcEndpoint): RpcEndpointRef = {     dispatcher.registerRpcEndpoint(name, endpoint)   }

• 注册RPC终端

Dispatcher.scala    def registerRpcEndpoint(name: String, endpoint: RpcEndpoint): NettyRpcEndpointRef = {     val addr = RpcEndpointAddress(nettyEnv.address, name)     val endpointRef = new NettyRpcEndpointRef(nettyEnv.conf, addr, nettyEnv)     synchronized {       if (stopped) {         throw new IllegalStateException("RpcEnv has been stopped")       }       if (endpoints.putIfAbsent(name, new EndpointData(name, endpoint, endpointRef)) != null) {         throw new IllegalArgumentException(s"There is already an RpcEndpoint called $name")       }       val data = endpoints.get(name)       endpointRefs.put(data.endpoint, data.ref)       receivers.offer(data)  // for the OnStart message     }     endpointRef   }

• 看看new EndpointData的主构造方法

private class EndpointData(       val name: String,       val endpoint: RpcEndpoint,       val ref: NettyRpcEndpointRef) {     val inbox = new Inbox(ref, endpoint)   }

• 再看看new Inbox的主构造方法

 // OnStart should be the first message to process   inbox.synchronized {     messages.add(OnStart)   }

可以知道，在构建终端的时候，会给自己发送一个OnStart

• 反复检查数据，进行模式匹配，然后进行相应处理

  /**    * Process stored messages.    */   def process(dispatcher: Dispatcher): Unit = {      while (true) {       safelyCall(endpoint) {         message match {           case RpcMessage(_sender, content, context) =>               endpoint.receiveAndReply(context).applyOrElse[Any, Unit](content, { msg =>                 throw new SparkException(s"Unsupported message $message from ${_sender}")               })            case OnStart =>             endpoint.onStart()             if (!endpoint.isInstanceOf[ThreadSafeRpcEndpoint]) {               inbox.synchronized {                 if (!stopped) {                   enableConcurrent = true                 }               }             }            case OnStop =>             val activeThreads = inbox.synchronized { inbox.numActiveThreads }             dispatcher.removeRpcEndpointRef(endpoint)             endpoint.onStop()         }       }     }   }

• 接收到OnStart后，会调用CoarseGrainedExecutorBackend的onStart方法

  override def onStart() {      rpcEnv.asyncSetupEndpointRefByURI(driverUrl).flatMap { ref =>       // This is a very fast action so we can use "ThreadUtils.sameThread"       driver = Some(ref)       ref.ask[Boolean](RegisterExecutor(executorId, self, hostname, cores, extractLogUrls))     }   }

• Executor向Driver发送了RegisterExecutor请求，我们接着看Driver那段的接收：

  // DriverEndpoint      override def receiveAndReply(context: RpcCallContext): PartialFunction[Any, Unit] = {        case RegisterExecutor(executorId, executorRef, hostname, cores, logUrls) =>         if (executorDataMap.contains(executorId)) {           executorRef.send(RegisterExecutorFailed("Duplicate executor ID: " + executorId))           context.reply(true)         } else if (scheduler.nodeBlacklist.contains(hostname)) {           executorRef.send(RegisterExecutorFailed(s"Executor is blacklisted: $executorId"))           context.reply(true)         } else {            addressToExecutorId(executorAddress) = executorId           totalCoreCount.addAndGet(cores)           totalRegisteredExecutors.addAndGet(1)           val data = new ExecutorData(executorRef, executorAddress, hostname,             cores, cores, logUrls)            executorRef.send(RegisteredExecutor)           context.reply(true)           listenerBus.post(             SparkListenerExecutorAdded(System.currentTimeMillis(), executorId, data))           makeOffers()         }     }

• 可以看到Driver向Executor发送RegisteredExecutor，再转到CoarseGrainedExecutorBackend：

override def receive: PartialFunction[Any, Unit] = {     case RegisteredExecutor =>       logInfo("Successfully registered with driver")       try {         executor = new Executor(executorId, hostname, env, userClassPath, isLocal = false)       } catch {         case NonFatal(e) =>           exitExecutor(1, "Unable to create executor due to " + e.getMessage, e)       }      case LaunchTask(data) =>       if (executor == null) {         exitExecutor(1, "Received LaunchTask command but executor was null")       } else {         val taskDesc = TaskDescription.decode(data.value)         logInfo("Got assigned task " + taskDesc.taskId)         executor.launchTask(this, taskDesc)       }   }

• 模式匹配到RegisteredExecutor，调用executor = new Executor，进入主构造方法:

 // Start worker thread pool   private val threadPool = {     val threadFactory = new ThreadFactoryBuilder()       .setDaemon(true)       .setNameFormat("Executor task launch worker-%d")       .setThreadFactory(new ThreadFactory {         override def newThread(r: Runnable): Thread =           new UninterruptibleThread(r, "unused") // thread name will be set by ThreadFactoryBuilder       })       .build()     Executors.newCachedThreadPool(threadFactory).asInstanceOf[ThreadPoolExecutor]   }

• 这里可以看出，Executor其实就是ExecutorBackend的一个计算对象，等待着任务的执行。

总结

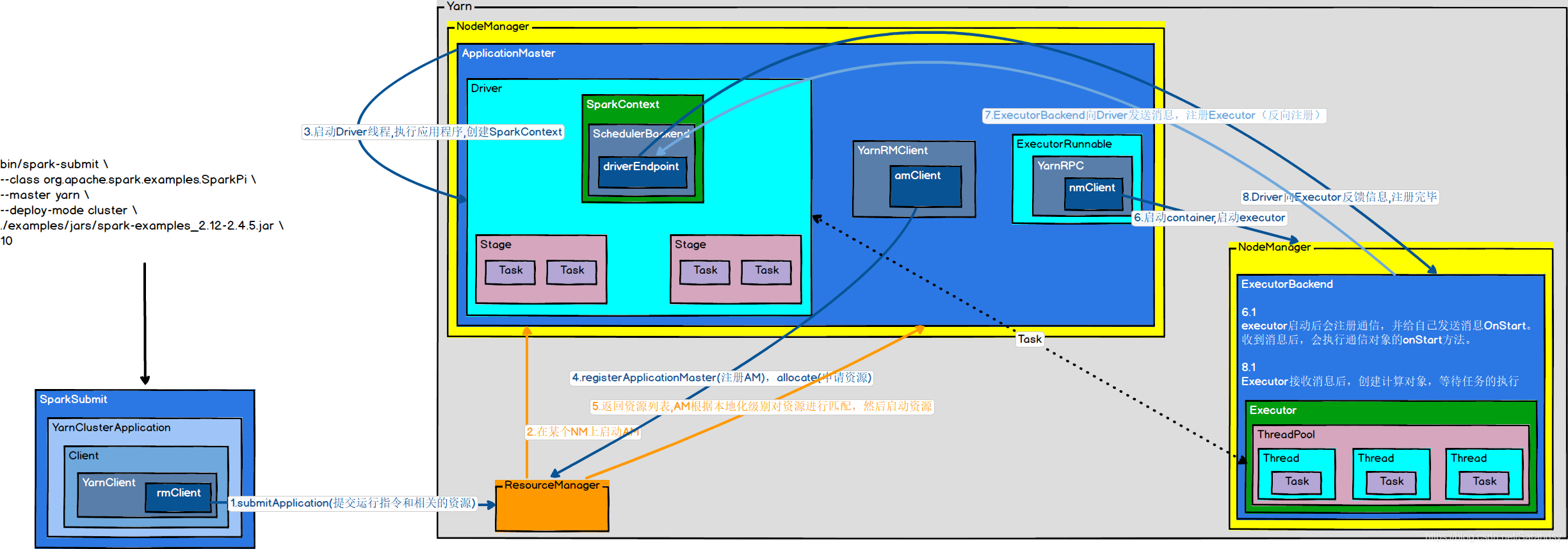

通过上面的源码走下来，可能会有点晕，于是贴心的我附上了图形化

• 执行脚本提交任务，实际是启动一个SparkSubmit的JVM进程
• SparkSubmit类中的main方法反射调用YarnClusterApplication的main方法
• YarnClusterApplication创建Yarn客户端，然后向Yarn发送执行指令：bin/java org.apache.spark.deploy.yarn.ApplicationMaster
• Yarn框架收到指令后会在指定的NM中启动ApplicationMaster
• ApplicationMaster启动Driver线程，执行用户的作业
• AM向RM注册，申请资源
• 获取资源后，AM向NM发送指令：bin/java org.apache.spark.executor.CoarseGrainedExecutorBackend
• CoarseGrainedExecutorBackend进程会接收消息，跟Driver通信，注册已经启动的Executor；然后启动计算对象Executor等待接收任务
• Driver分配任务并监控任务的执行

好了，到这里，整个向Yarn提交应用的流程已经结束了。
