Android 9 系统启动之SystemServer大揭秘下

前言

  在前面的章节Android 9 系统启动之SystemServer大揭秘上中，我们细说了Android的system_server进程的出身及启动流程，在今天的篇章中我们将要看看system_server进程作为Android世界的肱骨大臣究竟有何功劳，能在Android世界享有如此美誉能和zygote同生共死。下面就让我们来看看system_serveer究竟有何丰功伟绩，让我们细品！

注意:本文演示的代码是Android P高通msm8953平台源码。其中涉及的源码路径如下：

frameworks/base/services/java/com/android/server/SystemServer.java frameworks/base/core/java/android/app/ActivityThread.java frameworks/base/services/core/java/com/android/server/power/ShutdownThread.java frameworks/base/core/java/android/app/ContextImpl.java frameworks/base/core/java/android/app/LoadedApk.java frameworks/base/services/core/java/com/android/server/SystemServiceManager.java frameworks/base/services/core/java/com/android/server/SystemServiceManager.java

一. SystemServer彪悍的一生

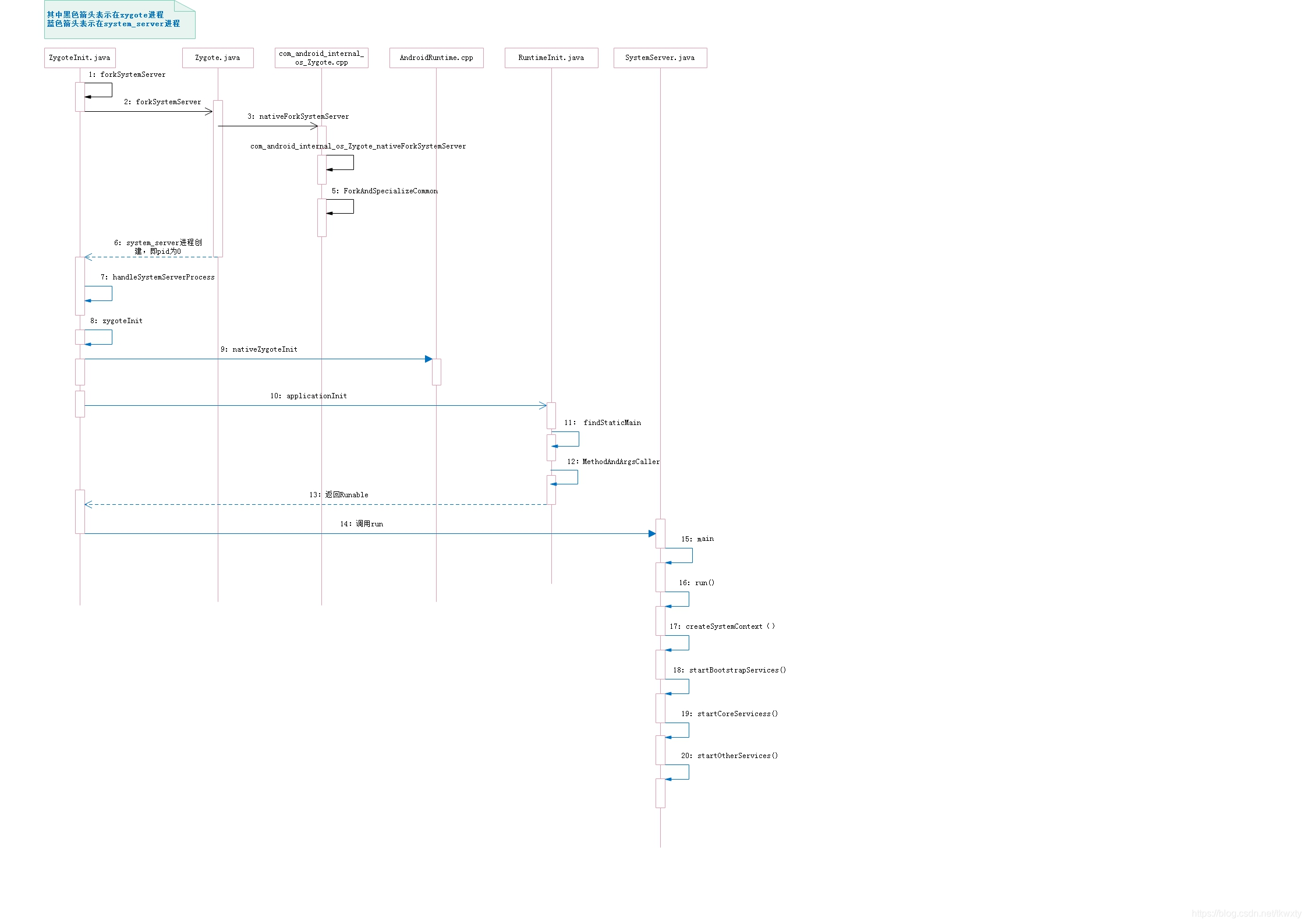

  通过前面章节我们知道最后通过反射调用mMethod.invoke开启了SystemServer的彪悍人生，最终会调用到SystemServer.main()方法，还等什么让我们一探究竟。整个system_server进程启动流程图如下：

SystemServer.main()启动流程图示意如下，这章主要详细分析如下几个流程.

1.1 SystemServer.main

  无过多修饰，直接创建new一个SystemServer对象并调用其run方法。

 public static void main(String[] args) { new SystemServer().run();//就是这么简单，霸气有总裁范啊，直接创建并运行毫不拖泥带水的 }

1.2 SystemServer.run

  前面霸道总裁装逼了一会儿，得开始干正事了，上来就是一堆代码啊！其主要逻辑无外乎前面总结的：

• 初始化一些零碎事务
• createSystemContext初始化system_server进程的context，这个是重点需要分析的
• startBootstrapServices启动第一阶段服务
• startCoreServices启动核心服务
• startOtherServices启动其它服务

 private void run() { try { //这个主要是为了调试使用，打日志 traceBeginAndSlog("InitBeforeStartServices"); // If a device's clock is before 1970 (before 0), a lot of // APIs crash dealing with negative numbers, notably // java.io.File#setLastModified, so instead we fake it and // hope that time from cell towers or NTP fixes it shortly. //如果系统时钟早于1970，则系统强制设置从1970年开始 if (System.currentTimeMillis() < EARLIEST_SUPPORTED_TIME) {                 Slog.w(TAG, "System clock is before 1970; setting to 1970.");                 SystemClock.setCurrentTimeMillis(EARLIEST_SUPPORTED_TIME); } // // Default the timezone property to GMT if not set. // //如果没有设置默认时区，则强制设置默认时区为GMT             String timezoneProperty =  SystemProperties.get("persist.sys.timezone"); if (timezoneProperty == null || timezoneProperty.isEmpty()) {                 Slog.w(TAG, "Timezone not set; setting to GMT.");                 SystemProperties.set("persist.sys.timezone", "GMT"); } // If the system has "persist.sys.language" and friends set, replace them with // "persist.sys.locale". Note that the default locale at this point is calculated // using the "-Duser.locale" command line flag. That flag is usually populated by // AndroidRuntime using the same set of system properties, but only the system_server // and system apps are allowed to set them. // // NOTE: Most changes made here will need an equivalent change to // core/jni/AndroidRuntime.cpp //设置区域，语言等选项 if (!SystemProperties.get("persist.sys.language").isEmpty()) { final String languageTag = Locale.getDefault().toLanguageTag();                  SystemProperties.set("persist.sys.locale", languageTag);                 SystemProperties.set("persist.sys.language", "");                 SystemProperties.set("persist.sys.country", "");                 SystemProperties.set("persist.sys.localevar", ""); } // The system server should never make non-oneway calls             Binder.setWarnOnBlocking(true);//这几个暂时还没有搞清楚是干啥的主要，先忽略 // The system server should always load safe labels             PackageItemInfo.setForceSafeLabels(true); // Default to FULL within the system server.             SQLiteGlobal.sDefaultSyncMode = SQLiteGlobal.SYNC_MODE_FULL; // Deactivate SQLiteCompatibilityWalFlags until settings provider is initialized             SQLiteCompatibilityWalFlags.init(null); // Here we go!             Slog.i(TAG, "Entered the Android system server!"); int uptimeMillis = (int) SystemClock.elapsedRealtime();             EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_SYSTEM_RUN, uptimeMillis); if (!mRuntimeRestart) {                 MetricsLogger.histogram(null, "boot_system_server_init", uptimeMillis); } // In case the runtime switched since last boot (such as when // the old runtime was removed in an OTA), set the system // property so that it is in sync. We can | xq oqi't do this in // libnativehelper's JniInvocation::Init code where we already // had to fallback to a different runtime because it is // running as root and we need to be the system user to set // the property. https://b/11463182 //变更虚拟机的库文件，这里默认使用的是libart.so             SystemProperties.set("persist.sys.dalvik.vm.lib.2", VMRuntime.getRuntime().vmLibrary()); // Mmmmmm... more memory! //由于system_server进程启动过程中消耗较多的虚拟机内存空间，所以先清除vm内存增长上限，供SystemServer正常启动             VMRuntime.getRuntime().clearGrowthLimit(); // The system server has to run all of the time, so it needs to be // as efficient as possible with its memory usage. //设置堆栈利用率为0.8，GC后会重新计算堆栈空间大小             VMRuntime.getRuntime().setTargetHeapUtilization(0.8f); // Some devices rely on runtime fingerprint generation, so make sure // we've defined it before booting further. // 针对部分设备依赖于运行时就产生指纹信息，因此需要在开机完成前已经定义             Build.ensureFingerprintProperty(); // Within the system server, it is an error to access Environment paths without // explicitly specifying a user. //明确指定用户，访问环境变量前             Environment.setUserRequired(true); // Within the system server, any incoming Bundles should be defused // to avoid throwing BadParcelableException.             BaseBundle.setShouldDefuse(true);//这个不是很明白，先忽略 // Within the system server, when parceling exceptions, include the stack trace             Parcel.setStackTraceParceling(true);//看英文意思是Parceling打包发生异常，会打印堆栈调试信息 // Ensure binder calls into the system always run at foreground priority. //确保当前系统进程的binder调用，总是运行在前台优先级(foreground priority)，并且设置binder最大线程数位31             BinderInternal.disableBackgroundScheduling(true); // Increase the number of binder threads in system_server             BinderInternal.setMaxThreads(sMaxBinderThreads); // Prepare the main looper thread (this thread).             android.os.Process.setThreadPriority(                 android.os.Process.THREAD_PRIORITY_FOREGROUND);             android.os.Process.setCanSelfBackground(false); //开启主线程Looper             Looper.prepareMainLooper();             Looper.getMainLooper().setSlowLogThresholdMs(                     SLOW_DISPATCH_THRESHOLD_MS, SLOW_DELIVERY_THRESHOLD_MS); // Initialize native services. //加载android_servers.so库，该库就是frameworks/base/services/core/jni生成的             System.loadLibrary("android_servers"); // Check whether we failed to shut down last time we tried. // This call may not return. performPendingShutdown();//检测上次关机是否发生异常 // Initialize the system context. createSystemContext();//重点来了，在system_server进程中创建Context，供后续启动的服务使用，具体将章节1.3 // Create the system service manager. //构建SystemServiceManager对象，注意这个不是Android binder服务的大管家那个             mSystemServiceManager = new SystemServiceManager(mSystemContext);             mSystemServiceManager.setStartInfo(mRuntimeRestart,                     mRuntimeStartElapsedTime, mRuntimeStartUptime); // 将SystemServiceManager对象保存到SystemServer进程中的一个数据结构中                LocalServices.addService(SystemServiceManager.class, mSystemServiceManager); // Prepare the thread pool for init tasks that can be parallelized             SystemServerInitThreadPool.get(); } finally { traceEnd(); // InitBeforeStartServices } // Start services. try {//启动各种层级服务 traceBeginAndSlog("StartServices"); startBootstrapServices();//启动系统Boot级别服务 startCoreServices();//启动系统级别核心服务 startOtherServices();//启动其它类型服务，主要是厂家可以根据实际情况配置的服务             SystemServerInitThreadPool.shutdown(); } catch (Throwable ex) {             Slog.e("System", "******************************************");             Slog.e("System", "************ Failure starting system services", ex); throw ex; } finally { traceEnd(); }          StrictMode.initVmDefaults(null); if (!mRuntimeRestart && !isFirstBootOrUpgrade()) { int uptimeMillis = (int) SystemClock.elapsedRealtime();             MetricsLogger.histogram(null, "boot_system_server_ready", uptimeMillis); final int MAX_UPTIME_MILLIS = 60 * 1000; if (uptimeMillis > MAX_UPTIME_MILLIS) {                 Slog.wtf(SYSTEM_SERVER_TIMING_TAG, "SystemServer init took too long. uptimeMillis=" + uptimeMillis); } } // Loop forever.         Looper.loop();//启动Looper循环 throw new RuntimeException("Main thread loop unexpectedly exited"); }

1.2.1 performPendingShutdown

  这个地方不是很明白为啥要检测sys.shutdown.requested值是否为空，然后为空后需要重启终端。这个各位如果了解，也可以沟通沟通！

 private void performPendingShutdown() { final String shutdownAction = SystemProperties.get(                 ShutdownThread.SHUTDOWN_ACTION_PROPERTY, ""); //如果sys.shutdown.requested的值不为空则会重启终端 if (shutdownAction != null && shutdownAction.length() > 0) { boolean reboot = (shutdownAction.charAt(0) == '1'); final String reason; if (shutdownAction.length() > 1) {                 reason = shutdownAction.substring(1, shutdownAction.length()); } else {                 reason = null; } // If it's a pending reboot into recovery to apply an update, // always make sure uncrypt gets executed properly when needed. // If '/cache/recovery/block.map' hasn't been created, stop the // reboot which will fail for sure, and get a chance to capture a // bugreport when that's still feasible. (Bug: 26444951) if (reason != null && reason.startsWith(PowerManager.REBOOT_RECOVERY_UPDATE)) {                 File packageFile = new File(UNCRYPT_PACKAGE_FILE); if (packageFile.exists()) {                     String filename = null; try {                         filename = FileUtils.readTextFile(packageFile, 0, null); } catch (IOException e) {                         Slog.e(TAG, "Error reading uncrypt package file", e); } if (filename != null && filename.startsWith("/data")) { if (!new File(BLOCK_MAP_FILE).exists()) {                             Slog.e(TAG, "Can't find block map file, uncrypt failed or " + "unexpected runtime restart?"); return; } } } }             Runnable runnable = new Runnable() { @Override public void run() { synchronized (this) {                         ShutdownThread.rebootOrShutdown(null, reboot, reason); } } }; // ShutdownThread must run on a looper capable of displaying the UI. //这个很常见不多说了             Message msg = Message.obtain(UiThread.getHandler(), runnable);             msg.setAsynchronous(true);             UiThread.getHandler().sendMessage(msg); } }

1.3 createSystemContext初始化系统上下文

  这个知识点比较重要，我们分析分析该方法，其代码逻辑如下:

• 创建system_server进程的上下文环境
• 设置主题样式

 private void createSystemContext() { //创建system_server进程上下文环境         ActivityThread activityThread = ActivityThread.systemMain();         mSystemContext = activityThread.getSystemContext();         mSystemContext.setTheme(DEFAULT_SYSTEM_THEME); //设置主题 final Context systemUiContext = activityThread.getSystemUiContext();         systemUiContext.setTheme(DEFAULT_SYSTEM_THEME); }

1.3.1 ActivityThread.systemMain

  该类定义在frameworks/base/core/java/android/app/ActivityThread.java中，这个类大伙因该比较熟悉或者耳闻过其大名。

 ActivityThread() {         mResourcesManager = ResourcesManager.getInstance();//单例模式 } public static ActivityThread systemMain() { // The system process on low-memory devices do not get to use hardware // accelerated drawing, since this can add too much overhead to the // process. if (!ActivityManager.isHighEndGfx()) {//判断是否是低内存设备，如果是低内存设备禁用硬件加速             ThreadedRenderer.disable(true); } else {             ThreadedRenderer.enableForegroundTrimming(); }         ActivityThread thread = new ActivityThread();         thread.attach(true, 0);//这个在android app的启动过程中也会看到，也是这里需要重点分析的，注意这里传入的参数 return thread; }

1.3.2 ActivityThread.attach

  让我们接着继续分析attach函数，揭开其面纱看看其到底干了些啥！

 private void attach(boolean system, long startSeq) {         sCurrentActivityThread = this;         mSystemThread = system; if (!system) {//这是Android app启动的分支，暂时不管 ...... } else {//分析Android app启动的时候，我还在想谁会走这条分支呢，原来是system_server进程启动会走 // Don't set application object here -- if the system crashes, // we can't display an alert, we just want to die die die.             android.ddm.DdmHandleAppName.setAppName("system_process",                     UserHandle.myUserId());//设置system_server进程在DDMS中的名称为system_process，system_server和system_process都是同一个进程只是套了不同的马甲，各位不要被蒙骗了 try {                 mInstrumentation = new Instrumentation();                 mInstrumentation.basicInit(this); // 先通过getSystemContext()创建系统上下文，然后通过createAppContext创建应用上下文                 ContextImpl context = ContextImpl.createAppContext( this, getSystemContext().mPackageInfo); //创建Application                 mInitialApplication = context.mPackageInfo.makeApplication(true, null); // 调用Application的onCreate()                    mInitialApplication.onCreate(); } catch (Exception e) { throw new RuntimeException( "Unable to instantiate Application():" + e.toString(), e); } } // add dropbox logging to libcore         DropBox.setReporter(new DropBoxReporter());          ViewRootImpl.ConfigChangedCallback configChangedCallback                 = (Configuration globalConfig) -> { synchronized (mResourcesManager) { // We need to apply this change to the resources immediately, because upon returning // the view hierarchy will be informed about it. if (mResourcesManager.applyConfigurationToResourcesLocked(globalConfig,                         null /* compat */)) { updateLocaleListFromAppContext(mInitialApplication.getApplicationContext(),                             mResourcesManager.getConfiguration().getLocales()); // This actually changed the resources! Tell everyone about it. if (mPendingConfiguration == null                             || mPendingConfiguration.isOtherSeqNewer(globalConfig)) {                         mPendingConfiguration = globalConfig; sendMessage(H.CONFIGURATION_CHANGED, globalConfig); } } } }; //设置ViewrOotImpl回调，譬如语言，横竖变化时回调         ViewRootImpl.addConfigCallback(configChangedCallback); }

  通过上述的代码分析，我们可以归纳此时的attach主要干了如下几个事情:

• 创建系统上下文：getSystemContext() -> createSystemContext() -> new ContextImpl()
• 创建应用上下文：ContextImpl.createAppContext() -> new ContextImpl()
• 添加回调configChangedCallback到ViewRootImpl

1.3.3 ActivityThread.getSystemContext

  让我们继续跟进getSystemContext，该函数比较简单直接调用ContextImpl.createSystemContext创建系统上下文。

 public ContextImpl getSystemContext() { synchronized (this) { if (mSystemContext == null) {                 mSystemContext = ContextImpl.createSystemContext(this); } return mSystemContext; } }

1.3.4 ContextImpl.createSystemContext

  该方法定义在frameworks/base/core/java/android/app/ContextImpl.java中，代码如下：

 static ContextImpl createSystemContext(ActivityThread mainThread) { // 这边new出来的LoadedApk将作为创建应用上下文的参数packageInfo         LoadedApk packageInfo = new LoadedApk(mainThread); //通过ContextImpl创建系统上下文         ContextImpl context = new ContextImpl(null, mainThread, packageInfo, null, null, null, 0,                 null);         context.setResources(packageInfo.getResources());         context.mResources.updateConfiguration(context.mResourcesManager.getConfiguration(),                 context.mResourcesManager.getDisplayMetrics()); return context; }

1.3.5 ContextImpl.createAppContext()创建应用上下文

 static ContextImpl createAppContext(ActivityThread mainThread, LoadedApk packageInfo) { if (packageInfo == null) throw new IllegalArgumentException("packageInfo"); //通过ContextImpl创建应用上下文         ContextImpl context = new ContextImpl(null, mainThread, packageInfo, null, null, null, 0,                 null);         context.setResources(packageInfo.getResources()); return context; }

  不用怀疑你的眼睛，这里的new ContextImpl的参数创建系统上下文和应用上下文是一样的，这是不是多此一举呢？createAppContext()中的参数packageInfo，就是createSystemContext()中new的LoadedApk。创建完成之后，系统上下文赋值给了ActivityThread的成员变量mSystemContext，而应用上下文只是作为函数中的局部变量临时使用。这是我的理解，不知道谷歌的工程师是不是这么认为的，或者童靴们你们有另外的理解！

1.3.6 LoadedApk.makeApplication

  让我们回头看下ActivityThread.attach中创建上下文的内容：

 try {                 mInstrumentation = new Instrumentation();                 mInstrumentation.basicInit(this);                 ContextImpl context = ContextImpl.createAppContext( this, getSystemContext().mPackageInfo); //创建Application                 mInitialApplication = context.mPackageInfo.makeApplication(true, null);                 mInitialApplication.onCreate(); } catch (Exception e) { throw new RuntimeException( "Unable to instantiate Application():" + e.toString(), e); }

  接下来让我们继续分析makeApplication，该方法定义在frameworks/base/core/java/android/app/LoadedApk.java中，源码如下：

 public Application makeApplication(boolean forceDefaultAppClass,             Instrumentation instrumentation) { if (mApplication != null) { return mApplication; }          Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "makeApplication");          Application app = null;          String appClass = mApplicationInfo.className; //这里传入的参数forceDefaultAppClass为true  if (forceDefaultAppClass || (appClass == null)) {             appClass = "android.app.Application"; } try {             java.lang.ClassLoader cl = getClassLoader(); // 此LoadedApk对象是createSystemContext时new的，mPackageName="android"，大伙可以回看下 if (!mPackageName.equals("android")) {                 Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "initializeJavaContextClassLoader"); initializeJavaContextClassLoader();                 Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); } //有创建了一个局部应用上下文             ContextImpl appContext = ContextImpl.createAppContext(mActivityThread, this); //创建application             app = mActivityThread.mInstrumentation.newApplication(                     cl, appClass, appContext);             appContext.setOuterContext(app); } catch (Exception e) { if (!mActivityThread.mInstrumentation.onException(app, e)) {                 Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); throw new RuntimeException( "Unable to instantiate application " + appClass                     + ": " + e.toString(), e); } } // 将前面创建的app添加到应用列表         mActivityThread.mAllApplications.add(app);         mApplication = app; ...... return app; }

1.3.6 createSystemContext总结

  createSystemContext这一章节涉及的知识面比较多，且比较重要，我们分析总结一番。在这一章节里面我们主要是创建了一个ActivityThread对象，这个对象大伙应该都不会感到陌生，然后然后执行了该对象的attach()方法，attach()方法中创建了系统上下文mSystemContext（类型为ContextImpl），并创建Application对象。系统上下文中，new了一个LoadedApk的成员变量，并将ActivityThread对象传给LoadedApk成员，后面的Application对象就是LoadedApk使用ActivityThread创建的，LoadedApk创建了Application对象后，将Application添加到ActivityThread的应用列表中。关于这个章节的内容这里限于主题和篇幅就不过多解释了，如果想更加详细的了解可以参见gityuan的博客理解Application创建过程。

1.4 初始化SystemServiceManager系统服务管理类

  让我们收回思路，回到SystemServer中的run方法中看看创建系统服务管理类的代码。

 // Create the system service manager. //通过前面章节创建的系统上下文创建mSystemServiceManager       mSystemServiceManager = new SystemServiceManager(mSystemContext); //设置mSystemServiceManager 的启动相关信息      mSystemServiceManager.setStartInfo(mRuntimeRestart,              mRuntimeStartElapsedTime, mRuntimeStartUptime); //将创建的mSystemServiceManager 添加到LocalServices中      LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);

  这一流程比较简单，主要逻辑有如下几点：

• 以前面章节创建的系统上下文mSystemContext初始化SystemServiceManager对象
• 设置mSystemServiceManager 对象启动信息，主要是时间和是否是重启等
• 将构建的mSystemServiceManager 其添加到本地服务列表中，本地服务列表是以类为key保存的一个列表，即列表中某种类型的对象最多只能有一个

1.4.1 SystemServiceManager简单分析

  该类定义在frameworks/base/services/core/java/com/android/server/SystemServiceManager.java中，主要代码逻辑如下：

public class SystemServiceManager { ...... //系统服务列表，可以看到必须系统服务必须继承SystemService private final ArrayList<SystemService> mServices = new ArrayList<SystemService>(); //当前处于开机过程的哪个阶段,这个定义在SystemService中不是SystemServer中，后续会讲解 private int mCurrentPhase = -1; ...... //启动系统服务第一种方式，通过类名 public SystemService startService(String className) { final Class<SystemService> serviceClass; try {             serviceClass = (Class<SystemService>)Class.forName(className); } catch (ClassNotFoundException ex) {             Slog.i(TAG, "Starting " + className); throw new RuntimeException("Failed to create service " + className                     + ": service class not found, usually indicates that the caller should " + "have called PackageManager.hasSystemFeature() to check whether the " + "feature is available on this device before trying to start the " + "services that implement it", ex); } return startService(serviceClass); } //第二种启动系统服务方式，创建并启动系统服务，系统服务类必须继承SystemService public <T extends SystemService> T startService(Class<T> serviceClass) { try { final String name = serviceClass.getName();             Slog.i(TAG, "Starting " + name);             Trace.traceBegin(Trace.TRACE_TAG_SYSTEM_SERVER, "StartService " + name); // Create the service. if (!SystemService.class.isAssignableFrom(serviceClass)) { throw new RuntimeException("Failed to create " + name                         + ": service must extend " + SystemService.class.getName()); } final T service; try {                 Constructor<T> constructor = serviceClass.getConstructor(Context.class);                 service = constructor.newInstance(mContext); } catch (InstantiationException ex) { throw new RuntimeException("Failed to create service " + name                         + ": service could not be instantiated", ex); } catch (IllegalAccessException ex) { throw new RuntimeException("Failed to create service " + name                         + ": service must have a public constructor with a Context argument", ex); } catch (NoSuchMethodException ex) { throw new RuntimeException("Failed to create service " + name                         + ": service must have a public constructor with a Context argument", ex); } catch (InvocationTargetException ex) { throw new RuntimeException("Failed to create service " + name                         + ": service constructor threw an exception", ex); } startService(service); return service; } finally {             Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER); } } //前面两种启动系统服务的方式，最后都会调用这个方法 public void startService(@NonNull final SystemService service) { // Register it.         mServices.add(service); // Start it. long time = SystemClock.elapsedRealtime(); try {             service.onStart(); } catch (RuntimeException ex) { throw new RuntimeException("Failed to start service " + service.getClass().getName() + ": onStart threw an exception", ex); } warnIfTooLong(SystemClock.elapsedRealtime() - time, service, "onStart"); } // 通知系统服务到了开机的哪个阶段，会遍历调用所有系统服务的onBootPhase()函数 public void startBootPhase(final int phase) { if (phase <= mCurrentPhase) { throw new IllegalArgumentException("Next phase must be larger than previous"); }         mCurrentPhase = phase;          Slog.i(TAG, "Starting phase " + mCurrentPhase); try {             Trace.traceBegin(Trace.TRACE_TAG_SYSTEM_SERVER, "OnBootPhase " + phase); final int serviceLen = mServices.size(); for (int i = 0; i < serviceLen; i++) { final SystemService service = mServices.get(i); long time = SystemClock.elapsedRealtime();                 Trace.traceBegin(Trace.TRACE_TAG_SYSTEM_SERVER, service.getClass().getName()); try {                     service.onBootPhase(mCurrentPhase); } catch (Exception ex) { throw new RuntimeException("Failed to boot service " + service.getClass().getName() + ": onBootPhase threw an exception during phase " + mCurrentPhase, ex); } warnIfTooLong(SystemClock.elapsedRealtime() - time, service, "onBootPhase");                 Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER); } } finally {             Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER); } } }

  我们这里说mCurrentPhase表示当前处于开机过程的那个阶段，有如下几个阶段，定义在frameworks/base/services/core/java/com/android/server/SystemService.java中，如下所示：

public abstract class SystemService { /*      * Boot Phases      */ public static final int PHASE_WAIT_FOR_DEFAULT_DISPLAY = 100; // maybe should be a dependency? /**      * After receiving this boot phase, services can obtain lock settings data.      */ public static final int PHASE_LOCK_SETTINGS_READY = 480; /**      * After receiving this boot phase, services can safely call into core system services      * such as the PowerManager or PackageManager.      */ public static final int PHASE_SYSTEM_SERVICES_READY = 500; /**      * After receiving this boot phase, services can safely call into device specific services.      */ public static final int PHASE_DEVICE_SPECIFIC_SERVICES_READY = 520; /**      * After receiving this boot phase, services can broadcast Intents.      */ public static final int PHASE_ACTIVITY_MANAGER_READY = 550; /**      * After receiving this boot phase, services can start/bind to third party apps.      * Apps will be able to make Binder calls into services at this point.      */ public static final int PHASE_THIRD_PARTY_APPS_CAN_START = 600; /**      * After receiving this boot phase, services can allow user interaction with the device.      * This phase occurs when boot has completed and the home application has started.      * System services may prefer to listen to this phase rather than registering a      * broadcast receiver for ACTION_BOOT_COMPLETED to reduce overall latency.      */ public static final int PHASE_BOOT_COMPLETED = 1000; ...... }

1.4.2 LocalServices

  该类定义在frameworks/base/core/java/com/android/server/LocalServices.java中，逻辑so easy就是将SystemService 存放在hash表中，供后续使用。

public final class LocalServices { private LocalServices() {} private static final ArrayMap<Class<?>, Object> sLocalServiceObjects = new ArrayMap<Class<?>, Object>(); /**      * Returns a local service instance that implements the specified interface.      *      * @param type The type of service.      * @return The service object.      */ @SuppressWarnings("unchecked") public static <T> T getService(Class<T> type) { synchronized (sLocalServiceObjects) { return (T) sLocalServiceObjects.get(type); } } /**      * Adds a service instance of the specified interface to the global registry of local services.      */ public static <T> void addService(Class<T> type, T service) { synchronized (sLocalServiceObjects) { if (sLocalServiceObjects.containsKey(type)) { throw new IllegalStateException("Overriding service registration"); }             sLocalServiceObjects.put(type, service); } } }

1.5 startBootstrapServices启动引导服务

  能被称为引导的东西个人感觉都是牛逼的东西，譬如windows下的BIOS引导程序,当然这里的引导服务也不例外，基本都是Android界的实干家，牛逼的很。

 //代码量有点多，所以把默认注释和无关紧要的代码给删掉了 private void startBootstrapServices() { ...... //通过mSystemServiceManager启动Installer，并且是阻塞等待与installd建立socket通道         Installer installer = mSystemServiceManager.startService(Installer.class); //这个服务暂时不清楚是干啥的         mSystemServiceManager.startService(DeviceIdentifiersPolicyService.class); //好吗，这个服务无需多言了，我是AMS重要你懂的         mActivityManagerService = mSystemServiceManager.startService(                 ActivityManagerService.Lifecycle.class).getService();         mActivityManagerService.setSystemServiceManager(mSystemServiceManager);         mActivityManagerService.setInstaller(installer); //PowerManagerService服务，牵涉到电源管理等等方面         mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class); //mPowerManagerService 已经准备就绪，AMS         mActivityManagerService.initPowerManagement(); //启动RecoverySystemService         mSystemServiceManager.startService(RecoverySystemService.class); //不知是啥，那就只能忽略了         RescueParty.noteBoot(mSystemContext); //启动LightsService服务         mSystemServiceManager.startService(LightsService.class); //这个服务不知是啥，暂时不管了 if (SystemProperties.getBoolean("config.enable_sidekick_graphics", false)) {             mSystemServiceManager.startService(WEAR_SIDEKICK_SERVICE_CLASS); } // 启动DisplayManagerService（必须咋PMS服务启动之前）         mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class); //划重点，初始化package manager之前，需要默认显示。阻塞，10s超时，see DisplayManagerService.onBootPhase()         mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY); traceEnd(); //当设备正在加密时，仅运行核心         String cryptState = SystemProperties.get("vold.decrypt"); if (ENCRYPTING_STATE.equals(cryptState)) {             Slog.w(TAG, "Detected encryption in progress - only parsing core apps");             mOnlyCore = true; } else if (ENCRYPTED_STATE.equals(cryptState)) {             Slog.w(TAG, "Device encrypted - only parsing core apps");             mOnlyCore = true; } // Start Carrier regionalization service //开启运营商区域化服务，先放着 if (RegionalizationEnvironment.isSupported()) {             Slog.i(TAG, "Regionalization Service");             RegionalizationService regionalizationService = new RegionalizationService();             ServiceManager.addService("regionalization", regionalizationService); } //启动PMS服务         mPackageManagerService = PackageManagerService.main(mSystemContext, installer,                 mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);         mFirstBoot = mPackageManagerService.isFirstBoot();         mPackageManager = mSystemContext.getPackageManager(); if (!mOnlyCore) { boolean disableOtaDexopt = SystemProperties.getBoolean("config.disable_otadexopt", false); if (!disableOtaDexopt) { traceBeginAndSlog("StartOtaDexOptService"); try {                     OtaDexoptService.main(mSystemContext, mPackageManagerService); } catch (Throwable e) { reportWtf("starting OtaDexOptService", e); } finally { traceEnd(); } } } //启动多用户服务，新建目录/data/user/         mSystemServiceManager.startService(UserManagerService.LifeCycle.class); // 初始化用来缓存包资源的属性缓存，不要问我怎么知道的，按照注释翻译的         AttributeCache.init(mSystemContext); //设置AMS         mActivityManagerService.setSystemProcess(); //直接过         mDisplayManagerService.setupSchedulerPolicies(); //直接过         OverlayManagerService overlayManagerService = new OverlayManagerService(                 mSystemContext, installer);         mSystemServiceManager.startService(overlayManagerService); if (SystemProperties.getInt("persist.sys.displayinset.top", 0) > 0) { // DisplayManager needs the overlay immediately.             overlayManagerService.updateSystemUiContext();             LocalServices.getService(DisplayManagerInternal.class).onOverlayChanged(); } //启动sensor服务         mSensorServiceStart = SystemServerInitThreadPool.get().submit(() -> {             TimingsTraceLog traceLog = new TimingsTraceLog(                     SYSTEM_SERVER_TIMING_ASYNC_TAG, Trace.TRACE_TAG_SYSTEM_SERVER);             traceLog.traceBegin(START_SENSOR_SERVICE); startSensorService();             traceLog.traceEnd(); }, START_SENSOR_SERVICE); }

  这里可以看到startBootstrapServices会首先等待installd启动完成，然后阻塞等待和建立连接。接着会启动一系列相关联的重要服务,其中比较常见的和经常会用到的如下表格所示：

1.6 startCoreServices启动核心服务

  无需多言，主要是启动Android系统各种核心服务，核心是啥各位应该都懂！

 private void startCoreServices() { // 启动BatteryService，用于管理电池各种状态情况         mSystemServiceManager.startService(BatteryService.class); //启动UsageStatsService服务，该服务主要用于统计应用使用情况         mSystemServiceManager.startService(UsageStatsService.class);         mActivityManagerService.setUsageStatsManager(                 LocalServices.getService(UsageStatsManagerInternal.class)); //启动WebViewUpdateService if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_WEBVIEW)) {             mWebViewUpdateService = mSystemServiceManager.startService(WebViewUpdateService.class); } // Tracks cpu time spent in binder calls         BinderCallsStatsService.start(); }

  其中核心服务中常见的和其作用如下表格所示：

1.7 startOtherServices启动其它服务

  好吗其它，你懂的！就好像各种排名，通常是以其它结束的。这里的代码比较多，没有什么难点，就是启动各种服务。

 private void startOtherServices() { ......   mSystemServiceManager.startService(KeyChainSystemService.class); //启动调度策略服务   ServiceManager.addService("scheduling_policy", new SchedulingPolicyService());   mSystemServiceManager.startService(TelecomLoaderService.class);     telephonyRegistry = new TelephonyRegistry(context);// 提供电话注册、管理服务，可以获取电话的链接状态、信号强度等         ServiceManager.addService("telephony.registry", telephonyRegistry);            mSystemServiceManager.startService(ACCOUNT_SERVICE_CLASS);//启动账号管理，密码，认证等相关的服务      mSystemServiceManager.startService(CONTENT_SERVICE_CLASS);    mActivityManagerService.installSystemProviders();//启动provider服务      mSystemServiceManager.startService(DropBoxManagerService.class);      vibrator = new VibratorService(context);         ServiceManager.addService("vibrator", vibrator);            mSystemServiceManager.startService(AlarmManagerService.class);//Alarm服务    watchdog.init(context, mActivityManagerService);//启动看门狗服务      inputManager = new InputManagerService(context);//启动input输入管理服务   wm = WindowManagerService.main(context, inputManager,                     mFactoryTestMode != FactoryTest.FACTORY_TEST_LOW_LEVEL, !mFirstBoot, mOnlyCore, new PhoneWindowManager());//WMS服务，这个也很重要         ServiceManager.addService(Context.WINDOW_SERVICE, wm, /* allowIsolated= */ false,                 DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PROTO);         ServiceManager.addService(Context.INPUT_SERVICE, inputManager, /* allowIsolated= */ false, DUMP_FLAG_PRIORITY_CRITICAL);         mActivityManagerService.setWindowManager(wm); startHidlServices();//启动HIDL服务    mSystemServiceManager.startService(VrManagerService.class);//启动vr服务    inputManager.setWindowManagerCallbacks(wm.getInputMonitor());//启动inputManager         inputManager.start();    mDisplayManagerService.windowManagerAndInputReady(); //SystemServer启动的480阶段   mSystemServiceManager.startBootPhase(SystemService.PHASE_LOCK_SETTINGS_READY); //SystemServer启动的500阶段   mSystemServiceManager.startBootPhase(SystemService.PHASE_SYSTEM_SERVICES_READY); //SystemServer启动的520阶段   mSystemServiceManager.startBootPhase(SystemService.PHASE_DEVICE_SPECIFIC_SERVICES_READY);    mActivityManagerService.systemReady(() -> {        mSystemServiceManager.startBootPhase(                     SystemService.PHASE_ACTIVITY_MANAGER_READY); try { startSystemUi(context, windowManagerF); } catch (Throwable e) { reportWtf("starting System UI", e); } }              mSystemServiceManager.startBootPhase(                     SystemService.PHASE_THIRD_PARTY_APPS_CAN_START); }

  在这一阶段启动的服务太多了，就不一一列举出来，在该阶段的最后调用AMS.systemReady()启动默认Lancher进而完成了整个的开机流程。到此, System_server主线程的启动工作总算完成, 进入Looper.loop()状态,等待其他线程通过handler发送消息到主线再处理.。最后附上该阶段启动的相关服务常见列表！

二. SystemServer服务启动阶段概括

  通过前面的章节我们发现在SystemServer启动服务的三个阶段过程中，SystemServiceManager的startBootPhase()贯穿system_server进程以及服务的整个启动过程，基本示意图如下所示：

  其中最后的PHASE_BOOT_COMPLETED=1000，该阶段是发生在Boot完成和home应用启动完毕，从而完成了真正意义上的Android终端开机启动流程。系统服务更倾向于监听该阶段，而不是注册广播ACTION_BOOT_COMPLETED，从而降低系统延迟。

  其中各个启动阶段在system_server进程启动中的源码位置如下所示：

public final class SystemServer { private void startBootstrapServices() { ... //phase100       mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY); ... } //重点注意，在该阶段是没有设置启动阶段标志的相关设置 private void startCoreServices() { ... } private void startOtherServices() { ... //phase480 && 500       mSystemServiceManager.startBootPhase(SystemService.PHASE_LOCK_SETTINGS_READY);       mSystemServiceManager.startBootPhase(SystemService.PHASE_SYSTEM_SERVICES_READY); //520       mSystemServiceManager.startBootPhase(SystemService.PHASE_DEVICE_SPECIFIC_SERVICES_READY); ...  mActivityManagerService.systemReady(() -> { ...... //550   mSystemServiceManager.startBootPhase(SystemService.PHASE_ACTIVITY_MANAGER_READY); //600         mSystemServiceManager.startBootPhase(SystemService.PHASE_THIRD_PARTY_APPS_CAN_START); ...... }, BOOT_TIMINGS_TRACE_LOG); } public class ActivityManagerService extends IActivityManager.Stub implements Watchdog.Monitor, BatteryStatsImpl.BatteryCallback { ...... final void finishBooting() { ...... // Let system services know.10000         mSystemServiceManager.startBootPhase(SystemService.PHASE_BOOT_COMPLETED); ...... } ...... }

  如上就是Systemserver启动服务的各个阶段相关标志的设置，那么下面我们简单分析分析各个阶段主要完成的相关工作。

2.1 PHASE_START(0)

  在源码中是没有这个阶阶段的，这个是我们让更好的理解,本人强行加上去的，可以理解为system_server进程启动之后并启动SystemSever的开始阶段，在这一阶段主要创建了如下几个引导服务：

• installer服务，主要是提供给其它服务使用
• ActivityManagerService
• PowerManagerService
• RecoverySystemService
• DisplayManagerService

2.2 PHASE_WAIT_FOR_DEFAULT_DISPLAY(100)

  进入该阶段后，将会回调2.1阶段创建的相关服务的onBootPhase(100)方法，然后继续创建下列相关的服务：

• PackageManagerService
• UserManagerService
• OverlayManagerService
• BatteryService
• UsageStatsService
• InputManagerService
• WindowManagerService
• NetworkWatchlistService

2.3 PHASE_LOCK_SETTINGS_READY(480)

  进入该阶段后会回调前面阶段创建服务的onBootPhase(480)方法，该阶段非常短调用完上述方法后会直接进入PHASE_SYSTEM_SERVICES_READY(500)阶段。

2.4 PHASE_SYSTEM_SERVICES_READY(500)

  进入该阶段后会回调前面阶段创建服务的onBootPhase(500)方法，并依次执行如下服务的systemReady方法：

• WindowManagerService.systemReady():
• PowerManagerService.systemReady():
• PackageManagerService.systemReady():
• DisplayManagerService.systemReady():

接下来就绪AMS.systemReady方法，这个方法非常重要！

2.5 PHASE_ACTIVITY_MANAGER_READY(550)

  该阶段中将设置AMS的mSystemReady为true表明AMS已准备就绪,进入该阶段服务能广播Intent;但是system_server主线程并没有就绪，然后继续会调用前面创建服务的onBootPhase(550)方法！接下来执行: (AMS启动native crash监控, 加载WebView，启动SystemUi等),如下：

• mActivityManagerService.startObservingNativeCrashes()

• mWebViewUpdateService.prepareWebViewInSystemServer

• startSystemUi(context)

• networkManagementF.systemReady

• pSecServiceF.systemReady

• networkStatsF.systemRead

• connectivityF.systemReady

• networkPolicyF.systemReady

• Watchdog.getInstance().start()

2.6 PHASE_THIRD_PARTY_APPS_CAN_START(600)

  该阶段依次会调用前面阶段创建服务的onBootPhase(600)，接着调用如下服务的systemRunning方法：

• locationF.systemRunning
• countryDetectorF.systemRunning
• networkTimeUpdaterF.systemRunning
• commonTimeMgmtServiceF.systemRunning
• inputManagerF.systemRunning
• telephonyRegistryF.systemRunning
• mediaRouterF.systemRunning
• mmsServiceF.systemRunning
• incident.systemRunning

2.7 PHASE_BOOT_COMPLETED(1000)

  在经过如上一系列流程，最终调用AMS.finishBooting()时，则进入阶段PHASE_BOOT_COMPLETED(1000)。
到此，系统服务启动阶段完成就绪，system_server进程启动完成则进入Looper.loop()状态，随时待命，等待消息队列MessageQueue中的消息到来，则马上进入执行状态。

结语

  经过层层的拨山涉水，我们终于system_server进程的启动以及其启动过程中的丰功伟绩介绍完成了，到这里大伙应该明白了为啥system_server进程可以做到和zygote进程生死与共了，这个哥们是有实力的人不是靠吹牛皮来的。

写在最后

  system_server进程启动篇章终于告一段落了，在后续篇章中我们将要讲述zygote进程怎么否孵化普通App进程的，这个也是后续篇章的重点。好了，如果今天的文章对大伙有帮助，希望能点个赞，求个关注！各位江湖见！
