SystemJobScheduler的工作过程

先看其构造方法，它会将我们传递进来的WorkManagerImpl 与context进行保存，并在它的重载方法里获取了系统服务jobScheduler，要了解jobScheduler，推荐一篇博文可以看看JobScheduler的使用，

而另外一个参数SystemJobInfoConverter 则是用来将我们的workSpecs转化为JobInfo，这个JobInfo是jobScheduler需要的参数 ，用来描述任务的执行时间，条件，策略等一系列的行为。因为我们的workSpecs中包含worker执行的一些配置和条件，从而可以通过SystemJobInfoConverter将workSpecs转化为JobInfo

public SystemJobScheduler(@NonNull Context context, @NonNull WorkManagerImpl workManager) {     this(context,             workManager,             (JobScheduler) context.getSystemService(Context.JOB_SCHEDULER_SERVICE),  //获取到了系统服务JobScheduler进行重载             new SystemJobInfoConverter(context));   //用来将我们传递的数据转换为JobInfo类型 }  @VisibleForTesting public SystemJobScheduler(         Context context,         WorkManagerImpl workManager,         JobScheduler jobScheduler,         SystemJobInfoConverter systemJobInfoConverter) {     mWorkManager = workManager;     mJobScheduler = jobScheduler;     mIdGenerator = new IdGenerator(context);     mSystemJobInfoConverter = systemJobInfoConverter; }

它的schedule方法，主要做了这么几件事，根据传递进来的WorkSpec的ID，从数据库获取对应的WorkSpec，并根据WorkSpec.id从SystemIdInfo这张数据表中获取对应的系统编号，该编号的一大作用是，在 调度器执行该worker时，消除重复的任务调用。

  public void schedule(WorkSpec... workSpecs) {         WorkDatabase workDatabase = mWorkManager.getWorkDatabase();          for (WorkSpec workSpec : workSpecs) {   //循环遍历workSpecs             workDatabase.beginTransaction();             try {                  WorkSpec currentDbWorkSpec = workDatabase.workSpecDao().getWorkSpec(workSpec.id); //从数据库中根据id获取对应的WorkSpec                  if (currentDbWorkSpec == null) {                     Logger.get().warning(                             TAG,                             "Skipping scheduling " + workSpec.id                                     + " because it's no longer in the DB");                     continue;                 } else if (currentDbWorkSpec.state != WorkInfo.State.ENQUEUED) {                     Logger.get().warning(                             TAG,                             "Skipping scheduling " + workSpec.id                                     + " because it is no longer enqueued");                     continue;                 }                  SystemIdInfo info = workDatabase.systemIdInfoDao()                         .getSystemIdInfo(workSpec.id);     //获取对应的系统编号                  if (info != null) {                     JobInfo jobInfo = getPendingJobInfo(mJobScheduler, workSpec.id);  //如果该workSpec 已经被转化为JobInfo 且已经放入到了jobScheduler，这直接跳过本次循环                     if (jobInfo != null) {                         Logger.get().debug(TAG, String.format(                                 "Skipping scheduling %s because JobScheduler is aware of it "                                         + "already.",                                 workSpec.id));                         continue;                     }                 }                  int jobId = info != null ? info.systemId : mIdGenerator.nextJobSchedulerIdWithRange(                         mWorkManager.getConfiguration().getMinJobSchedulerId(),                         mWorkManager.getConfiguration().getMaxJobSchedulerId());  //将info.systemId作为jobId 如果为空，则根据Configuration中指定的条件去生成jobId                   if (info == null) {                     SystemIdInfo newSystemIdInfo = new SystemIdInfo(workSpec.id, jobId);                     mWorkManager.getWorkDatabase()                             .systemIdInfoDao()                             .insertSystemIdInfo(newSystemIdInfo);                 }   //如果info为空，通过jobId与workSpec.id生成一条心的数据插入SystemIdInfo                   scheduleInternal(workSpec, jobId);                       if (Build.VERSION.SDK_INT == 23) {                     int nextJobId = mIdGenerator.nextJobSchedulerIdWithRange(                             mWorkManager.getConfiguration().getMinJobSchedulerId(),                             mWorkManager.getConfiguration().getMaxJobSchedulerId());                      scheduleInternal(workSpec, nextJobId);   //根据条件调用scheduleInternal方法                 }                  workDatabase.setTransactionSuccessful();             } finally {                 workDatabase.endTransaction();             }         }     }

查看scheduleInternal，在其内部，就是通过给定的参数，将workspec转化为jobinfo，并放入到JobScheduler中。JobScheduler是系统服务，由android程序启动的时候自动拉起无需手动去操作,而与JobScheduler对应的jobservice由系统自动生成，继续反编译查看apk

public void scheduleInternal(WorkSpec workSpec, int jobId) {     JobInfo jobInfo = mSystemJobInfoConverter.convert(workSpec, jobId);     Logger.get().debug(             TAG,             String.format("Scheduling work ID %s Job ID %s", workSpec.id, jobId));     mJobScheduler.schedule(jobInfo); }

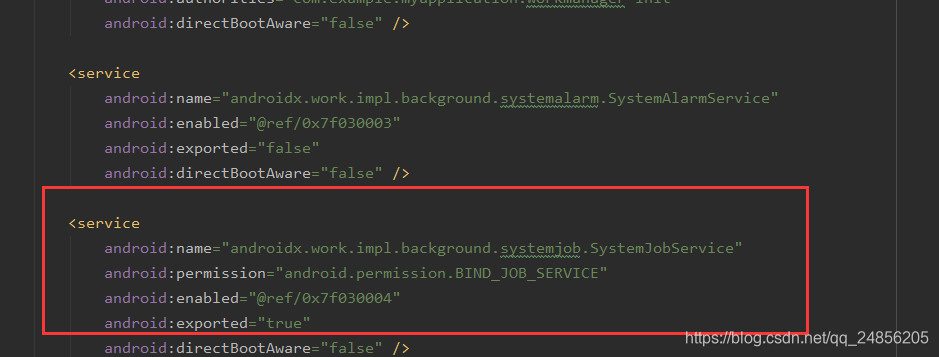

会发现系统为我们自动实现了一个SystemJobService，也就是当JobScheduler中的条件满足时，SystemJobService就会被调用到
​​

在 SystemJobService中的onStartJob中，重点是最后一个方法，该方法调用了WorkManagerImpl.startWork，并将workSpecId，与runtimeExtras作为参数传入。

  @Override     public boolean onStartJob(JobParameters params) {            //屏蔽了无关代码         mWorkManagerImpl.startWork(workSpecId, runtimeExtras);         return true;     }  在startWork中，调用了mWorkTaskExecutor去执行StartWorkRunnable   public void startWork(String workSpecId, WorkerParameters.RuntimeExtras runtimeExtras) {         mWorkTaskExecutor                 .executeOnBackgroundThread(                         new StartWorkRunnable(this, workSpecId, runtimeExtras));     }

进入StartWorkRunnable的run方法中，调用了Processor的startWork方法（Processor之前有讲解）

@RestrictTo(RestrictTo.Scope.LIBRARY_GROUP) public class StartWorkRunnable implements Runnable {      private WorkManagerImpl mWorkManagerImpl;     private String mWorkSpecId;     private WorkerParameters.RuntimeExtras mRuntimeExtras;      public StartWorkRunnable(             WorkManagerImpl workManagerImpl,             String workSpecId,             WorkerParameters.RuntimeExtras runtimeExtras) {         mWorkManagerImpl = workManagerImpl;         mWorkSpecId = workSpecId;         mRuntimeExtras = runtimeExtras;     }      @Override     public void run() {         mWorkManagerImpl.getProcessor().startWork(mWorkSpecId, mRuntimeExtras);     } }

这里最终调用了mWorkManagerImpl.getProcessor().startWork方法

mWorkManagerImpl.getProcessor().startWork方法流程分析（该方法过程的调用会在后面多次使用到）

Processor会在我们实例化WorkManagerImpl时构造，在Processor的startWork方法内首先会通过之前传递进来的对象锁进行加锁，然后在内部构件了一个workWrapper，它是一个runable,最后放到了mWorkTaskExecutor在后台去执行

 public boolean startWork(String id, WorkerParameters.RuntimeExtras runtimeExtras) {         WorkerWrapper workWrapper;         synchronized (mLock) {             // Work may get triggered multiple times if they have passing constraints             // and new work with those constraints are added.             if (mEnqueuedWorkMap.containsKey(id)) {                 Logger.get().debug(                         TAG,                         String.format("Work %s is already enqueued for processing", id));                 return false;             }              workWrapper =                     new WorkerWrapper.Builder(                             mAppContext,                             mConfiguration,                             mWorkTaskExecutor,                             mWorkDatabase,                             id)                             .withSchedulers(mSchedulers)                             .withRuntimeExtras(runtimeExtras)                             .build();             ListenableFuture<Boolean> future = workWrapper.getFuture();             future.addListener(                     new FutureListener(this, id, future),                     mWorkTaskExecutor.getMainThreadExecutor());             mEnqueuedWorkMap.put(id, workWrapper);         }         mWorkTaskExecutor.getBackgroundExecutor().execute(workWrapper);         Logger.get().debug(TAG, String.format("%s: processing %s", getClass().getSimpleName(), id));         return true;     }

它的run方法内部比较复杂，主要是调用mWorker.startWork()，以及在最后结尾调用了onWorkFinished，接下来一个个分析这2步都做了什么动作

public void run() {     mTags = mWorkTagDao.getTagsForWorkSpecId(mWorkSpecId);   //从WorkTag中获取到WorkSpecId对应的Tag     mWorkDescription = createWorkDescription(mTags);    //创建work说明，内部通过StringBuilder进行拼接     runWorker();  }  private void runWorker() {     if (tryCheckForInterruptionAndResolve()) {   //检查程序是否中断，如果中断直接返回         return;     }      mWorkDatabase.beginTransaction();    //开启数据库事务     try {         mWorkSpec = mWorkSpecDao.getWorkSpec(mWorkSpecId);   //通过传递进来的WorkSpecId查询符合条件的WorkSpec并返回         if (mWorkSpec == null) {    //如果没有找到打印错误直接返回             Logger.get().error(                     TAG,                     String.format("Didn't find WorkSpec for id %s", mWorkSpecId));             resolve(false);             return;         }          // Do a quick check to make sure we don't need to bail out in case this work is already         // running, finished, or is blocked.         if (mWorkSpec.state != ENQUEUED) {    //如果该WorkSpec的状态不为ENQUEUED，表示对应的worker没有入队，无事可做，直接返回             resolveIncorrectStatus();    //继续检查WorkSpec的状态是否为running，如果是，则重新安排             mWorkDatabase.setTransactionSuccessful();   //设置数据库中对应状态为successful             Logger.get().debug(TAG,                     String.format("%s is not in ENQUEUED state. Nothing more to do.",                             mWorkSpec.workerClassName));             return;         }            if (mWorkSpec.isPeriodic() || mWorkSpec.isBackedOff()) {             long now = System.currentTimeMillis();             // Allow first run of a PeriodicWorkRequest when flex is applicable             // (when using AlarmManager) to go through. This is because when periodStartTime=0;             // calculateNextRunTime() always > now. We are being overly cautious with the             // SDK_INT check and the intervalDuration != flexDuration check.             // For more information refer to b/124274584             boolean isFirstRunWhenFlexApplicable =                     Build.VERSION.SDK_INT < WorkManagerImpl.MIN_JOB_SCHEDULER_API_LEVEL                             && mWorkSpec.intervalDuration != mWorkSpec.flexDuration                             && mWorkSpec.periodStartTime == 0;              if (!isFirstRunWhenFlexApplicable && now < mWorkSpec.calculateNextRunTime()) {                 Logger.get().debug(TAG,                         String.format(                                 "Delaying execution for %s because it is being executed "                                         + "before schedule.",                                 mWorkSpec.workerClassName));                 // For AlarmManager implementation we need to reschedule this kind  of Work.                 // This is not a problem for JobScheduler because we will only reschedule                 // work if JobScheduler is unaware of a jobId.                 resolve(true);                 return;             }         }          // Needed for nested transactions, such as when we're in a dependent work request when         // using a SynchronousExecutor.         mWorkDatabase.setTransactionSuccessful();     } finally {         mWorkDatabase.endTransaction();     }      // Merge inputs.  This can be potentially expensive code, so this should not be done inside     // a database transaction.     Data input;     if (mWorkSpec.isPeriodic()) {     //判断是否是定期任务         input = mWorkSpec.input;      //将我们通过workRequest传入的参数保存     } else {         InputMerger inputMerger = InputMerger.fromClassName(mWorkSpec.inputMergerClassName);   //通过WorkSpec中存储的worker的类名反射构造该worker的实例         if (inputMerger == null) {             Logger.get().error(TAG, String.format("Could not create Input Merger %s",                     mWorkSpec.inputMergerClassName));             setFailedAndResolve();             return;         }         List<Data> inputs = new ArrayList<>();         inputs.add(mWorkSpec.input);         inputs.addAll(mWorkSpecDao.getInputsFromPrerequisites(mWorkSpecId));         input = inputMerger.merge(inputs);    //将我们执行worker的入参添加到input中去     }      WorkerParameters params = new WorkerParameters(             UUID.fromString(mWorkSpecId),             input,             mTags,             mRuntimeExtras,             mWorkSpec.runAttemptCount,             mConfiguration.getExecutor(),             mWorkTaskExecutor,             mConfiguration.getWorkerFactory());      // Not always creating a worker here, as the WorkerWrapper.Builder can set a worker override     // in test mode.     if (mWorker == null) {    //如果mWorker 为空，则根据WorkSpec.workerClassName创建一个worker实例         mWorker = mConfiguration.getWorkerFactory().createWorkerWithDefaultFallback(                 mAppContext,                 mWorkSpec.workerClassName,                 params);     }      if (mWorker == null) {              Logger.get().error(TAG,                 String.format("Could not create Worker %s", mWorkSpec.workerClassName));         setFailedAndResolve();         return;     }      if (mWorker.isUsed()) {   //如果该mWorker已经被调用过         Logger.get().error(TAG,                 String.format("Received an already-used Worker %s; WorkerFactory should return "                         + "new instances",                         mWorkSpec.workerClassName));         setFailedAndResolve();         return;     }     mWorker.setUsed();    //将mWorker设置为已被使用      // Try to set the work to the running state.  Note that this may fail because another thread     // may have modified the DB since we checked last at the top of this function.     if (trySetRunning()) {   //尝试运行         if (tryCheckForInterruptionAndResolve()) {   //检查任务是否中断并尝试解决             return;         }          final SettableFuture<ListenableWorker.Result> future = SettableFuture.create();    //构造一个future 实例         // Call mWorker.startWork() on the main thread.         mWorkTaskExecutor.getMainThreadExecutor()   //切换到主线程执行任务                 .execute(new Runnable() {                     @Override                     public void run() {                         try {                             Logger.get().debug(TAG, String.format("Starting work for %s",                                     mWorkSpec.workerClassName));                             mInnerFuture = mWorker.startWork();   //调用了worker实例的startwork方法并将执行结果返回                             future.setFuture(mInnerFuture);  //将结果放入future                         } catch (Throwable e) {                             future.setException(e);                         }                      }                 });          // Avoid synthetic accessors.         final String workDescription = mWorkDescription;         future.addListener(new Runnable() {   //future监听通知，             @Override             @SuppressLint("SyntheticAccessor")             public void run() {                 try {                     // If the ListenableWorker returns a null result treat it as a failure.                     ListenableWorker.Result result = future.get();   //将上面通过setFuture获得的结果返回                     if (result == null) {                         Logger.get().error(TAG, String.format(                                 "%s returned a null result. Treating it as a failure.",                                 mWorkSpec.workerClassName));                     } else {                         Logger.get().debug(TAG, String.format("%s returned a %s result.",                                 mWorkSpec.workerClassName, result));                         mResult = result;   //将结果赋值给mResult                      }                 } catch (CancellationException exception) {                     // Cancellations need to be treated with care here because innerFuture                     // cancellations will bubble up, and we need to gracefully handle that.                     Logger.get().info(TAG, String.format("%s was cancelled", workDescription),                             exception);                 } catch (InterruptedException | ExecutionException exception) {                     Logger.get().error(TAG,                             String.format("%s failed because it threw an exception/error",                                     workDescription), exception);                 } finally {                     onWorkFinished();   //                 }             }         }, mWorkTaskExecutor.getBackgroundExecutor());     } else {         resolveIncorrectStatus();     } }

首先看startWork方法，它是ListenableWorker中的方法，而ListenableWorker是Worker的父类，查看Worker，在它的startWork

中开启了一个线程池去执行dowork方法，到这一步，终于走完了整个调用过程，也就是我们创建的继承Worker类的testworker中的dowork方法会被调用，完成了后台任务的执行。当我们的dowork执行完毕后，会返回该结果，而这个结果在上面说了，是通过result进行了接收。而该状态会在onWorkFinished方法中进行更新。SystemJobScheduler的执行流程分析完毕。

public final @NonNull ListenableFuture<Result> startWork() {     mFuture = SettableFuture.create();     getBackgroundExecutor().execute(new Runnable() {         @Override         public void run() {             try {                 Result result = doWork();                 mFuture.set(result);             } catch (Throwable throwable) {                 mFuture.setException(throwable);             }          }     });     return mFuture; }

**

SystemAlarmScheduler工作流程

**

进入SystemAlarmScheduler的schedule方法，它会对传入的workSpecs进行遍历，并调用scheduleWorkSpec方法

   public void schedule(WorkSpec... workSpecs) {         for (WorkSpec workSpec : workSpecs) {             scheduleWorkSpec(workSpec);         }     }

而这个方法会调用createScheduleWorkIntent创建SystemAlarmService服务并将我们的workspecid进行传入，并开启该服务

private void scheduleWorkSpec(@NonNull WorkSpec workSpec) {     Logger.get().debug(TAG, String.format("Scheduling work with workSpecId %s", workSpec.id));     Intent scheduleIntent = CommandHandler.createScheduleWorkIntent(mContext, workSpec.id);     mContext.startService(scheduleIntent); }   static Intent createScheduleWorkIntent(@NonNull Context context, @NonNull String workSpecId) {     Intent intent = new Intent(context, SystemAlarmService.class);     intent.setAction(ACTION_SCHEDULE_WORK);     intent.putExtra(KEY_WORKSPEC_ID, workSpecId);     return intent; }

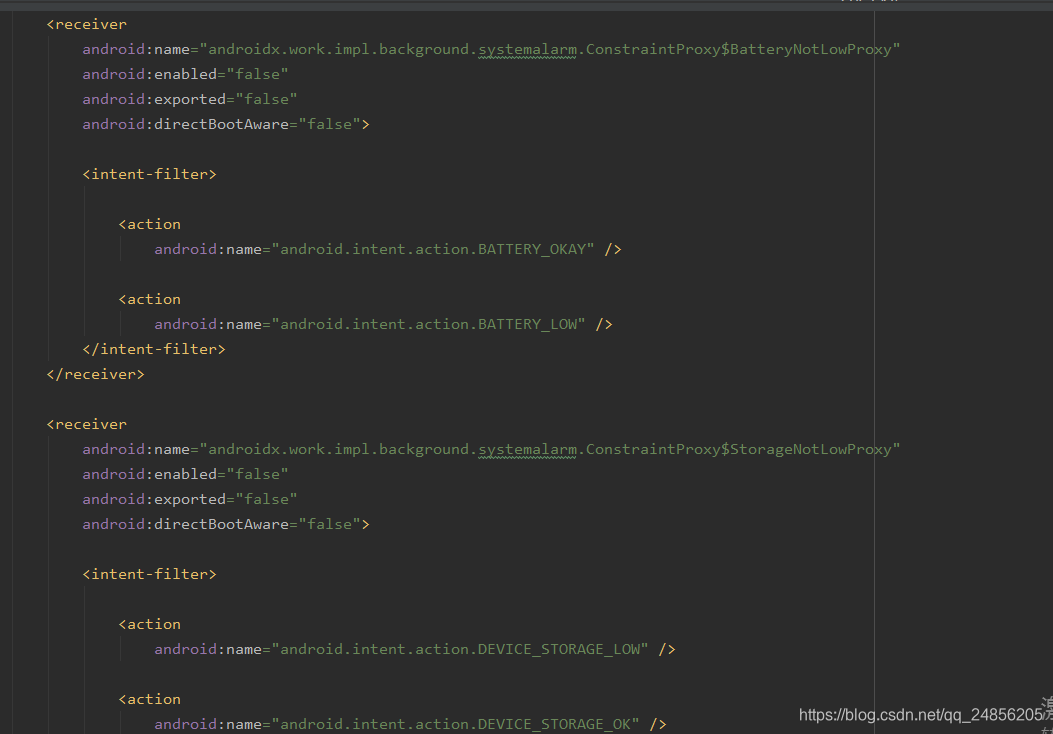

除此之外，还可以通过反编译apk看出，系统自动为我们静态注册了很多系统广播，

当我们接收到这些系统广播时，就会调用到createConstraintsChangedIntent，拉起SystemAlarmService，也就是当接收到这些广播时，SystemAlarmService会被拉起，然后根据传入的intent进行一系列操作，从而执行符合条件的worker

abstract class ConstraintProxy extends BroadcastReceiver {     private static final String TAG = Logger.tagWithPrefix("ConstraintProxy");      @Override     public void onReceive(Context context, Intent intent) {         Logger.get().debug(TAG, String.format("onReceive : %s", intent));         Intent constraintChangedIntent = CommandHandler.createConstraintsChangedIntent(context);         context.startService(constraintChangedIntent);     }      /**      * Proxy for Battery Not Low constraint      */     public static class BatteryNotLowProxy extends ConstraintProxy {     }      /**      * Proxy for Battery Charging constraint      */     public static class BatteryChargingProxy extends ConstraintProxy {     }      /**      * Proxy for Storage Not Low constraint      */     public static class StorageNotLowProxy extends ConstraintProxy {     }      /**      * Proxy for Network State constraints      */     public static class NetworkStateProxy extends ConstraintProxy {     }

查看该服务做了些什么，发现其内部创建了SystemAlarmDispatcher对象，并在onStartCommand中调用了其add方法

public class SystemAlarmService extends LifecycleService         implements SystemAlarmDispatcher.CommandsCompletedListener {      private static final String TAG = Logger.tagWithPrefix("SystemAlarmService");      private SystemAlarmDispatcher mDispatcher;      @Override     public void onCreate() {         super.onCreate();         mDispatcher = new SystemAlarmDispatcher(this);         mDispatcher.setCompletedListener(this);     }      @Override     public void onDestroy() {         super.onDestroy();         mDispatcher.onDestroy();     }      @Override     public int onStartCommand(Intent intent, int flags, int startId) {         super.onStartCommand(intent, flags, startId);         if (intent != null) {             mDispatcher.add(intent, startId);     //在这里进行了调用         }         // If the service were to crash, we want all unacknowledged Intents to get redelivered.         return Service.START_REDELIVER_INTENT;     }      @MainThread     @Override     public void onAllCommandsCompleted() {         Logger.get().debug(TAG, "All commands completed in dispatcher");         // Check to see if we hold any more wake locks.         WakeLocks.checkWakeLocks();         // No need to pass in startId; stopSelf() translates to stopSelf(-1) which is a hard stop         // of all startCommands. This is the behavior we want.         stopSelf();     } }

在该add方法中，会将我们传递进来的intent放入到mIntents中去，该mIntents是一个intent的list集合，并在最后调用了processCommand方法

public boolean add(@NonNull final Intent intent, final int startId) {     Logger.get().debug(TAG, String.format("Adding command %s (%s)", intent, startId));     assertMainThread();   //必须在主线程调用     String action = intent.getAction();     if (TextUtils.isEmpty(action)) {         Logger.get().warning(TAG, "Unknown command. Ignoring");         return false;     }      // If we have a constraints changed intent in the queue don't add a second one. We are     // treating this intent as special because every time a worker with constraints is complete     // it kicks off an update for constraint proxies.     if (CommandHandler.ACTION_CONSTRAINTS_CHANGED.equals(action)             && hasIntentWithAction(CommandHandler.ACTION_CONSTRAINTS_CHANGED)) {         return false;     }      intent.putExtra(KEY_START_ID, startId);     synchronized (mIntents) {         boolean hasCommands = !mIntents.isEmpty();         mIntents.add(intent);    //将intent放入到集合中去         if (!hasCommands) {             // Only call processCommand if this is the first command.             // The call to dequeueAndCheckForCompletion will process the remaining commands             // in the order that they were added.             processCommand();            }     }     return true; }

该方法内会将我们的intent传递给mCommandHandler.onHandleIntent去处理

 private void processCommand() {         assertMainThread();  //确保在主线程执行         PowerManager.WakeLock processCommandLock =   //                 WakeLocks.newWakeLock(mContext, PROCESS_COMMAND_TAG);         try {             processCommandLock.acquire();    //获取锁             // Process commands on the background thread.             mWorkManager.getWorkTaskExecutor().executeOnBackgroundThread(new Runnable() {  //将任务切换到WorkManager中的WorkTaskExecutor去执行                 @Override                 public void run() {                     synchronized (mIntents) {   //对mIntents加锁                         mCurrentIntent = mIntents.get(0);   //从mIntents中获取intent                     }                      if (mCurrentIntent != null) {                         final String action = mCurrentIntent.getAction();                         final int startId = mCurrentIntent.getIntExtra(KEY_START_ID,                                 DEFAULT_START_ID);                         Logger.get().debug(TAG,                                 String.format("Processing command %s, %s", mCurrentIntent,                                         startId));                         final PowerManager.WakeLock wakeLock = WakeLocks.newWakeLock(                                 mContext,                                 String.format("%s (%s)", action, startId));                         try {                             Logger.get().debug(TAG, String.format(                                     "Acquiring operation wake lock (%s) %s",                                     action,                                     wakeLock));                              wakeLock.acquire();                             mCommandHandler.onHandleIntent(mCurrentIntent, startId,                                     SystemAlarmDispatcher.this);   //调用mCommandHandler.onHandleIntent方法                         } catch (Throwable throwable) {                             Logger.get().error(                                     TAG,                                     "Unexpected error in onHandleIntent",                                     throwable);                         }  finally {                             Logger.get().debug(                                     TAG,                                     String.format(                                             "Releasing operation wake lock (%s) %s",                                             action,                                             wakeLock));                             wakeLock.release();   //释放锁                             // Check if we have processed all commands                             postOnMainThread(                                     new DequeueAndCheckForCompletion(SystemAlarmDispatcher.this));   // 当执行完毕后在主线程将本次任务意图从intents中进行移除                         }                     }                 }             });         } finally {             processCommandLock.release();         }     }

这个方法内使用到了状态模式，会对intent的action进行判断，并做不同的处理，当我们第一次进入时会进入handleScheduleWorkIntent

 void onHandleIntent(             @NonNull Intent intent,             int startId,             @NonNull SystemAlarmDispatcher dispatcher) {          String action = intent.getAction();          if (ACTION_CONSTRAINTS_CHANGED.equals(action)) {             handleConstraintsChanged(intent, startId, dispatcher);   //如果约束发生了改变啊，则更新数据库中workspec的状态，并重新构建intent重新添加到intents集合中去         } else if (ACTION_RESCHEDULE.equals(action)) {   //如果执行的时间发生变化             handleReschedule(intent, startId, dispatcher);         } else {             Bundle extras = intent.getExtras();             if (!hasKeys(extras, KEY_WORKSPEC_ID)) {                 Logger.get().error(TAG,                         String.format("Invalid request for %s, requires %s.",                                 action,                                  KEY_WORKSPEC_ID));             } else {   //对intent的action进行判断，并做不同的处理，当我们第一次开启service时，action为ACTION_SCHEDULE_WORK                 if (ACTION_SCHEDULE_WORK.equals(action)) {                        handleScheduleWorkIntent(intent, startId, dispatcher);  //处理任务                 } else if (ACTION_DELAY_MET.equals(action)) {                     handleDelayMet(intent, startId, dispatcher);   //处理延迟                 } else if (ACTION_STOP_WORK.equals(action)) {                     handleStopWork(intent, startId, dispatcher);   //处理任务停止                 } else if (ACTION_EXECUTION_COMPLETED.equals(action)) {                     handleExecutionCompleted(intent, startId, dispatcher);  //处理任务完成                 } else {                     Logger.get().warning(TAG, String.format("Ignoring intent %s", intent));                 }             }         }     }

查看handleReschedule做了什么，该方法会调用WorkManagerImpl的rescheduleEligibleWork

  private void handleReschedule(             @NonNull Intent intent,             int startId,             @NonNull SystemAlarmDispatcher dispatcher) {          Logger.get().debug(TAG, String.format("Handling reschedule %s, %s", intent, startId));         dispatcher.getWorkManager().rescheduleEligibleWork();     }

在这个方法内会将我们的任务状态进行更新，并重新调用Schedulers.schedule

  public void rescheduleEligibleWork() {         // TODO (rahulrav@) Make every scheduler do its own cancelAll().         if (Build.VERSION.SDK_INT >= WorkManagerImpl.MIN_JOB_SCHEDULER_API_LEVEL) {             SystemJobScheduler.jobSchedulerCancelAll(getApplicationContext());         }          // Reset scheduled state.         getWorkDatabase().workSpecDao().resetScheduledState();          // Delegate to the WorkManager's schedulers.         // Using getters here so we can use from a mocked instance         // of WorkManagerImpl.         Schedulers.schedule(getConfiguration(), getWorkDatabase(), getSchedulers());     }

查看handleScheduleWorkIntent，这里会判断workSpec是否存在约束，最终会走到Alarms.setAlarm中去，区别在于如果存在约束，则会调用完Alarms.setAlarm之后通过CommandHandler.createConstraintsChangedIntent构建一个intent意图发送给Dispatcher，然后重新进行一次回调

private void handleScheduleWorkIntent(         @NonNull Intent intent,         int startId,         @NonNull SystemAlarmDispatcher dispatcher) {            if (!workSpec.hasConstraints()) {   //该workspec是否存在约束             Logger.get().debug(TAG,                     String.format("Setting up Alarms for %s at %s", workSpecId, triggerAt));             Alarms.setAlarm(mContext, dispatcher.getWorkManager(), workSpecId, triggerAt);         } else {             // Schedule an alarm irrespective of whether all constraints matched.             Logger.get().debug(TAG,                     String.format("Opportunistically setting an alarm for %s at %s", workSpecId,                             triggerAt));             Alarms.setAlarm(                     mContext,                     dispatcher.getWorkManager(),                     workSpecId,                     triggerAt);                   Intent constraintsUpdate = CommandHandler.createConstraintsChangedIntent(mContext);             dispatcher.postOnMainThread(                     new SystemAlarmDispatcher.AddRunnable(   //在主线程调用了AddRunnable                             dispatcher,                             constraintsUpdate,                             startId));         }          workDatabase.setTransactionSuccessful();     } finally {         workDatabase.endTransaction();     } }  static Intent createConstraintsChangedIntent(@NonNull Context context) {     Intent intent = new Intent(context, SystemAlarmService.class);     intent.setAction(ACTION_CONSTRAINTS_CHANGED);   //约束发生了变更     return intent; }

查看 该AddRunnable 的run方法，会重新调用dispatcher的add方法，此时的intent的action已经发生了变化，所以当再次走到onHandleIntent方法时，就会走不同的调用渠道。（状态模式）

static class AddRunnable implements Runnable {     private final SystemAlarmDispatcher mDispatcher;     private final Intent mIntent;     private final int mStartId;      AddRunnable(@NonNull SystemAlarmDispatcher dispatcher,             @NonNull Intent intent,             int startId) {         mDispatcher = dispatcher;         mIntent = intent;         mStartId = startId;     }      @Override     public void run() {         mDispatcher.add(mIntent, mStartId);   //在这里将该intent作为参数，执行其add方法     } }

继续查看setAlarm， 这个方法内，会通过数据库中根据workSpecId去获取对应的系统编号，如果没有则会获取一个系统编号，并注册到数据库中去，他们最终都调用了setExactAlarm方法

public static void setAlarm(         @NonNull Context context,         @NonNull WorkManagerImpl workManager,         @NonNull String workSpecId,         long triggerAtMillis) {      WorkDatabase workDatabase = workManager.getWorkDatabase();     SystemIdInfoDao systemIdInfoDao = workDatabase.systemIdInfoDao();     SystemIdInfo systemIdInfo = systemIdInfoDao.getSystemIdInfo(workSpecId);    //获取workSpecId对应的系统编号     if (systemIdInfo != null) {        //对systemIdInfo 进行判断并做不同处理         cancelExactAlarm(context, workSpecId, systemIdInfo.systemId);             setExactAlarm(context, workSpecId, systemIdInfo.systemId, triggerAtMillis);     } else {         IdGenerator idGenerator = new IdGenerator(context);         int alarmId = idGenerator.nextAlarmManagerId();         SystemIdInfo newSystemIdInfo = new SystemIdInfo(workSpecId, alarmId);  //重新构建systemIdInfo 并放入数据库         systemIdInfoDao.insertSystemIdInfo(newSystemIdInfo);         setExactAlarm(context, workSpecId, alarmId, triggerAtMillis);     } }

在这里会获取AlarmManager，它属于系统服务之一的定时服务，会根据指定的意图，在合适的时间去调用所对应的SystemAlarmService，在这里会通过CommandHandler.createDelayMetIntent去创建一个inent，并放入到了AlarmManager

该createDelayMetIntent创造的意图的action为ACTION_DELAY_MET

  static Intent createDelayMetIntent(@NonNull Context context, @NonNull String workSpecId) {         Intent intent = new Intent(context, SystemAlarmService.class);         intent.setAction(ACTION_DELAY_MET);   //表明为延迟任务         intent.putExtra(KEY_WORKSPEC_ID, workSpecId);         return intent;     }

该定时服务会根据我们指定的PendingIntent，在合适的时间开启其对应的SystemAlarmService，并将对应的intent传递到SystemAlarmService中去，上面说过了在该SystemAlarmService的onStartCommand方法中调用了Dispatcher.add方法且将intent作为参数，这个方法最终又执行到了onHandleIntent方法，且此时的intent.action发生了变化，所以会走不同的渠道（状态模式）

private static void setExactAlarm(         @NonNull Context context,         @NonNull String workSpecId,         int alarmId,         long triggerAtMillis) {      AlarmManager alarmManager = (AlarmManager) context.getSystemService(Context.ALARM_SERVICE); //获取系统服务alarmManager      Intent delayMet = CommandHandler.createDelayMetIntent(context, workSpecId);     PendingIntent pendingIntent = PendingIntent.getService(             context, alarmId, delayMet, PendingIntent.FLAG_ONE_SHOT);    //根据传递进来的intent构造pendingIntent      if (alarmManager != null) {         if (Build.VERSION.SDK_INT >= 19) {             alarmManager.setExact(RTC_WAKEUP, triggerAtMillis, pendingIntent);         } else {             alarmManager.set(RTC_WAKEUP, triggerAtMillis, pendingIntent);         }     } }

通过反编译apk看出，该service由程序自动生成，无需手动实现

上面分析了，执行了setAlarm方法后，会重新构建一个intent并放入到了SystemAlarmService中，而该intent的action为ACTION_DELAY_MET，所以当再次执行到onHandleIntent时，就调用到了handleDelayMet方法

该方法主要执行了delayMetCommandHandler.handleProcessWork

   private void handleDelayMet(             @NonNull Intent intent,             int startId,             @NonNull SystemAlarmDispatcher dispatcher) {          Bundle extras = intent.getExtras();         synchronized (mLock) {             String workSpecId = extras.getString(KEY_WORKSPEC_ID);   //通过KEY_WORKSPEC_ID获取workSpecId              Logger.get().debug(TAG, String.format("Handing delay met for %s", workSpecId));              // Check to see if we are already handling an ACTION_DELAY_MET for the WorkSpec.             // If we are, then there is nothing for us to do.             if (!mPendingDelayMet.containsKey(workSpecId)) {   //如果不是延迟任务，则打印错误                 DelayMetCommandHandler delayMetCommandHandler =                         new DelayMetCommandHandler(mContext, startId, workSpecId,   dispatcher);   //由DelayMetCommandHandler 进行一次封装                 mPendingDelayMet.put(workSpecId, delayMetCommandHandler);                 delayMetCommandHandler.handleProcessWork();   //执行handleProcessWork             } else {                 Logger.get().debug(TAG,                         String.format("WorkSpec %s is already being handled for ACTION_DELAY_MET",                                 workSpecId));             }         }     }

在handleProcessWork中，会根据是否有约束选择调用onAllConstraintsMet与mWorkConstraintsTracker.replace

void handleProcessWork() {     mWakeLock = WakeLocks.newWakeLock(             mContext,             String.format("%s (%s)", mWorkSpecId, mStartId));     Logger.get().debug(TAG,             String.format("Acquiring wakelock %s for WorkSpec %s", mWakeLock, mWorkSpecId));     mWakeLock.acquire();    //加锁      WorkSpec workSpec = mDispatcher.getWorkManager()             .getWorkDatabase()             .workSpecDao()             .getWorkSpec(mWorkSpecId);    //根据mWorkSpecId获取workSpec       // This should typically never happen. Cancelling work should remove alarms, but if an     // alarm has already fired, then fire a stop work request to remove the pending delay met     // command handler.     if (workSpec == null) {           stopWork();         return;     }      // Keep track of whether the WorkSpec had constraints. This is useful for updating the     // state of constraint proxies when onExecuted().     mHasConstraints = workSpec.hasConstraints();      if (!mHasConstraints) {   //判断是否有约束         Logger.get().debug(TAG, String.format("No constraints for %s", mWorkSpecId));         onAllConstraintsMet(Collections.singletonList(mWorkSpecId));     } else {         // Allow tracker to report constraint changes         mWorkConstraintsTracker.replace(Collections.singletonList(workSpec));     } }

如果没有约束则在这个方法内，调用了Dispatcher.getProcessor().startWork(mWorkSpecId);最终完成了worker的执行 （上面有讲该执行的过程）

  public void onAllConstraintsMet(@NonNull List<String> workSpecIds) {         // WorkConstraintsTracker will call onAllConstraintsMet with list of workSpecs whose         // constraints are met. Ensure the workSpecId we are interested is part of the list         // before we call Processor#startWork().         if (!workSpecIds.contains(mWorkSpecId)) {             return;         }          Logger.get().debug(TAG, String.format("onAllConstraintsMet for %s", mWorkSpecId));         // Constraints met, schedule execution          // Not using WorkManagerImpl#startWork() here because we need to know if the processor         // actually enqueued the work here.         // TODO(rahulrav@) Once WorkManagerImpl provides a callback for acknowledging if         // work was enqueued, call WorkManagerImpl#startWork().         boolean isEnqueued = mDispatcher.getProcessor().startWork(mWorkSpecId);    //在这里调用          if (isEnqueued) {             // setup timers to enforce quotas on workers that have             // been enqueued             mDispatcher.getWorkTimer()                     .startTimer(mWorkSpecId, CommandHandler.WORK_PROCESSING_TIME_IN_MS, this);           } else {             // if we did not actually enqueue the work, it was enqueued before             // cleanUp and pretend this never happened.             cleanUp();         }     }

再查看其有约束的情况下怎么处理，

WorkConstraintsTracker.replace执行过程

查看WorkConstraintsTracker.replace方法，在这里调用了controller.replace(workSpecs);

public void replace(@NonNull List<WorkSpec> workSpecs) {     synchronized (mLock) {         for (ConstraintController controller : mConstraintControllers) {             controller.setCallback(null);         }          for (ConstraintController controller : mConstraintControllers) {             controller.replace(workSpecs);         }          for (ConstraintController controller : mConstraintControllers) {             controller.setCallback(this);         }     } }

replace主要就是遍历 workSpecs，并将有约束的workSpec添加到mMatchingWorkSpecIds，并在最后调用了updateCallback

public void replace(@NonNull List<WorkSpec> workSpecs) {     mMatchingWorkSpecIds.clear();      for (WorkSpec workSpec : workSpecs) {   //循环遍历workSpecs，判断其是否存在约束         if (hasConstraint(workSpec)) {             mMatchingWorkSpecIds.add(workSpec.id);  //如果有则添加到mMatchingWorkSpecIds         }     }      if (mMatchingWorkSpecIds.isEmpty()) {         mTracker.removeListener(this);     } else {         mTracker.addListener(this);     }     updateCallback(); }

这里updateCallback会根据约束情况来选择调用，而看源码可以发现这里是个回调方法，由WorkConstraintsTracker进行了实现

   private void updateCallback() {         if (mMatchingWorkSpecIds.isEmpty() || mCallback == null) {             return;         }           if (mCurrentValue == null || isConstrained(mCurrentValue)) {   //此处通过mCurrentValue 进行判断             mCallback.onConstraintNotMet(mMatchingWorkSpecIds);   //如果不存在约束，或者约束条件满足         } else {             mCallback.onConstraintMet(mMatchingWorkSpecIds);   //存在约束的情况         }     }      @Override     public void onConstraintChanged(@Nullable T newValue) {   //当约束发生改变时会调用这个方法，并对mCurrentValue 赋值         mCurrentValue = newValue;         updateCallback();     }

WorkConstraintsTracker的onConstraintMet主要是判断有约束条件的workSpecId的条件是否已经全部满足，如果满足则和不受约束的workSpecId做相同的处理，这里继续发生了回调

public void onConstraintMet(@NonNull List<String> workSpecIds) {     synchronized (mLock) {         List<String> unconstrainedWorkSpecIds = new ArrayList<>();         for (String workSpecId : workSpecIds) {   //遍历查看workSpec是否所有约束都满足             if (areAllConstraintsMet(workSpecId)) {                 Logger.get().debug(TAG, String.format("Constraints met for %s", workSpecId));                 unconstrainedWorkSpecIds.add(workSpecId);    //将满足所有条件的workSpecId 放入到该list中去             }         }         if (mCallback != null) {             mCallback.onAllConstraintsMet(unconstrainedWorkSpecIds);   //在这里调用onAllConstraintsMet，与不受约束条件的workSpecId 走了相同的渠道         }     } }  @Override public void onConstraintNotMet(@NonNull List<String> workSpecIds) {     synchronized (mLock) {         if (mCallback != null) {             mCallback.onAllConstraintsNotMet(workSpecIds);         }     } }

具体的方法调用是在DelayMetCommandHandler中，最终又走到了onAllConstraintsMet方法，完成了整体调用

 public void onAllConstraintsMet(@NonNull List<String> workSpecIds) {         // WorkConstraintsTracker will call onAllConstraintsMet with list of workSpecs whose         // constraints are met. Ensure the workSpecId we are interested is part of the list         // before we call Processor#startWork().         if (!workSpecIds.contains(mWorkSpecId)) {             return;         }          Logger.get().debug(TAG, String.format("onAllConstraintsMet for %s", mWorkSpecId));         // Constraints met, schedule execution          // Not using WorkManagerImpl#startWork() here because we need to know if the processor         // actually enqueued the work here.         // TODO(rahulrav@) Once WorkManagerImpl provides a callback for acknowledging if         // work was enqueued, call WorkManagerImpl#startWork().         boolean isEnqueued = mDispatcher.getProcessor().startWork(mWorkSpecId);          if (isEnqueued) {             // setup timers to enforce quotas on workers that have             // been enqueued             mDispatcher.getWorkTimer()                     .startTimer(mWorkSpecId, CommandHandler.WORK_PROCESSING_TIME_IN_MS, this);         } else {             // if we did not actually enqueue the work, it was enqueued before             // cleanUp and pretend this never happened.             cleanUp();         }     }

到这里为止SystemAlarmScheduler的执行流程分析完毕

GreedyScheduler的工作流程

它的执行过程相比之下比较简单，如果worker（这里使用的是workspec,但其描述的是对应的worker，与该worker有关联关系，这里对workspec的判断，其实还是对worker执行条件的判断）不受约束，则直接调用WorkManagerImpl.startWork去执行worker,否则调用WorkConstraintsTracker.replace。

public void schedule(WorkSpec... workSpecs) {     registerExecutionListenerIfNeeded();      // Keep track of the list of new WorkSpecs whose constraints need to be tracked.     // Add them to the known list of constrained WorkSpecs and call replace() on     // WorkConstraintsTracker. That way we only need to synchronize on the part where we     // are updating mConstrainedWorkSpecs.     List<WorkSpec> constrainedWorkSpecs = new ArrayList<>();     List<String> constrainedWorkSpecIds = new ArrayList<>();     for (WorkSpec workSpec: workSpecs) {    //循环遍历workSpecs         if (workSpec.state == WorkInfo.State.ENQUEUED   //是否入队                 && !workSpec.isPeriodic()    //是否定期任务                 && workSpec.initialDelay == 0L   //初始延迟是否为0                 && !workSpec.isBackedOff()) {    //是否为回退状态             if (workSpec.hasConstraints()) {     //是否存在约束                 // Exclude content URI triggers - we don't know how to handle them here so the                 // background scheduler should take care of them.                 if (Build.VERSION.SDK_INT < 24                         || !workSpec.constraints.hasContentUriTriggers()) {                     constrainedWorkSpecs.add(workSpec);                     constrainedWorkSpecIds.add(workSpec.id);     将有约束的workSpec和workSpec.id分别进行保存                 }             } else {                 Logger.get().debug(TAG, String.format("Starting work for %s", workSpec.id));                 mWorkManagerImpl.startWork(workSpec.id);    //否则调用WorkManagerImpl.startWork进行执行             }         }     }      // onExecuted() which is called on the main thread also modifies the list of mConstrained     // WorkSpecs. Therefore we need to lock here.     synchronized (mLock) {         if (!constrainedWorkSpecs.isEmpty()) {   //如果constrainedWorkSpecs不为空，也就是还有受限的WorkSpec存在时进入             Logger.get().debug(TAG, String.format("Starting tracking for [%s]",                     TextUtils.join(",", constrainedWorkSpecIds)));             mConstrainedWorkSpecs.addAll(constrainedWorkSpecs);             mWorkConstraintsTracker.replace(mConstrainedWorkSpecs);         }     } }

WorkConstraintsTracker.replace，这个方法之前已经分析过了，不过在GreedyScheduler中，我们最后一步步回调会调用到GreedyScheduler

public void replace(@NonNull List<WorkSpec> workSpecs) {     synchronized (mLock) {         for (ConstraintController controller : mConstraintControllers) {             controller.setCallback(null);         }          for (ConstraintController controller : mConstraintControllers) {             controller.replace(workSpecs);         }          for (ConstraintController controller : mConstraintControllers) {             controller.setCallback(this);         }     } }

可以发现在这2个方法中，对于符合条件和不符合条件的worker，循环遍历去执行或者做停止操作

   @Override     public void onAllConstraintsMet(@NonNull List<String> workSpecIds) {         for (String workSpecId : workSpecIds) {             Logger.get().debug(                     TAG,                     String.format("Constraints met: Scheduling work ID %s", workSpecId));             mWorkManagerImpl.startWork(workSpecId);    //调用了   mWorkManagerImpl.startWork方法         }     }      @Override     public void onAllConstraintsNotMet(@NonNull List<String> workSpecIds) {         for (String workSpecId : workSpecIds) {             Logger.get().debug(TAG,                     String.format("Constraints not met: Cancelling work ID %s", workSpecId));             mWorkManagerImpl.stopWork(workSpecId);   //调用 mWorkManagerImpl.stopWork方法         }     }

查看WorkManagerImpl.startWork方法

   public void startWork(String workSpecId, WorkerParameters.RuntimeExtras runtimeExtras) {         mWorkTaskExecutor                 .executeOnBackgroundThread(                         new StartWorkRunnable(this, workSpecId, runtimeExtras));     }

发现最终也是调用了Processor().startWork

public class StartWorkRunnable implements Runnable {      private WorkManagerImpl mWorkManagerImpl;     private String mWorkSpecId;     private WorkerParameters.RuntimeExtras mRuntimeExtras;      public StartWorkRunnable(             WorkManagerImpl workManagerImpl,             String workSpecId,             WorkerParameters.RuntimeExtras runtimeExtras) {         mWorkManagerImpl = workManagerImpl;         mWorkSpecId = workSpecId;         mRuntimeExtras = runtimeExtras;     }      @Override     public void run() {         mWorkManagerImpl.getProcessor().startWork(mWorkSpecId, mRuntimeExtras);   //在这里执行     } }

到此为止，3大调度器的工作流程和原理全部分析完毕
